Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
BP192V12RT3US
Category
UPS Batteries
Overview

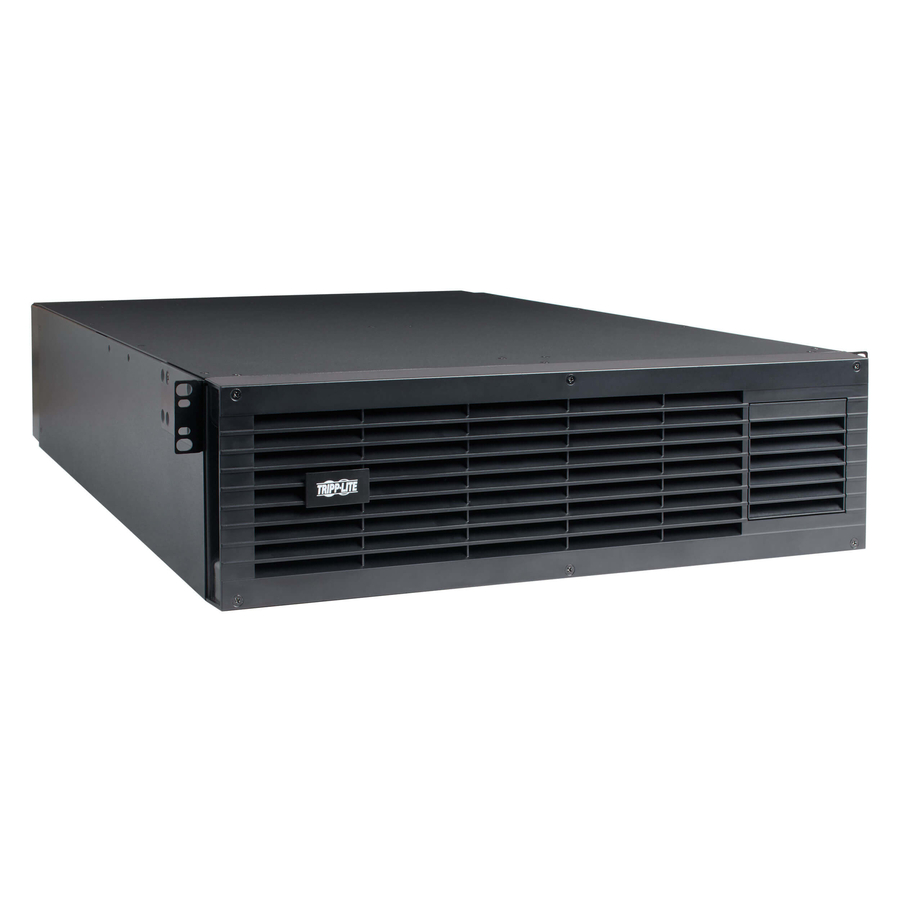

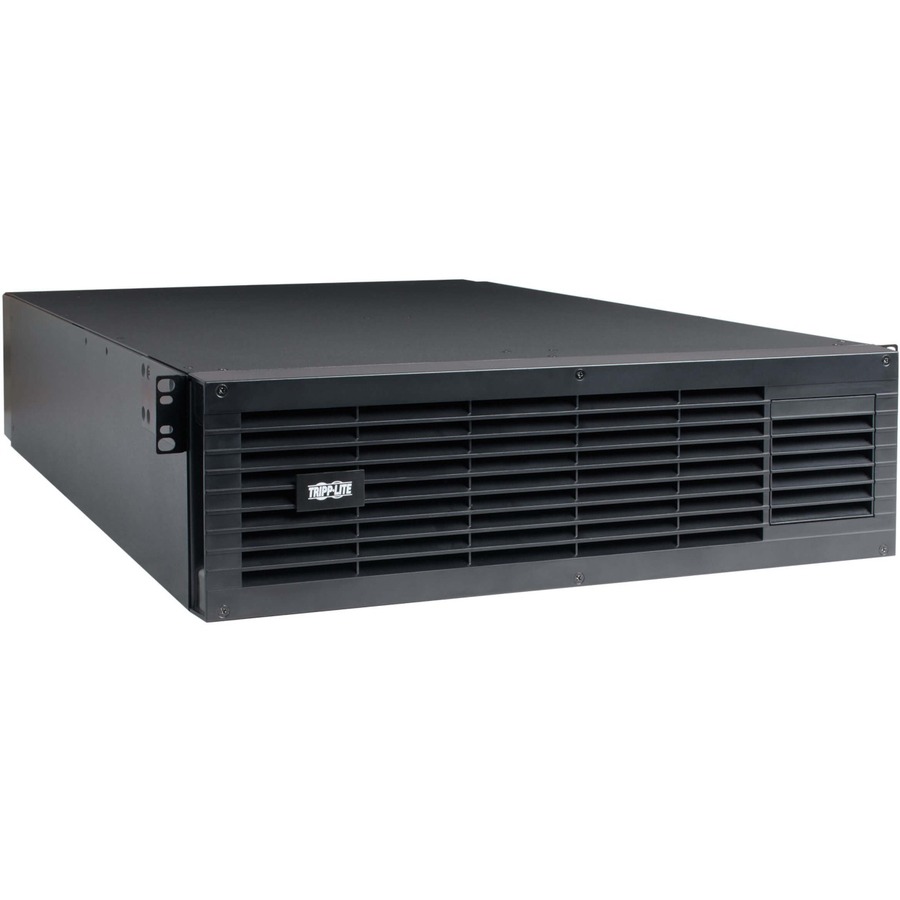

External Battery Pack Gives Your Compatible Tripp Lite UPS System Extended Runtime

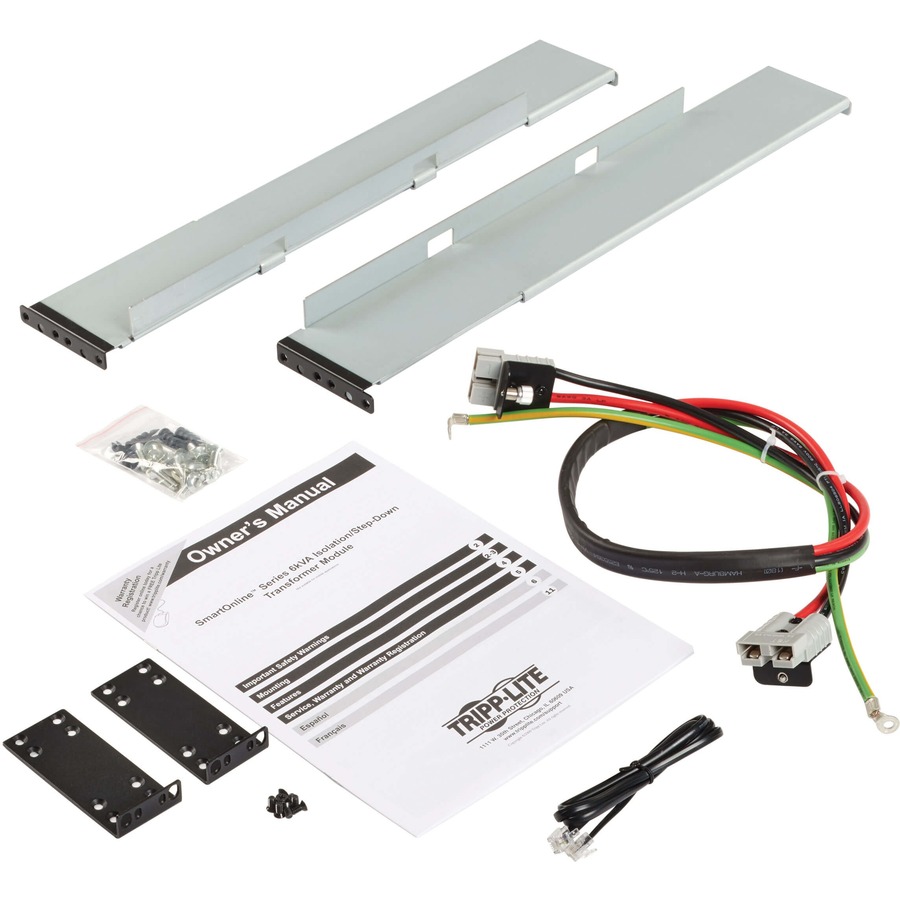

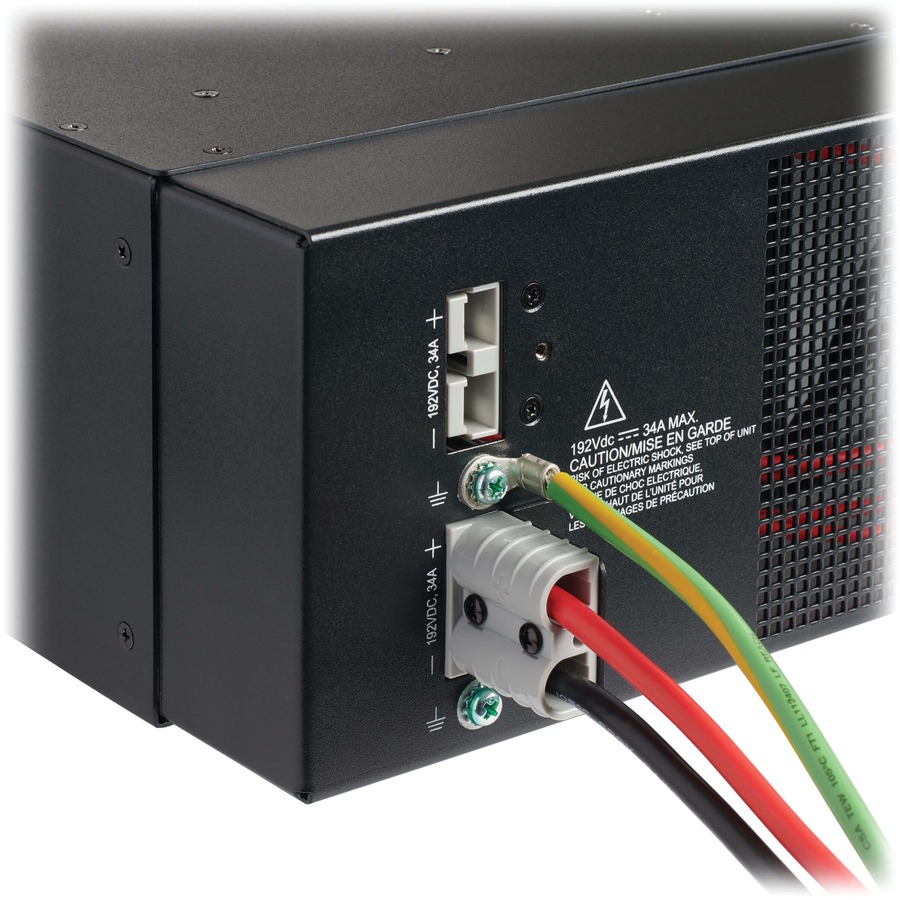

The BP192V12RT3US is compatible only with Tripp Lite UPS systems that specify the use of this battery pack (see System Requirements below). Not only does this external battery pack provide extended runtime, but it can also be daisy-chained using its input/output connectors to additional external battery packs for even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for simple installation.
Smart Battery Communicates with Your UPS for Optimal Performance
This external battery pack with included power and data cabling is automatically sensed by the UPS for highly accurate runtime reporting and ideal charge current settings. An additional data cable reports battery pack temperature to the UPS to enable temperature-compensated charging to extend battery lifespan and fast recharge.

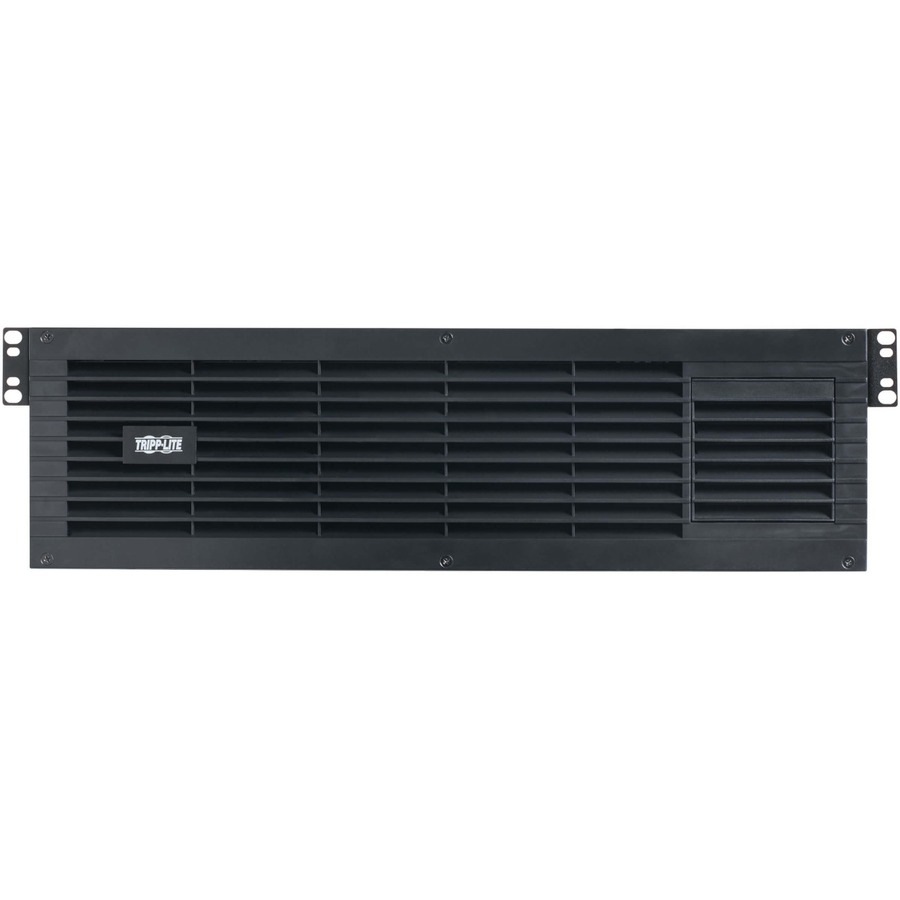

Mounts in 3U of Space in 19 in. 4-Post Racks

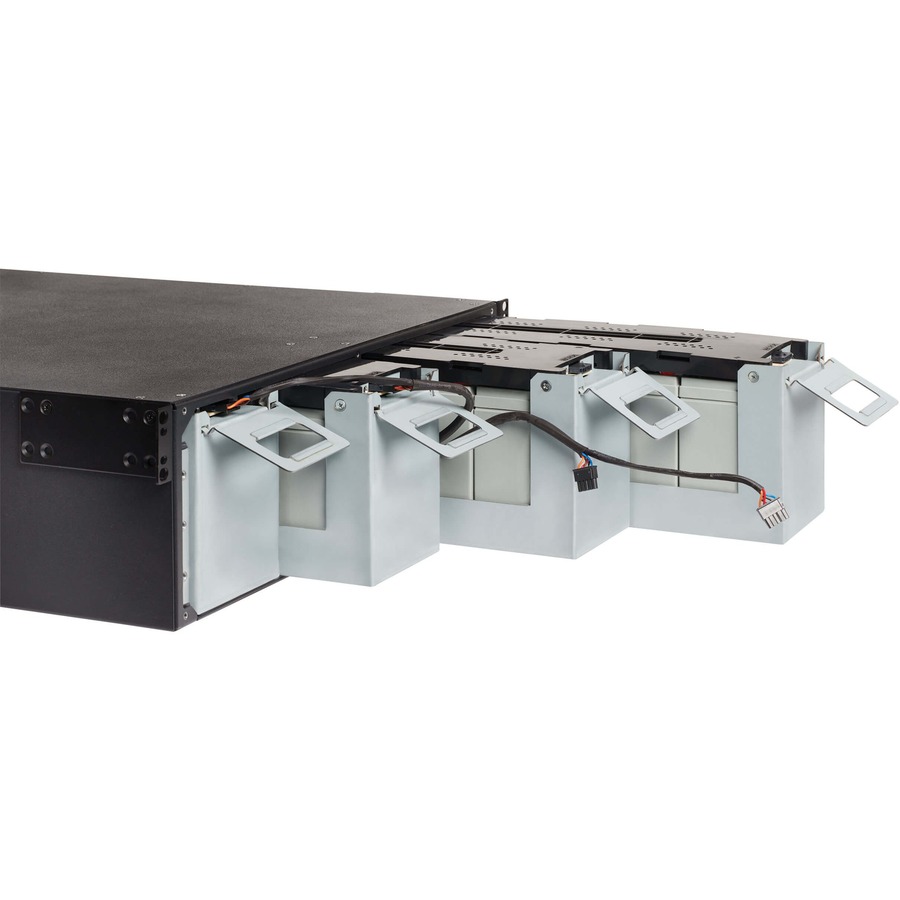

This smart battery pack's multi-use form factor supports stacking or mounting in 3U of space in EIA-standard 19-inch racks using the included 4-post rack-mounting brackets. The four replaceable internal battery trays can be easily removed to make the battery pack lighter for rack-mount installation. The BP192V12RT3US is also compatible with Tripp Lite's 2-9USTAND for upright tower configuration and 2POSTRMKITHD for 2-post racks (both accessories sold separately).
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Connects to compatible Tripp Lite 5kVA/6kVA Unity PF UPS systems for extended runtime
Smart pack communicates with UPS to automatically report battery temperature, accurate runtime, etc.
Daisy-chain connector supports additional battery packs for even longer runtime
Mounts in 3U of space in 19 in. rack using included 4-post installation hardware
Supports 2-post rack or tower installation with optional accessories (sold separately)
1-year limited warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
BP192V12RT3US
Brand Name
Tripp Lite series
Product Model
BP192V12RT3US
Product Name
192V External Battery Pack for Select Tripp Lite UPS Systems, 3U Rack/Tower
Product Type
External Battery Pack
Physical Characteristics
Height
5.2"
Width
17.5"
Depth
28"
Weight (Approximate)
174.01 lb
Technical Information
Minimum Battery Life
4 Year
Maximum Battery Life
6 Year
Output Voltage
192 V DC
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
192V External Battery Pack for Select Tripp Lite UPS Systems, 3U Rack/Tower
