2 x Network (RJ-45) - 11 x USB - 328.08 ft Extended Range - Metal - Black
MSRP$780.00
$717.60*
Save 8%In stock: 247
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
HDBaseT Extender Kit Allows Installation of USB Devices Up to 328 ft. from the Source
This USB transmitter and receiver use HDBaseT technology to extend and expand the potential of your USB devices. Using a single Cat6a cable, the BHDBT-U3-3A1C-K extends up to seven USB peripherals up to 328 feet (100 meters), giving you more flexibility in placing webcams, PTZ cameras, keyboards, mice, microphones, flash drives, 3D printers, scanners, whiteboards and touchscreen displays.
Designed with the Newest HDBaseT 3.0 Technology
The BHDBT-U3-3A1C-K extension kit uses the latest Valens chipset to provide a modern solution to USB extension. Its USB-C and USB-A ports support USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with previous USB generations. The extension kit also supports both RS-232 and FSYNC GPIO pass-through, making the BHDBT-U3-3A1C-K ideal for conference halls, auditoriums, lecture halls, museums, exhibition rooms and anywhere else that requires high-quality transmission across long distances.
Dual USB Host Ports Allow Switching Between Host Devices

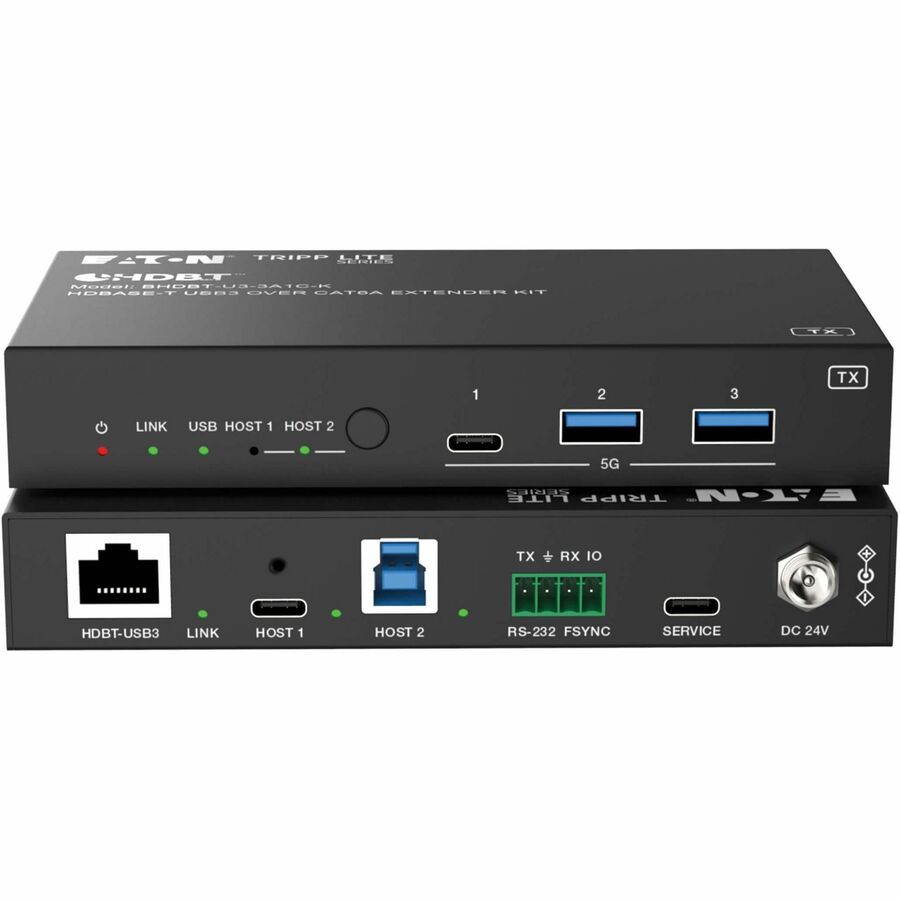

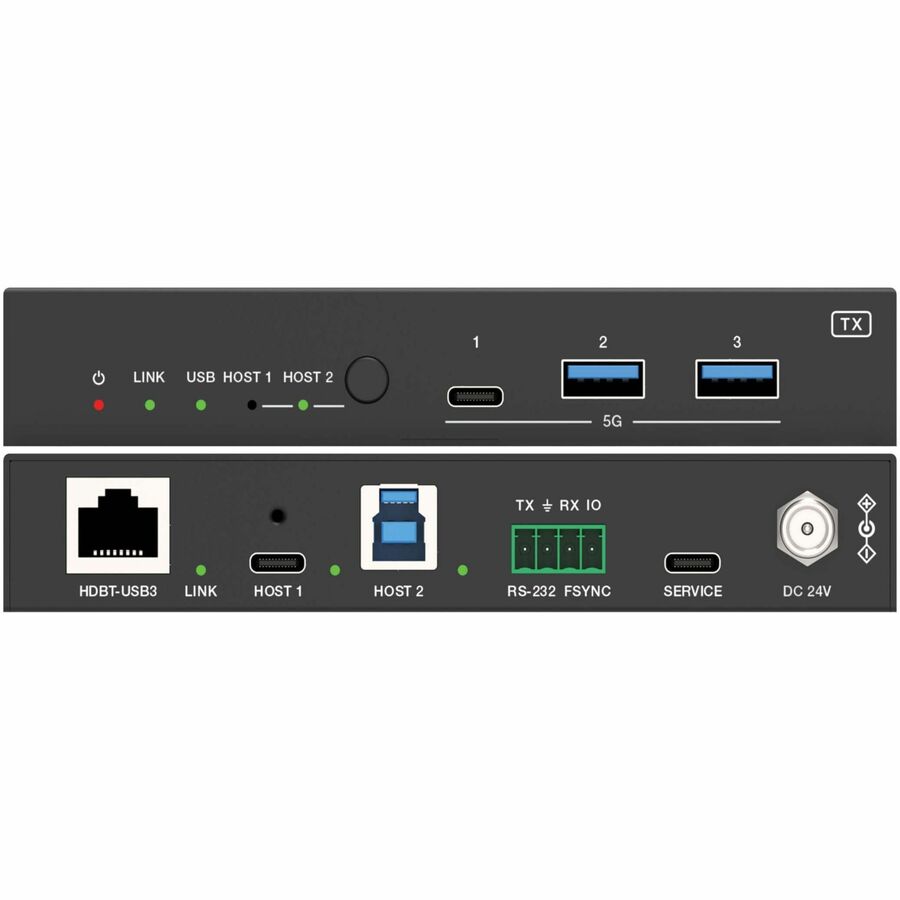

The transmitter features USB-C and USB-B host ports for connecting laptops, PCs, media servers or other host devices. With the touch of a button, you can instantly switch between the two hosts and share the connected USB devices between them. LEDs indicate which host is currently being used.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Bi-directional 24V Power over Cable (PoC) support powers the entire installation over Cat6a cable. Connect the included power supply at either the transmitter or the receiver end. LEDs on both the transmitter and receiver light up to indicate the system is receiving power and a USB signal is being transmitted. PoC helps you avoid the hassle of a bulky power brick and gives you the freedom to place one end where needed without worrying about finding a nearby AC outlet.
Supports API Command Control and FSYNC GPIO
Connect the RS-232 or Service port to a PC, then open a Serial Command tool on the PC to control the BHDBT-U3-3A1C-K using ASCII commands. FSYNC GPIO pass-through is supported for controlling industrial cameras and other audio/video equipment.
Plug-and-Play Convenience and Easy Installation
The BHDBT-U3-3A1C-K requires no software or drivers to install, making setup simple. The transmitter and receiver mount to a wall using the included brackets.
TAA-Compliant for GSA Schedule Purchases
The BHDBT-U3-3A1C-K is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Limited Warranty: 1 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | BHDBT-U3-3A1C-K |
| Brand Name | Tripp Lite series |
| Product Model | BHDBT-U3-3A1C-K |
| Product Name | BHDBT-U3-3A1C-K USB Extender |
| Product Type | USB Extender |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| USB | Yes |
| Number of USB Ports | 11 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Metal |
| Height | 0.9" |
| Width | 5.5" |
| Depth | 3" |
| Transmitter Weight (Approximate) | 9.17 oz |
| Receiver Weight (Approximate) | 8.92 oz |
| Power Description | |
| Input Voltage | 230 V AC |
| Technical Information | |
| Maximum Extended Range | 328.08 ft |
| Maximum Data Transfer Rate | 640 MB/s |
| Warranty | |
| Limited Warranty | 1 Year |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | System Requirements USB 3.2 Gen 1 source device (all connected devices and cabling must support USB 3.2 Gen 1 standards to achieve USB 3.2 Gen 1 speeds) Cat6a F/FTP cabling up to 328 ft. (100 m) USB peripherals, such as webcams, interactive whiteboards, security and monitoring devices, remote data storage AC power outlet on a wall, PDU or UPS system |
| Certifications & Standards |
|
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) 3, Waste Electrical and Electronic Equipment Directive (WEEE) |
