Eaton Tripp Lite Series Home Network Battery Backup - 100-240V, 36VA/36W, Lithium-Ion Battery, NEMA 5-15P Plug, 4 Barrel Connectors
Eaton

Eaton Tripp Lite Series Home Network Battery Backup - 100-240V, 36VA/36W, Lithium-Ion Battery, NEMA 5-15P Plug, 4 Barrel Connectors

Desktop - 6 Hour Recharge - 10.80 Minute Stand-by - 120 V AC, 230 V AC Input - 9 V DC, 12 V DC, 15 V DC, 19 V DC Output

SKU
BC36ML
Category
General Purpose UPS

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
BC36ML
Category
General Purpose UPS

Overview

Not for sale in the USA until further notice.

Desktop Battery Backup Keeps Critical Home Equipment Running During Power Outages

You have devices in your home that need to be operational at all times, especially when the power is out. The Internet router that keeps you connected to the world. The IP cameras that help keep you safe. The home assistants, such as the Amazon Echo and Google Nest, and the smart controllers that maintain lighting and temperature. The BC36ML AC-to-DC battery backup not only keeps those devices up and running during a power outage, but it also maintains your ability to control them remotely.

Compatible with a Wide Range of Essential Home Devices

The BC36ML single-device mini UPS system is ideal for routers, modems, wi-fi extenders, IP cameras, access control devices, VoIP phones, medical alert solutions, portable computer monitors and other low-power devices that may need battery backup. It replaces the standard AC power adapter provided with your device, which ensures power protection without additional equipment.

Dual Lithium-Ion Batteries Ensure Reliable Backup Power

This 36V battery backup features two 2200mAh lithium-ion batteries that ensure continuous operation for one connected device at a time in your home office or residential application. The cold-start function also allows the unit to be used as a power bank.

Adaptable to Your Power Needs

The BC36ML allows you to select the appropriate output DC voltage corresponding to your equipment: 9V/3A, 12V/3A, 15V/2.4A or 19V/1.9A (12V is the default). It features an attached output cord and four barrel adapters (6.3 x 3.0 mm, 4.75 x 1.7 mm, 5.5 x 2.1 mm, 5.5 x 2.5 mm) that take the place of your connected device's power cord. Just connect the BC36ML to an AC wall outlet using the included input cord with NEMA 5-15P plug.

Recommended for Home Office or Residential Purposes

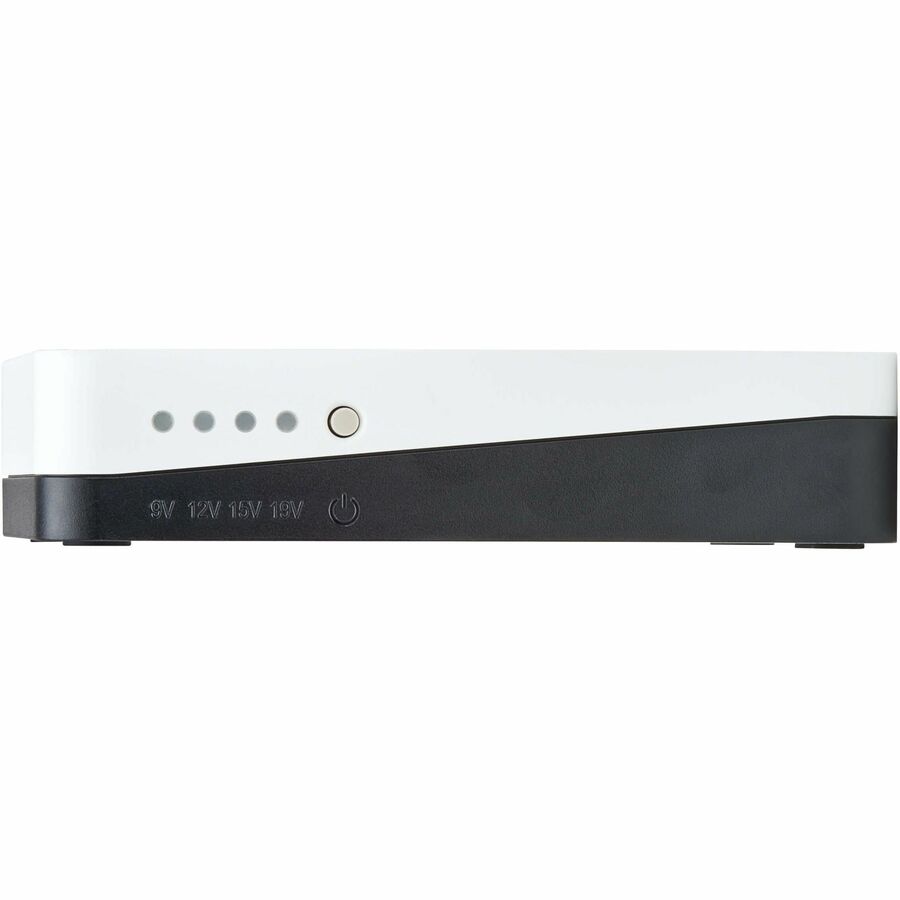

Easy-to-read LED indicators let you at a glance which output voltage you've selected and how much battery capacity remains in the BC36ML. The unit is small, silent and stylish to fit inconspicuously into your home or business environment. It's easy to set up in just a few minutes.

Warranty

Limited Warranty: 2 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

  • Not for sale in the USA until further notice.
  • Replaces connected device's original AC adapter to deliver 24/7 battery backup in the event of a power outage
  • Maintains remote access and control of networked devices during power outages
  • Offers 4 user-selectable output voltages compatible with most applications
  • Features 4 DC output barrel connectors easily adaptable to your connected equipment
  • Lithium-ion batteries provide reliable power up to 5 hours

Specifications

Application/UsageRouter, IP Camera, Modem, Access Control, VoIP Phone, Monitor, Low-power Device, Residential, Equipment, Business, Network Device, Computer Peripheral, Home/Office, Smart Home Device, Wi-Fi Extender, Medical Alert System, Power Bank
Battery ChemistryLithium Ion (Li-Ion)
Package Contents
  • Battery Backup BC36ML 36VA Desktop UPS
  • Detachable NEMA 5-15P Input Cord, 3 ft.
  • 4 x Barrel Output Connectors (3.5 x 1.35 mm, 4.75 x 1.7 mm, 5.5 x 2.1 mm, 5.5 x 2.5 mm)
  • Quick Start Guide
  • Advanced User Guide
Product TypeStandby UPS
Input Voltage120 V AC, 230 V AC
Manufacturer Part NumberBC36ML
Limited Warranty2 Year
Output Voltage9 V DC, 12 V DC, 15 V DC, 19 V DC
Weight (Approximate)12.35 oz
Form FactorDesktop
Status IndicatorsLED Indicators: Output Voltage Level Battery Level Indicator Abnormal Situations
ManufacturerEaton Corporation
Product ModelBC36ML
Product NameBattery Backup BC36ML 36VA Desktop UPS
Product SeriesBattery Backup
Brand NameTripp Lite series
Plug/Connector TypeNEMA 5-15P
Country of OriginChina
Height1.18"
Width3.74"
Depth5.35"
Input Frequency60 Hz
Receptacle Type3515 DC Power, 47517 DC Power, 5521 DC Power, 5525 DC Power
Environmentally FriendlyYes
Maximum Operating Temperature95°F (35°C)
Number of Batteries2
Backup/Run Time (Half Load)30.40 Minute
Backup/Run Time (Full Load)10.80 Minute
Load Capacity (VA)36 VA
Load Capacity (Watt)36 W
DC System Voltage7.4 V DC
Maximum Operating Elevation9842.52 ft
Storage Temperature-4°F (-20°C) - 113°F (45°C)
Typical Battery Recharge Time6 Hour
Product ColorBlack, White
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
