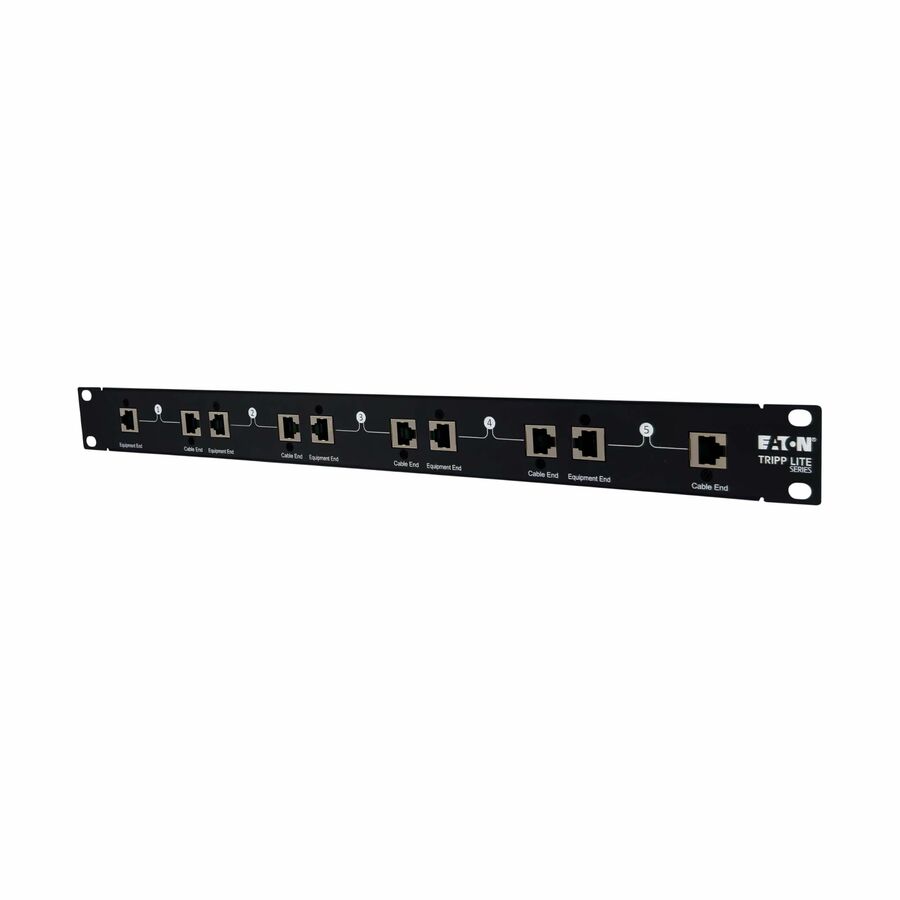

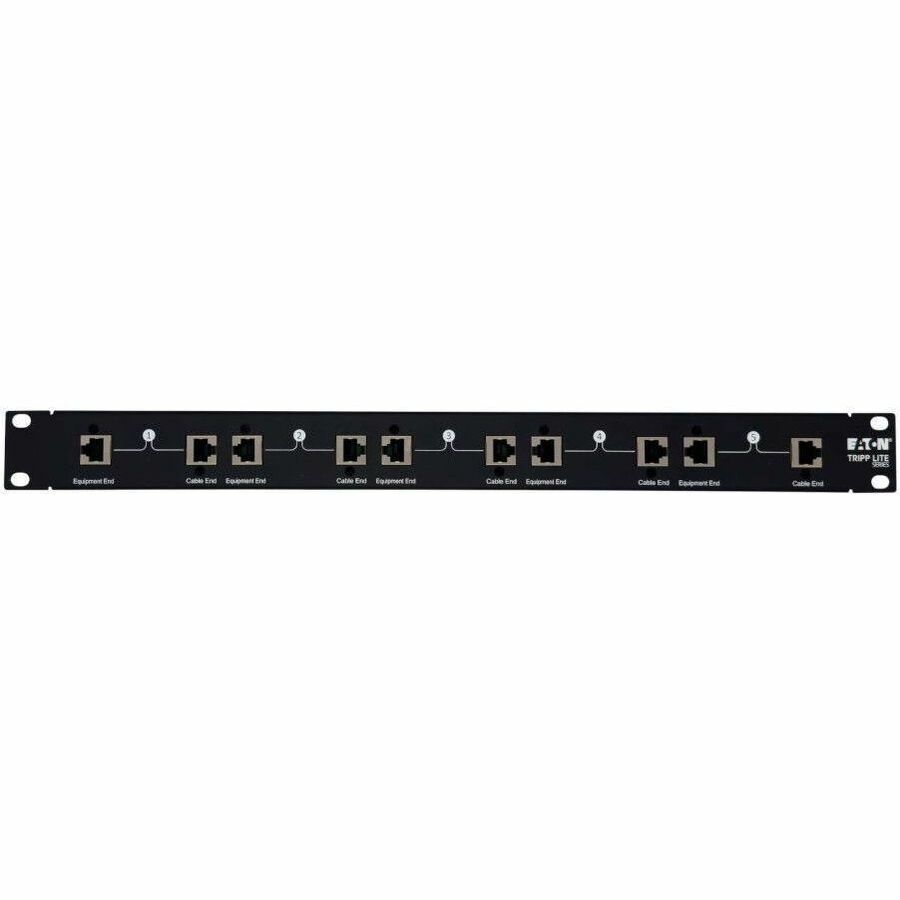

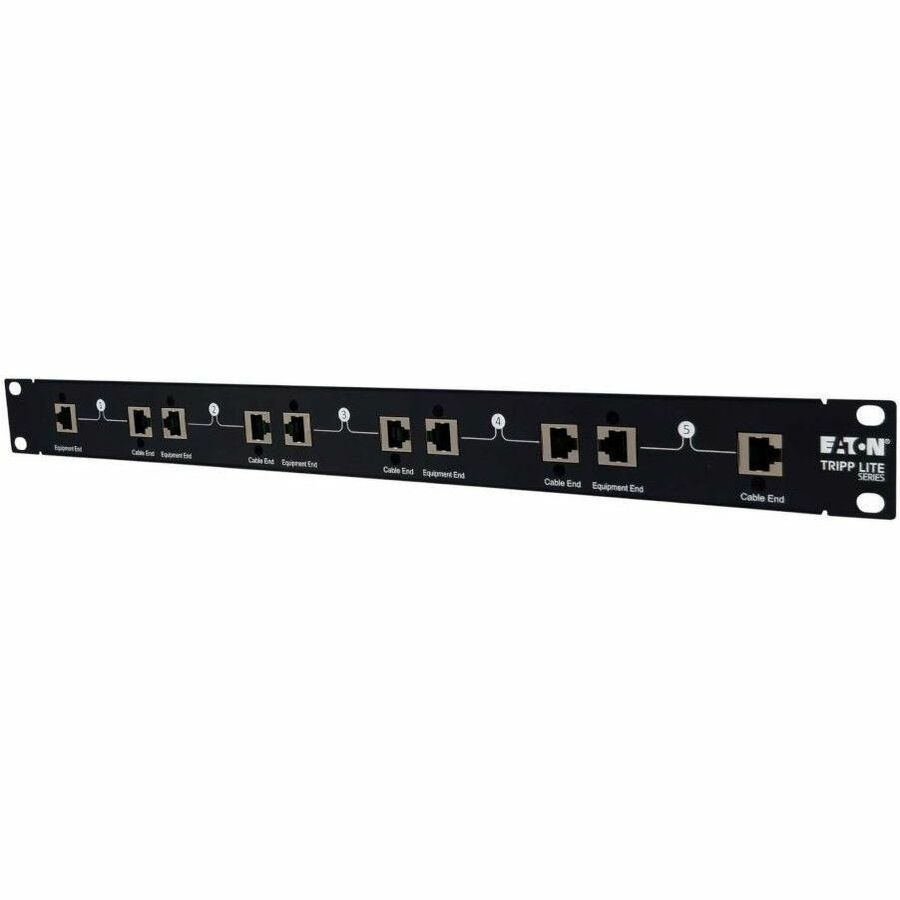

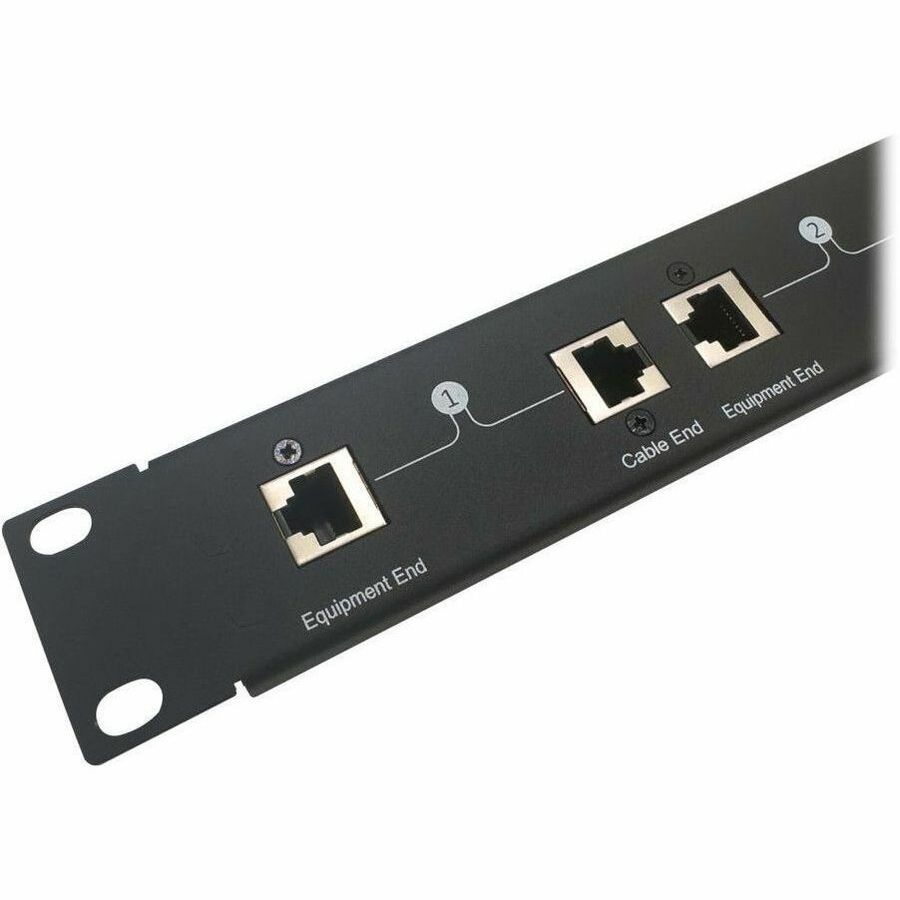

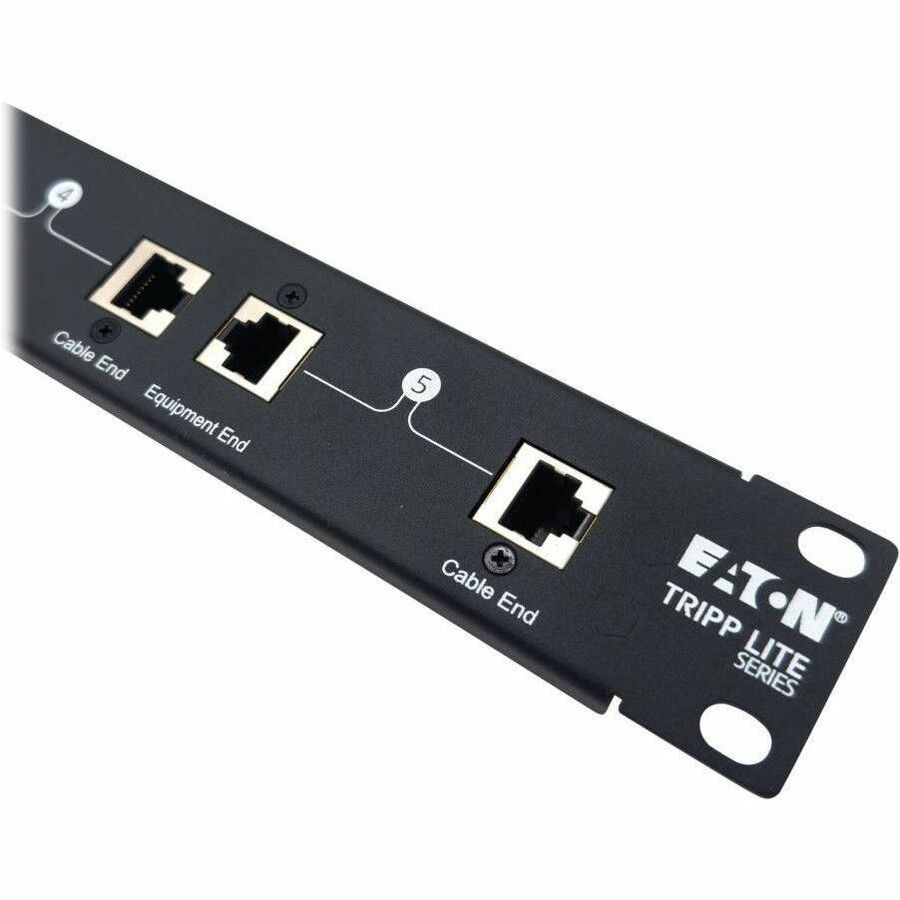

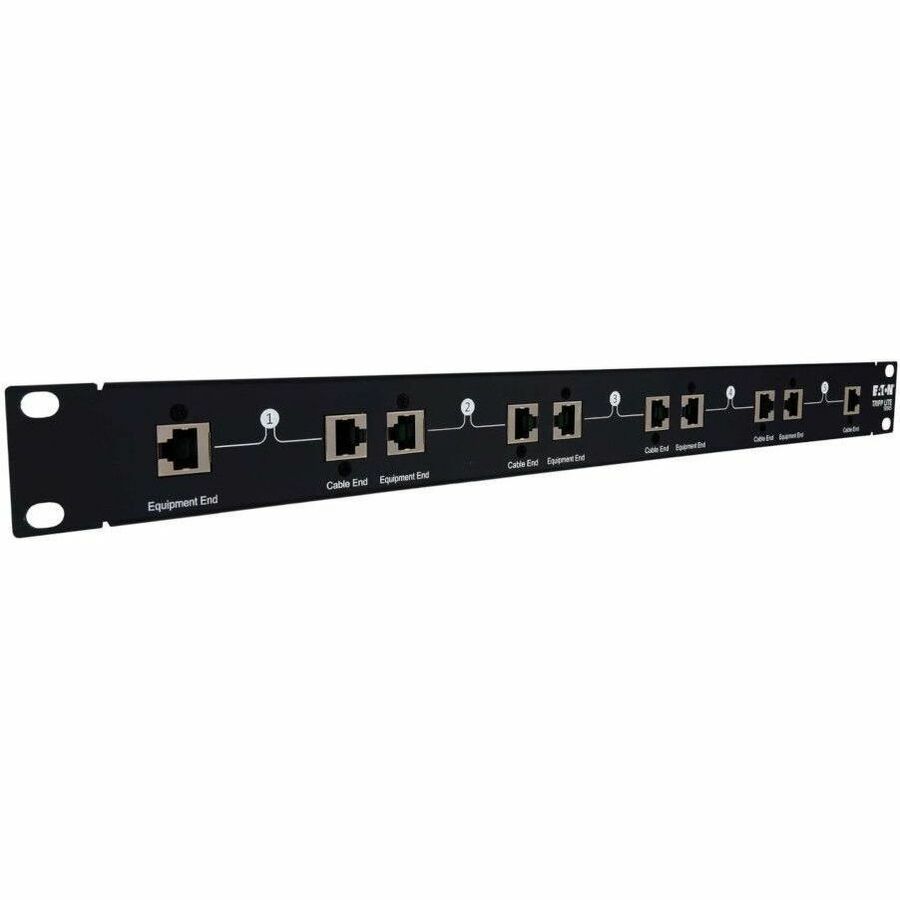

A/V Equipment, Camera, Wireless Access Point, Network Switch - Black - RJ-45 - 5 x RJ-45 - 2 kA - PoE++, PoE, RJ-45, Network, Ethernet, Gigabit Ethernet - Rack-mountable - TAA Compliant
MSRP$375.00
$295.51
Save 21%In stock: 47
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Features | 1U In-Line Surge Protector Keeps Your PoE Equipment Safe
Ideal for home/corporate IP security/building cameras, wireless access points, network switches and other appropriate network/PoE devices, the B110-SPPOEC-A5 protects connected Power over Ethernet (PoE) equipment from damage caused by electrostatic discharge (ESD) and power surges. Just connect it between your source, such as an Ethernet switch, and up to five PoE devices using Cat5e/6 cables. The 1U rack panel streamlines circuit protector placement for your entire system, typically located in the rear of a 19-inch rack for input/output lines.
Your Last Defense Against Intruding Voltage Spikes
Solid-state silicon-avalanche diode technology features low clamping voltage, providing superior protection against ESD and super-fast response time under one nanosecond. Both mid-span and end-span PoE are supported. The B110-SPPOEC-A5 meets the following IEC/EN regulations: IEC 61000-4-2 for ESD (8k/15kV), IEC 61000-4-4 for EFT (2kV, 5KHz/100KHz) and IEC 61000-4-5 for lightning (2KA 8/20µs, 6KV 8/20µs).
Ready to Use Right from the Package, So You Can Plug and Play Immediately
This PoE++ in-line surge protector meets 802.3af, 802.3at and 802.3bt Type 4 IEEE standards, while supporting data transmission speeds up to 1 Gbps. No software or external power supply is required. The compact metal housing is designed to endure in applications where static discharge is likely to occur. Mounting hardware is included for convenient rack installation in 1U of space.
TAA-Compliant for GSA Schedule Purchases
The B110-SPPOEC-A5 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Limited Warranty: 2 Year
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| Environmental Conditions | |
|---|---|
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Maximum Storage Temperature | 122°F (50°C) |
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B110-SPPOEC-A5 |
| Brand Name | Tripp Lite series |
| Product Model | B110-SPPOEC-A5 |
| Product Name | B110-SPPOEC-A5 In-Line PoE++ Surge Protector |
| Product Type | PoE Surge Protector |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Metal, SECC, Zinc |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 19" |
| Depth | 0.9" |
| Weight (Approximate) | 1.34 lb |
| Power Description | |
| Maximum Surge Current | 2 kA |
| Technical Information | |
| Plug/Connector Type | RJ-45 |
| Receptacles | 5 x RJ-45 |
| Dataline Protection | PoE++, PoE, RJ-45, Network, Ethernet, Gigabit Ethernet |
| Supported Ethernet Speed | 128 MB |
| Features | Plug & Play |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | A/V Equipment, Camera, Wireless Access Point, Network Switch |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
