(DB9 F to RJ45 F)
1 x 9-pin DB-9 Serial Female - 1 x RJ-45 Network Female - Beige
MSRP$12.05
$11.09
Save 8%In stock: 803
Genuine Eaton through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Use Tripp Lite B090-A9F to connect Ethernet hardware to Tripp Lite B092-016, B096-016, and B096-048 Console Servers. Requires inexpensive Cat5/Cat6 patch cables between adapter and console server RJ45 ports.
More from the Manufacturer
Modular Serial Adapter Connects Serial Network Hardware to Your Tripp Lite Console Server
Tripp Lite’s B090-A9F Modular Serial Adapter features straight-through wiring to let you connect a network device with a DB9 serial port to a Tripp Lite B096-016, B096-032 or B096-048 console server. One end of the adapter features a DB9 female connection, while the other end has an RJ45 female connection. With this adapter, you will be able to connect a device such as a serial Ethernet switch, router or PBX system and monitor it over IP through your console server. The connection also requires an inexpensive Cat5/Cat6 patch cable between the adapter and the console server’s RJ45 port.
Typical Applications
Connect a serial network device to a Tripp Lite B096-series console server
Monitor your serial device remotely over IP
Secure Connection, Lifetime Warranty and Environmentally Responsible Design
The B090-A9F has rugged metal slotted thumbscrews so you know your components have a secure connection at all times. For peace of mind, the B090-A9F comes backed by a lifetime warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Accept no substitutes!
Your Tripp Lite adapter will be shipped to you in its original Tripp Lite packaging (poly bag with Tripp Lite logo; see photo). This is your assurance that the product you purchase will deliver the superior performance you expect. And if you don’t see this packaging, it’s not a genuine Tripp Lite product!
Tripp Lite’s B090-A9F Product Summary
Modular Serial Adapter with straight-through wiring for connecting a serial network device to a Tripp Lite B096-016, B096-032 or B096-048 console server

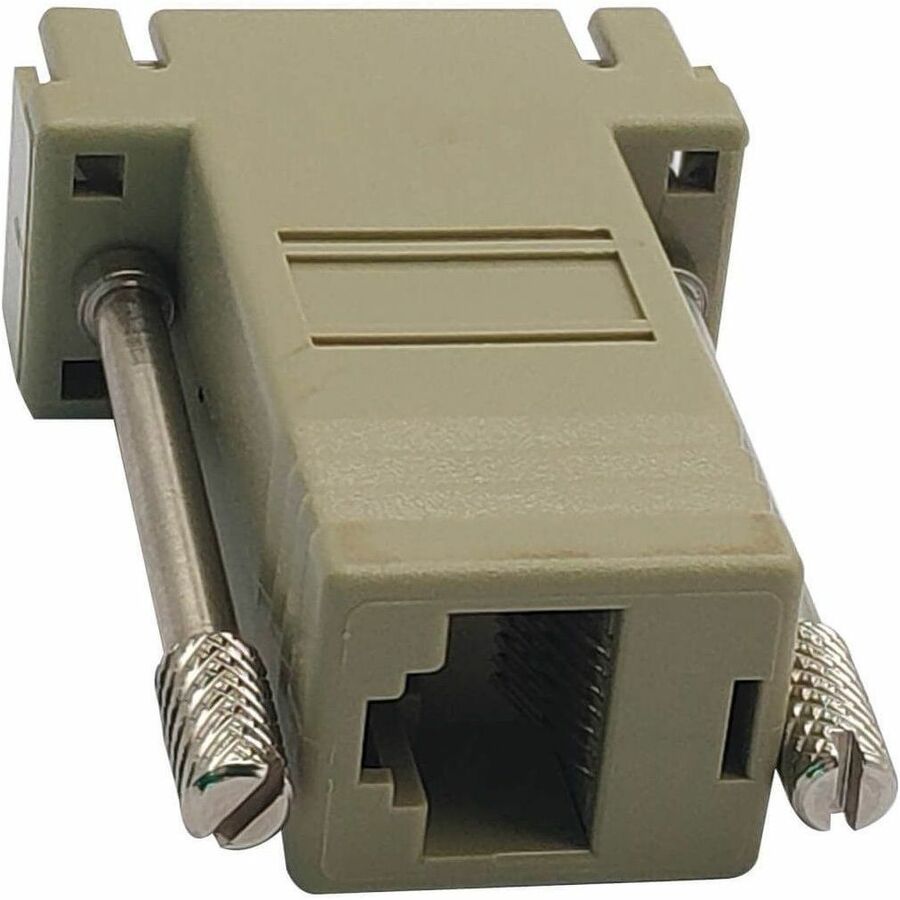

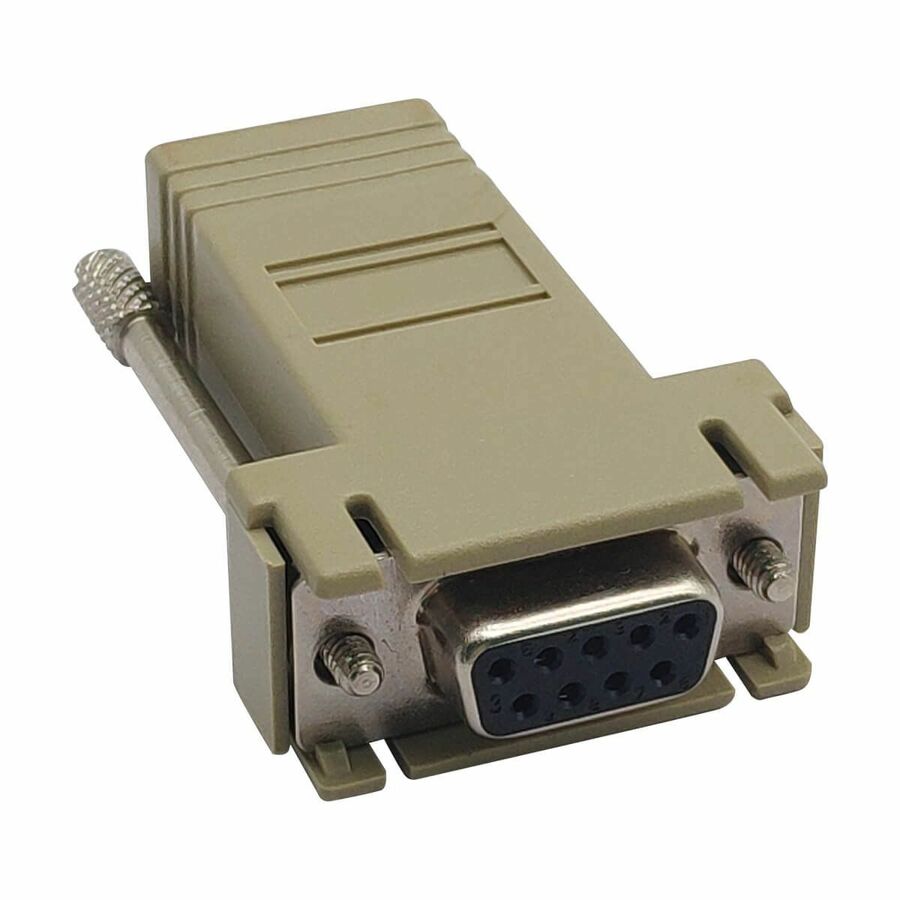

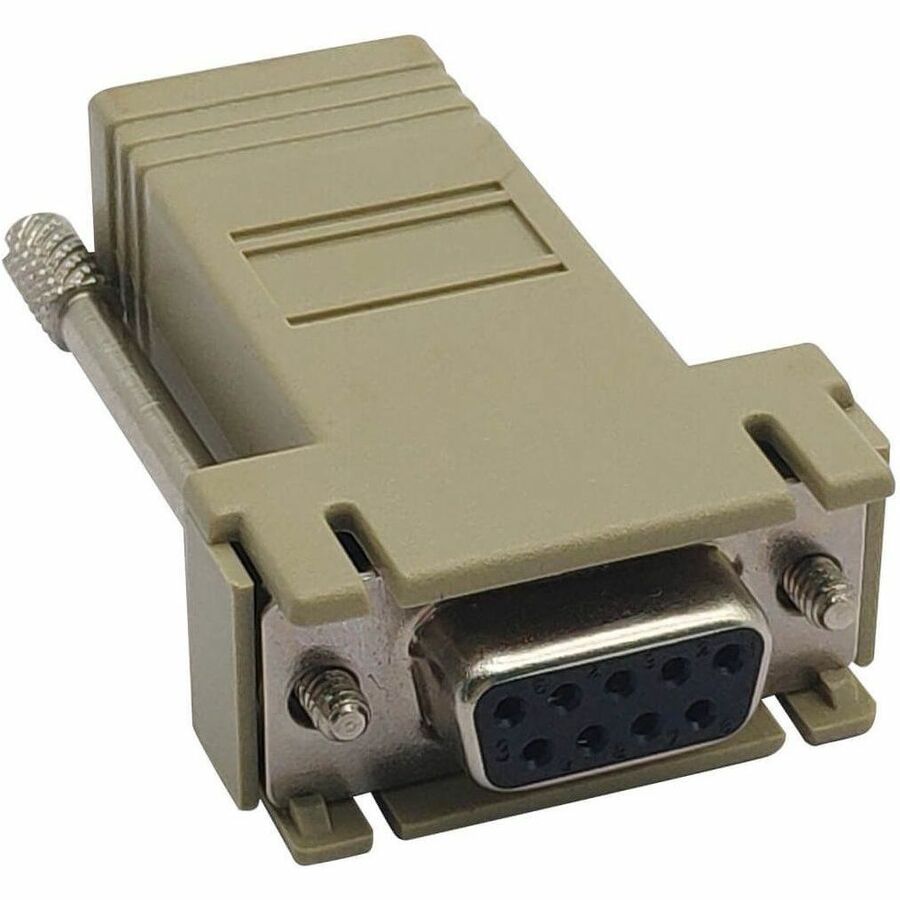

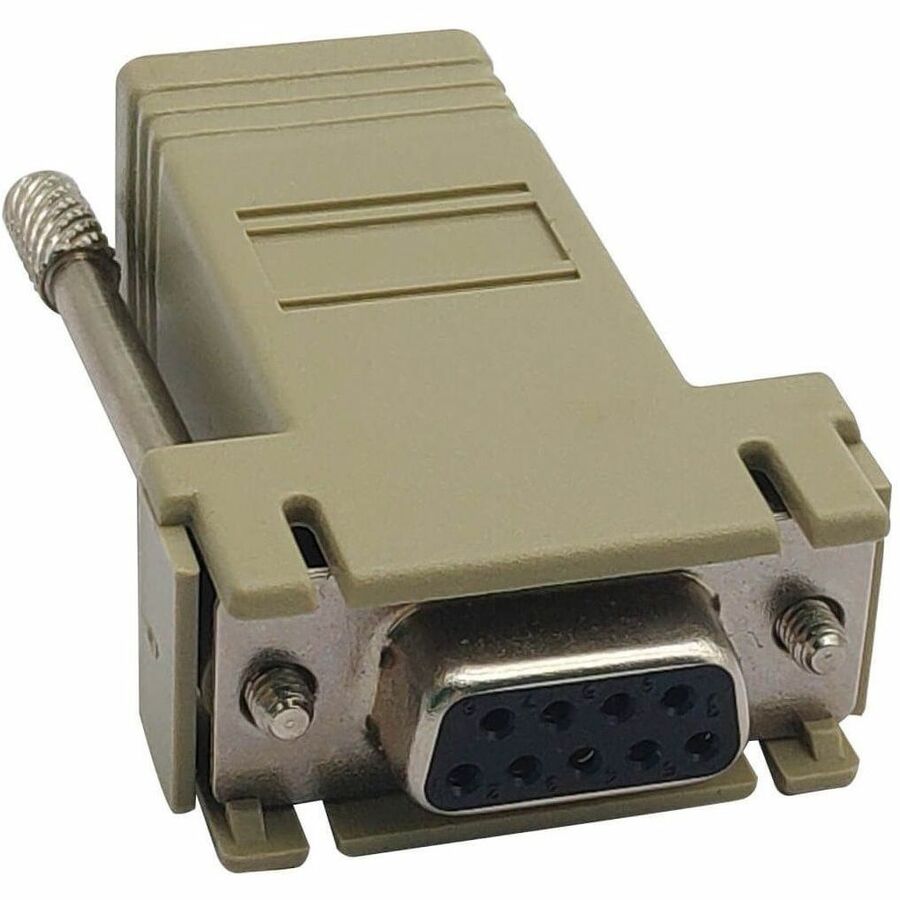

DB9 female connection on one end; RJ45 female connection on the other end
Allows you to monitor your serial device remotely over IP through the console server
Rugged construction with metal slotted thumbscrews
What’s in the Box?
B090-A9F Modular Serial Adapter with Straight-Through Wiring, F/F
Limited Warranty: Lifetime
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
| General Information | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B090-A9F |
| Brand Name | Tripp Lite series |
| Product Model | B090-A9F |
| Product Name | B090-A9F Modular Adapter |
| Product Type | Data Transfer Adapter |
| Physical Characteristics | |
| Color Family | Beige |
| Product Color | Beige |
| Technical Information | |
| Adapter Type | RJ-45/Serial |
| Connector Type on First End | DB-9 Serial - Female |
| Connector on First End Details | 1 x 9-pin DB-9 Serial Female |
| Connector Type on Second End | RJ-45 Network - Female |
| Connector on Second End Details | 1 x RJ-45 Network Female |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
