Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
A224-01K-BK
Category
Connector Cables
Overview
The A224-01K-BK RG6/U Quad-Shield CMR-Rated Coaxial Cable is premium cabling designed for high-frequency indoor/outdoor applications, such as television antennas, digital cable and satellite transmissions, and video surveillance systems. RG6/U coaxial cable has lower attenuation than RG59 cable, making it superior over long distances.Manufactured with an 18 AWG copper-clad steel center conductor, the 75-ohm A224-01K-BK is tested to 3 GHz and features quad shielding, which means aluminum foil and braid shielding over another layer of aluminum foil and braid for error-free transmission. Protected by a flame-retardant CMR-rated PVC jacket, this black cable meets UL1655, UL13, UL444 and RoHS standards. More from the Manufacturer
Makes Long-Distance Installations Simple and Meets Industry Standards

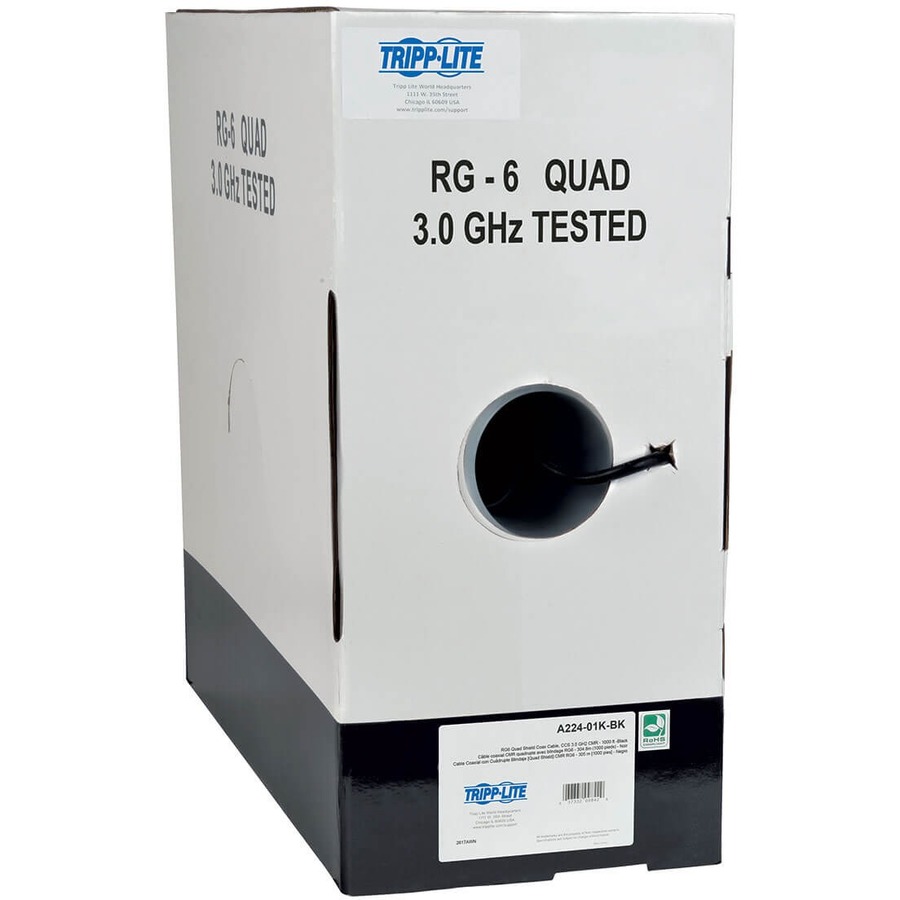

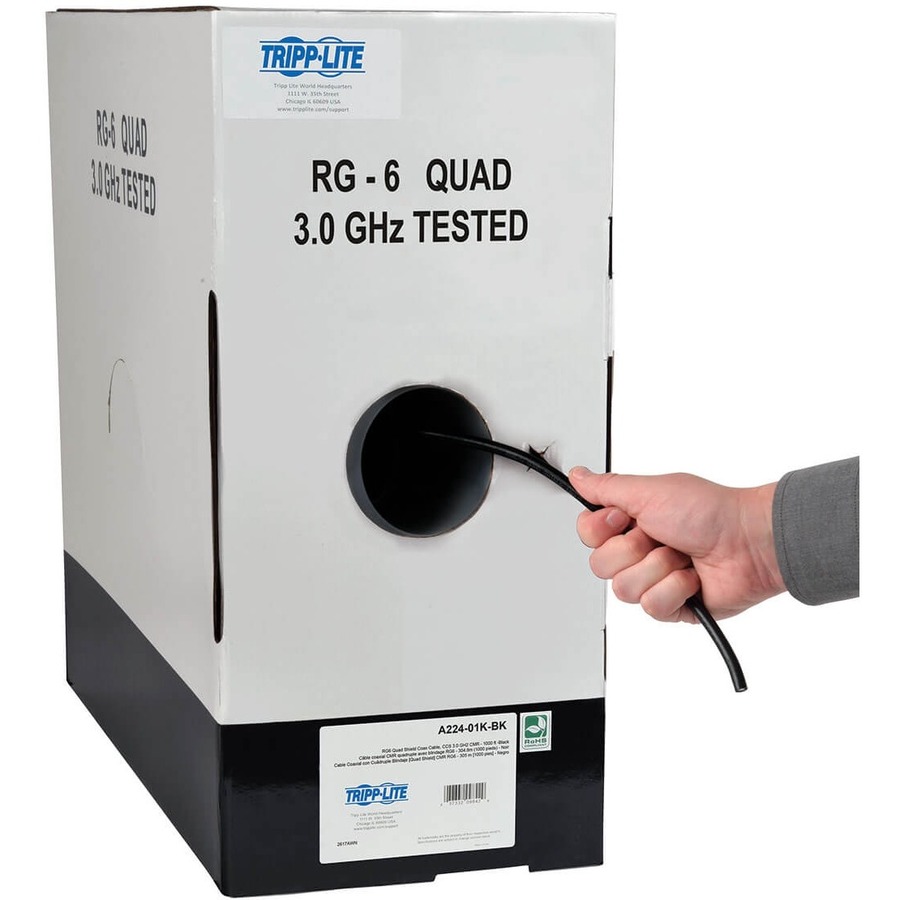

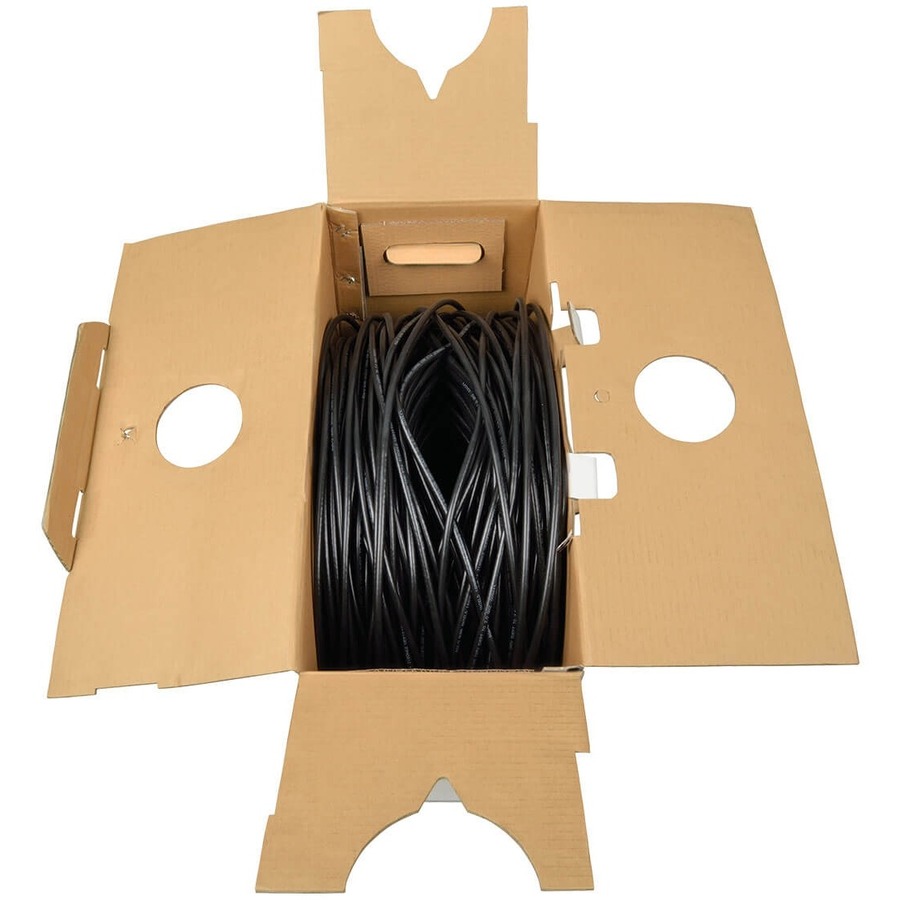

This 1000-ft. cable comes pre-packaged in an easy-to-use pull box. Simply pull what you need for your installation and keep the remainder stowed away.

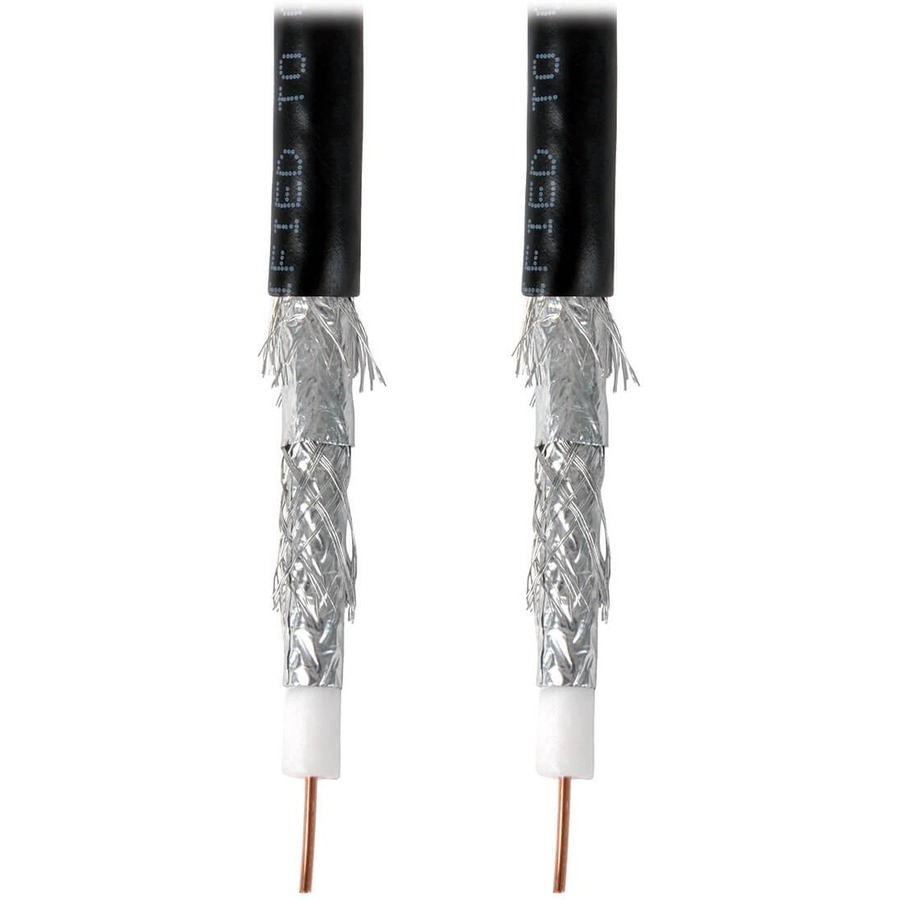

The A224-01K-BK is built to last in high-frequency applications. Manufactured with an 18 AWG copper-clad steel center conductor, this 75-ohm cable is tested to 3 GHz and features quad shielding, i.e., two layers of aluminum foil and braid, for error-free transmission. Protected by a flame-retardant CMR-rated PVC jacket, this black cable meets industry standards, including UL1655, UL13 and UL444.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Lower attenuation than RG59 cable for longer distances
18 AWG copper-clad steel center conductor
Quad foil and braid shielding for error-free transmission
Flame-retardant CMR-rated PVC jacket
Meets UL1655, UL13, UL444 and RoHS standards
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
A224-01K-BK
Brand Name
Tripp Lite series
Product Model
A224-01K-BK
Product Name
RG6/U Quad-Shield CMR-Rated Coaxial Cable, Black, 1000 ft
