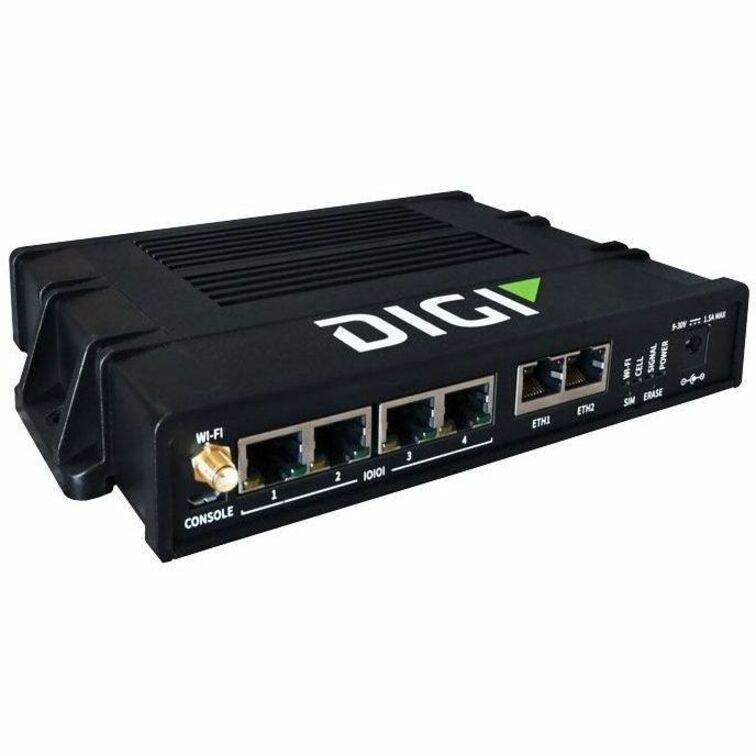

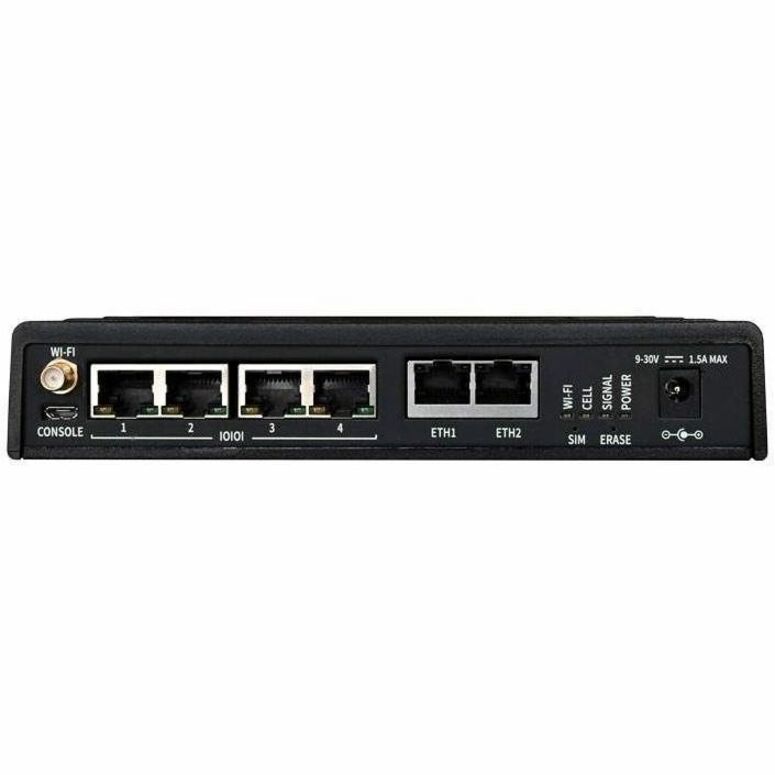

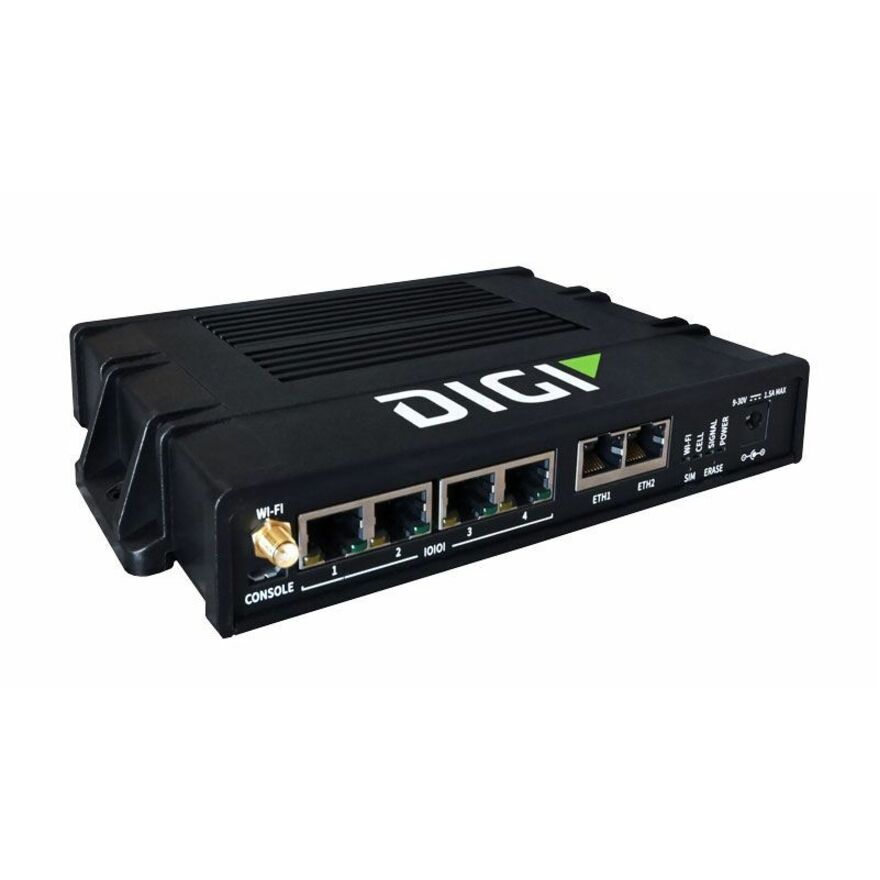

Serial Server, 4-port, with LTE, Wi-Fi and Accessories
512 MB - Twisted Pair - 2 x Network (RJ-45) - 4 x Serial Port - 10/100/1000Base-T - Gigabit Ethernet - IEEE 802.11a/b/g/n/ac - Wireless LAN - ISM Band ISM Band - UNII Band UNII Band - DIN Rail Mountable
SKU
Category
Terminal & Device Servers
MSRP$1,000.00
$889.37
Save 11%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 27 and Dec 1, then process your delivery right after.
Genuine Digi International through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Terminal & Device Servers
Overview
Warranty
Additional Warranty Information: 3-year for Digi CORE plug-in LTE modem Technical support: 1-year LifeCycle Assurance with 24x7 Expert Support included Limited Warranty: 5 Year
Specifications
General Information
Manufacturer
Digi International
Manufacturer Part Number
EZ04-WAG4-GLB
Brand Name
Digi
Product Line
Connect EZ 4
Product Name
Connect EZ 4 - Serial Server, 4-port, with LTE, Wi-Fi and Accessories
Product Type
Device Server
Interfaces/Ports
Network (RJ-45)
Yes
Serial Port
Yes
Total Number of Network Ports
2
Number of Network (RJ-45) Ports
2
Number of Serial Ports
4
Media & Performance
Media Type Supported
Twisted Pair
Memory
Standard Memory
512 MB
Network & Communication
Ethernet Technology
Gigabit Ethernet
Network Standard
10/100/1000Base-T
Physical Characteristics
Form Factor
DIN Rail Mountable
Height
1.4"
Width
5.3"
Depth
7.6"
Power Description
Input Voltage
9 V DC, 30 V DC
Input Voltage Range
9 V DC - 30 V DC
Power Consumption
5 W
Plug/Connector Type
Barrel
Technical Information
Connectivity Technology
Wired/Wireless
Data Link Protocols
HTTP, HTTPS
Warranty
Limited Warranty
5 Year
Additional Warranty Information
3-year for Digi CORE plug-in LTE modem
Technical support: 1-year LifeCycle Assurance with 24x7 Expert Support included
Wireless Specifications
Wireless LAN
Yes
Wireless LAN Standard
IEEE 802.11a/b/g/n/ac
ISM Band
Yes
UNII Band
Yes
Miscellaneous
Package Contents
Connect EZ 4 - Serial Server, 4-port, with LTE, Wi-Fi and Accessories

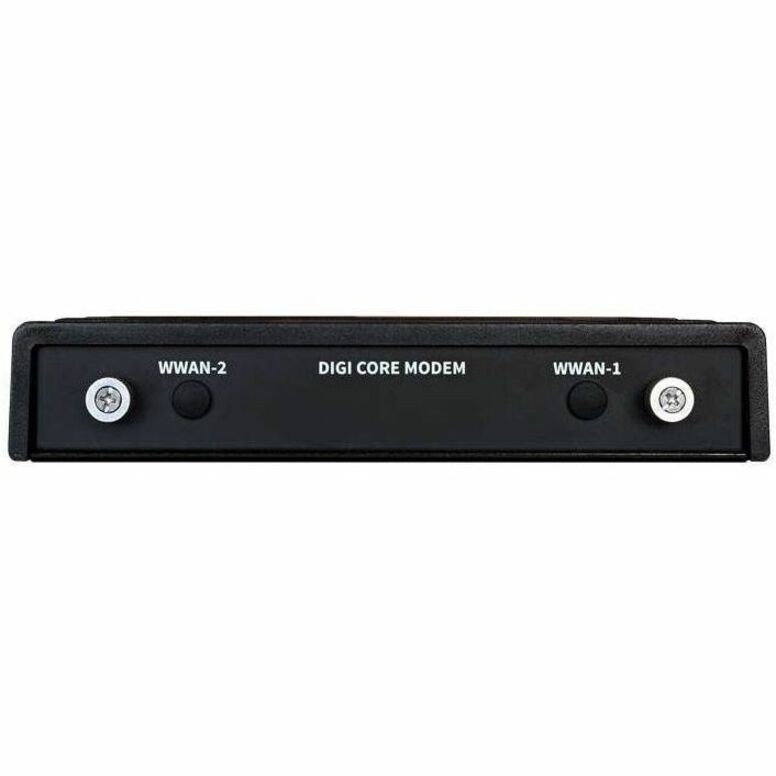

Digi CORE Plug-in LTE Modem
2 x Cellular Antenna - Dipole, 4G
Antenna - 2.4 and 5 GHz
Power supply - 12 V, 3 A
DIN Rail Clip
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Restriction of Hazardous Substances (RoHS) 3
