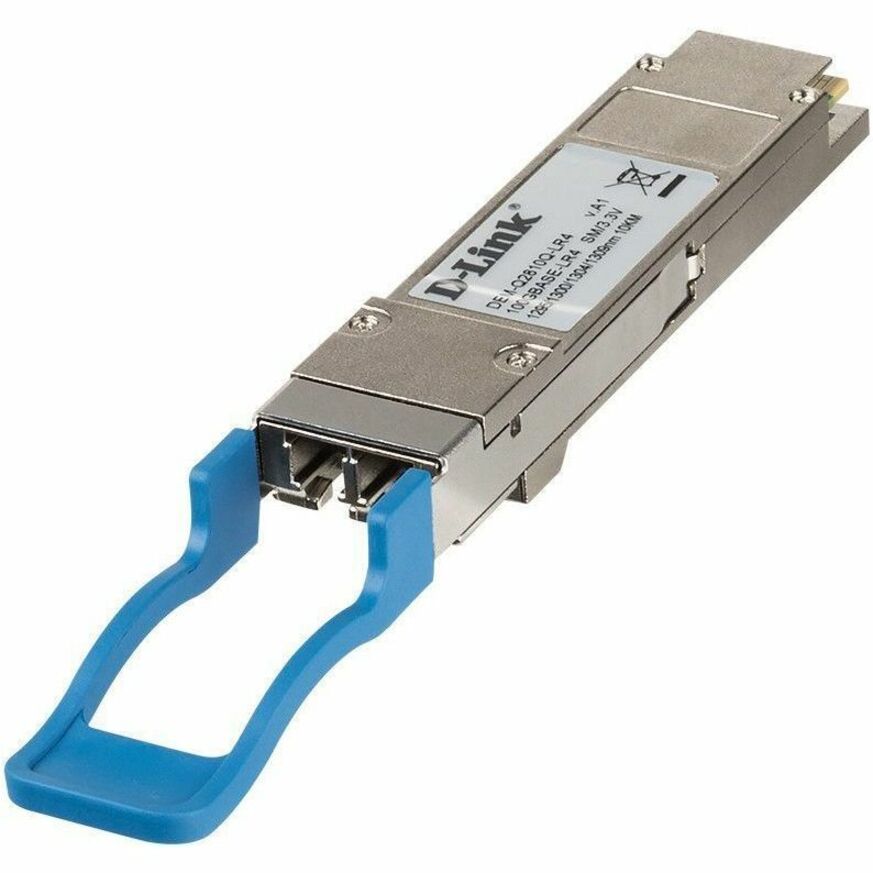

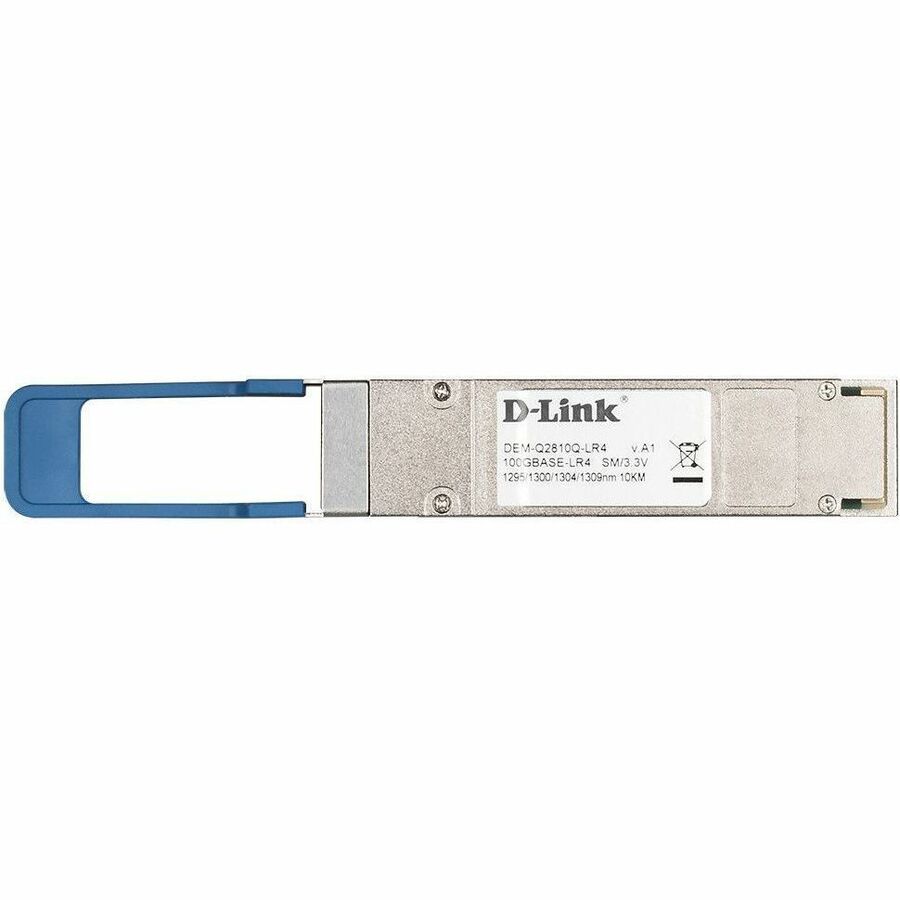

D-Link 100GBase-LR4 Single-Mode QSFP28 transceiver (up to 10 km)
For Data Networking, Optical Network - 1 x LC Duplex 100GBase-LR4 Network - Optical Fiber - Single-mode - 100 Gigabit Ethernet - 100GBase-LR4 - 100 Gbit/s - 10 km Maximum Distance - Hot-pluggable, Hot-swappable
- SKU
- DEM-Q2810Q-LR4
- Category
- Modules
MSRP$2,765.99
$2,069.12
Save 25%Back ordered — ships when restocked.
Genuine D-Link Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DEM-Q2810Q-LR4
- Category
- Modules
Overview
Description
D-Link's 100G QSFP28 Module series are hot-swappable QSFP28 transceivers that plug into QSFP28 slots on switches and support 100G Ethernet. The D-Link 100GBase QSFP28 Module Series transceivers offer customers a wide variety of 100G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.
Quad Small Form-factor Pluggable 28 Format
The transceivers use the Quad Small Form-factor Pluggable 28 format (QSFP28) connectors, which integrate four independent transmitting and receiving channels. QSFP28 supports up to 25 Gb/s per channel for applications such as 100G Ethernet.
Hot-Pluggable
All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug it from the SFP slot without having to turn off the power of the connected device.
100G Ethernet speeds
The transceivers support 100G Ethernet, which results in very fast data transmissions of up to 100 Gbit/s, that enables the switches to handle fast and heavy data transmissions, making it suitable for business needs.
Highlights
- QSFP28 offers better usage with maximum efficiency and convenience
- With 100GBase-LR4 technology, get up to 100Gbps data transfer rate over optical fiber cable
- Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance
- Hot-pluggable form factor for your convenience and simplicity of usage
- QSFP28 with data networking application/usage for maximum dependability and convenience
Specifications
| Application/Usage | Data Networking, Optical Network |
|---|---|
| Product Type | QSFP28 |
| Compatibility | MSA Compliant |
| Manufacturer Part Number | DEM-Q2810Q-LR4 |
| Maximum Distance Supported | 10 km |
| Interfaces/Ports Details | 1 x LC Duplex 100GBase-LR4 Network |
| Connector Type | LC |
| Form Factor | Hot-pluggable, Hot-swappable |
| Manufacturer | D-Link Systems, Inc |
| Product Name | 100GBase-LR4 Single-Mode QSFP28 transceiver (up to 10 km) |
| Network Technology | 100GBase-LR4 |
| Brand Name | D-Link |
| Height | 0.3" |
| Width | 0.7" |
| Depth | 2.8" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 100 Gbit/s |
| Ethernet Technology | 100 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
