9U 19" Wall Mount Enclosure, 600mm wide, 600mm deep, hex perforated metal door, side panels, locking doors/panels, black, 132lbs (60kg) loading capacity, 5 year warranty
SKU
Category
Rack Equipment
$536.14
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 3 and Nov 7, then process your delivery right after.
Genuine CyberPower Systems through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Rack Equipment
Overview
The CR9U61003 is designed for use in network closets, classrooms and other locations. This wall mount rack houses network switches and patch panels up to 20.3" deep. It includes convenient top panel cable access openings, perforated door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR9U61003 ships fully assembled for quick deployment, and can be customized with compatible accessories. It is covered by a 5-year limited warranty. More from the Manufacturer
Is this rack grounded?
Yes, the rack has grounding connections located on the frame for a facility ground.
Can the rack angles be adjusted?
Yes, the vertical rack angles can be adjusted in 3/4″ increments for mounting depth requirements up to 20.3″. U rack units are numbered front and back for easy equipment installation.
Can the doors be reversed?
Yes, the front door has spring loaded hinges and can be easily moved to the opposite side.
Proposition 65 Warning:
This product can expose you to chemicals including Vinyl Chloride, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
Warranty
Limited Warranty: 5 Year
About CyberPower Systems
Our Vision To be the first choice in power management solutions and the catalyst for advancing power innovation. Our Mission CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.
Highlights
Rack Type: EIA-310 Standard 19" Rack
Height: 9U
Stationary Capacity: 132 lbs
Max. mounting depth: 20.3"
Color: Black RAL 9005 Powder Coat Paint
Mounting Hole Type: Square and Threaded
Reversible Door: Front
Side Panels: 1 per Side
Removable Sections: Door and Side Panels
Security: Keyed Alike Door and Side Panels
Assembly: Fully Assembled
Mounting Hardware: Included
Warranty: 5 Years
Specifications
General Information
Manufacturer
CyberPower Systems, Inc
Manufacturer Part Number
CR9U61003
Brand Name
CyberPower
Product Name
CR9U61003 Wall Mount Enclosure
Product Type
Rack Cabinet
Physical Characteristics
Form Factor
Wall Mountable
Color Family
Black
Product Color
Black
Product Material
Metal
Static/Stationary Weight Capacity
132.28 lb

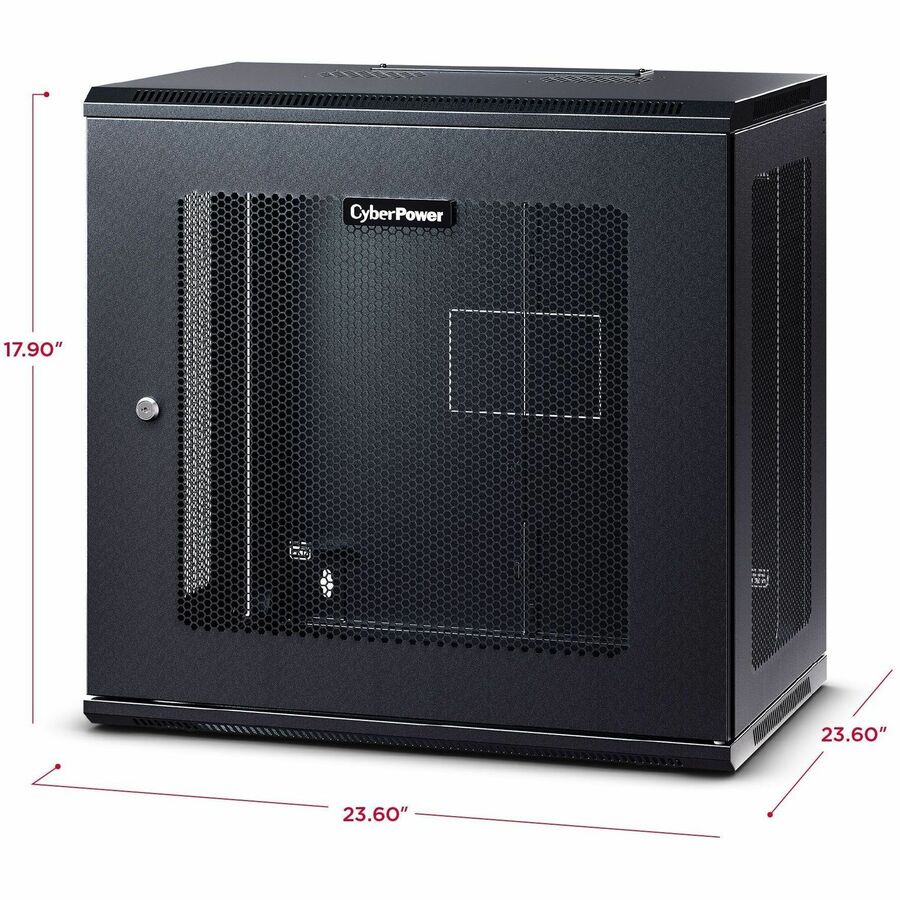

Height
17.9"
Width
23.6"
Depth
23.6"
Rack Height
9U
Weight (Approximate)
34.59 lb
Technical Information
Application/Usage
Switch, Patch Panel
Features
Perforated Door, Lockable Door, Lockable Side Panel, Removable Door, Removable Side Panel, Reversible Front Door, Vented, Reversible Door
