Overview

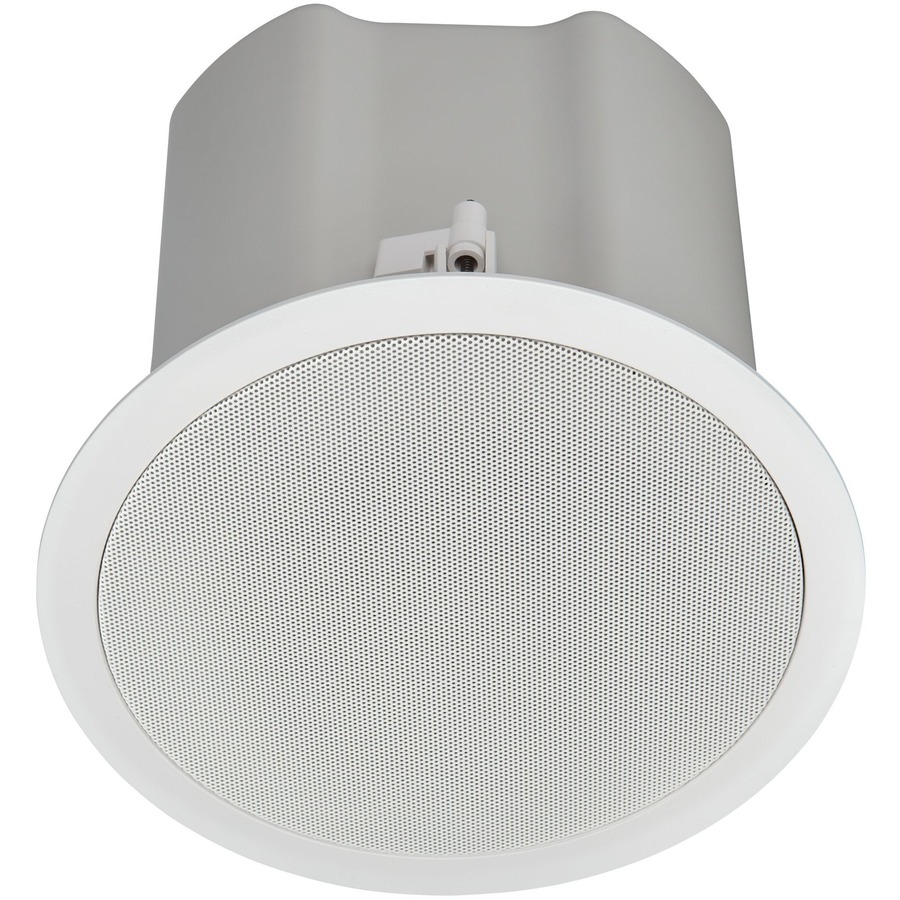

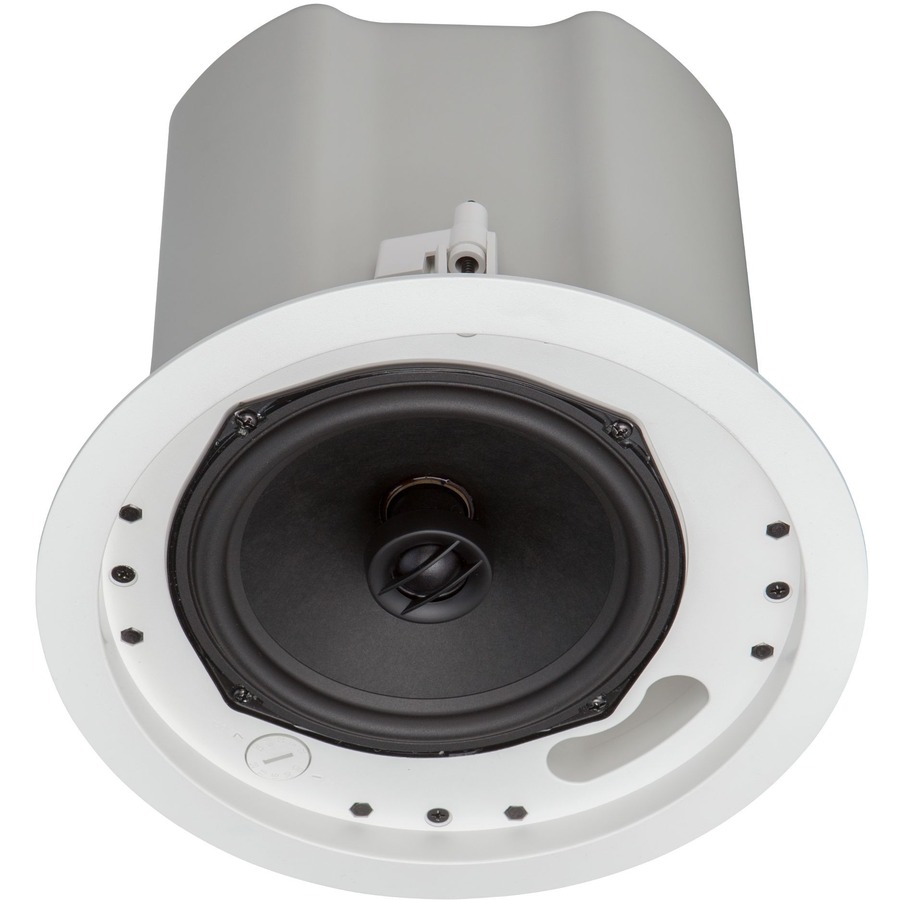

The Saros Integrator ICI6T model is a 2-way in-ceiling speaker featuring a 6.5 inch woofer and 3/4 inch dome tweeter. It is designed to enable quick installation and reliable performance in restaurants, retail spaces, convention facilities, airports, and office buildings. A built-in 30 Watt multi-tap transformer allows for use with 70 and 100 Volt distributed speaker systems.
Unitized construction of the speaker enclosure simplifies specification and installation for use in new and existing ceilings. Mounting the speaker is facilitated using toggle clamps integrated into the enclosure. A tile bridge is included to provide proper support when installed in a typical drop-tile ceiling. The tile bridge is adjustable to enable off-center speaker positioning, and can fit through the speaker cutout in blind-mount situations. A rigging point is also provided on the top of the speaker enclosure for securing to the building structure using the optional safety tether kit (SPKA-ST-15).
An integral metal back can enclosure is employed to meet the requirements of UL® 2043 for installation in an environmental air-handling (plenum) space. The wiring connection is accessible on the top of the enclosure. The built-in cable clamp can accommodate one or two 1/2" or 3/4" flexible conduits. Connecting the wiring is facilitated using a detachable screw terminal block with provisions for easy parallel wiring in a multi-speaker application. Setting the 70/100V transformer tap is performed via a screwdriver-adjustable control located on the front baffle behind the grille.
Saros Integrator ICI6T speakers are available in white only. They are priced individually, but must be ordered in pairs.
Key Features
• 2-way in-ceiling speaker
• 6.5" woofer with wide-dispersion dome tweeter
• Single front port for enhanced low-frequency response
• Built-in 30 Watt 70/100V multi-tap transformer
• Friction-fit metal grille
• Integral metal back can with built-in cable entry
• Accommodates up to two 1/2" or 3/4" flexible conduits
• Toggle clamp mounting for fast, easy installation
• Includes tile bridge for installation in a drop-tile ceiling
• Meets the requirements of UL® 2043 for installation in an environmental air-handling space
• 50 Watts program power handling at 8 Ohms
• 95 Hz - 15 kHz frequency response (±3 dB)
• 110° nominal coverage pattern
• Available in white only
• TAA Compliant
Warranty
Limited Warranty: 5 Year
Highlights
Listen to your favorite music and enjoy great sound with optimal audio output and maximum playback efficiency
The 2-way speakers give smooth and precise production of sound to deliver an ultimate audio experience
8 Ohm impedance extracts maximum power so you will get more output from your speakers
Hear low subs and soaring vocals with a frequency range of sound from 95 Hz-15 kHz
Handles up to 50 W of RMS power
6.50" woofer driver size allows better stereo imaging with maximum sound feasibility
0.79" tweeter driver size provides crispier, well-detailed sound with maximum productivity
Delivers reliable sound with 15 kHz maximum frequency response
91 dB sensitivity for efficient conversion of power into sound to produce adequate audio output
Flush Mount form factor allows hassle-free and easy usage with increased efficiency
Specifications
General Information
Manufacturer
Crestron Electronics, Inc
Manufacturer Part Number
6507581
Brand Name
Crestron
Product Line
Saros
Product Model
ICI6T-W-T-EACH
Product Name
Saros ICI6T-W-T-EACH Speaker
Packaged Quantity
1
Product Type
Speaker
Physical Characteristics
Color Family
White
Product Color
White Textured
Form Factor
Flush Mount, Blind Mount, In-ceiling
Depth
8.62"
Diameter
10"
Weight (Approximate)
6.90 lb
Technical Information
Crossover Type
2-way
RMS Output Power
50 W
Woofer Driver Size
6.50"
Woofer Driver Material
Cone
Tweeter Driver Size
0.79"
Tweeter Driver Material
Dome
Minimum Frequency Response
95 Hz
Maximum Frequency Response
15 kHz
Impedance
8 Ohm
Sensitivity
91 dB
Warranty
Limited Warranty
5 Year
Miscellaneous
Package Contents
Saros ICI6T-W-T-EACH Speaker
Safety Tether
Tile Bridge
Application/Usage
Music, Restaurant, Retail Space, Convention Center, Airport, Office Building
