Comprehensive Pro AV/IT Integrator Series? HDBaseT 4K60 18G HDMI Extender Kit with Audio, RS232, IR, PoC up to 492ft

Extend 4K HDMI, Audio and RS232 Signals over a Single UTP Cable up to 492ft

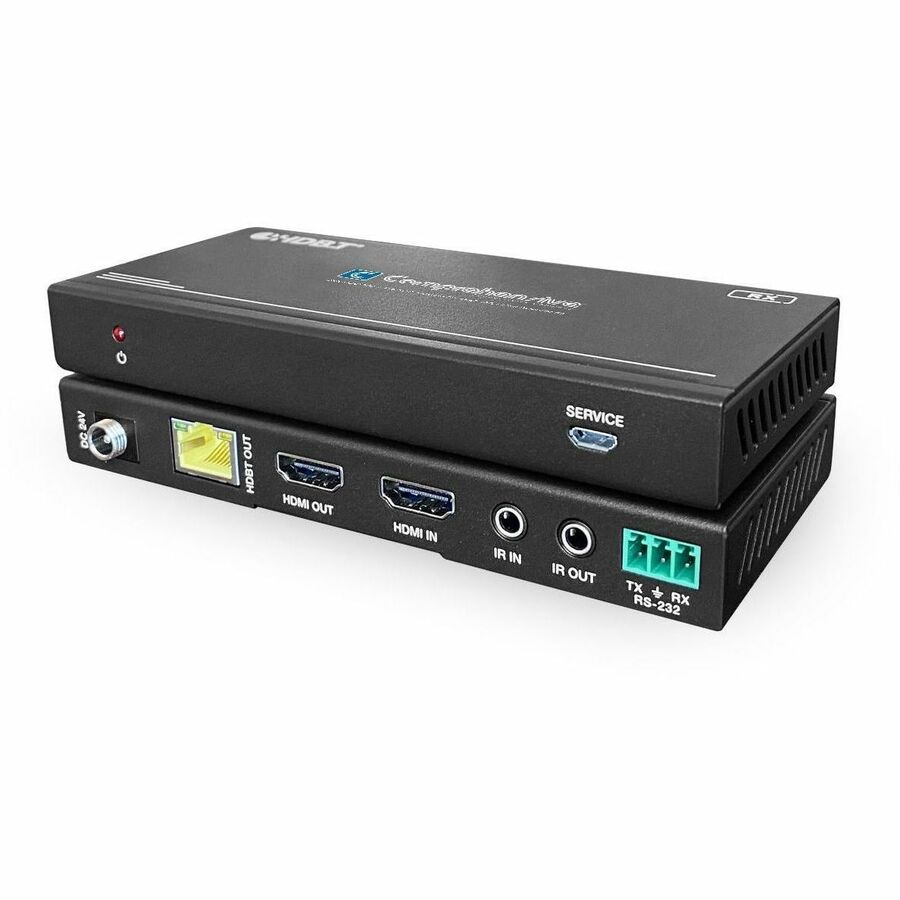

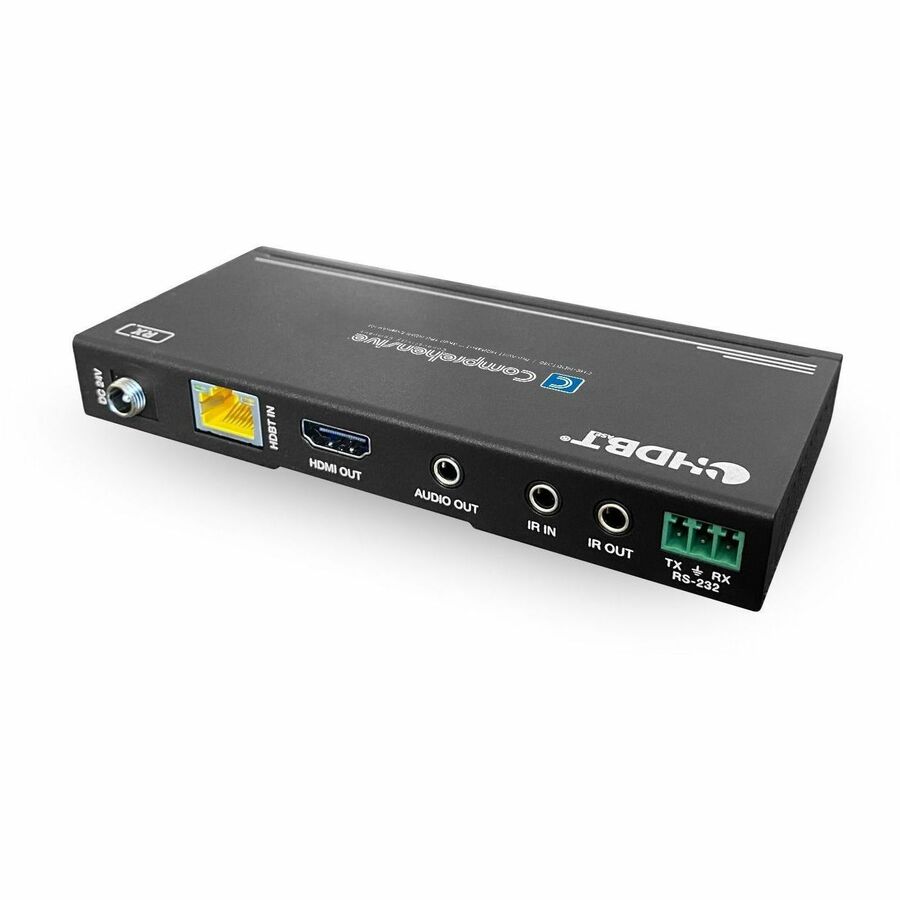

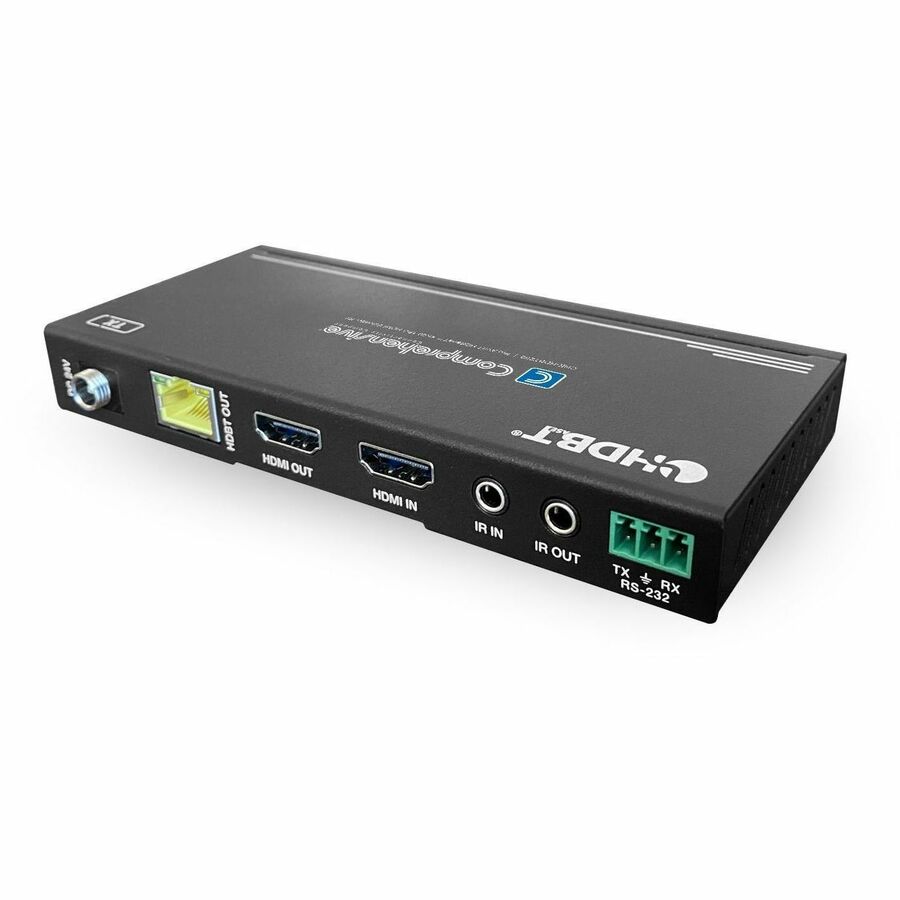

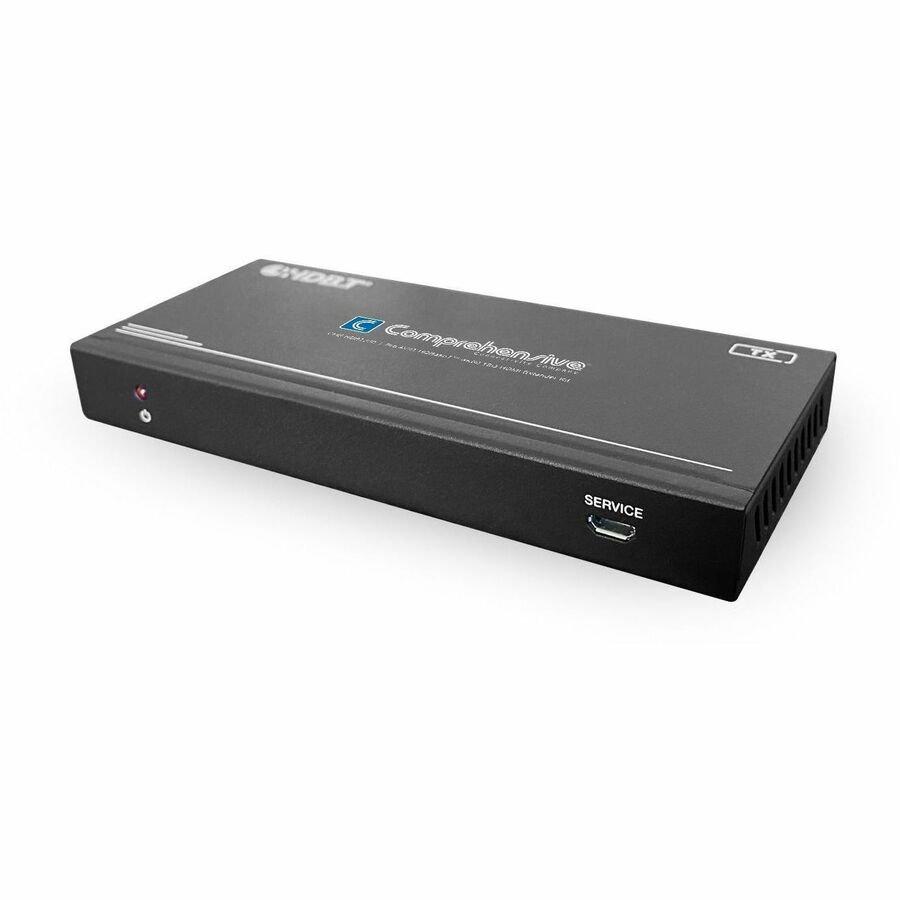

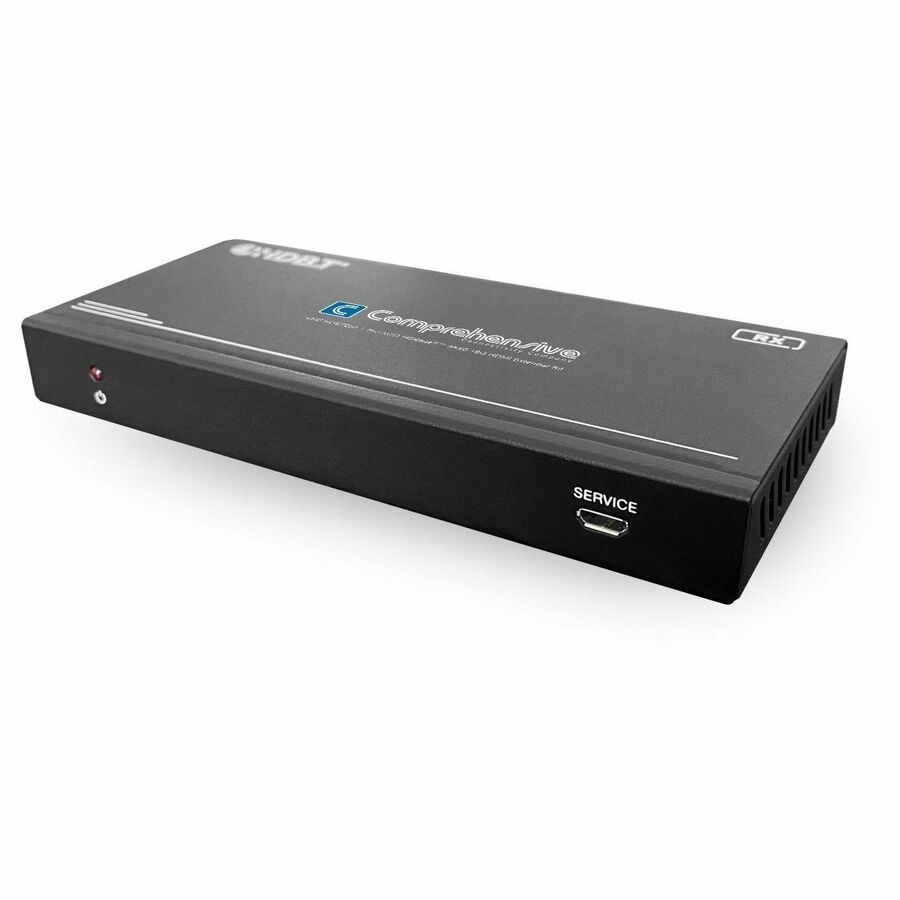

Comprehensive's CHE-HDBT250 is an HDBaseT? 2.0 Extender with HDMI, audio, IR and RS232 connectivity. This extender supports video resolutions up to 4K@60Hz 4:4:4 18Gbps. It also supports de-embeded audio for L/R audio output and PoC function. In addition, this extender is equipped with bi-directional IR & RS232 pass-through which allows for source and display control up to 492ft.

The CHE-HDBT250 HDBaseT? extender offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability and is the perfect solution for any application.

4K/UHD Capability @60Hz 18Gbps with 4:4:4 Chroma Subsampling

The CHE-HDBT250 extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards. Through the use of the highly efficient and visually lossless DSC compression scheme, high bandwidth signals, previously unsupported by HDBaseT?, such as 4K@60Hz (4:4:4, 8-bit) or 4K@24Hz (4:4:4, 12-bit, HDR) can be extended without visual compromise or additional latency.

Bi-Directional PoC

The CHE-HDBT250 may be powered by a single 24V power supply on either the transmitter or receiver which makes install flexible and clutter free.

Analog Audio De-embedding

The CHE-HDBT250 is readily equipped with a 3.5mm audio port for de-embedding analog audio from the HDMI output which makes it simpler to connect your audio amplifier or entertainment system.

Bi-Directional RS232 and IR Control Pass-through

The CHE-HDBT250 extends RS-232 and IR control signals over HDBaseT?, offering numerous possibilities for remotely interfacing a source or display with a control system.

Easy to Install Discreetly

The CHE-HDBT250 can be easily installed on a wall, in furniture, under a table or hidden within a floor box. The Slim and compact design with mounting brackets can be easily concealed behind a wall-mounted display or above a projector.

Quality You Can Count On

Since 1974, Comprehensive has been manufacturing the highest quality commercial grade solutions for AV and IT professionals. This product continues that tradition with high end materials, components and quality control to ensure years of worry-free use. All components are backed by Comprehensive's 3 Year Warranty, so you can be assured this product will work for many years to come.
