Genuine Comprehensive Connectivity through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CUE-104FE
Category
Cable Extenders
Overview

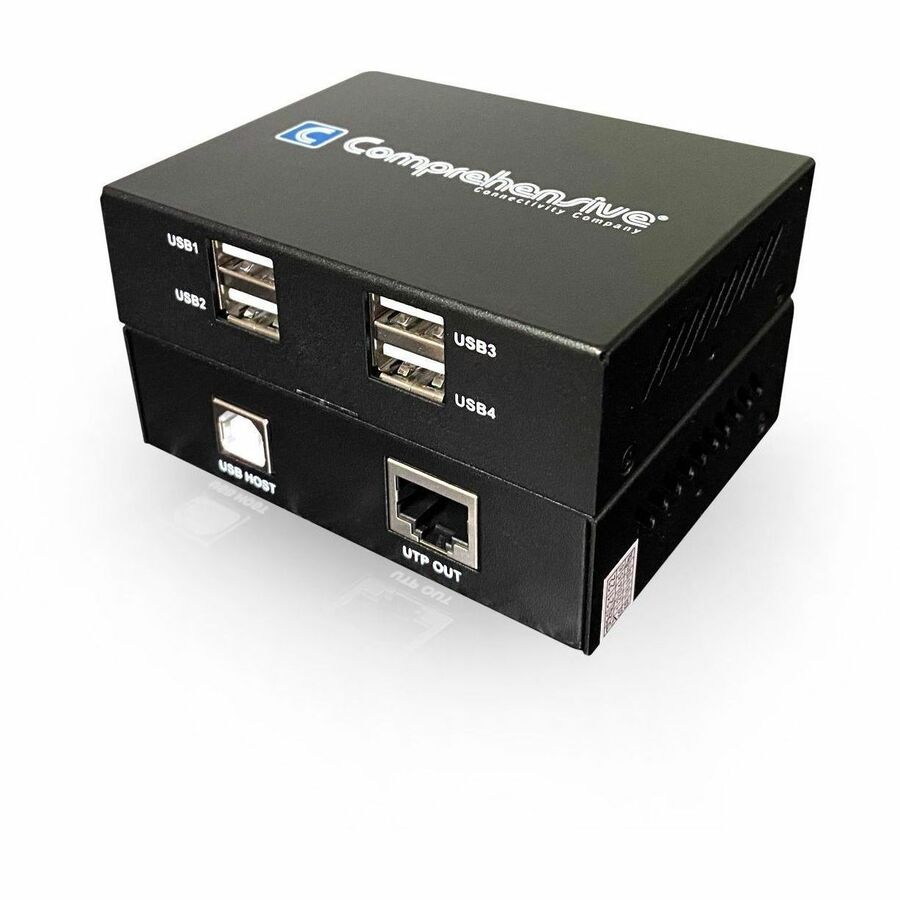

Comprehensive's CUE 104FE is a low cost and high performance 4 Port Plug and Play USB 2.0 over Cat5e/Cat6 Extender Hub Kit that transmits data from a computer to as many as four USB 2.0 peripherals up to 164ft away.
This extender kit can work with all major operating systems including Windows®, MacOS® and Linux with no need of driver installation . It can achieve data rates up to 480Mbps and is also compatible with USB 1.1 and USB 3.0 peripherals. The 4 Port Hub receiver allows the connections of up to four USB devices, providing access to a keyboard, mouse, printers, scanners, cameras, speaker, external storage media, digital signage or automated control systems.
Warranty
Limited Warranty: 3 Year
Highlights
Supports high speed USB 2.0 (Up to 480Mbps) over a Cat 5e/6 cable up to 50m/164ft
Up to 4 USB device connections supported by the Hub
Hot Swap compatible
Plug and play, with no driver installation required
Supports all major operating systems: Windows, Mac OS and Linux
Compatible with USB 1.1 and USB 1.0 peripherals
3 Year Warranty
Specifications
General Information
Manufacturer
Comprehensive Connectivity Company
Manufacturer Part Number
CUE-104FE
Brand Name
Comprehensive
Product Name
Pro AV/IT 4-Port USB 2.0 over CATx Extender up to 164ft
Product Type
USB Extender
Interfaces/Ports
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
USB
Yes
Number of USB Ports
5
Physical Characteristics
Height
1"
Width
3"
Length
8"
Transmitter Weight (Approximate)
2 lb
Receiver Weight (Approximate)
2 lb
Technical Information
Maximum Extended Range
164 ft
Maximum Data Transfer Rate
60 MB/s
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents

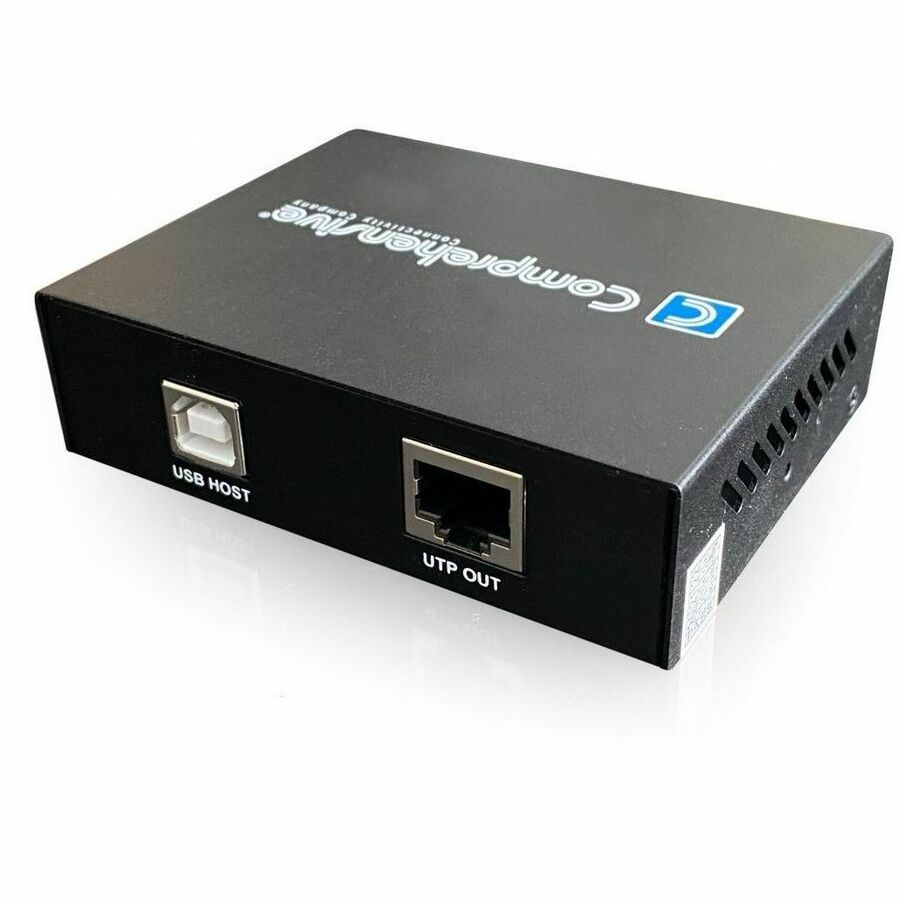

Input Transmitter

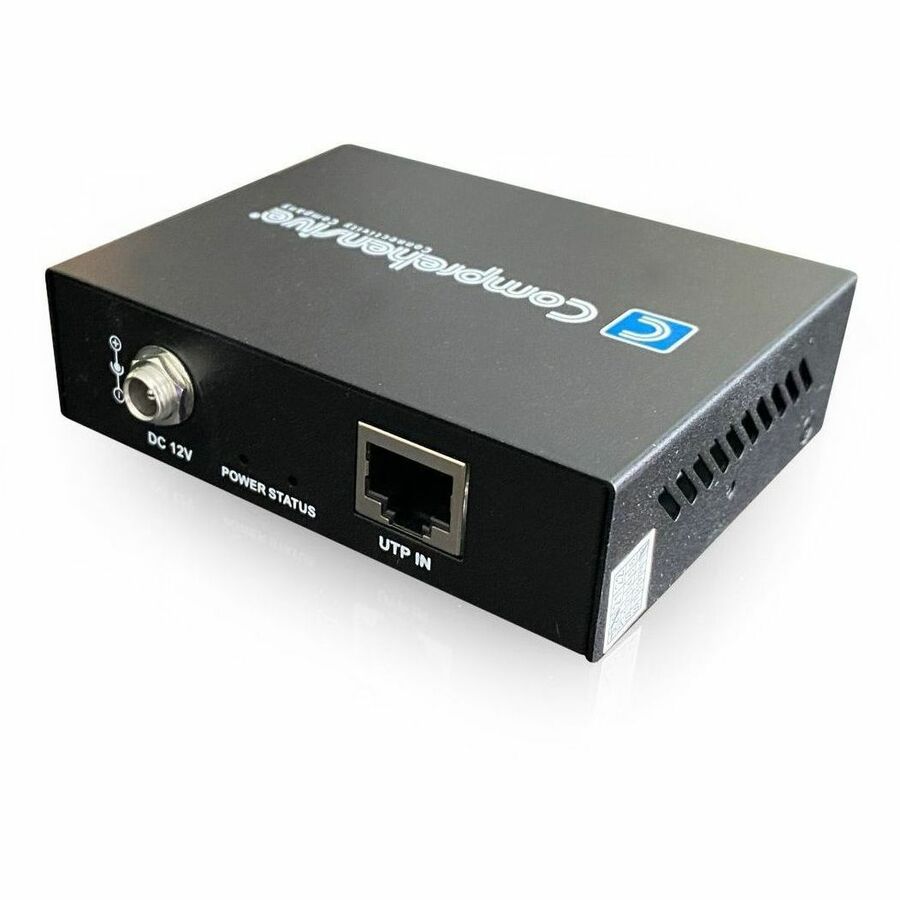

Output Receiver
Additional Information
Extend four USB devices up to 230 feet over CAT6 cable
Supports USB 2.0 high-speed and USB 1.1 (low-speed, full speed) devices

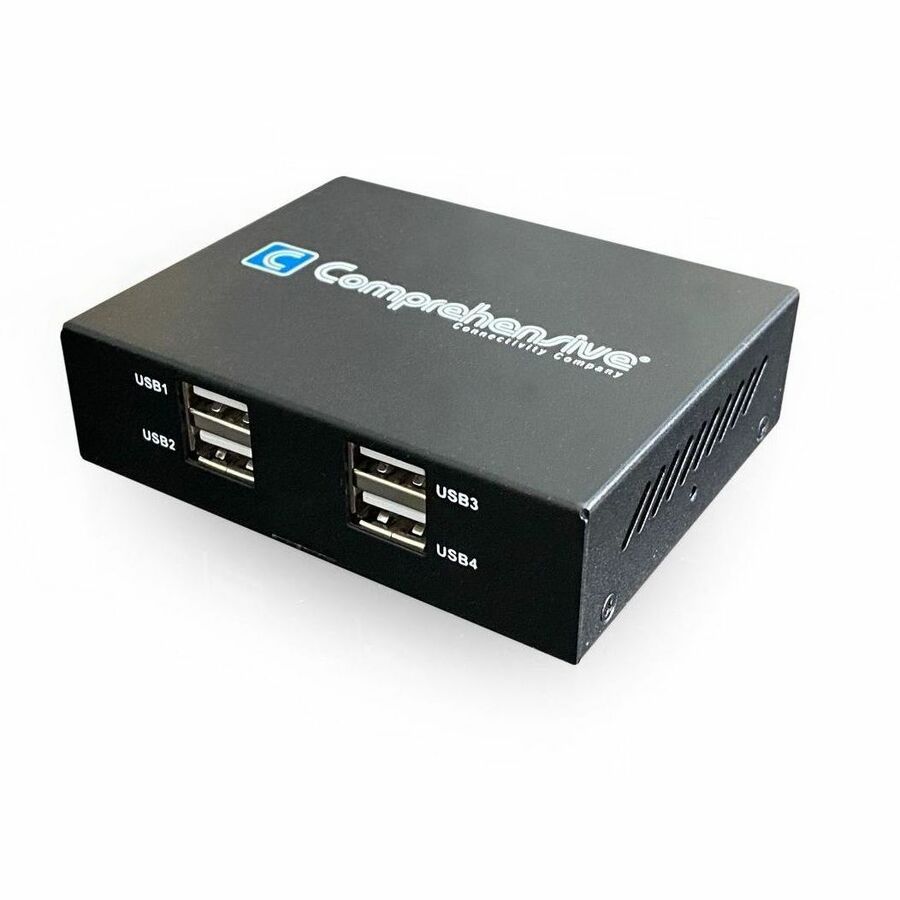

Remote unit built in 4 port hub to connect 4 USB devices
Distance up to 164 feet over CAT5e cable, 230 feet over CAT6 cable
1 x 5V external power supply needed for remote unit included
Plug and play for easy operation
For extending all USB 2.0 peripheral devices, such as USB camera, printer, scanner, USB Ethernet/VGA/HDMI adapter, mass storage device, keyboard, mouse, etc
Transmitter Dimension: 1" x 1" x 2.76" +7.5" USB cable
