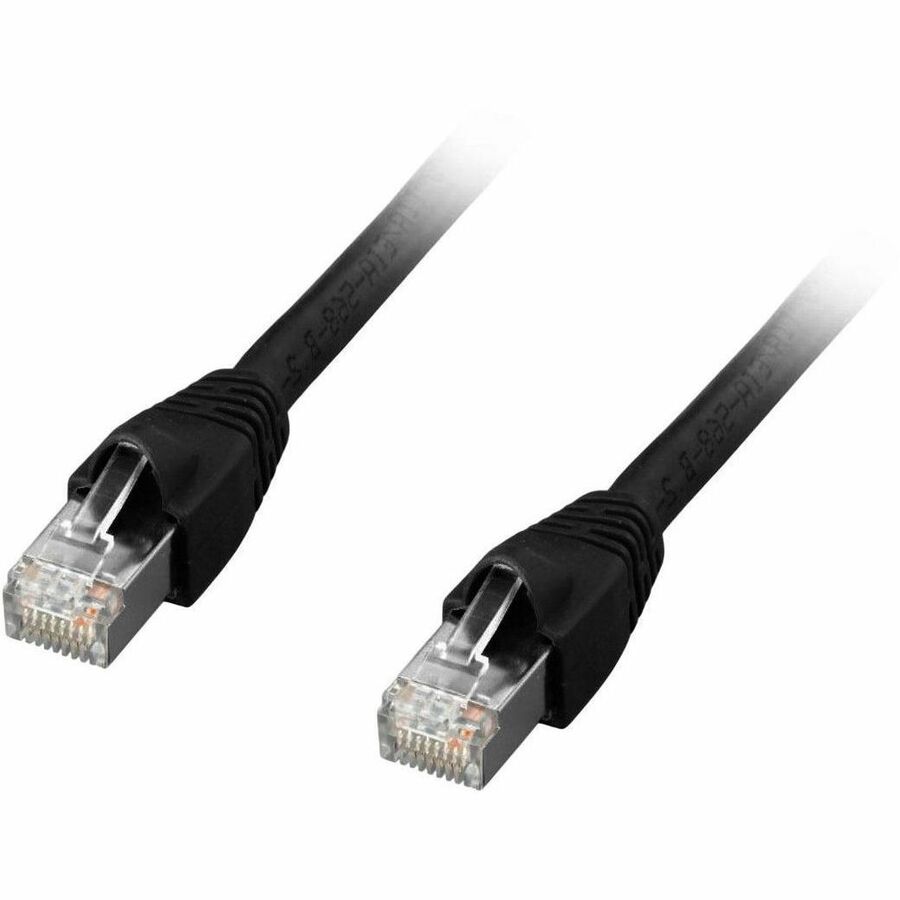

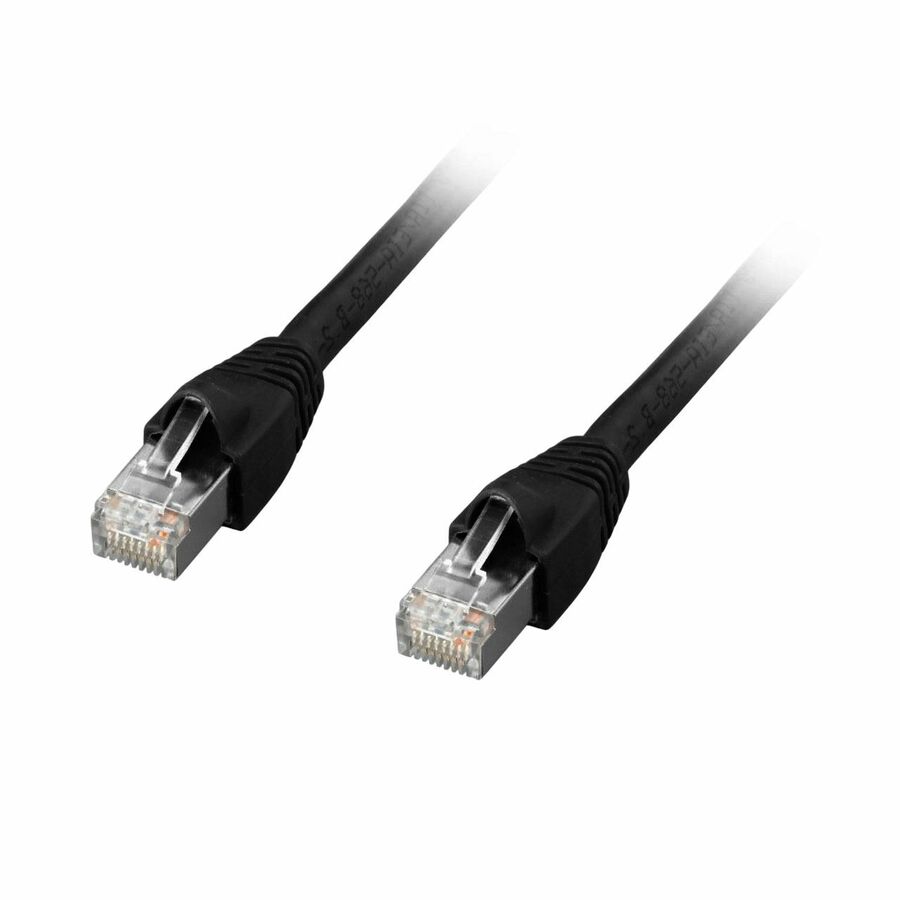

Comprehensive CAT6A Shielded Patch Cable Black 1ft

• Supports IEEE 802.3af and is DTE power compliant

• Provides NEXT performance beyond 600 MHz

• Low-profile snagless hood is ideal for high-density switch applications.

• Compliant to Industry Standards - official TIA/EIA568-B.2-10 and ISO/IEC 11801-compliant

• Meets all Alien crosstalk reduction specifications - not affected by wire in adjacent cable

• 10Gbit/s transmission to 100m

• Performance Tested - Tested to exceed 500MHz

• CAT6a Copper Patch Cables feature Molded Connectors with Snagless Guards

• CAT6a Copper Patch Cables feature Gold-Plated Connector Contacts - Deliver maximum conductivity for high-speed data transmissions

• Backward compatible with CAT5e and CAT6

• PoE rated to four times the standard

• Lifetime warranty

Description

Cat6A Shielded Patch Cables enable 10-Gigabit data transmission over a 4-conductor 24awg shielded twisted-pair copper cable, allowing connection distances of up to 100 meters. Current Cat6 cabling systems may only support 10-Gigabit Ethernet over limited distances. The Cat6A draft extends the Cat6 electrical specifications from 250 MHz to 500 MHz. It also proposes a new measurement for Power-Sum Alien Crosstalk to 500 MHz. Alien Crosstalk is a coupled signal in a disturbed pair arising from a signal in a neighboring cable. Comprehensive CAT6A cables have an integrated snagless boot and 50u gold plated contacts, and are covered by our Lifetime warranty.
