Club 3D Multi Stream Transport(MST)Hub DisplayPort 1.4 to HDMI Dual Monitor 4K60Hz M/F
1 x 20-Pin DisplayPort 1.4 Digital Audio/Video - Male, 1 x USB Type A - Male - 2 x 19-Pin HDMI 1.4 Type A Digital Audio/Video - Female, 1 x Micro USB Type B - Male, 1 x Micro USB - Female - 3840 x 2160 Supported - Black - 1
Genuine Club 3D through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CSV-7200H
Category
Connector Adapters
Overview
The Club 3D CSV-7200H Multi Stream Transport (MST) Hub DisplayPort 1.4 to Dual HDMI 4K60Hz is an integrated solution that allows you to enjoy displaying content onto two different displays simultaneously under MST mode. The Two screens can accommodate displaying the same contents in parallel or by simply extending the existing screen, giving a panoramic view of the content which maximizes the user's visual experience. With its multi-display capabilities, this hub can serve as a convenient and hassle-free portable, alternative solution to the conventional docking station. It is the perfect solution for host devices that feature DP1.2 /1.4 graphic cards for gaming and commercial applications.
Warranty
Limited Warranty: 24 Month
Highlights
Offers exceptional quality and seamless compatibility with various audio and video equipment for smooth performance
Versatile and durable DisplayPort/HDMI adapter supports multiple connectivity needs
Get detailed visuals and vibrant colors with 3840 x 2160 resolution for optimal viewing
Multi-Stream Transport (MST) Support feature ensures maximum efficiency and convenience for smooth operation
Specifications
General Information
Manufacturer
Club 3D
Manufacturer Part Number
CSV-7200H
Brand Name
Club 3D
Product Name
Multi Stream Transport(MST)Hub DisplayPort 1.4 to HDMI Dual Monitor 4K60Hz M/F
Packaged Quantity
1
Packing
Box
Product Type
A/V Adapter
Physical Characteristics
Color Family
Black
Product Color
Black
Height
0.4"
Width
2.4"
Depth
1.9"
Length
7.9"
Weight (Approximate)
3.84 oz
Technical Information
Adapter Type
DisplayPort/HDMI
Connector Type on First End
DisplayPort 1.4 Digital Audio/Video - Male, USB Type A - Male
Connector on First End Details
1 x 20-Pin DisplayPort 1.4 Digital Audio/Video - Male, 1 x USB Type A - Male
Connector Type on Second End
HDMI 1.4 Type A Digital Audio/Video - Female, Micro USB Type B - Male, Micro USB - Female
Connector on Second End Details
2 x 19-Pin HDMI 1.4 Type A Digital Audio/Video - Female, 1 x Micro USB Type B - Male, 1 x Micro USB - Female
Maximum Resolution Supported
3840 x 2160
Features
Multi-Stream Transport (MST) Support, HDCP 1.4, HDCP 2.2, High Bit Rate 3 (HBR3), High Bit Rate 2 (HBR2), Display Stream Compression (DSC) 1.2, Plug and Play
Warranty
Limited Warranty
24 Month
Miscellaneous
Package Contents

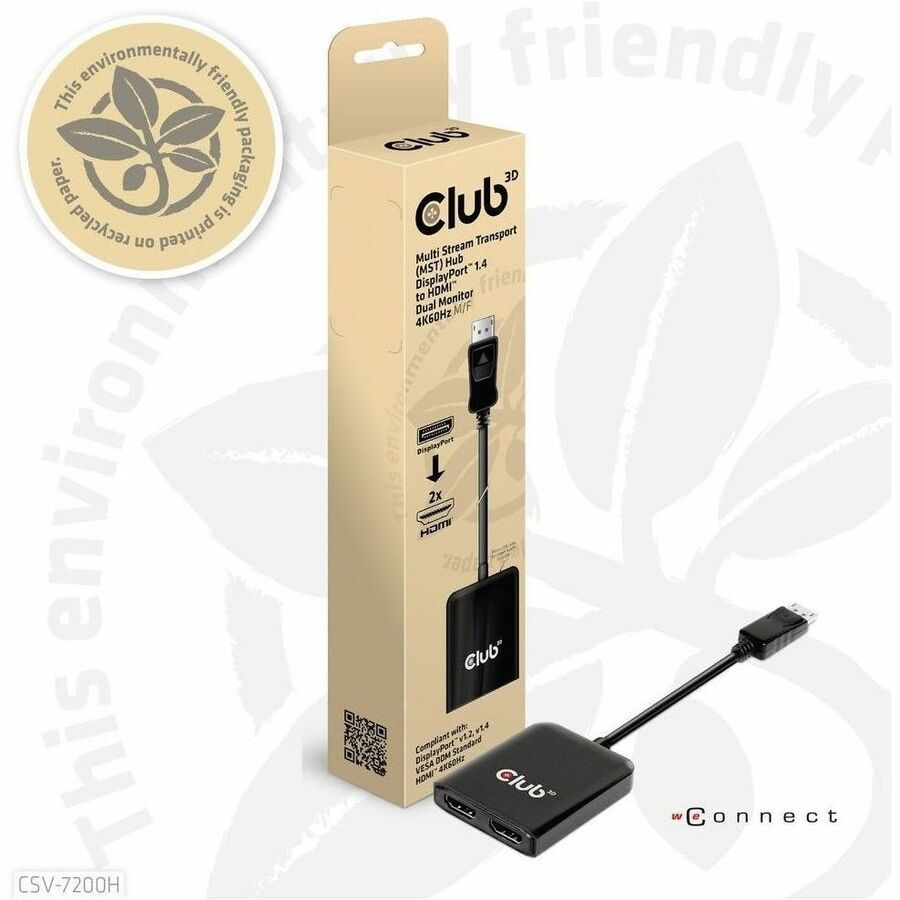

CSV-7200H, MST-Hub DisplayPort 1.4 to HDMI Dual 4K60Hz
1 x External Power Cable USB Type-A to Micro USB M/M
