Club 3D USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) / VGA (1080/60Hz)
1x USB Type C (Gen1)- Male, 1x USB Type A- Male - 1x HDMI Digital Audio/Video - Female, 1x VGA - female - 3840 x 2160 Supported
SKU
Category
Connector Adapters
MSRP$105.00
$95.70
Save 9%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 3 and Nov 7, then process your delivery right after.
Genuine Club 3D through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Connector Adapters
Overview

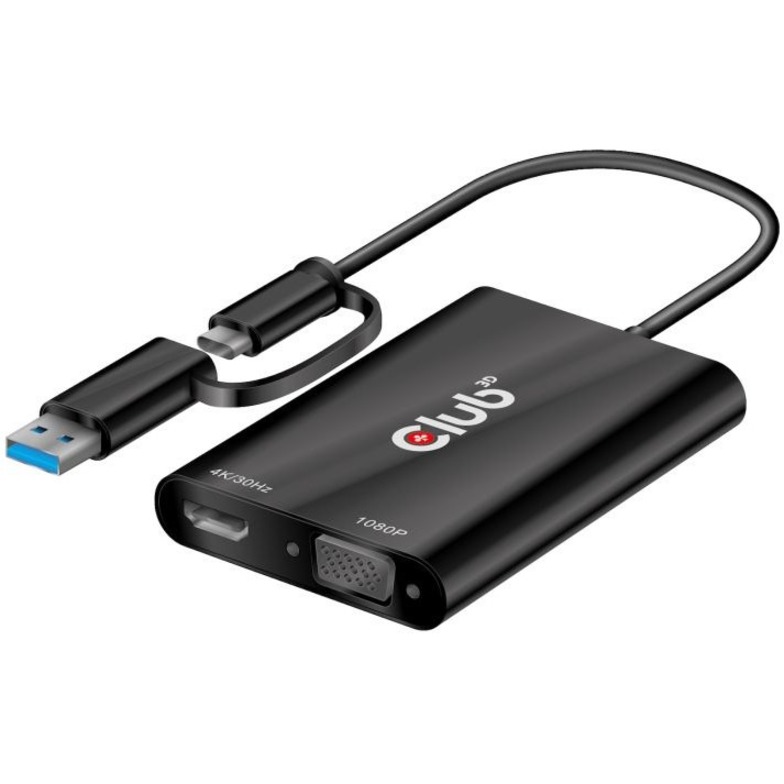

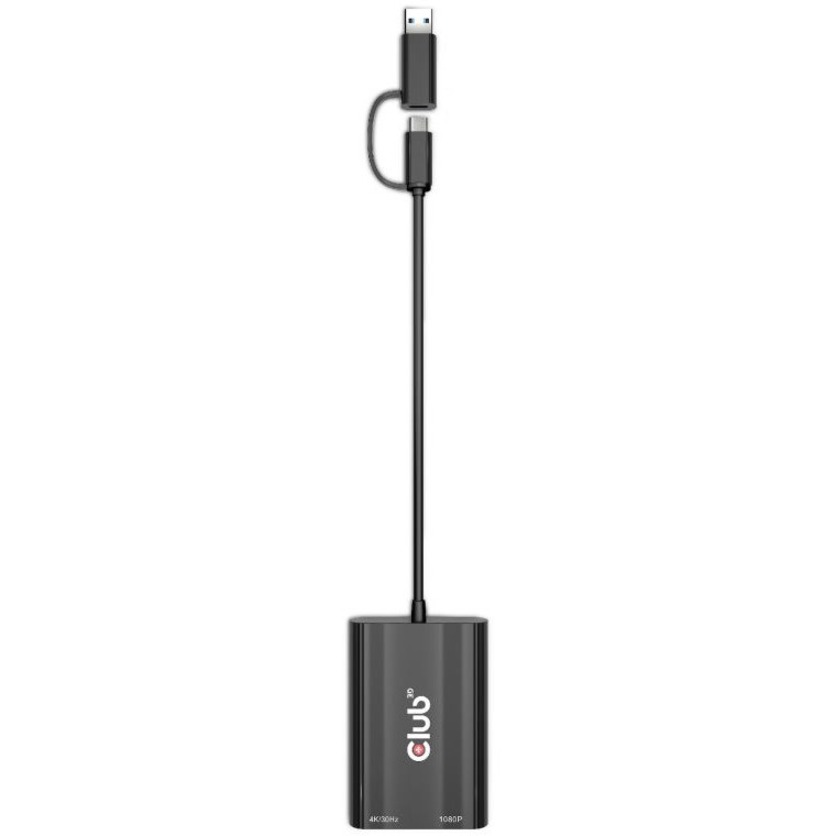

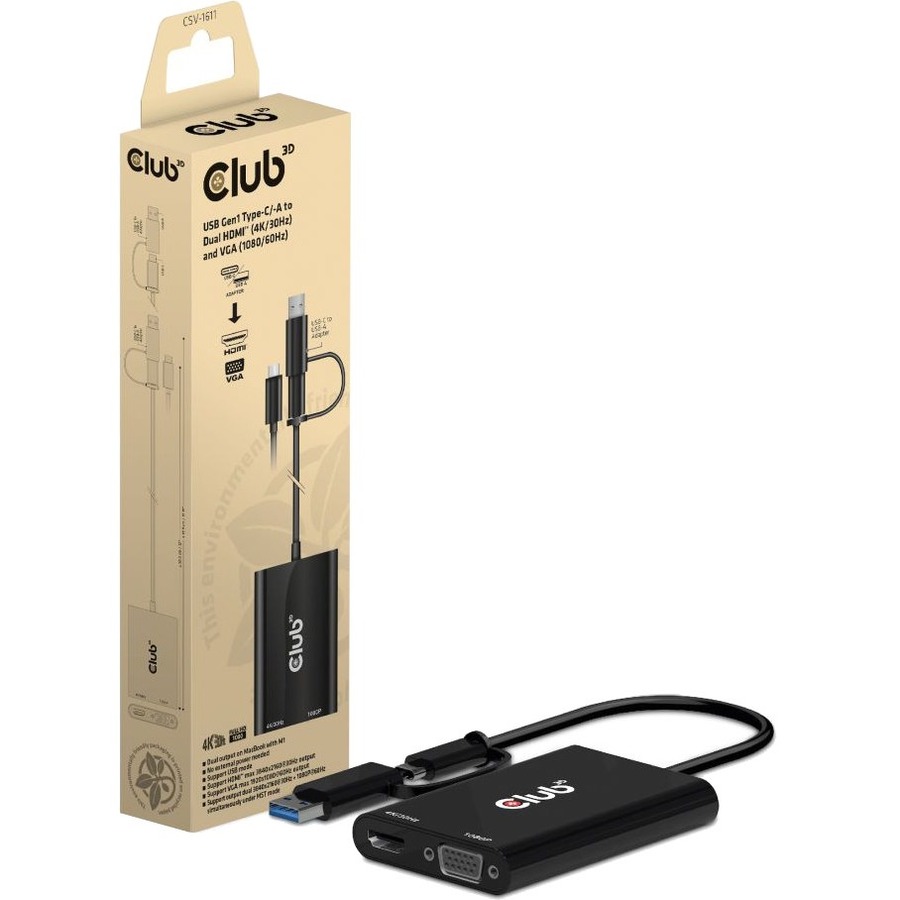

The Club 3D CSV-1611 USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) and VGA (1080/60Hz) adapter is a Dual Display adapter which provides most advanced, efficient solution to extend a single USB Type-C or Type-A port to HDMI and VGA displays. It supports single HDMI 4K/30Hz and VGA 1080P/60Hz or dual 4K/30Hz + VGA 1080P/60Hz simultaneous output of different videos. It can work on USB Mode and DP Alt mode supported Type-C and USB-A host. Dual Video output on MacBook with M1. Support USB Gen1 with max 5Gbps data transmission. The unit is powered thru the USB Type-A or Type-C host connection. No external power needed.
Highlights
Works with both USB Gen1 Type-A or Type-C input
No external power needed
Support USB mode
Support USB Gen1 with max 5Gbps data transmission
Dual output on MacBook with M1
Support HDMI max 3840x2160@30Hz output
Support output pixel format RGB/YCbCr4:2:2/YCbCr4:2:0
Support VGA max 1920x1080@60Hz output
Support output dual 3840x2160@30Hz + 1080P@60Hz simultaneously under MST mode
Support 8bit color depth output
Specifications
General Information
Manufacturer
Club 3D
Manufacturer Part Number
CSV-1611
Brand Name
Club 3D
Product Name
USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) / VGA (1080/60Hz)
Product Type
A/V Adapter
Physical Characteristics
Height
0.6"
Width
2.4"
Length
3.5"
Weight (Approximate)
4.59 oz
Technical Information
Adapter Type
HDMI/USB/USB-C/VGA
Connector Type on First End
USB Type C (Gen 1) - Male, USB Type A - Male
Connector on First End Details
1x USB Type C (Gen1)- Male, 1x USB Type A- Male
Connector Type on Second End
HDMI Digital Audio/Video - Female, VGA
Connector on Second End Details
1x HDMI Digital Audio/Video - Female, 1x VGA - female
