7680 x 4320 - 3 x 3 - Notebook, Computer - 1 x HDMI Out - 60 Hz
SKU
Category
Video Switchboxes
$54.79
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 27 and Dec 1, then process your delivery right after.
Genuine Club 3D through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Video Switchboxes
Overview

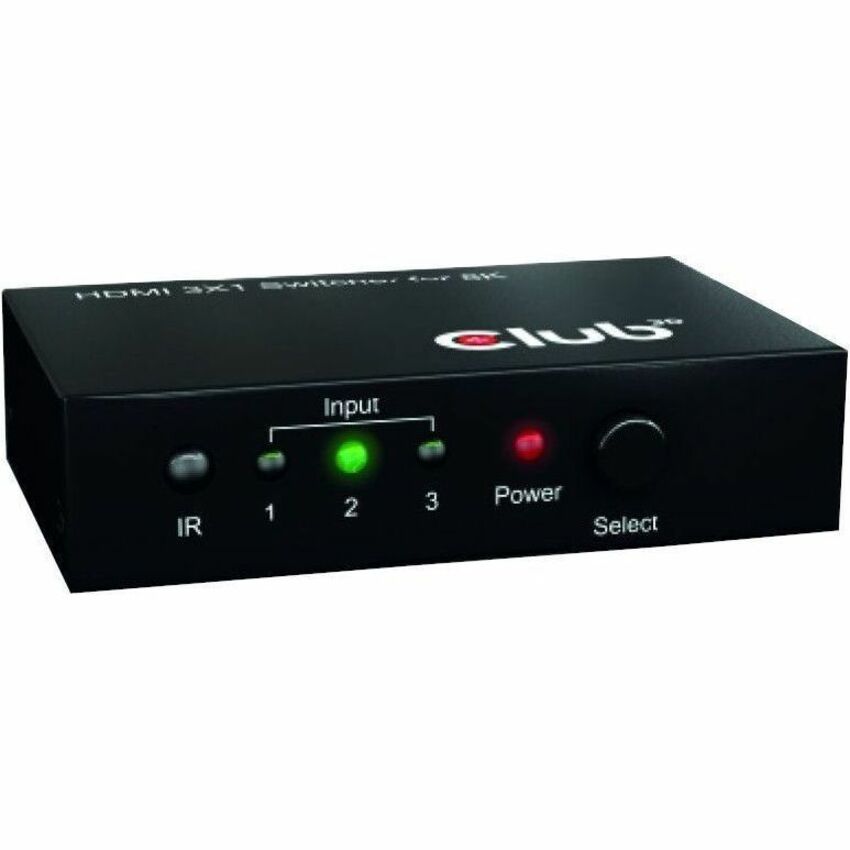

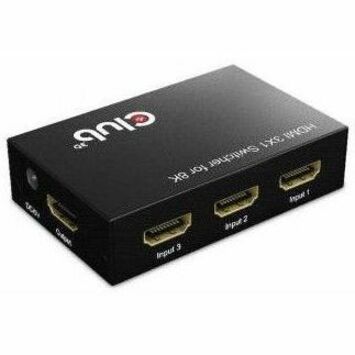

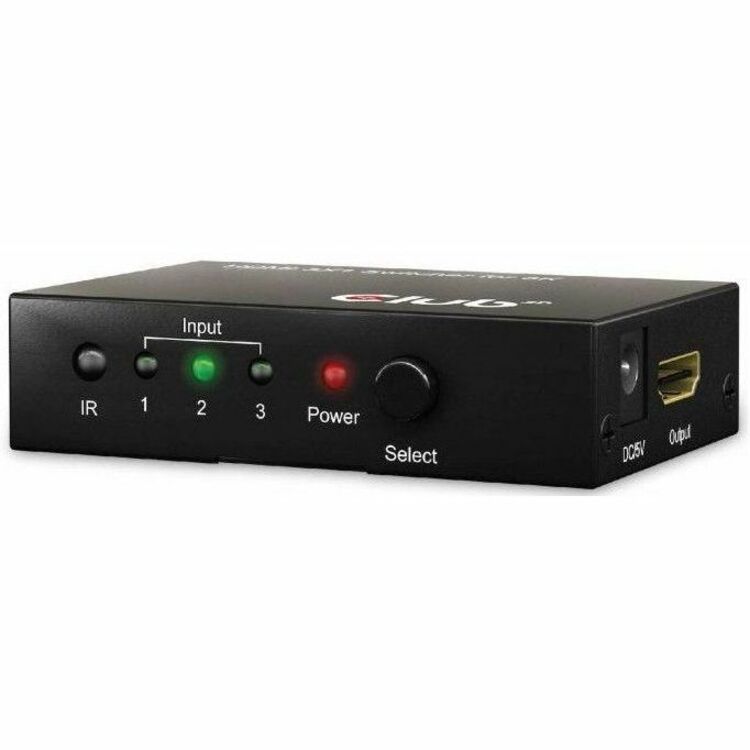

The Club 3D CSV-1381 is a 3 to 1 HDMI spec. Switch that routes your high-definition video and digital audio from any one of the HDMI inputs to an 8K60Hz/4K120Hz HDMI output. The easiest way of connecting your High-Resolution game consoles and/or your PC/Laptop to 1 High-Resolution HDMI display up to 8K60Hz or 4K120Hz. All inputs are capable to accommodate up to 8K60Hz/4K120Hz high-definition video sources simultaneously. The output sends the high-definition audio/video signals to a high definition(8K60Hz) HDMI spec. Display. Switching inputs can be done by key pressing, on the unit itself, or with an IR remote unit for easy switching. This is a high-performance and small-sized HDMI 8K Switcher in a metal housing with an external Power Supply of 100-240VAC / 5V-1A DC. It's an ideal assistant both at home and at work.
Highlights
Support video resolution up to 8K60Hz(7680*4320) or 4K120Hz(3840*2160)
Support Full 3D
HDCP 2.2&1.4 pass through
Support EDID bypass
HDR support
RGB / YCbCr 4:4:4 /YCbCr 4:2:2/YCbCr 4:2:0
IR remote unit(38KHz)
Each Input- and Output- cable length is max. 2m/6.56ft
Specifications
General Information
Manufacturer
Club 3D
Manufacturer Part Number
CSV-1381
Brand Name
Club 3D
Product Name
3 to 1 HDMI 8K60Hz/4K120Hz Switch
Product Type
Audio/Video Switchbox
Interfaces/Ports
HDMI In
Yes
HDMI Out
Yes
Number of HDMI Inputs
3
Number of HDMI Outputs
1
Physical Characteristics
Height
0.8"
Width
3.2"
Depth
2"
Weight (Approximate)
3.70 oz
Technical Information
Connectivity Technology
Cable
Number of Input Devices Supported
3
Device Supported
Notebook, Computer
Number of Displays Supported
3
Video
Maximum Video Resolution
7680 x 4320
Miscellaneous

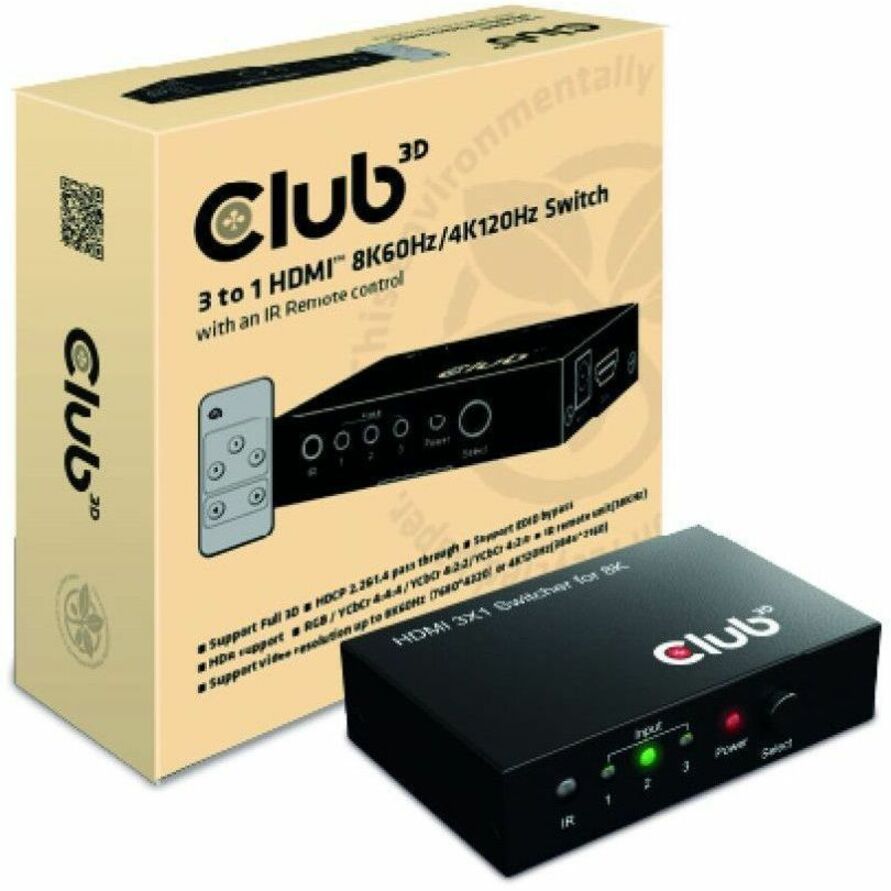

Package Contents
3 to 1 HDMI 8K60Hz/4K120Hz Switch

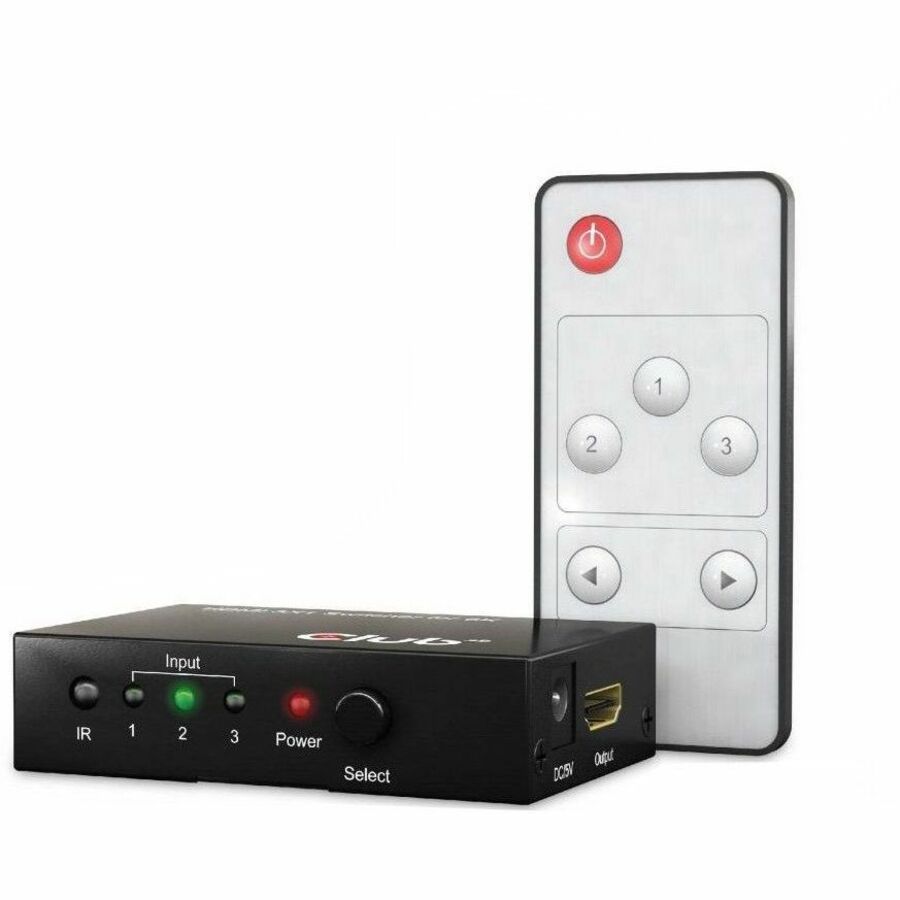

IR Remote controller (incl CR2025 Battery)
Power Supply 100-240VAC/ 5V1A DC
QR Code for downloading the Quick Install Guide (QIG)
