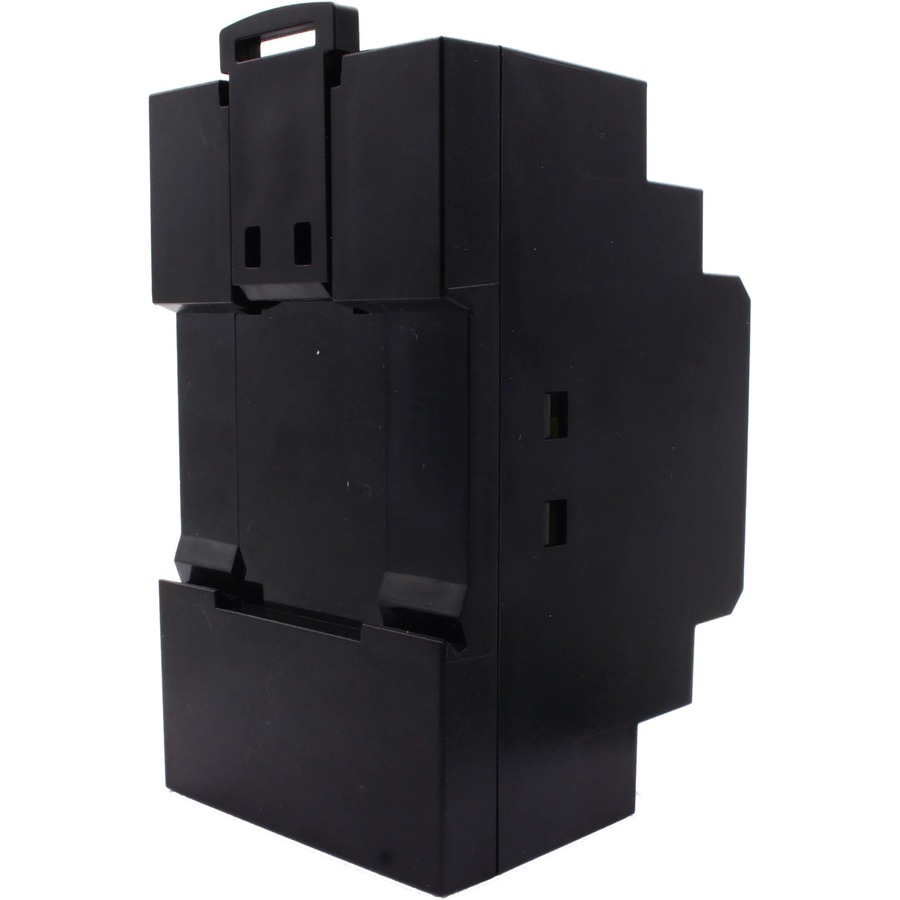

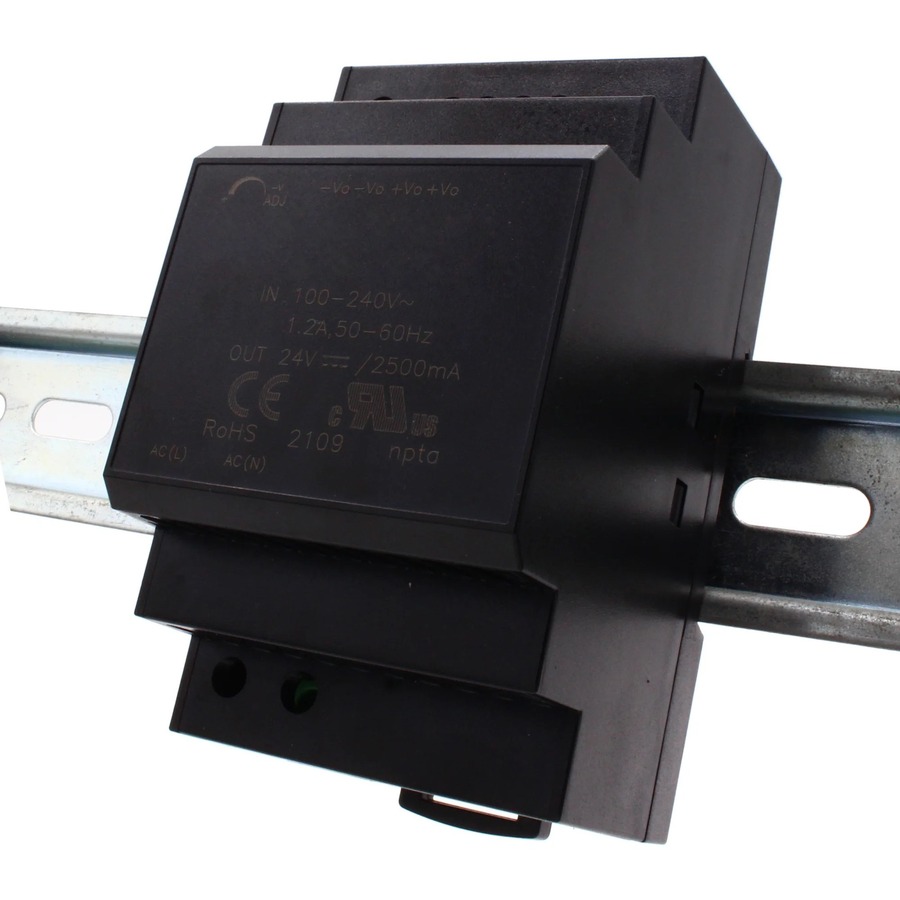

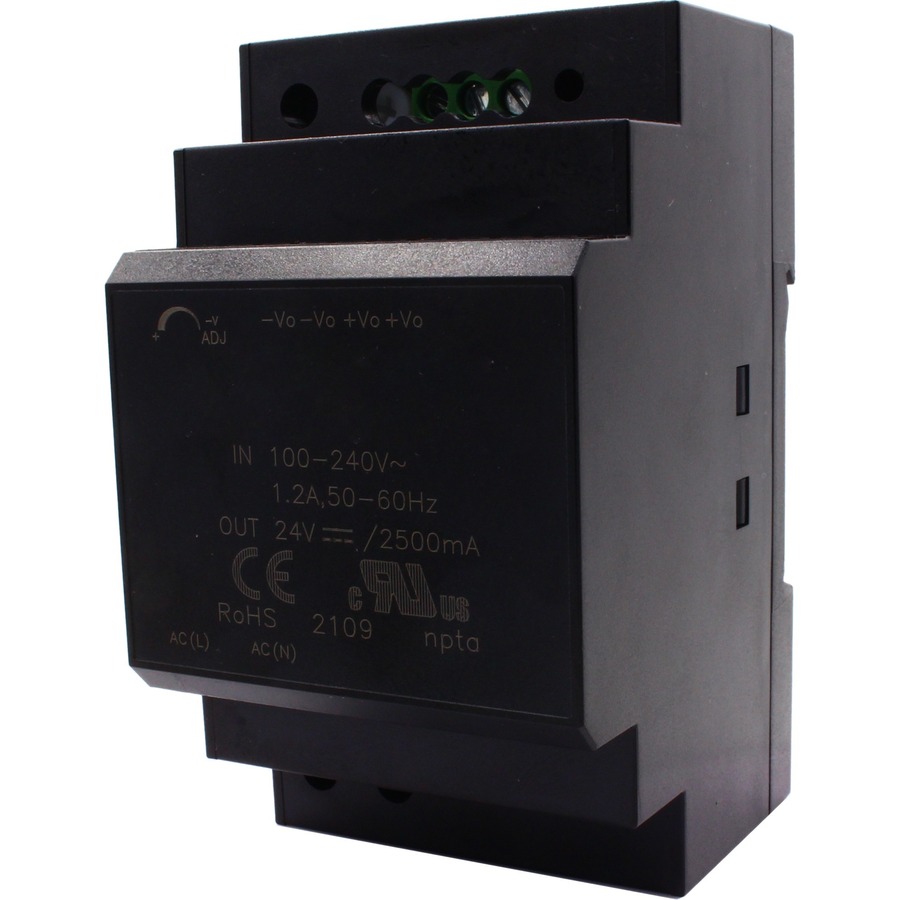

Brainboxes 60W Single Output Industrial DIN Power Supply
DIN Rail Mountable - 120 V AC, 230 V AC Input - 24 V DC Output - 60 W - 85% Efficiency
SKU
Category
Power Supplies
$91.65
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Sep 28 and Nov 2, then process your delivery right after.
Genuine Brainboxes through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
Category
Power Supplies
Overview
• Universal 85-264VAC or 120-370VDC input Voltage
• Operating temperature range: -40ºC to +70ºC/-40ºF to 158ºF
• High I/O isolation test Voltage up to 4000VAC
• Over-voltage class III (Designed to meet EN61558-1 safety standards)
• Low standby power consumption, high efficiency
• Output short circuit, over-current, over-Voltage protection
Featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international standards for EMC and safety meeting IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
Warranty
Limited Warranty: Lifetime
Highlights
Converts current to the desired voltage and frequency to manage your power requirements
24 V DC ensures the safety of your device
The 60 W output power reduces fan noise
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
PW-245
Brand Name
Brainboxes
Product Name
60W Single Output Industrial DIN Power Supply
Product Type
Power Supply
Physical Characteristics
Form Factor
DIN Rail Mountable
Height
5.2"
Width
3.5"
Depth
2.5"
Weight (Approximate)
8.04 oz
Power Description
Input Voltage
120 V AC, 230 V AC
Output Voltage
24 V DC
Output Power
60 W
Technical Information
Efficiency
85%
Warranty
Limited Warranty
Lifetime
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
