Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
SP340A-R3
Category
Connector Adapters
Overview
Protect Equipment from Ground Loops and Electrical Surges
Connecting devices powered by separate AC sources can create ground loops and electrical surges that damage equipment, disrupt communications, and lead to costly downtime. The Black Box® High-Speed Opto-Isolator eliminates this risk by electrically isolating connected devices while maintaining reliable serial data communications.
Inside the isolator, data signals are converted into light pulses and transmitted across an internal fiber optic link. This optical connection allows data to pass freely while blocking the electrical pathway that can carry harmful ground-loop currents, helping protect computers, controllers, and other connected equipment.
Designed for high-performance serial applications, the High-Speed Opto-Isolator supports data rates up to 115.2 kbps and protects devices with serial ports located up to 1000 feet (304.8 m) from either side of the interface. For installations where the interface does not provide sufficient power, an optional 120-VAC Wallmount Power Supply (PS1002) is available.
Warranty
Limited Warranty: 5 Year
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure.
On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
Provides fiber-based isolation between connected devices
Prevents damage from ground loops up to 2500V
Supports RS-232 data rates up to 115.2 kbps
Extends communications up to 1000 feet on each side
RS232 DB25 M-to-F connections
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
SP340A-R3
Brand Name
Black Box
Product Name

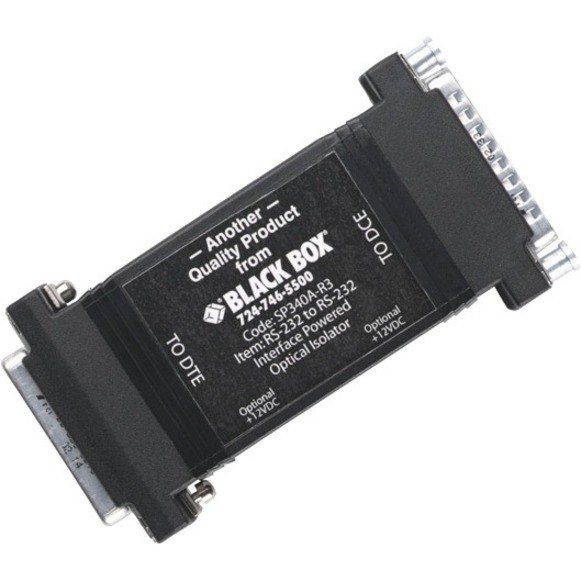

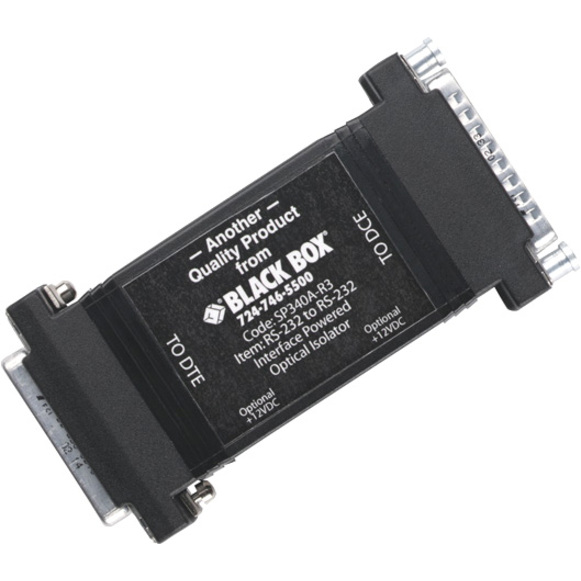

Opto Isolator - RS232, DB25 Male to DB25 Female, 115.2-Kbps
Product Type
Data Transfer Adapter
Physical Characteristics
Height
0.8"
Width
2.1"
Depth
3.8"
Weight (Approximate)
12.80 oz
Technical Information
Adapter Type
Serial
Connector Type on First End
DB-25 RS-232 Serial - Male
Connector on First End Details
1 x 25-pin DB-25 RS-232 Serial Male
Connector Type on Second End
DB-25 RS-232 Serial - Female
Connector on Second End Details
1 x 25-pin DB-25 RS-232 Serial Female
Warranty
Limited Warranty
5 Year
Miscellaneous
Country of Origin
United States
TAA Compliant
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
