SKU
USOPTL4
Category
Connector Adapters
Overview

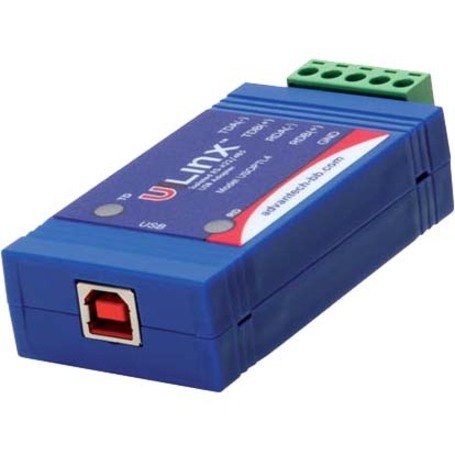

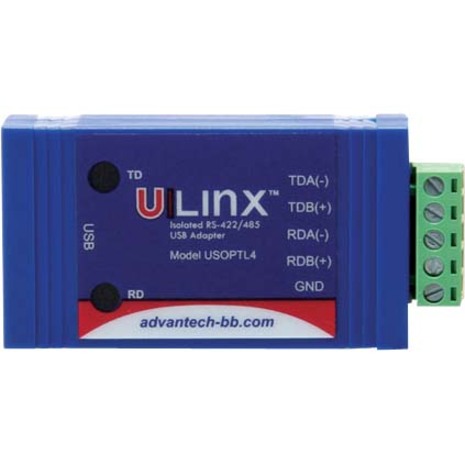

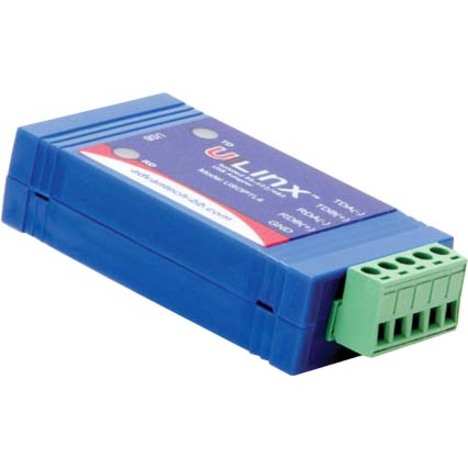

These compact, isolated USB to RS-232 and USB to RS-422, and RS-485 converters allow you to add an asynchronous serial port to your USB only PC. The built in 2 kV isolation protects your port from dangerous ground loops. They are perfect for connecting to remote devices or programming ports in field service applications. They are USB 2.0 compatible. Model USO9ML2 is the RS-232 version and supports hand shake signals as well as data at speeds up to 460.8 Kbps. Model USOPTL4 is the RS-422 and RS-485 version and supports data rates up to 460.8 Kbps. RS-485 2-Wire and 4-Wire modes are selected using a DIP Switch. If you don't need isolation, use model USPTL4. Windows operating systems up to Windows 7 (32 and 64 bit) are supported. The USOPTL4 is equipped with our signature high retention USB port. The RS-422/485 versions have a removable terminal block. Need a strain relief for your RS-422 or RS-485 cable? Check out the accessories tab for our TB5P508SR-2PK.
Warranty
Limited Warranty: Lifetime
Highlights
Data transfer adapter ensures reliable and consistent connectivity across multiple supported devices
Serial/USB adapter offers quick replacement for hassle-free connectivity
Surge Protection feature ensures maximum efficiency and convenience for smooth operation
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
USOPTL4
Brand Name
B+B SmartWorx
Product Name
USB To Isolated 422/485 W/Plug Term Block And Leds
Product Type
Data Transfer Adapter
Physical Characteristics
Height
6"
Width
5.5"
Weight (Approximate)
6.72 oz
Technical Information
Adapter Type
Serial/USB
Connector Type on First End
Terminal Block RS-422/485 Serial
Connector on First End Details
Terminal Block RS-422/485 Serial
Connector Type on Second End
USB 2.0 Type B - Female
Connector on Second End Details
1 x Type B USB 2.0 USB Female
Features
Surge Protection, LED Indicator
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
USB To Isolated 422/485 W/Plug Term Block And Leds
