Black Box

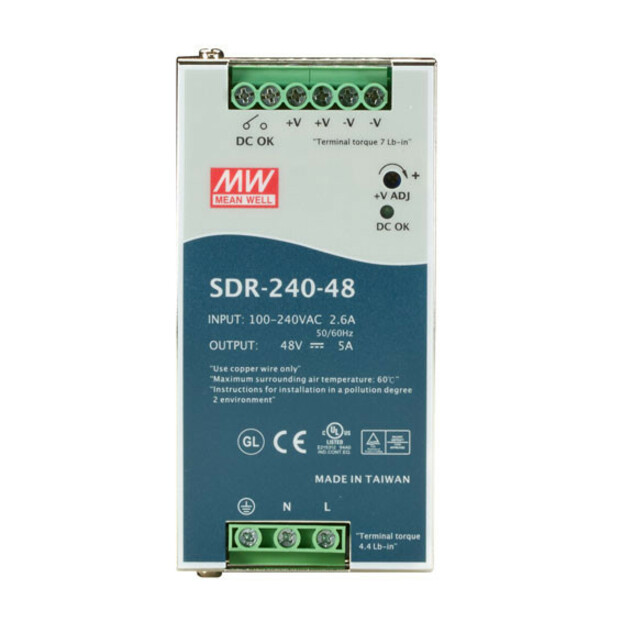

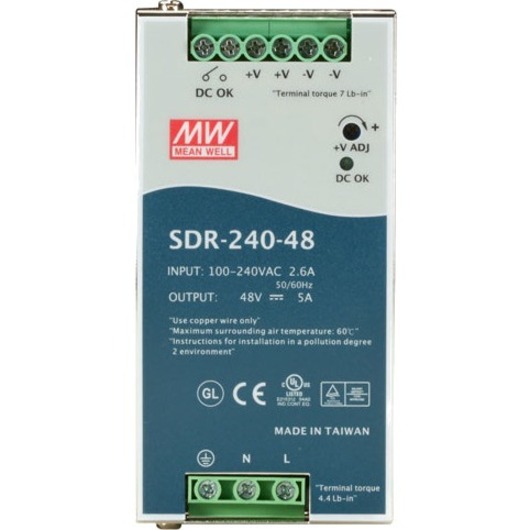

Black Box DIN Rail Power Supply - 240 Watts, 48 VDC
DIN Rail Mountable - 120 V AC, 230 V AC Input - 48 V DC Output - 240 W - 90.5% Efficiency
- SKU
- SDR-240-48
- Category
- Power Supplies
$375.58
Back ordered
Back ordered — ships when restocked.
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SDR-240-48
- Category
- Power Supplies
Overview
• LED indicates DC power.
• Universal 85-264-VAC input. It also accepts, but is not certified for, 120-370-VDC power.
• Extended operating temperature range of -4 to +158° F.
• Finger-safe terminals.
• Protection from short circuits, overload, and over-voltage.
• cUL, CE approved.
Highlights
- Compact DIN rail mount power supply measuring less than two inches wide.
- Features 90.5% efficiency.
- Use to power industrial devices such as Heavy Duty Edge Switches and Media Converter Switches.
Specifications
| Product Type | Power Supply |
|---|---|
| Compatibility | Blackbox Hardened Managed Ethernet Switches: LEH1008A LEH1008A-2MMSC LEH1008A-2MMST LEH1008A-2SFP LEH1008A-2GSFP LEH1104A-4MMSC LEH1104A-4MMST LEH1104A-2SFP LEH1104A-2GSFP |
| Efficiency | 90.5% |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | SDR-240-48 |
| Output Power | 240 W |
| Limited Warranty | 3 Year |
| Output Voltage | 48 V DC |
| Weight (Approximate) | 1.50 lb |
| Form Factor | DIN Rail Mountable |
| Manufacturer | Black Box Corporation |
| Product Model | SDR-240-48 |
| Product Name | DIN Rail Power Supply - 240 Watts, 48 VDC |
| Brand Name | Black Box |
| Output Current | 5 A |
| Country of Origin | China |
| Height | 4.9" |
| Width | 1.6" |
| Depth | 4.4" |
| Environmentally Friendly | Yes |
| Output Voltage Detail | 48 V DC @ 5 A |
