Genuine Black Box through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Network Interface Cards
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

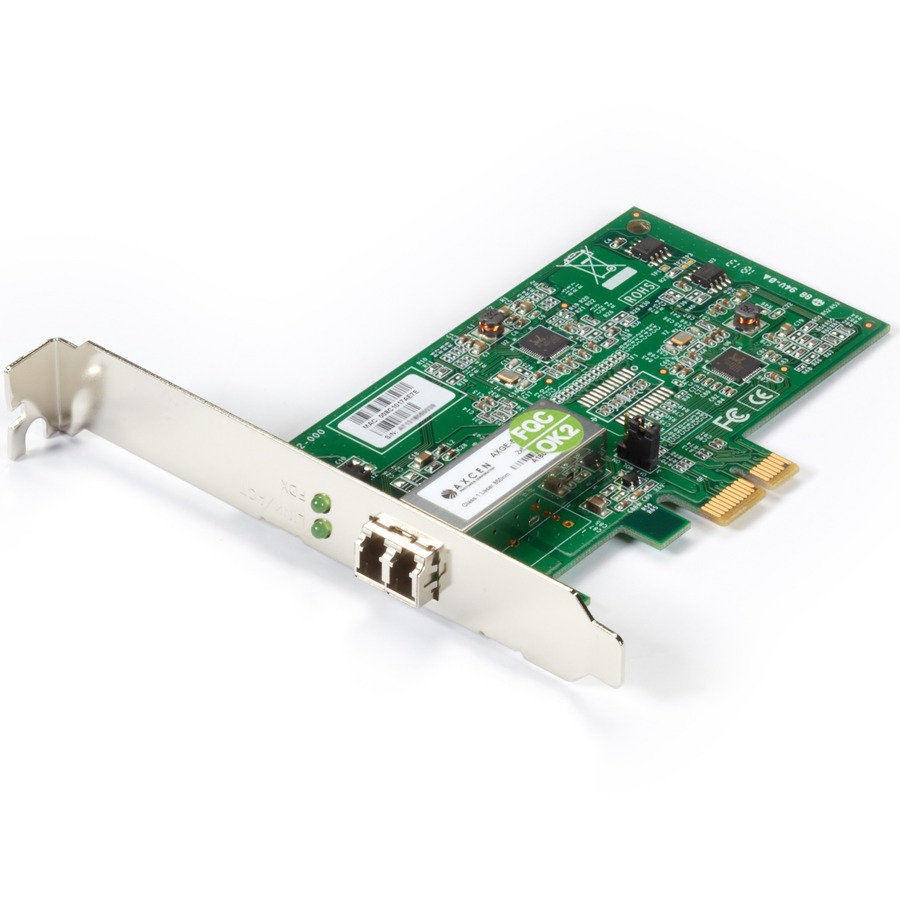

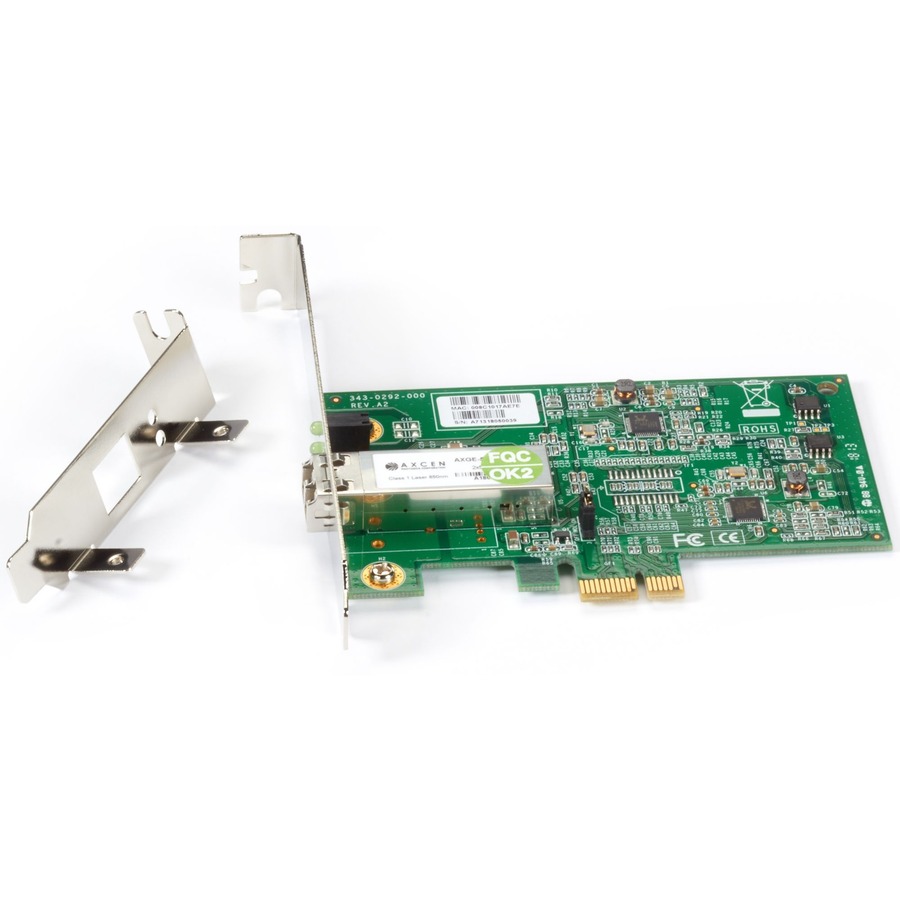

This one-port PCI-E network adapter is built to scale with your network and remains compatible even if you upgrade your operating systems. The LC connectors make it ideal for use in densely populated racks. This fiber network adapter is well suited for industrial applications and other electronically noisy areas, as well as secure government networks.
This latest version of the interface card enhances network resilience by supporting Link Aggregation LACP IEEE 802.3ad, Generic Trunking (FEC/GEC)/ IEEE 802.3ad-draft static and failover. Supporting IEEE 802.3az Energy-Efficient Ethernet, the network interface card helps you reduce power consumption during periods of low link utilization. High-level VLAN filtering and on-board screening of VLAN-tagged Ethernet frames gives you improved performance, flexible configuration and secure networking in a standard-based environment. The card supports IP headers and TCP/UDP checksums offload.
Supporting IPv6, the interface card is fully compliant with RoHS as well as all IEEE 802.3z and 1000BASE-SX standards.
Warranty
Limited Warranty: 2 Year
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure. On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
Compatible with many operating systems.

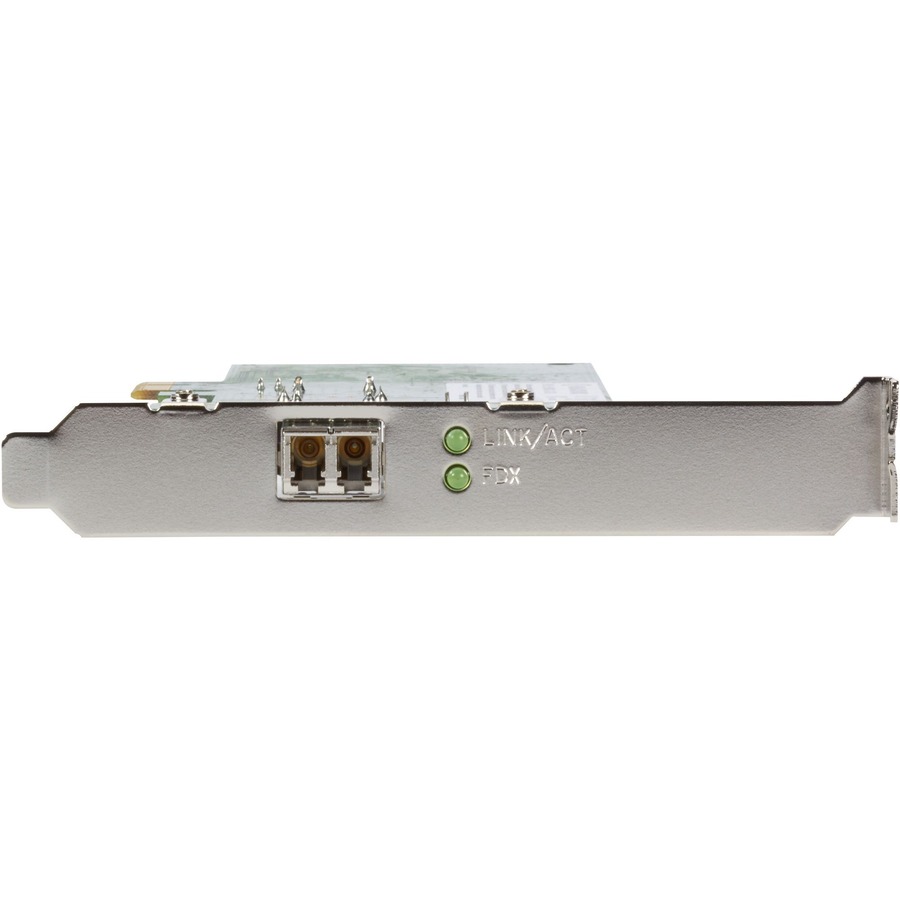

LC connectors for attaching multimode 850nm 550m fiber with 220m range.
Supports 802.1P/Q VLAN tag.|IP multicast filter to conserve bandwidth.
PCI-E (Rev. 1.1 compliant) interface installs easily in a PCIe x1 slot.
IEEE 802.3x full-duplex flow control.
Jumbo frame support for packet-heavy network traffic.
RealTek RTL8168 chipset.
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
LH1690C-LC-R3
Brand Name
Black Box
Product Name
PCIE Network Interface Adapter SX LC
Product Type
Gigabit Ethernet Card
Interfaces/Ports
Host Interface
PCI Express 1.1
Total Number of Ports
1
Media & Performance
Media Type Supported
Optical Fiber
Fiber Mode Supported
Multi-mode
Maximum Data Transfer Rate
1000 Mbit/s
Network & Communication
Network Technology
1000Base-SX
Physical Characteristics
Form Factor
Plug-in Card
Height
2"
Width
6"
Depth
8.5"
Weight (Approximate)
5.01 oz
Technical Information
Chipset Manufacturer
Realtek
Chipset Model
RTL8168
Warranty
Limited Warranty
2 Year
Miscellaneous
Device Supported
Server
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
