SKU
LES1604A
Category
Terminal & Device Servers
Overview
Tight budgets and sparse IT staffing makes managing remote mission-critical IT, network, and power devices while meeting enterprise uptime requirements a challenge for IT managers.
The solution is the LES1604A Console Server with Cisco pinout. This highly reliable console server simplifies out-of-band management of your network, server and power infrastructure in data centers and remote sites.
Remote access and monitoring
Use it for easy and affordable out-of-band access to routers, switches, PDUs, firewalls, and other serial consoles. With dual Ethernet ports, the console server gives you control of your network and its physical environment for reliable 24/7 uptime. It provides serial console-port connectivity and supports environmental monitoring, power management and monitoring, plus remote site storage of off-line logs. It also gives you a way to configure and troubleshoot your network that is independent of your data network improving network reliability and availability.
The console server features everything you need to make remote management and fault recovery easy and affordable: an intuitive status monitoring dashboard, pro-active alerting, vendor-neutral power management and simple secure access to devices. You'll be able to maximize uptime while reducing the hassle and expense of truck rolls and remote site visits.
USB connectivity

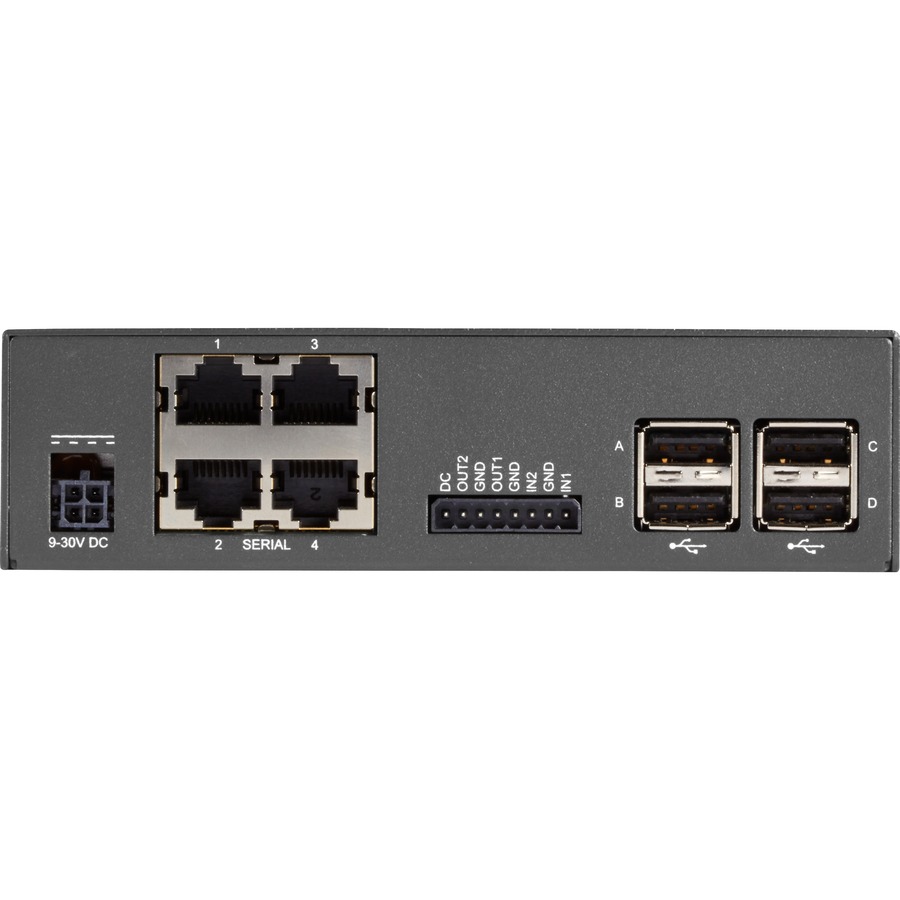

In addition to the traditional RS-232 serial console port connections, the console server supports direct USB 2.0 connections to Cisco USB console ports (just use its embedded AJAX terminal for accessing the connected serial devices). The USB ports enable you to attach peripherals, such as storage and USB consoles.
Dual ports for built-in redundancy

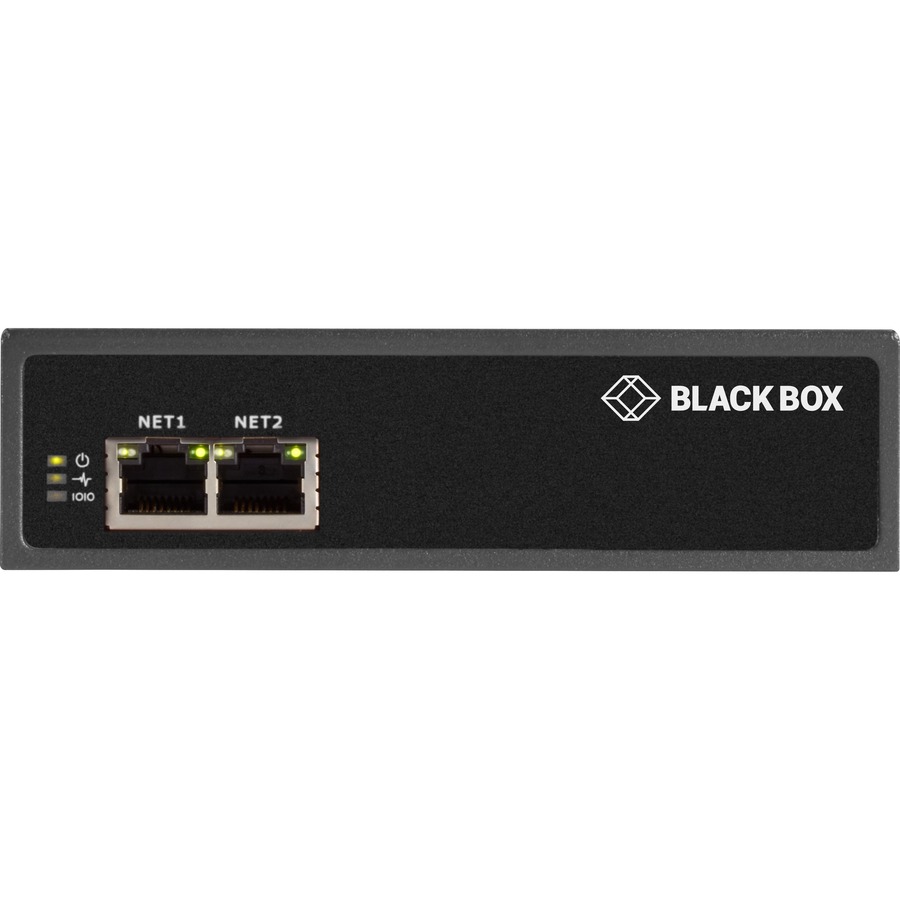

Dual Gigabit Ethernet ports facilitate connections to primary and secondary networks. The server detects any communications failure on the primary port and switches to the second RJ-45 connection automatically. You can remotely cycle power and reboot computers, even when their operating system is unresponsive
Highlights
Get highly affordable, secure, remote network management of four devices.
Dual Gigabit Ethernet ports with seamless auto-failover provide built-in redundancy.
Ideal for business with remote branches and limited IT staff, as well as co-location data centers.
Federal Information Processing Standard (FIPS) 140-2 validated module for enhanced security.
Features, simple, straight-through cable to Cisco-style serial consoles.
Includes four USB 2.0 ports for managed device OS transfers.
Built-in digital I/O and high voltage I/O
Maintain network connectivity during failures with IP Passthrough
Specifications
Package Contents
(1) Console Server
(1) External rackmount tab
(1) Black terminal block
(1) DB9 F to RJ-45 adapter
(1) Rubber feet
(1) Quick Start Guide
Product Type
Device Server
Input Voltage
12 V DC
Manufacturer Part Number
LES1604A
Limited Warranty
4 Year
Standard Memory
256 MB
Weight (Approximate)
1.30 lb
Form Factor
Rack-mountable, Desktop
Manufacturer
Black Box Corporation
Product Model
LES1604A
Product Name
LES1600 Series Console Server - Cisco Pinout, 4-Port
Processor Speed
800 MHz
Product Series
LES1600
Brand Name
Black Box
Memory Technology
DDR3 SDRAM
Country of Origin
United States
Height
5.1"
Width
4.8"
Depth
1.4"
Network Standard
10/100/1000Base-T
Environmentally Friendly
Yes
Ethernet Technology
Gigabit Ethernet
USB
Yes
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of USB Ports
4
Serial Port
Yes
Media Type Supported
Twisted Pair
Number of Serial Ports
4
TAA Compliant
Yes
Device Type
Console Server
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
