Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ACXMODH6BPAC-R2
Category
Miscellaneous Devices
Overview
The DKM HD Video and Peripheral Matrix Switch System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application. These new DKM components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support.
• Four housings are available: desktop housing for two, four, or six boards or a 19-inch, 4U rack for 21 boards.
• A redundant power supply option is available in some housings.
• The 6-slot chassis will accept up to (6) modular cards in a 19" rack mount chassis for the DKM and has built-in 5-VDC, 10-Amp internal power supplies.
• Can be rackmounted with ACXMODHEAR6-FPAC.
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure.
On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights

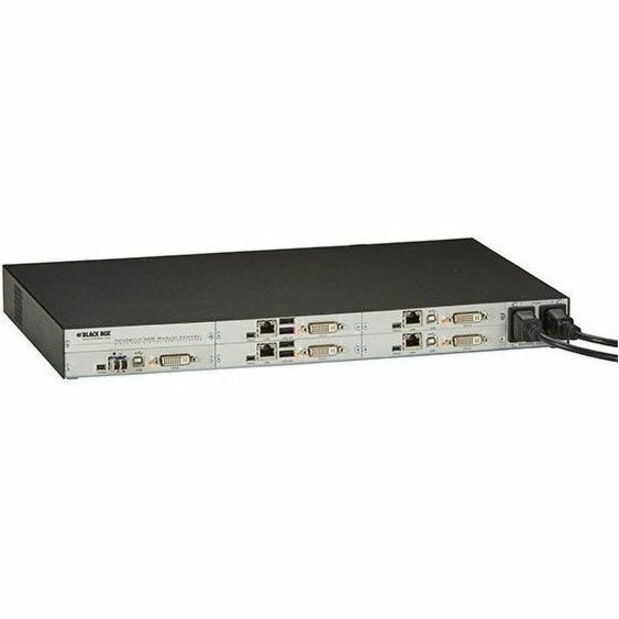

Part of the DKM HD Video and Peripheral Matrix Switch System of transmitter and receiver interface cards and housings. Supports (6) transmitter or receiver cards. Includes a built-in internal power supply and an option for an additional power supply. Backplane support allows seamless installation/swapping of cards without powering off the chassis. Power connectors on back.
Supports (6) transmitter or receiver cards.
Includes a built-in internal power supply and an option for an additional power supply.
Backplane support allows seamless installation/swapping of cards without powering off the chassis.
Can be rack mounted by adding ACXMODHEAR6-FPAC, 19" 1U rackmount ears for the chassis
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
ACXMODH6BPAC-R2
Brand Name
Black Box
Product Model
ACXMODH6BPAC-R2
Product Name
ACXMODH6BPAC-R2 KVM Extender Housing Chassis
Packaged Quantity
1
Product Type
KVM Extender Housing Chassis
Physical Characteristics
Form Factor
Rack-mountable
Height
1.7"
Width
17.5"
Depth
8"
Weight (Approximate)
5.50 lb
Miscellaneous
Package Contents
ACXMODH6BPAC-R2 KVM Extender Housing Chassis
2 x U.S. power cords
1 x Removal tool for cards
1 x CD-ROM with user manual
Application/Usage
Chassis
Compatibility
Black Box Devices: DKM Modular KVM Extender RX Interface Card SDI USB (2) CATx DKM Modular KVM Extender RX Card SDI USB (2) SM Fiber DKM Modular KVM Extender RX Interface Card SDI, CATx DKM Modular KVM Extender RX Interface Card SDI USB SM Fiber DKM Modular KVM Extende TX Interface Card SDI USB (2) CATx DKM Modular KVM Extender TX Interface Card SDI USB (2) SM Fiber DKM Modular KVM Extender TX Interface Card SDI USB CATx DKM Modular KVM Extender TX Interface Card SDI USB SM Fiber 19" 1U Rackmount Ears for 6 Slot DKM Extender Chassis
TAA Compliant
Yes
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Waste Electrical and Electronic Equipment Directive (WEEE)
