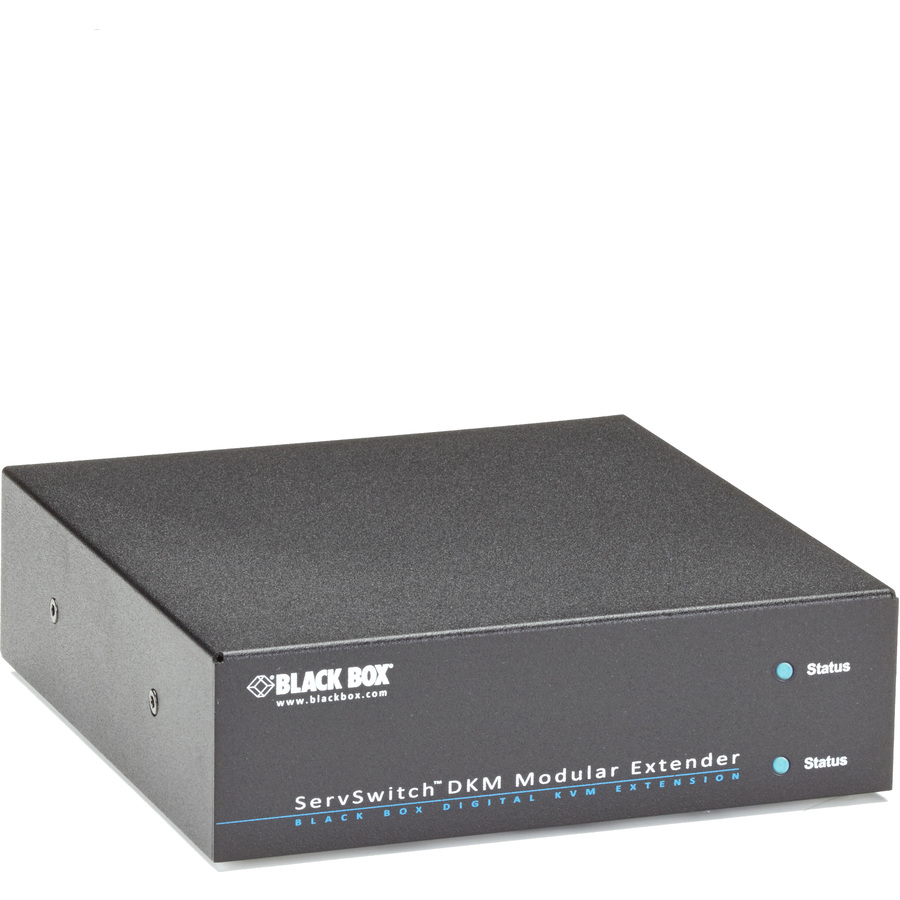

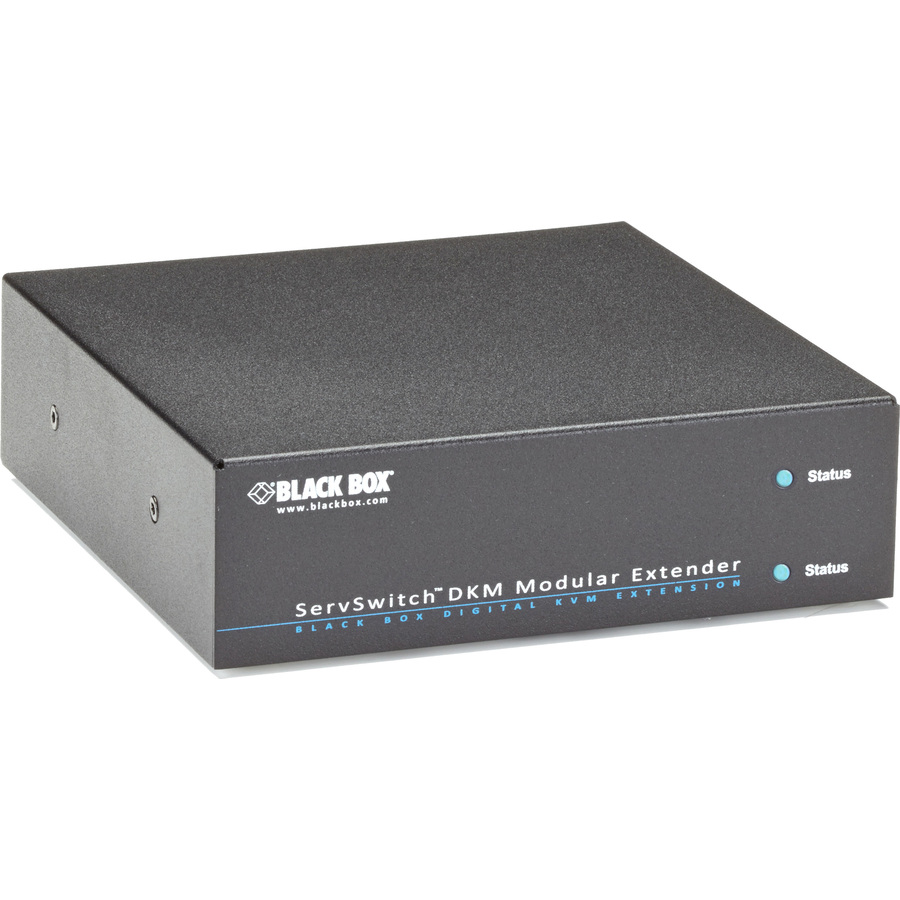

Black Box Expansion Chassis
Black Box

Black Box Expansion Chassis

SKU
ACXMODH2R-R2
Category
Expansion Chassis

MSRP$464.03

$419.44

Save 10%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
ACXMODH2R-R2
Category
Expansion Chassis

Overview

The DKM FX Extender System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM FX extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.

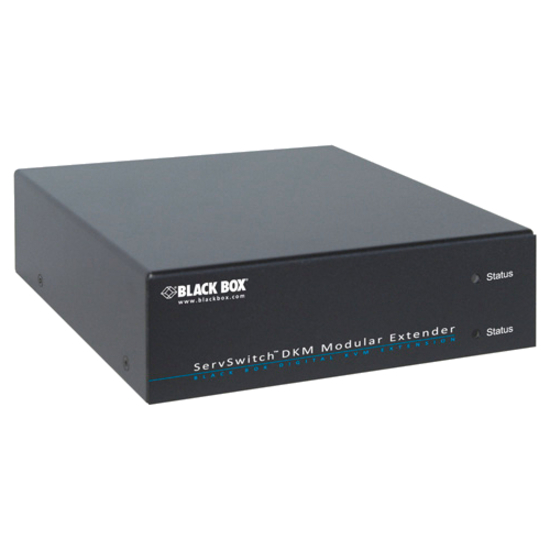

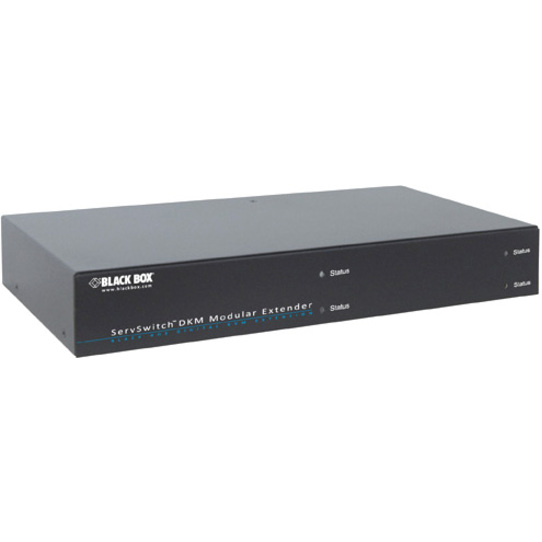

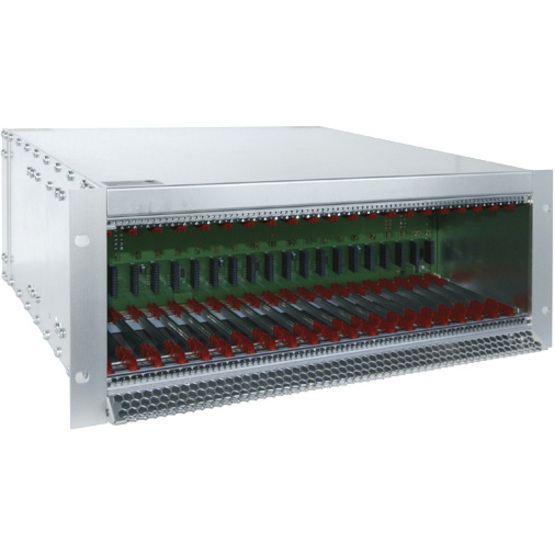

• Four housings are available: desktop housing for two, four, or six boards or a 19-inch, 4U rack for 21 boards.

• A redundant power supply option is available in some housings.

• The 2-port chassis will support an external power supply.

• Can be rackmounted by using ACXMODH-RMK and the rackmount ears for the individual chassis (ACXMODHEAR-2).

These new DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM FX HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support.

Highlights

  • Part of DKM Modular KVM extender family of configurable chassis' that house transmitter and receiver interface cards.

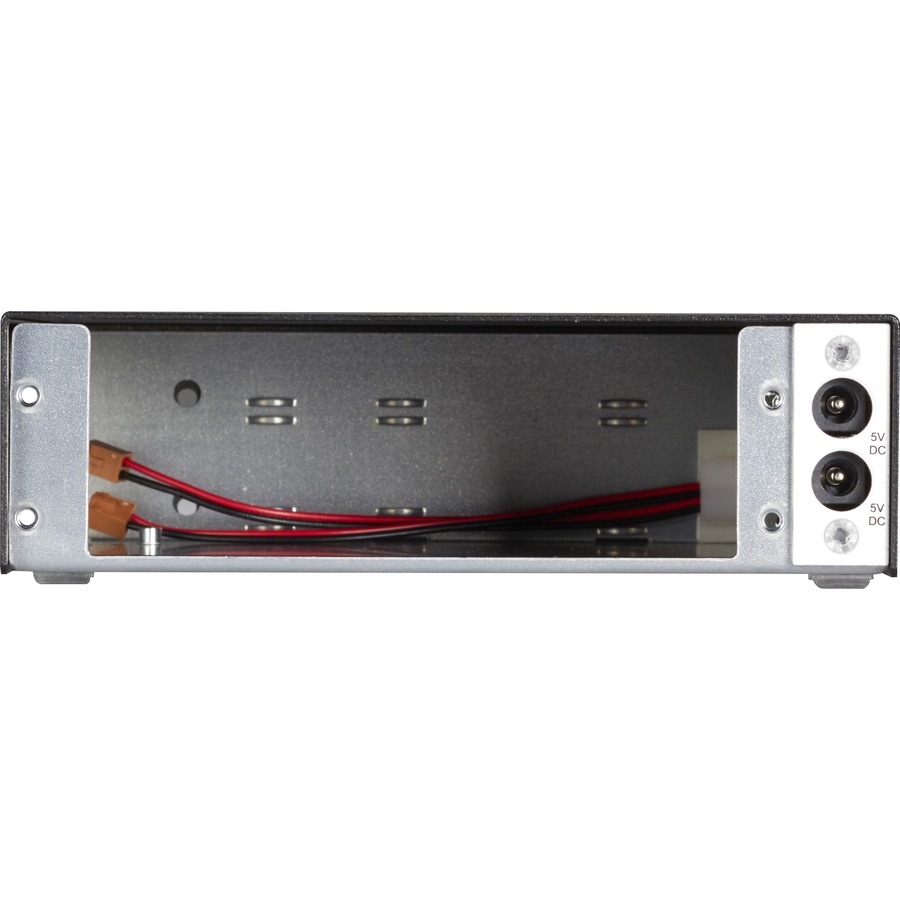

  • Supports (2) transmitter or receiver cards.
  • Can be rackmounted with ACXMODHEAR2, 19" 1U rackmount ears for the chassis.
  • Redundant power option

Specifications

Package Contents
  • Expansion Chassis
  • 1 x External Power Supply Unit
Product TypeExpansion Chassis
Compatibility
  • 48-PT DKM Chassis Control Card Unpopulated Singular Power Supply
  • 160-Port DKM Chassis Control Card Unpopulated Singular Power SUP
  • DKM Modular KVM Extender RX Interface Card SDI USB (2) CATx
  • DKM Modular KVM Extender RX Card SDI USB (2) SM Fiber
  • DKM Modular KVM Extender RX Interface Card SDI, CATx
  • DKM Modular KVM Extender RX Interface Card SDI USB SM Fiber
  • DKM Modular KVM Extende TX Interface Card SDI USB (2) CATx
  • DKM Modular KVM Extender TX Interface Card SDI USB (2) SM Fiber
  • DKM Modular KVM Extender TX Interface Card SDI USB CATx
  • DKM Modular KVM Extender TX Interface Card SDI USB SM Fiber
Manufacturer Part NumberACXMODH2R-R2
Limited Warranty2 Year
Weight (Approximate)10.58 oz
Form FactorRack-mountable
ManufacturerBlack Box Corporation
Product NameExpansion Chassis
Brand NameBlack Box
Country of OriginGermany
Height1.7"
Width5.7"
Depth5.8"
Environmentally FriendlyYes
TAA CompliantYes
