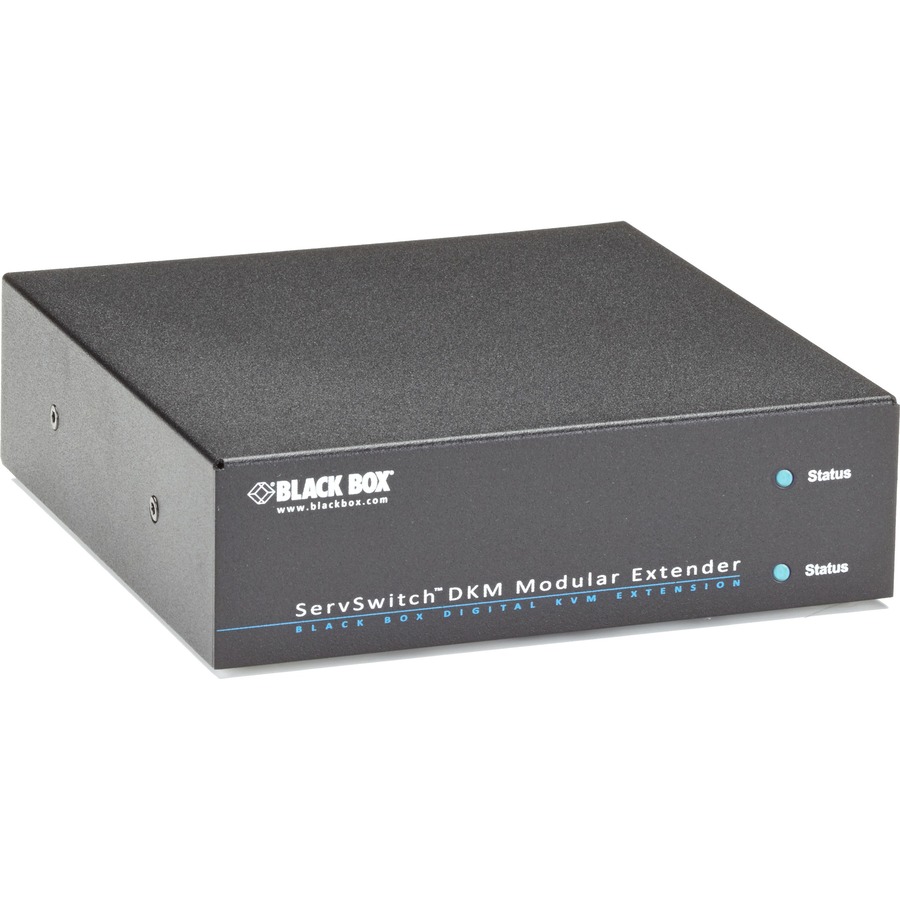

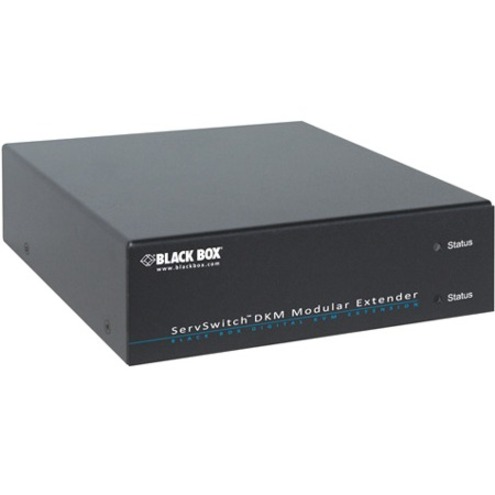

Black Box DKM FX Modular KVM Extender Housing - 2-Slot Chassis with Power Supply
Black Box

Black Box DKM FX Modular KVM Extender Housing - 2-Slot Chassis with Power Supply

For Switch

SKU
ACXMODH2-R2
Category
Expansion Chassis

MSRP$303.21

$274.22

Save 10%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
ACXMODH2-R2
Category
Expansion Chassis

Overview

The DKM FX Extender System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM FX extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.

• Four housings are available: desktop housing for two, four, or six boards or a 19-inch, 4U rack for 21 boards.

• A redundant power supply option is available in some housings.

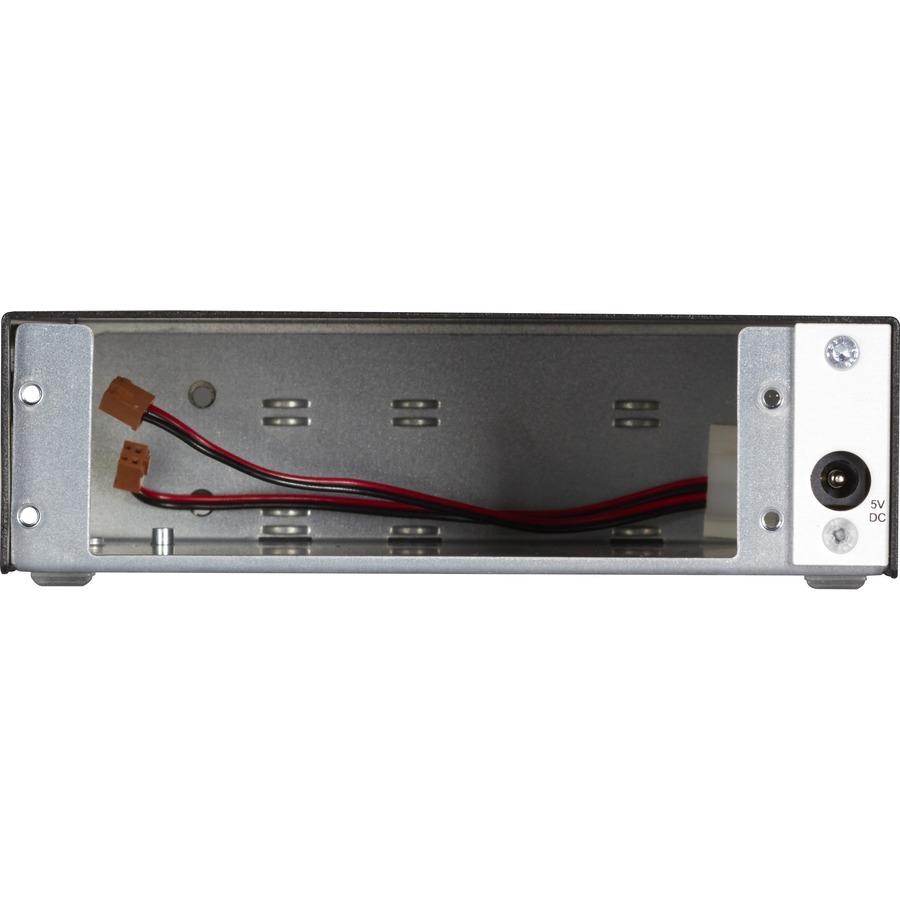

• The 2-port chassis will support an external power supply.

• Can be rackmounted by using ACXMODH-RMK and the rackmount ears for the individual chassis (ACXMODHEAR-2).

These new DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM FX HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support.

Highlights

  • Part of the DKM FX KVM Matrix Switch System of transmitter and receiver interface cards and housings.
  • Supports (2) external or receiver cards.
  • Includes a single external power supply.
  • Can be rackmounted with ACXMODHEAR2, 19" 1U rackmount ears for the chassis.

Specifications

Application/UsageSwitch
Product TypeExpansion Chassis
Compatibility
  • 48-PT DKM Chassis Control Card Unpopulated Singular Power Supply
  • 160-Port DKM Chassis Control Card Unpopulated Singular Power SUP
  • DKM Modular KVM Extender RX Interface Card SDI USB (2) CATx
  • DKM Modular KVM Extender RX Card SDI USB (2) SM Fiber
  • DKM Modular KVM Extender RX Interface Card SDI, CATx
  • DKM Modular KVM Extender RX Interface Card SDI USB SM Fiber
  • DKM Modular KVM Extende TX Interface Card SDI USB (2) CATx
  • DKM Modular KVM Extender TX Interface Card SDI USB (2) SM Fiber
  • DKM Modular KVM Extender TX Interface Card SDI USB CATx
  • DKM Modular KVM Extender TX Interface Card SDI USB SM Fiber
Manufacturer Part NumberACXMODH2-R2
Weight (Approximate)1.50 lb
Form FactorRack-mountable
ManufacturerBlack Box Corporation
Product NameDKM FX Modular KVM Extender Housing - 2-Slot Chassis with Power Supply
Brand NameBlack Box
Height1.7"
Width5.7"
Depth5.8"
Environmentally FriendlyYes
TAA CompliantYes
