Overview
ATEN's KVM over IP Matrix Manager, CCKM, provides IT administrators with tools to centralize the control and management of KVM over IP extenders in their IT environment. It allows easy administration of all KVM over IP extenders with a user-friendly, web-based GUI.
The CCKM's Primary-Secondary architecture safeguards data transmissions through built-in redundancy factors, including automated database backup of primary and secondary servers and devices in addition to real-time database updating. Redundancy ensures that if any server hosting the CCKM goes down, the system will remain functioning, since a redundant secondary server maintains all the required services until the primary server comes back up.
Through ATEN's CCKM, the KVM over IP extenders provide advanced features for username and password authentication, user authorization and auto-detection of all devices that can be switched and shared. With secured transmissions in mind, the KVM over IP extenders implement AES encryption, while RADIUS, LDAP and AD ensure user account authentication.
IT administrators receive the following benefits implementing the CCKM:
• Advanced features for multi-displays, video grouping, fast switching, profile broadcasting, and media playback scheduling.
• Greater access with quick and easy control tools for configuration of KVM over IP extenders.
• Secure and reliable access with AES encryption and server redundancy.
Highlights

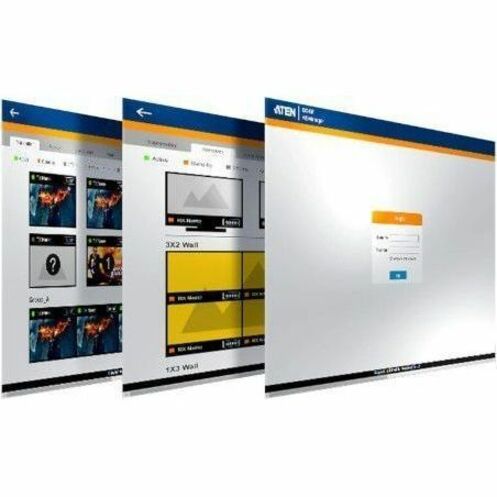

Centralized CCKM, allowing you to configure, administer, control, and maintain all KVM over IP extenders via an intuitive web based GUI
ATEN Matrix Link - allows customers with licenses to remotely manage KVM over IP extenders on the CCKM with an iPad from anywhere
One-to-one, one-to-many, many-to-one and many-to-many Tx / Rx connections
Profiles save and reserve unlimited Tx to Rx device connections
Channel connections allow Rx devices to connect to multiple Tx devices - to stream video, audio, USB and serial sources independently
Configurable user and group permissions for access and control of KVM over IP extenders
Administrators can set access modes on Tx devices for collaboration or to avoid interference among users

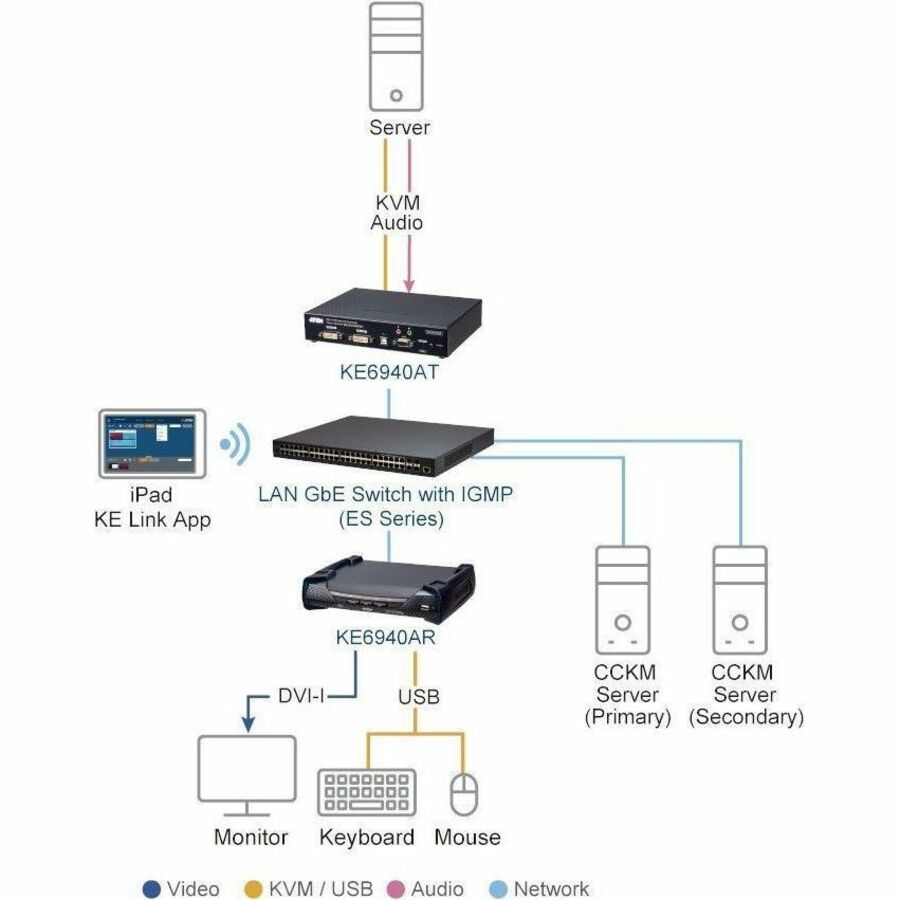

Primary-Secondary Infrastructure - offers centralized management failover with up to 5 secondary servers, for redundancy, and real-time database synchronization
Administrators can easily view KVM over IP extenders status and the latest system events in the GUI dashboard
Connection Redundancy - automatically connects to another transmitter (Tx) after disconnection with the original Tx, ensuring constant access to servers
Authentication Lock - allows automatic logins upon system resume after temporary power down or network disconnection
Specifications
Package Contents
1 x CCKM USB License Key
1 x User Instructions
Product Type
Software
Distribution Media/Method
CD-ROM, Flash Drive
License Type
Box Pack
Manufacturer Part Number
CCKM
Platform Supported
PC
Language Supported
Chinese (Traditional), Chinese (Simplified), English, Japanese, Korean, Spanish, French, Portuguese, German, Russian
License Quantity
1 License
Manufacturer
ATEN Technology, Inc
Product Name
KVM Over IP Matrix Manager
Software Name
KVM Over IP Matrix Manager
Software Sub Type
Management/Monitoring
System Requirements
Processor : Pentium 4, 2.60 GHz or higher Operating System: Windows: 7, 8.1, 10, 11, server 2008, server 2012, server 2016, server 2019 Linux: Ubuntu 16.04, CentOS 7 Hard Disk: 500 MB or More Free Space Memory: 8 GB of RAM Others: Internet Explorer (10 or later), Chrome (70 or later), Firefox (62 or later), Safari, and Opera. Network Protocol & IP Tools: IPv4, SSH, and Telnet. Security: Data transmission is secured by AES-128 or AES-256 encryption. Ethernet: Giga LAN Authentication & Authorization: User account authentication and management (Administrator, super user, and user) CCKM supports both internal and external authentication - external authentication supports LDAP, Active Directory, RADIUS and TACACS+
