SKU
AS106
Category
Component Speakers
Overview

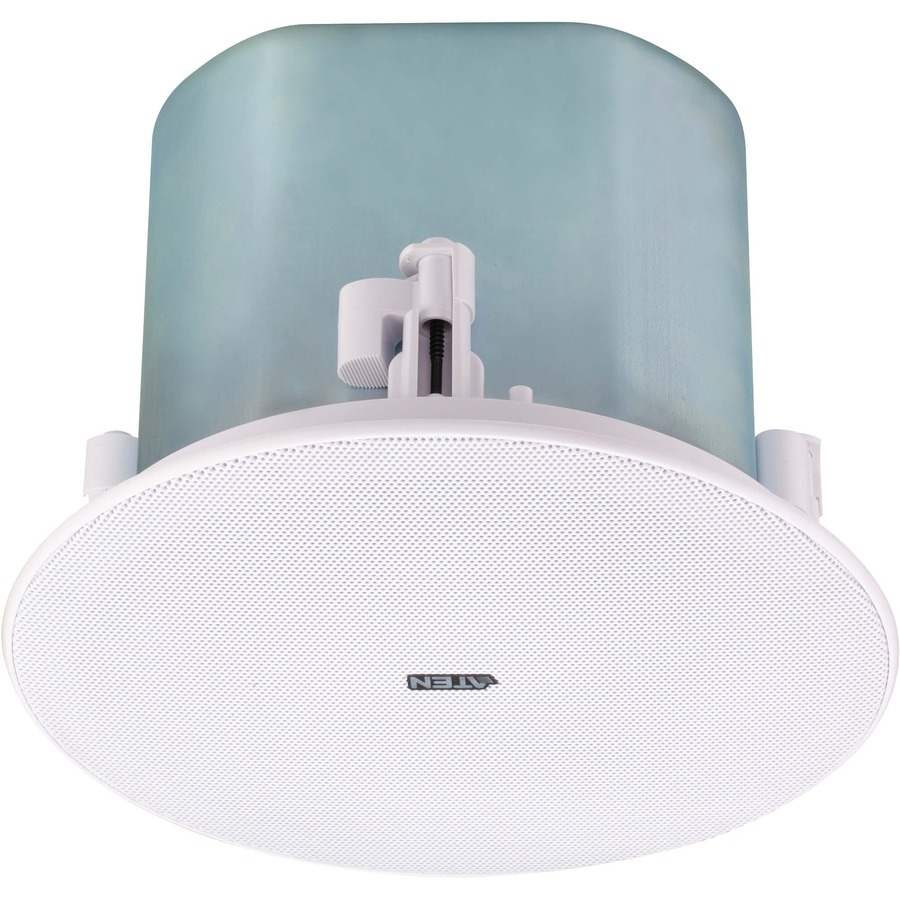

The AS104 comes in a pair of 4" coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 4" woofer, 20 mm dome tweeter, and 30 W RMS, 60 W peak (8?) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 100 - 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed.
The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8? to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-coated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.
AS104 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized commercial spaces that require a clear and intelligible sound solution without compromise on life safety.
Highlights

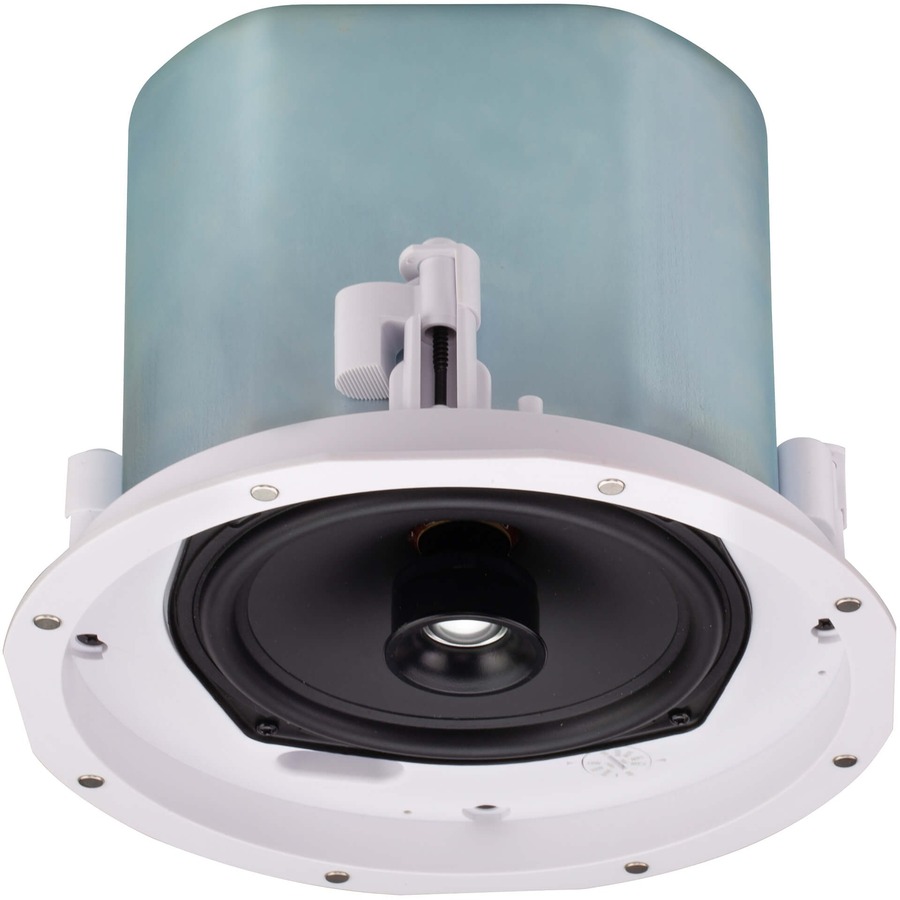

Coaxial design with premium components:- 6.5" high output driver with rubber surround and heavy-duty voice coil - 20 mm dome tweeter
80 - 20 kHz bandwidth with wide coverage for consistent, full-range coverage of the space while reducing the amount of the speakers needed
Switchable for use as either an 8 ? low-impedance speaker or as part of a 70V / 100V distributed loudspeaker system

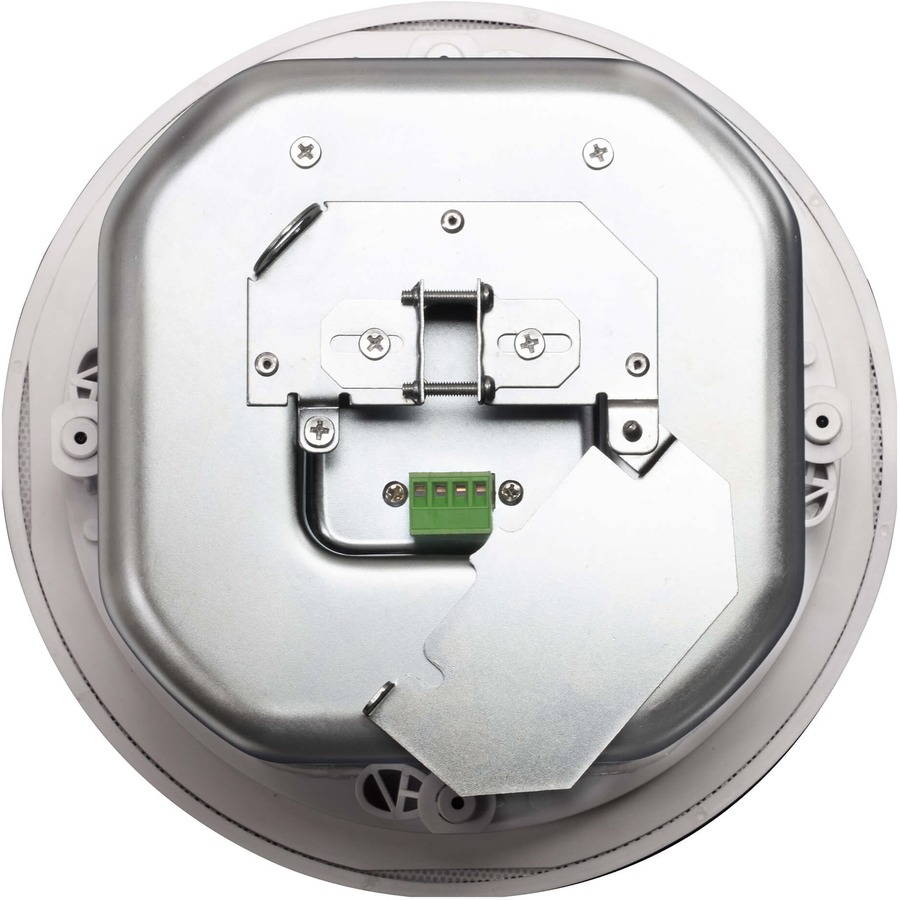

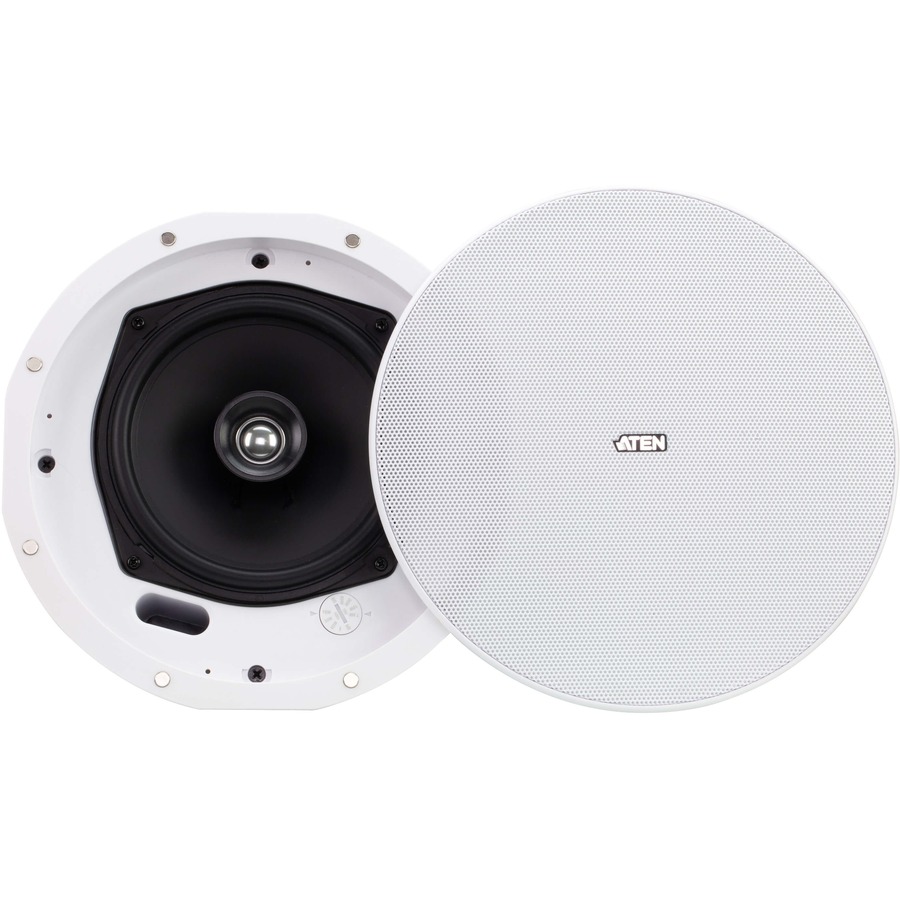

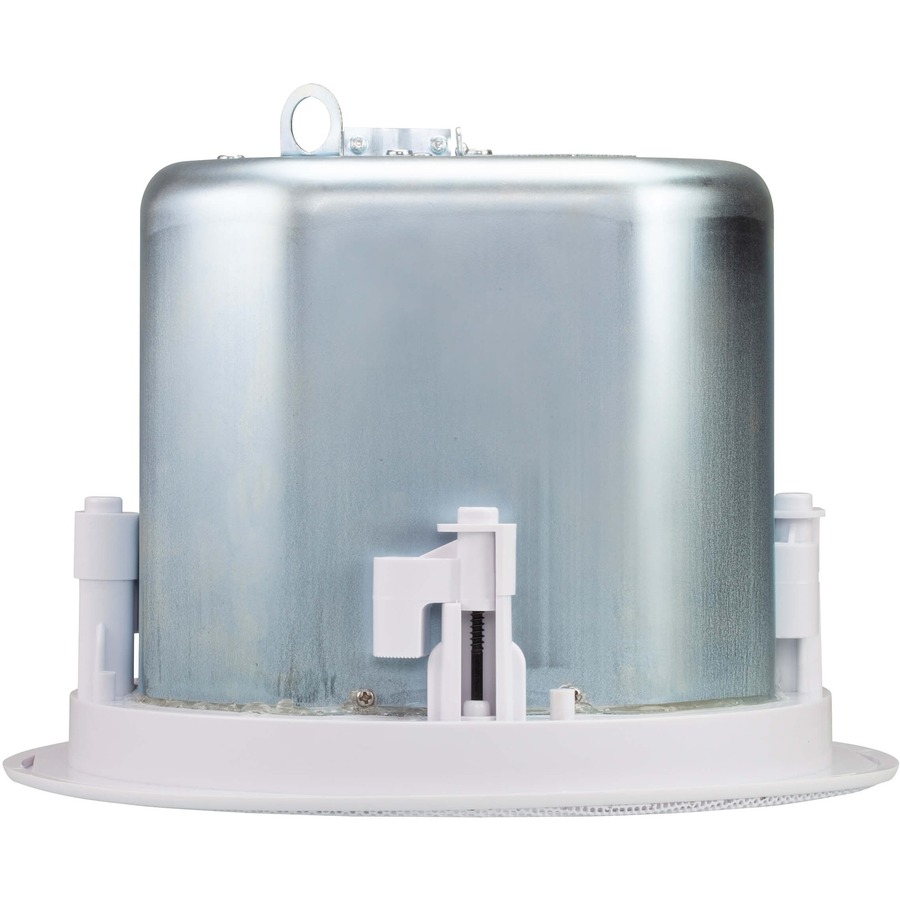

Ease of installation guaranteed with the magnetic grille, dog leg mounting system and cutout template
Specifications
Application/Usage
Auditorium, House of Worship, Sports Field, Commercial
Package Contents
6.5" Coaxial Ceiling Loudspeaker
2 x Euroblock Connectors
2 x Ceiling Reinforcement Kits
2 x Cutout Templates
2 x Speaker Grilles
1 x User Instructions
Product Type
Speaker
Impedance
8 Ohm
Manufacturer Part Number
AS106
Packaged Quantity
2
Sensitivity
90 dB
Limited Warranty
3 Year
Weight (Approximate)
8.16 lb
Form Factor
Ceiling Mountable
Length
10.1"
Manufacturer
ATEN Technology, Inc
Product Model
AS106
Product Name
6.5" Coaxial Ceiling Loudspeaker
Brand Name
ATEN
Height
7.8"
Width
10.1"
Crossover Type
2-way
Environmentally Friendly
Yes
Minimum Frequency Response
80 Hz
Maximum Frequency Response
20 kHz
RMS Output Power
60 W
PMPO Output Power
120 W
Cutout Diameter
8.70"
Product Color
White
Color Family
White
Tweeter Driver Size
0.79"
Woofer Driver Size
6.50"
Tweeter Driver Material
Polyetherimide (PEI)
Woofer Driver Material
Paper Cone
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
