Cortex A72 - Quad-core (4 Core) - 2 GHz - 2 GB - LPDDR4 - Mali-T860 - Wireless LAN - Bluetooth - 4 x Number of USB Ports - Network (RJ-45) - LCD Display
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

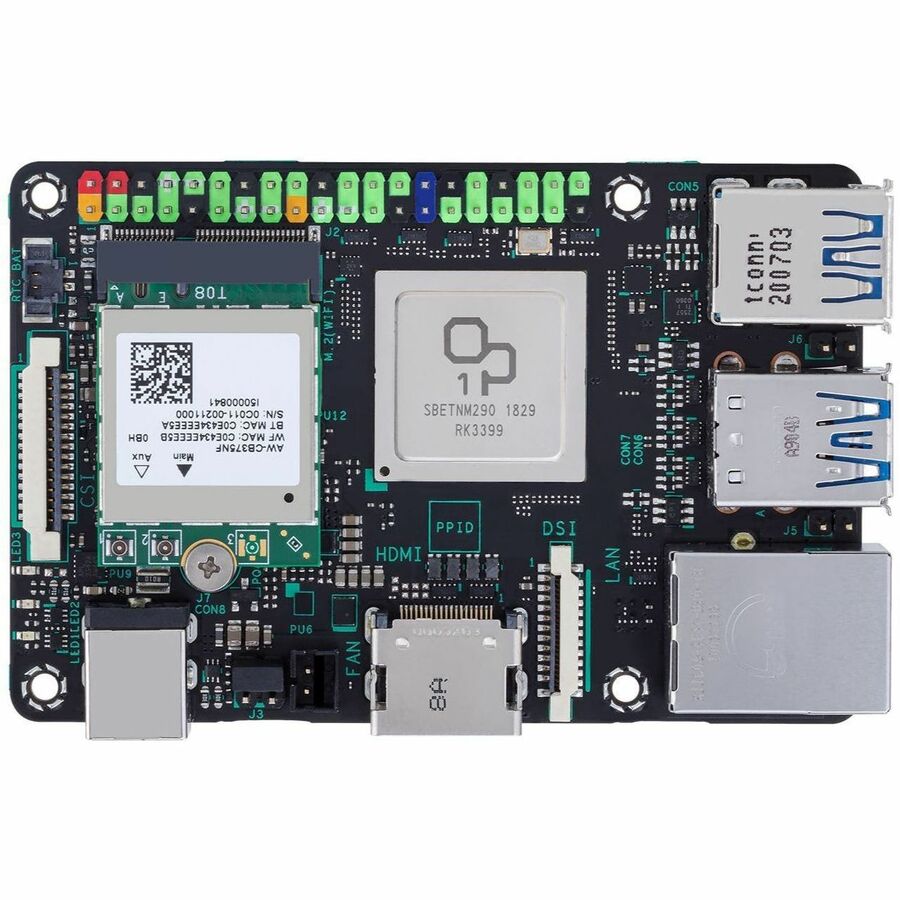

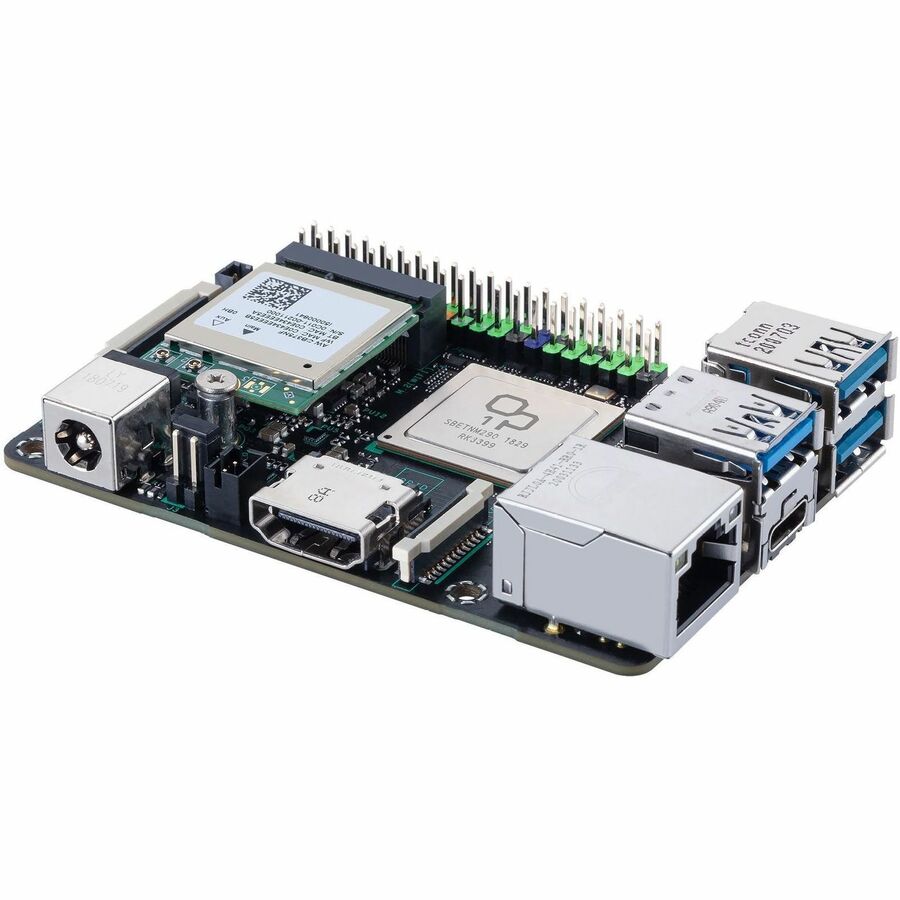

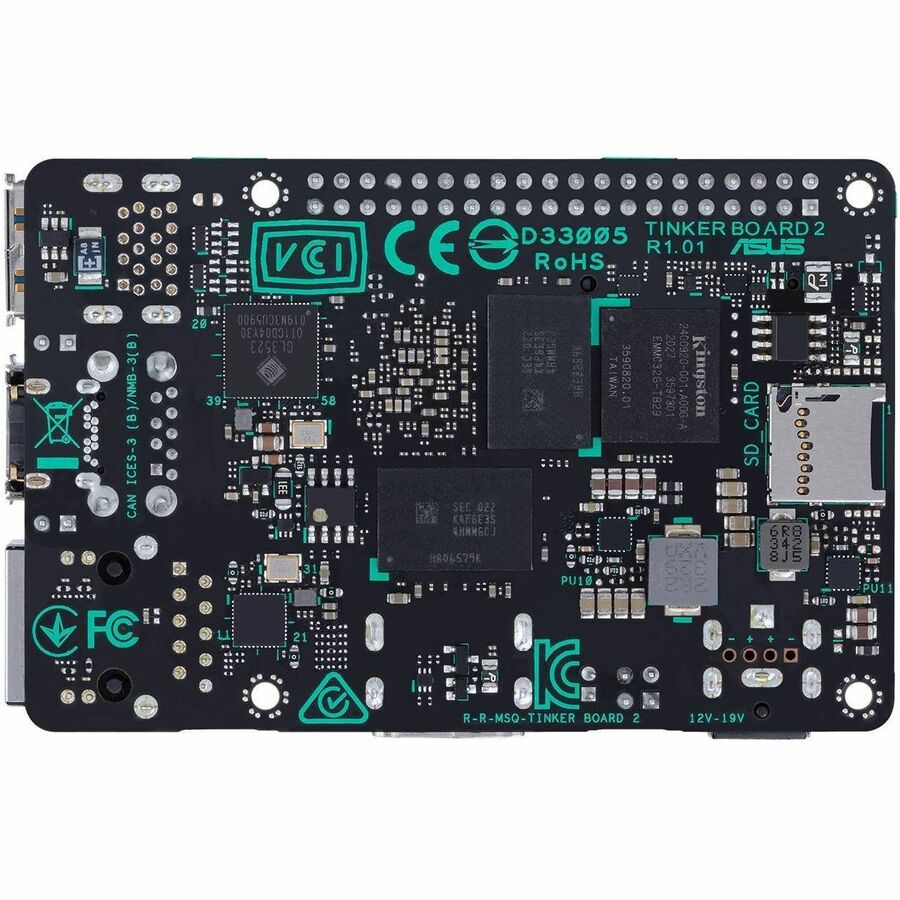

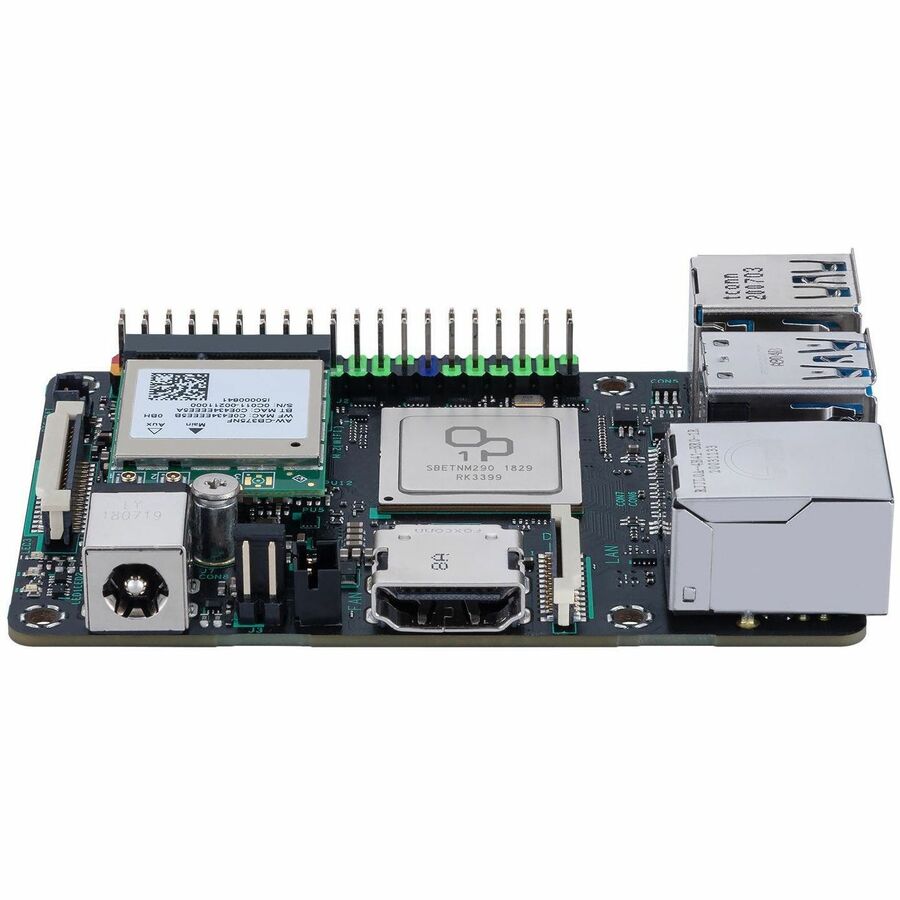

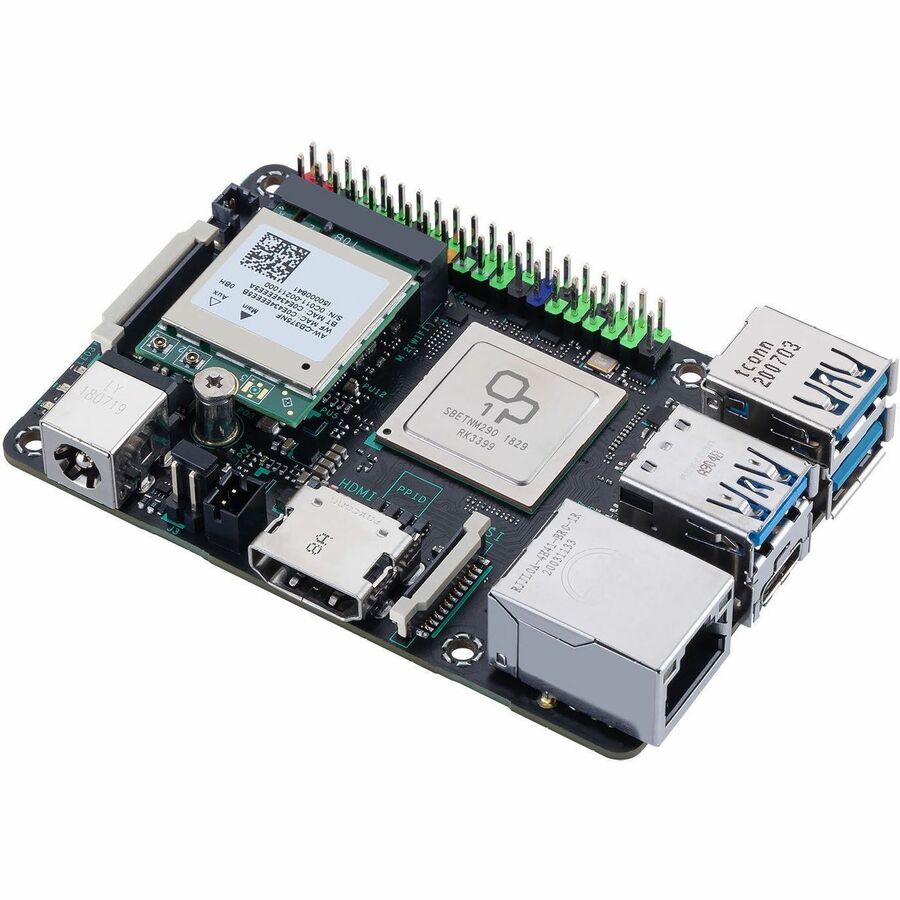

Tinker Board 2 | An Arm-based Single Board Computer (SBC), uses Arm big.LITTLE technology's 64-bits processor, offers enhanced computing performance with low power consumption.
• Outstanding performance for IoT devices: Powered by 6-core Rockchip RK3399 system on a chip (SoC) with the new 64-bit Armv8 architecture, plus multi-core Mali-T860.
• Easy setup tool: Intuitive software for performance tweaking, with simple three-step initial configuration.
• Pro-grade admin: ASUS IoT Cloud Console for data management and analysis, plus support for firmware over-the-air (FOTA) roll-out.
• Android 12 support: Benefit from better 3D computing performance, support for the Android Neural Networks API 1.2 and Adiantum encryption with 5X-better efficiency.
ULTIMATE PERFORMANCE FOR IOT DEVICES | Enhanced CPU performance
Powered by Arm® 6-core system on a chip (SoC), with the new 64-bit Armv8 architecture - the Rockchip RK3399 - Tinker Board 2 offers significantly improved performance versus compared to other popular SBC boards. It also features Arm big.LITTLE technology, which is a heterogeneous processing architecture that pairs two very different processors together in a single SoC. The big.LITTLE software automates task allocation, ensuring the right CPU core for each process. The upshot is that Tinker Board 2 delivers up to nearly twice the performance of the original Tinker Board, and is significantly faster than many competing SBCs.
Enhanced GPU performance
The GPU bundled with Tinker board 2 is Mali-T860, a multi - core GPU that is the highest performance model built on Arm's Midgard architecture. Specifically, Mali-T860 is designed for complex graphics use cases, and offers full support for OpenGL ES 3.0/3.1, OpenVG 1.1, OpenCL and other frameworks for next-generation and legacy 2D/3D graphics applications. Compared to the original Tinker Board, Tinker Board 2's Mali-T860 GPU accelerates graphics performance by up to 28%.
DUAL-DISPLAY SUPPORT
Tinker Board 2 supports dual displays at up to 4K UHD resolution, so it's equipped for compelling visual output. It also has three popular display interfaces built in, including HDMI, DisplayPort over USB-C and DSI, for superb flexibility.
WI-FI AND BLUETOOTH
Next-level 802.11ac Wi-Fi with 2x2 dual-band 2.4/5 GHz antennas deliver transfer speeds that are up to 10X faster than previous Wi-Fi standards. Tinker Board 2 also has the latest Bluetooth 5.0 technology built in, so you'll enjoy speeds that are up to 2X transmit speeds and with up to 4X-greater range. Integrated Bluetooth also opens up the convenience and freedom of wireless connectivity with a wide range of devices, including speakers, headphones and game controllers.
RICH CONNECTIVITY: USB 3.2 GEN 1
Tinker Board 2 has three USB 3.2 Gen 1 Type-A ports and one USB 3.2 Gen 1 Type-C (USB-C) port, for data-transfer speeds that are up to 10X faster than USB 2.0 - plus the convenience of any-way-up connectivity. Tinker Board 2's USB 3.2 Type-A ports delivers up to 0.9A of power, while the USB-C connector supplied up to 1.5A, for charging speeds that are considerably faster than older USB 2.0 ports. The USB 3.2 Gen 1 Type-C supports OTG functionality and DisplayPort Alt Mode for DP alt mode to connection of an external displays.
EXPANDABILITY FOR EMBEDDED SOLUTIONS | RTC battery header
Enables real-time clock (RTC) functions for scheduling of startup and shutdown, timers and other related functions. Also enables ability for the system clock to keep time when mains power is lost or otherwise unavailable
About ASUS ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. About ROG Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world. © 2024 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
| Display & Graphics | |
|---|---|
| Graphics Controller Model | Mali-T860 |
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | 90ME01N0-M0AAY0 |
| Brand Name | Asus |
| Product Line | Tinker Board 2 |
| Product Name | Tinker Board 2 Single Board Computer |
| Product Type | Single Board Computer |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB Type-C Ports | 1 |
| Network (RJ-45) | Yes |
| Memory | |
| Standard Memory | 2 GB |
| Memory Technology | LPDDR4 |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.0 |
| Processor & Chipset | |
| Combined Processor Core | Hexa-core |
| Processor Type | Cortex A72 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 2 GHz |
| 2nd Processor Type | Cortex A53 |
| 2nd Processor Core | Dual-core (2 Core) |
| 2nd Processor Speed | 1.50 GHz |
| Miscellaneous | |
| Application/Usage | LCD Display |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
