Cortex A72 - Dual-core (2 Core) - 1.80 GHz - 4 GB - LPDDR4 - 16 GB Flash Memory - Mali T860 MP4 - Wireless LAN - Bluetooth - HDMI - 4 x Number of USB Ports - Network (RJ-45)
$303.01
Special order — estimated available by September 10, 2026.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Ultimate performance for edge device | AI accelerator (NPU)

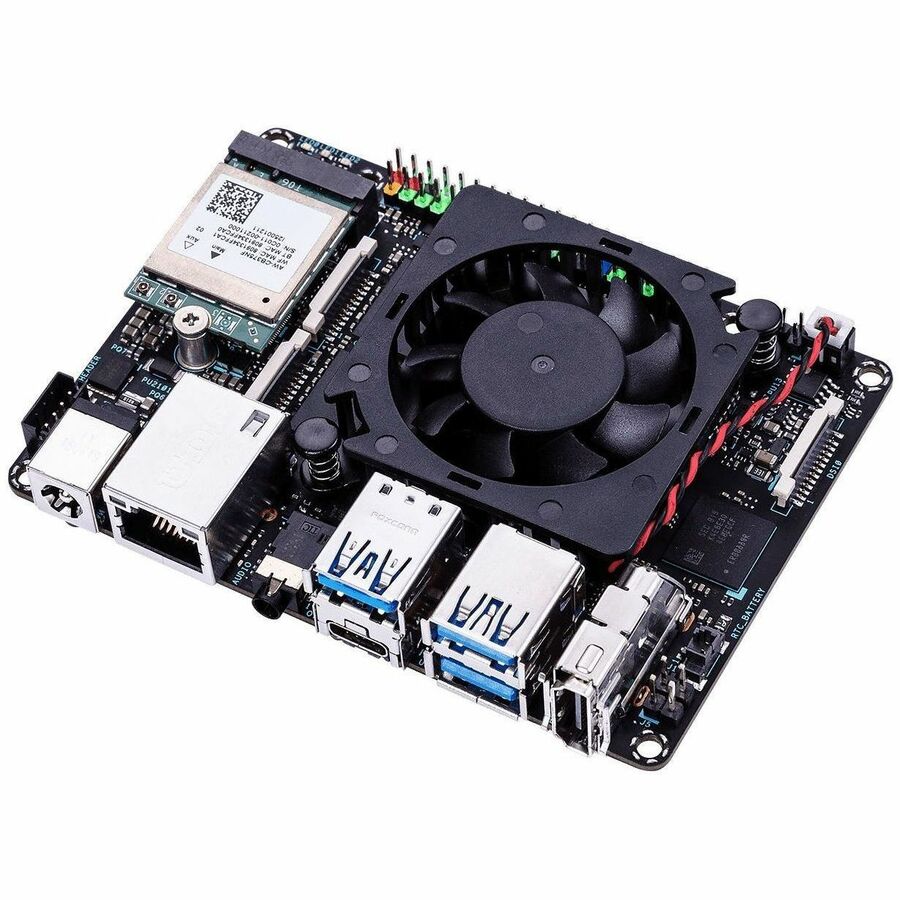

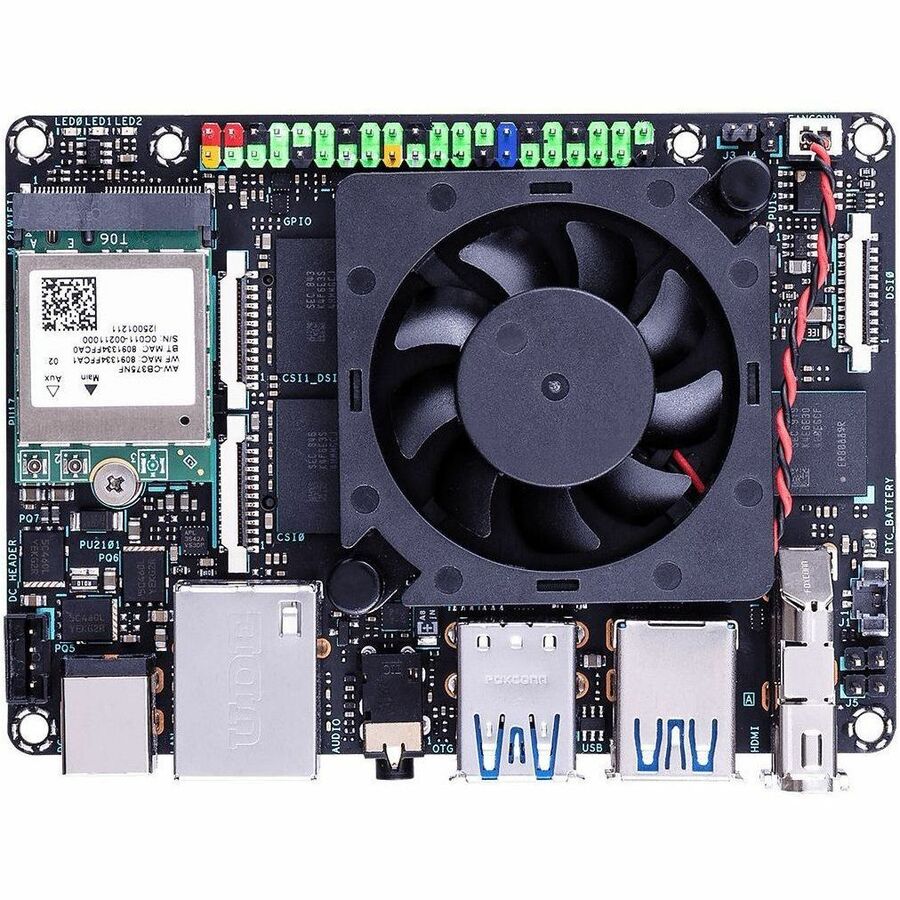

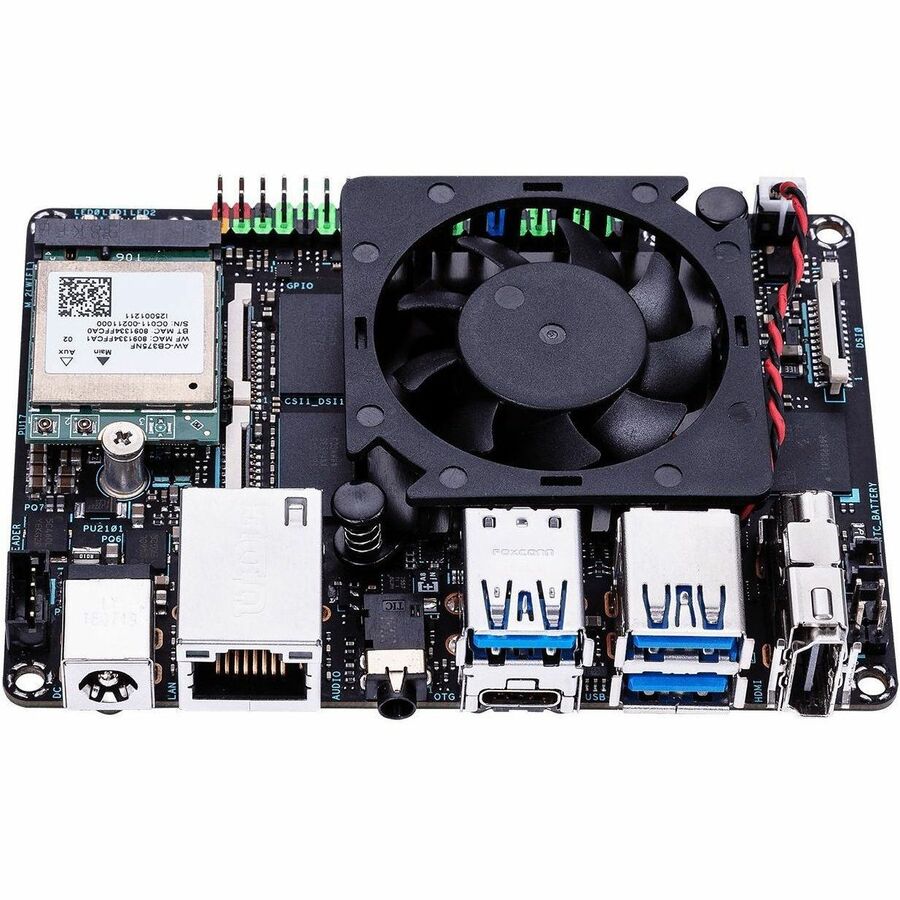

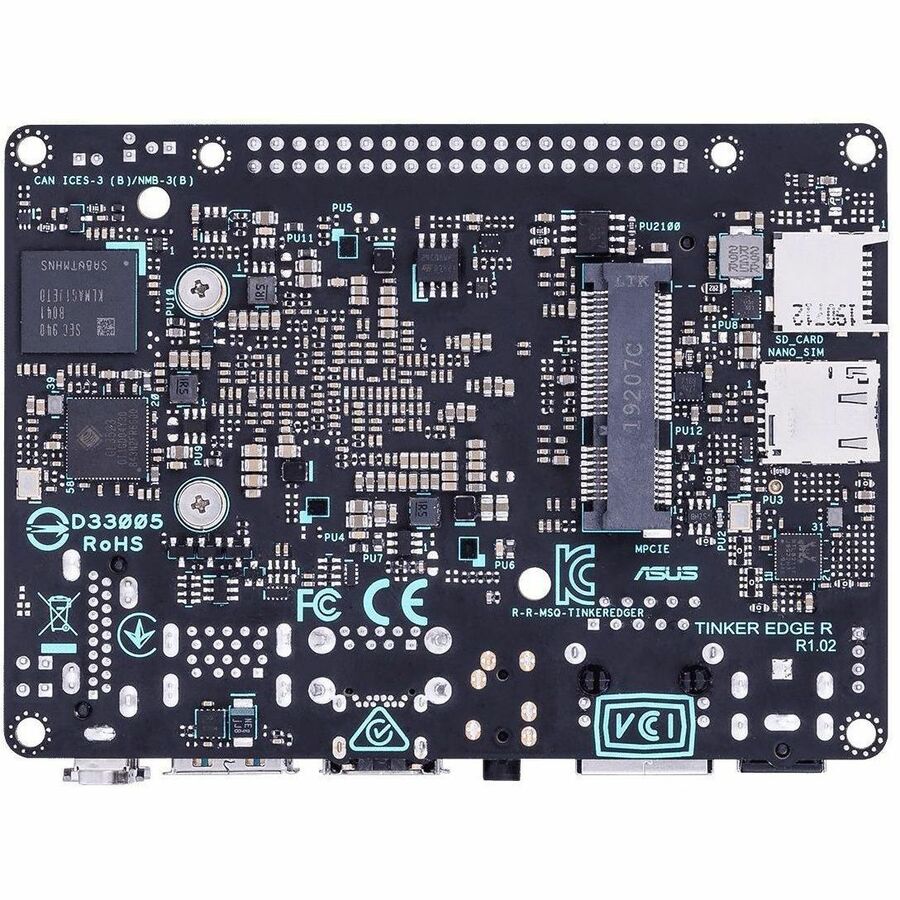

ASUS Tinker Edge R is an Single Board Computer (SBC) specially designed for AI applications. It uses Rockchip NPU, a Machine Learning (ML) accelerator that speeds up processing efficiency, lowers power demands and makes it easier to build connected devices and intelligent applications. With this integrated Machine Learning (ML) accelerator, the Tinker Edge R is capable of performing 3 tera-operations per second (TOPS), using low power consumption. And it's optimized for Neural Network (NN) architecture, which means Tinker Edge R can support multiple Machine Learning (ML) frameworks and let lots common Machine Learning (ML) models can be easily compiled and run on the Tinker Edge R.
Advanced Power Design
Most SBC motherboards only offer a 15 watt (5V 3A) power design, which can cause device and system instability when there are multiple connected devices. Other SBCs have power designs that lower the performance of their I/O ports. Tinker Edge R has a special power design that, together with DC and pin header dual power supply, delivers up to 65 watts of power, enabling stable system operation and full I/O performance, even with multiple connected devices. Additionally, an exclusive power-protection design activates automatically if the supplied current and voltage change significantly, effectively protecting the board and all connected devices.
ROCKCHIP RK3399PRO PROCESSOR
With its powerful and modern hex-core Arm® Cortex®-based Rockchip RK3399Pro A72 + A53 processor powered by Arm® big.LITTLE technology, Tinker Edge R offers a powerful solution for graphics, machine vision, video, audio, voice and safety-critical applications. Tinker Edge R features 4 GB of dual-channel LPDDR4 memory for system, the 4th generation of low-power DDR DRAM technology, offering faster speeds and even lower power consumption for improved system performance and efficiency. It also boats 2 GB of standalone memory for the NPU, offering faster speeds, improved stability and high efficiency for ML inference.
ASUS Tinker Edge R also comes equipped with an onboard 16 GB eMMC and SD 3.0 interface that offers significantly faster read and write speeds for the operating system, applications and file storage.
More connectivity options for Developers
ASUS Tinker Edge R features a rich I/O interface, including one MIPI-DSI connection for displays and touch screens, and two MIPI-CSI connections for compatible cameras to enable computer vision for applications such as depth measurement, smart vending machine and interactive advertising.

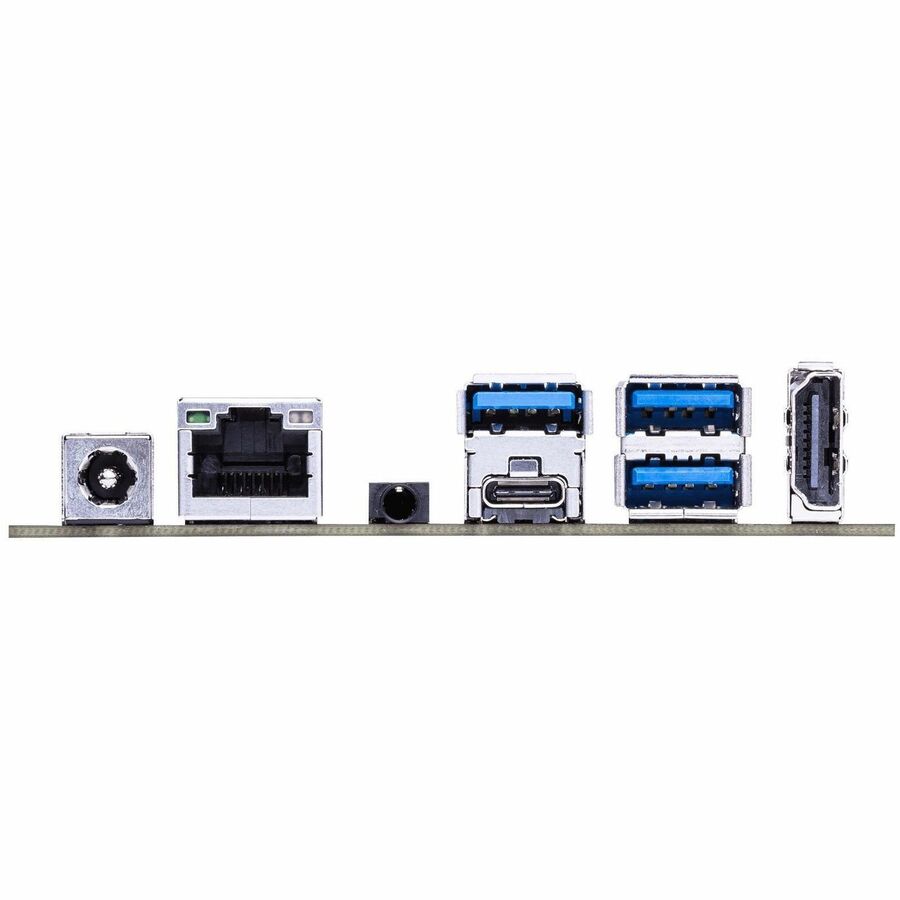

Tinker Edge R also benefits from a developer-friendly design that offers many carefully considered features to provide a superior experience for first-time builders and seasoned hobbyists alike. As well, Tinker Edge R boats a full-size HDMI port, USB Type-A, USB Type-C, gigabit LAN and Wi-Fi and Bluetooth for internet and network connectivity - and also a mini PCI Express® Mini slot for 4G/LTE extension card.
Enhanced User Experience | Machine Learning Developer Tools
ASUS provides a robust API and SDK that enables users to deploy ML models to Tinker Edge R easily for applications such as image classification and object detection. It also supports model conversion from Caffe, TensorFlow, TensorFlow Lite, ONNX, Darknet and more.
OS Flash Tool
Tinker Edge R comes with a Intuitive OS flash tool that enables easy OS image flashing to onboard eMMC drive, enabling you to get your system up and running quickly.
About ASUS ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. About ROG Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world. © 2024 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
| Display & Graphics | |
|---|---|
| Graphics Controller Model | Mali T860 MP4 |
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | TINKER EDGE R |
| Brand Name | Asus |
| Product Line | Tinker Edge R |
| Product Name | Tinker Edge R Single Board Computer |
| Product Type | Single Board Computer |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB Type-C Ports | 1 |
| Network (RJ-45) | Yes |
| Memory | |
| Standard Memory | 4 GB |
| Memory Technology | LPDDR4 |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11a/b/g/n/ac |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.0 |
| Processor & Chipset | |
| Combined Processor Core | Hexa-core |
| Processor Type | Cortex A72 |
| Processor Core | Dual-core (2 Core) |
| Processor Speed | 1.80 GHz |
| 2nd Processor Type | Cortex A53 |
| 2nd Processor Core | Quad-core (4 Core) |
| 2nd Processor Speed | 1.40 GHz |
| Storage | |
| Flash Memory Capacity | 16 GB |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
