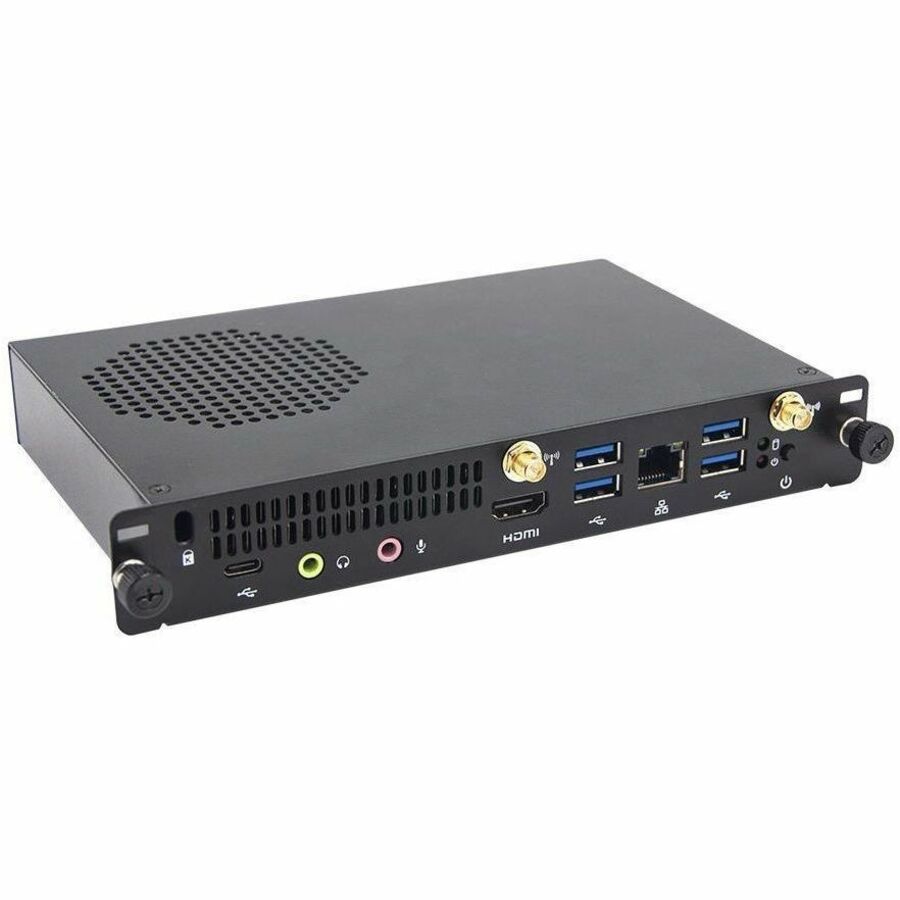

AOpen WB5116-W Digital Signage Appliance
AOpen

AOpen WB5116-W Digital Signage Appliance

Intel Core i7 - 8 GB DDR4 SDRAM - 256 GB SSD - HDMI - USB - Wireless LAN - Ethernet

SKU
90.WB700.6AQ0
Category
Digital Signage Systems

$943.21

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine AOpen through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
90.WB700.6AQ0
Category
Digital Signage Systems

Overview

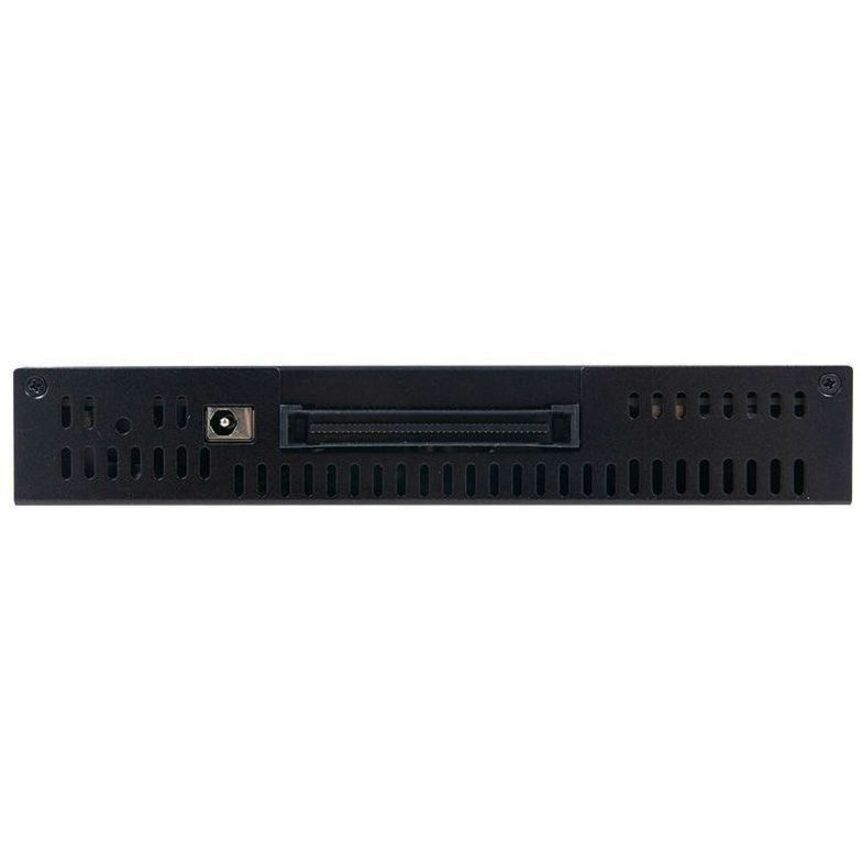

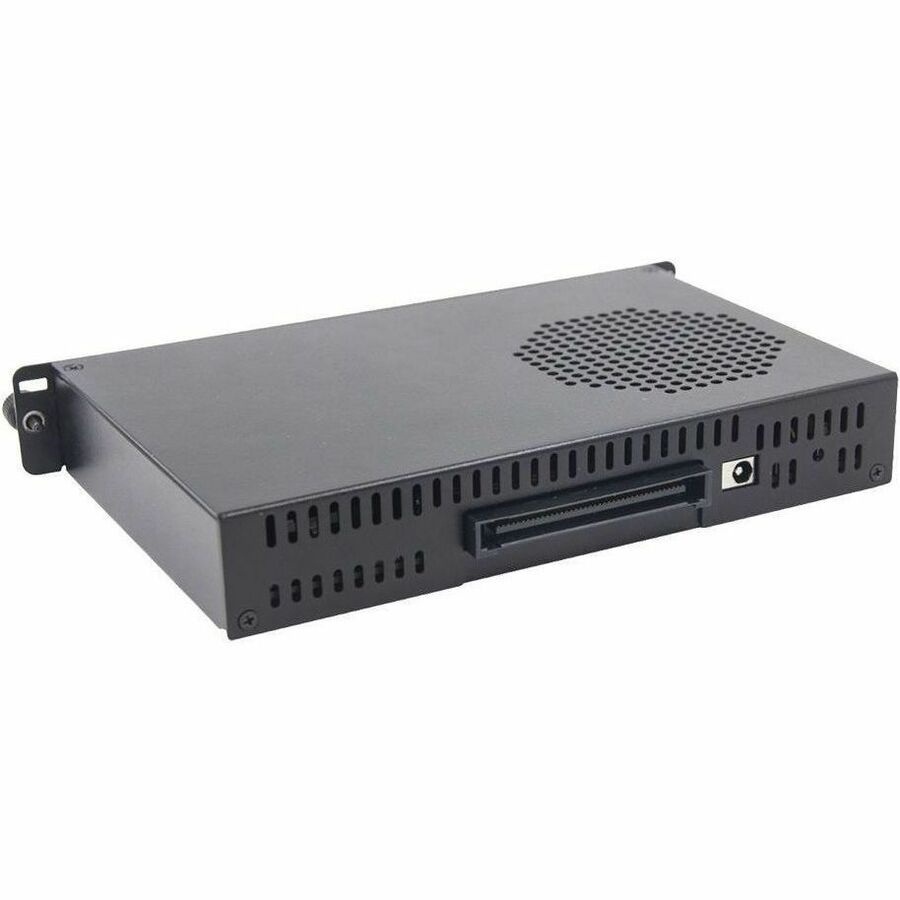

WB5116-W supports Intel 13th Gen core i3/i5/i7 -U/H processor with dual DDR4 3200MHz SO-DIMM memory, HDMI2.0 output from 80pin and front panel, storage support M.2 2280 M-key SATA & PCIe SSD. It is widely used in education, interactive conference whiteboards, digital signage, and other scenes.

Complies with Intel OPS

WB5116-W complies with Intel Open Pluggable Specification (OPS), and is powered by Intel 13th generation RPL-U/H processor Core? i3 / i5 / i7 processor. Dimension: W180xD119xH30mm.

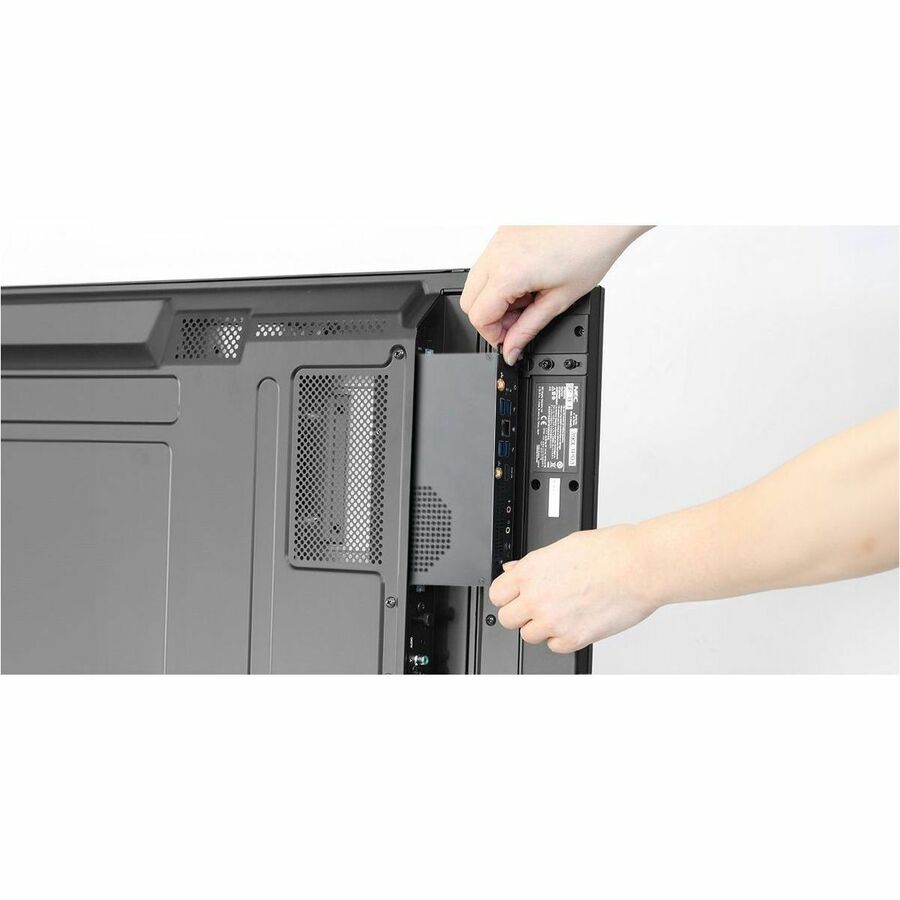

Simplify installation, upgrade and maintenance

OPS is designed to simplify the device installation, usage, maintenance, and upgrade of digital signage infrastructure.

High Performance Intel® Iris® Xe Graphics

WB5116-W with Intel® Iris® Xe graphics supports up to 4K resolution at HDMI 2.0 and features an additional HDMI interface for a second display connection.

Rich I/O for versatile application

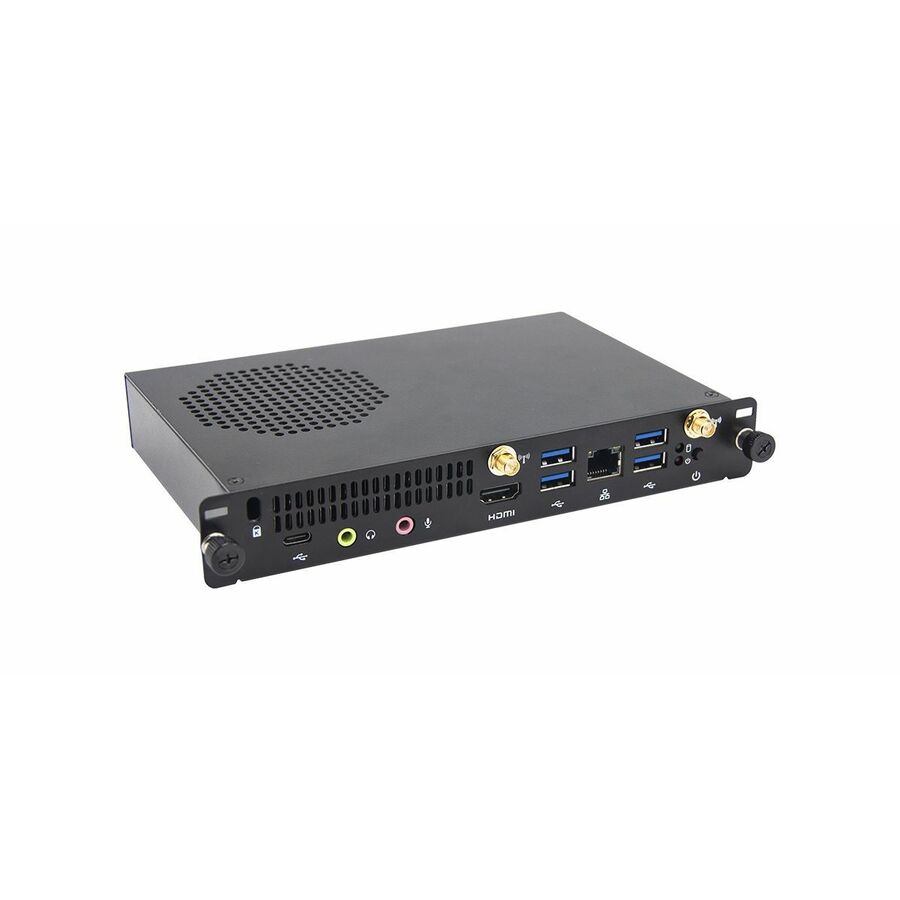

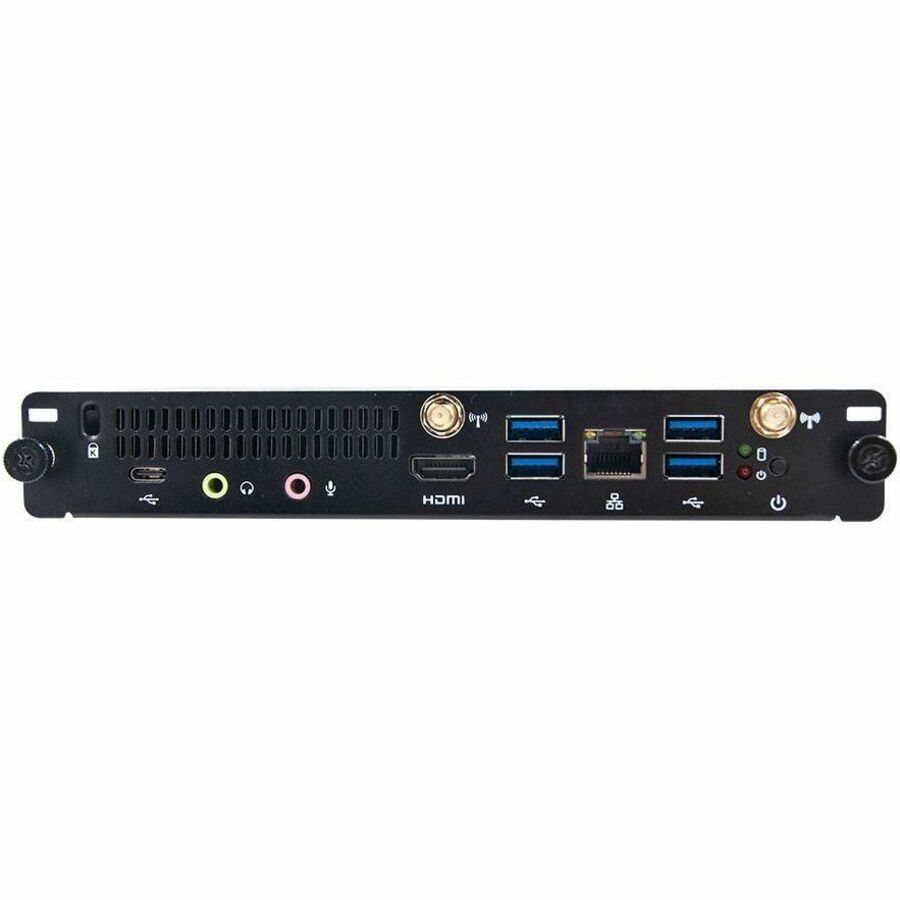

WB5116-W support 4x USB3.2 Gen1 Type A, 1x USB Type C, 1x Giga LAN, 1x HDMI1.4, Mic-in & Line-out for versatile application.

Specifications

Application/UsageEducation, Conference Room
Product TypeDigital Signage Appliance
Manufacturer Part Number90.WB700.6AQ0
Limited Warranty3 Year
Standard Memory8 GB
ManufacturerAOpen, Inc
Product ModelWB5116-W
Product NameWB5116-W Digital Signage Appliance
Processor TypeCore i7
Brand NameAOpen
Memory TechnologyDDR4 SDRAM
Height1.2"
Width7.9"
Depth4.7"
Processor ManufacturerIntel
Graphics Controller ManufacturerIntel
Graphics Controller ModelIris Xe Graphics
EthernetYes
Wireless LANYes
Solid State Drive Capacity256 GB
USBYes
HDMIYes
Minimum Operating Temperature32°F (0°C)
Maximum Operating Temperature113°F (45°C)
Minimum Storage Temperature-22°F (-30°C)
Maximum Storage Temperature158°F (70°C)
Number of Network (RJ-45) Ports1
Number of Audio Line Out1
