120 V AC, 230 V AC Input - 52 V DC Output - 1 x Gigabit Ethernet Input Port(s) - 1 x Gigabit Ethernet Output Port(s) - 15.40 W
SKU
Category
Power Injectors/Splitters
MSRP$38.46
$34.04
Save 11%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 3 and Nov 7, then process your delivery right after.
Genuine Amer Networks through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Power Injectors/Splitters
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

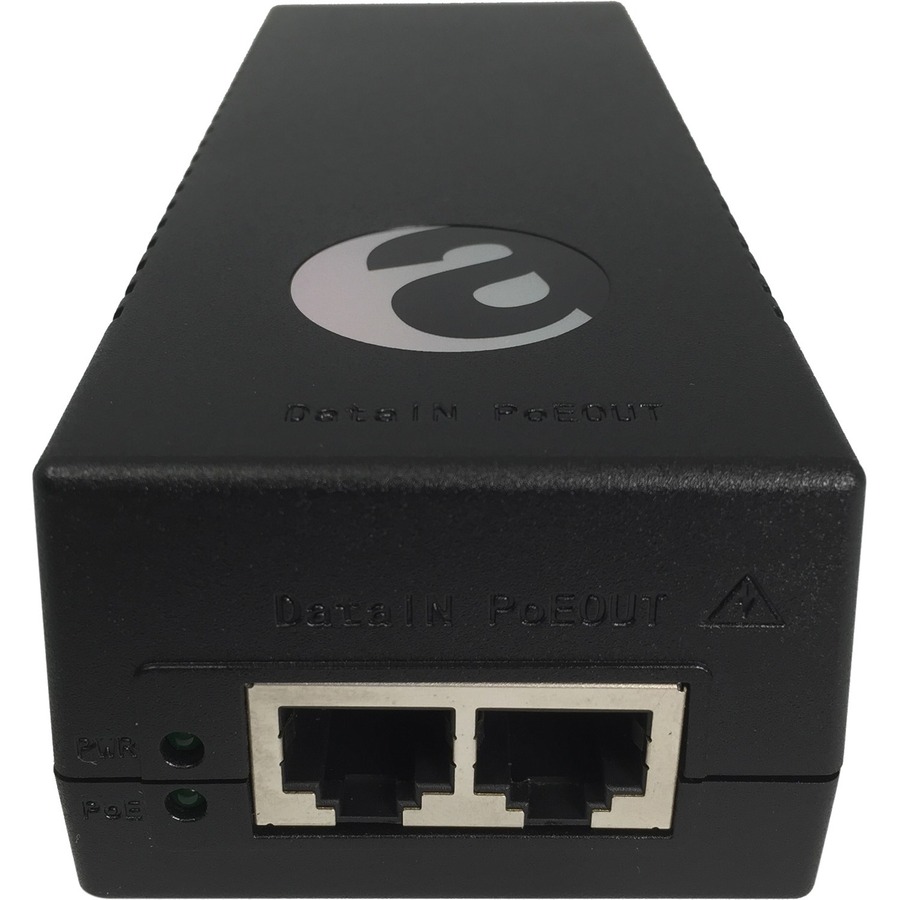

The PIG15 is a single port Mid-Span offering a compact and cost effective and fully IEEE802.3af compliant solution.It can be used to power wireless LAN / WAN access points, IP security cameras, VoIP telephones and any other low port density installations.
The PIG15 PoE injector eliminates the need for an external power supply and any associated AC/DC power cabling. It provides a compact, affordable, safe and reliable power solution over existing Ethernet cabling.
Specifications
General Information
Manufacturer
Amer Networks, Inc
Manufacturer Part Number
PIG15
Brand Name
Amer
Product Model
PIG15
Product Name
Power-over-Ethernet Injector
Packaged Quantity
1
Product Type
PoE Injector
Interfaces/Ports
Input Ports
1 x Gigabit Ethernet
Output Ports
1 x Gigabit Ethernet
Physical Characteristics
Form Factor
External
Height
1.6"
Width
2.4"
Depth
5.7"
Power Description
Input Voltage
120 V AC, 230 V AC
Maximum Output Voltage
52 V DC
Maximum Input Current
300 mA
Maximum Output Power
15.40 W
Technical Information
Protection Type
Surge Protection
Miscellaneous
Certifications & Standards
IEEE802.3af (PoE) FCC (Part15, Class B) CE (EN55022/24) C-Tick (AS/NZS55022/24) CCC (GB4943) KCC (K60950-1) BSMI (CNS13438) UL/cUL (EN6095-1) ICES (ICES-003) GS (EN60950-1) CE/LVD (EN60950-1) SAA (AS/NZS60950-1) CCC (GB4943) KC (K60950-1) PSE (J60950-1) NOM (IEC60950-1) S-mark (IEC60950-1) BSMI (CNS14336) EAC (LEC60950-1) BIS (BISIS13252) GS
