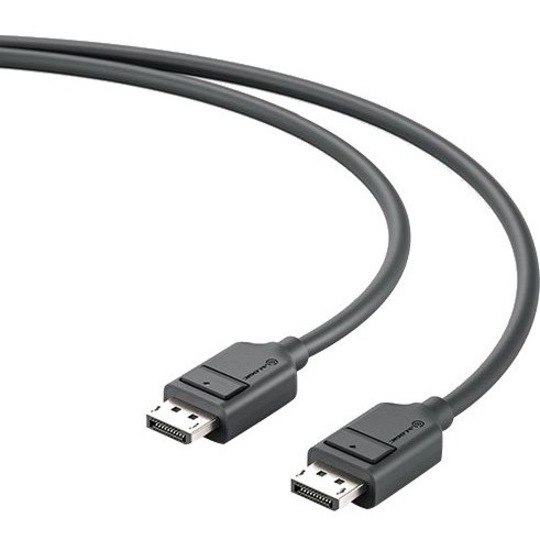

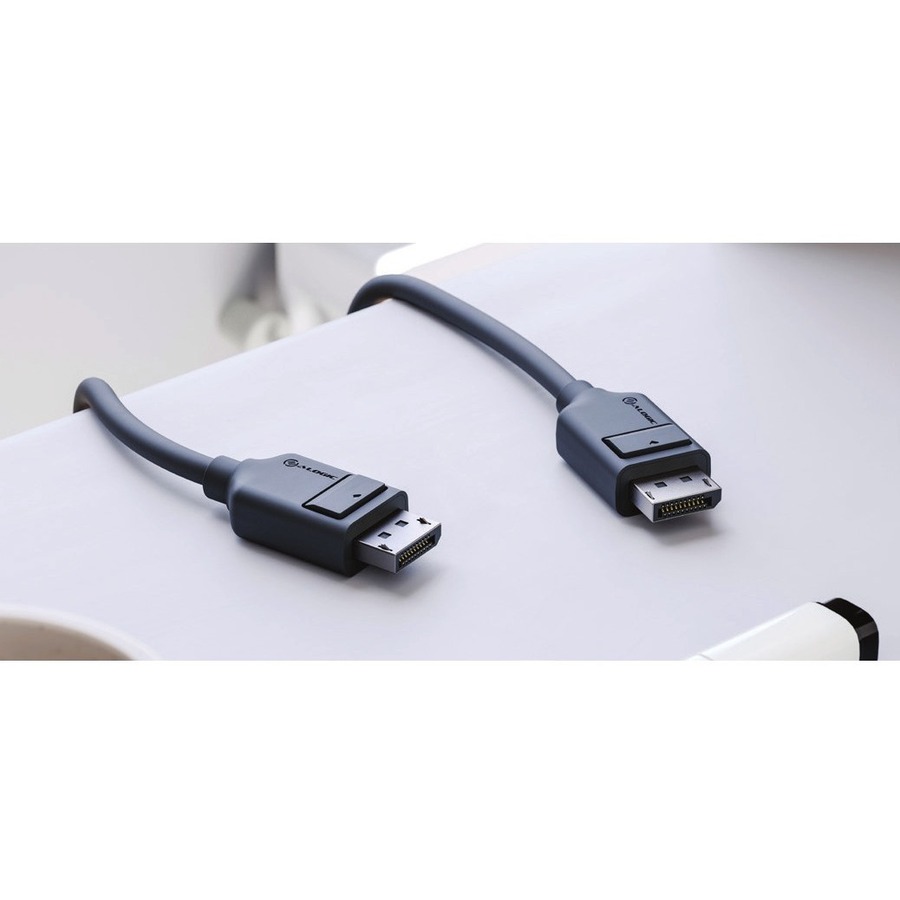

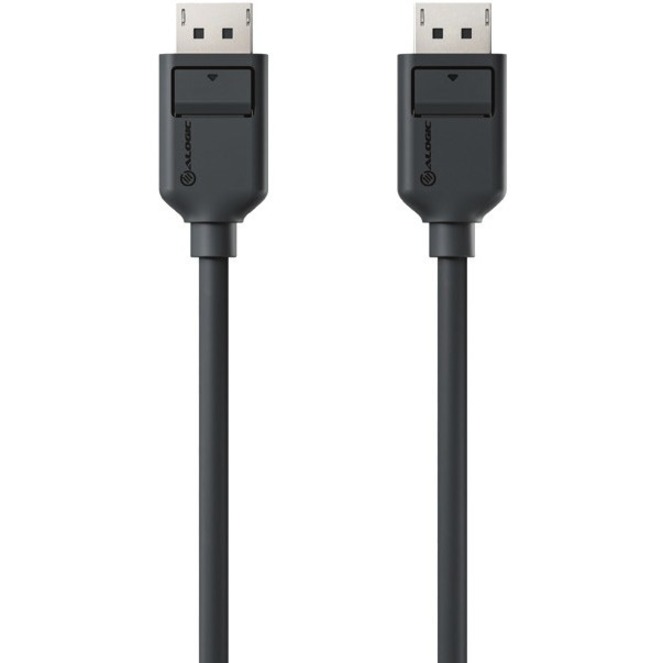

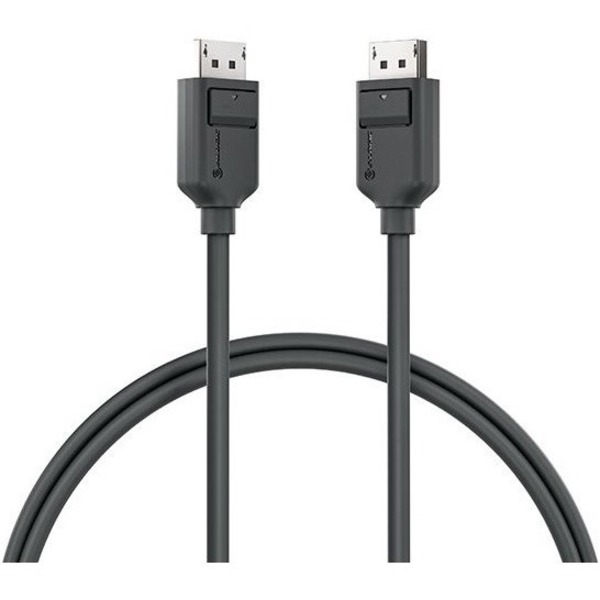

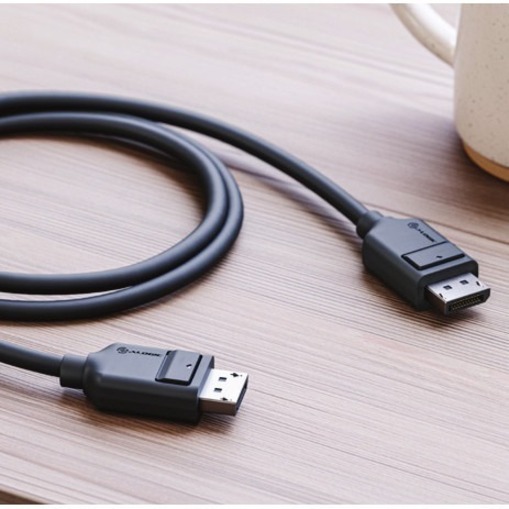

9.84 ft DisplayPort A/V Cable for Rack Equipment, Monitor, Audio/Video Device - First End: 1 x DisplayPort 1.2 Digital Audio/Video - Male - Second End: 1 x DisplayPort 1.2 Digital Audio/Video - Male - 21.6 Gbit/s - Supports up to 4096 x 2160 - 30 AWG - Black - 1
Genuine Alogic through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
EL2DP-03
Category
Connector Cables
Overview
Premium Performance
Go beyond the 60Hz barrier. ALOGIC's Elements Series DisplayPort cables support exceptionally high refresh rates, including 75Hz for UHD 4K Displays and 240Hz for Full HD Displays. The Elements' high frame rates on supported monitors ensures users enjoy especially fluid video displays, which is particularly ideal for gaming set ups.
User-Friendly Cables for Home and Business
Engineered with professional applications in mind, the DisplayPort Cable with 4K Support utilises highly flexible cable - 30AWG [up to 3m] and 28AWG [5m-plus] cable - for reliable performance and easy installation at home or in business settings. It's PVC-moulded, low-profile connectors are comfortable to grip, simple to insert [they can't fall out once connected], and robust enough to stand up to use in high traffic environments.
Proven to Stand the Test of Time
With hundreds of thousands of our cables installed in professional environments, this range is developed out of vast experience providing products that last the test of time in the most demanding environments. Whether at home or in the office, rest assured these cables outlast others.
Warranty
Limited Warranty: 2 Year
Highlights
Delivers professional performance in homes and commercial settings
Supports UHD 4K [75Hz] video
Highly flexible and ideal for tight spaces behind displays and in equipment racks
Latching connector design for a secure connection
Specifications
General Information
Manufacturer
Alogic
Manufacturer Part Number
EL2DP-03
Brand Name
Alogic
Product Line
Elements
Product Name
Elements 4K DisplayPort Cable - 3m
Packaged Quantity
1
Product Type
A/V Cable
Physical Characteristics
Product Color
Black
Connector Material
Molded Polyvinyl Chloride (PVC)
Technical Information
Cable Type
DisplayPort
Cable Length
9.84 ft
Connector Type on First End
DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details
1 x DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End
DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details
1 x DisplayPort 1.2 Digital Audio/Video - Male
Device Supported
Rack Equipment, Monitor, Audio/Video Device
American Wire Gauge
30 AWG
Data Transfer Rate
21.6 Gbit/s
Supported Resolution
4096 x 2160
Features
Flexible, Gripping Connector, Latching Connector, Hot Plug Detection (HPD), Multi-Stream Transport (MST) Support, Stereoscopic 3D Support, HDCP, DPCP
Warranty
Limited Warranty
2 Year
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
