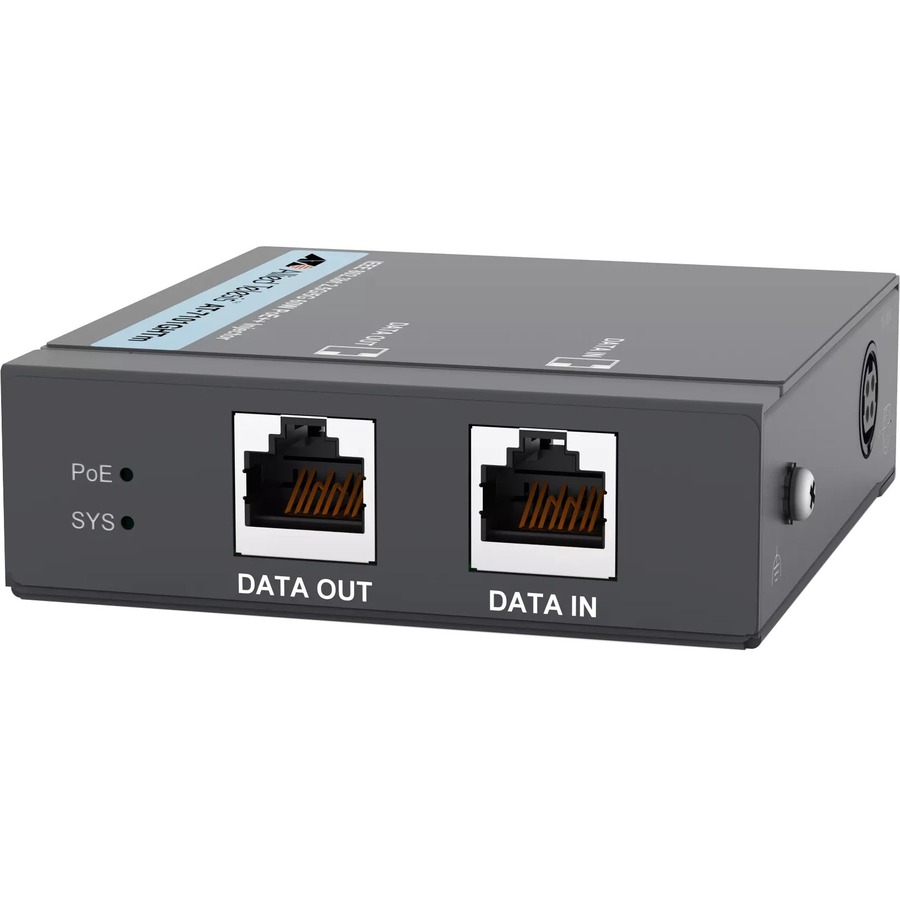

Allied Telesis AT-7101GHTm Multi-Gigabit PoE++ (IEEE 802.3bt) Injector
120 V AC, 230 V AC Input - 1 Input Port(s) - 1 Output Port(s) - Black
- SKU
- AT-7101GHTM-10
- Category
- Power Injectors/Splitters
MSRP$517.00
$432.04
Save 16%Back ordered — ships when restocked.
Genuine Allied Telesis through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- AT-7101GHTM-10
- Category
- Power Injectors/Splitters
Overview
PoE++ (802.3bt) Injector
The AT-7101GHTm single-port Power over Ethernet Injector provides data and power through the Ethernet cable to PoE equipped devices, such as wireless access points, IP cameras, VoIP phones and more.
Flexible power delivery enables supporting devices with the:
• 15.4 Watts or PoE (IEEE 802.3af)
• 30 Watts of PoE+ (IEEE 802.3at)
• 60 Watts of PoE++ (IEEE802.3bt)
Power over Multi-Gigabit networks
To enable modern networks of all speeds, the AT-7101GHTm can remotely power high-performance devices across Multi-Gigabit networks running at 1/2.5/5Gbps, as well as older networks running at 100Mbps.
The combination of Multi-Gigabit network performance, and power delivery available up to 60 Watts, make the AT-7101GHTm one of the most flexible and capable PoE injectors available.
Powered Device (PD) detection
The AT-7101GHTm injector automatically detects if the PD supports one of the PoE standards (IEEE 802.3af, 802.3at, or 802.3bt), and will then connect and power that device. If the injector detects that the connected device does not support one of the PoE standards, then it will not provide power to the device to avoid potential damage.
Main applications
Cost savings can be achieved using the AT-7101GHTm injector for remotely powering VoIP phones, IP cameras, wireless access points, and other types of PDs. There is no need for additional power cabling as the injector feeds power to the equipment through the same cable used for data.
Extend the distance from the network switch to the PD by up to 100 meters, which enables powering devices in hard-to-reach locations - as the AT-7101GHTm injector can be installed anywhere between the switch and the PD.
The AT-7101GHTm injector protects your network infrastructure investment, as Multi-Gigabit support means there is no need to replace existing legacy Cat5e/Cat6 building cables when connecting and powering PoE enabled devices.
For resilience, connecting the AT-7101GHTm injector to a UPS backed-up power supply protects the PD from any power outages.
Highlights
- Connect and power end-points over a single Ethernet cable
- Up to 60W (802.3bt) power sourcing
- Extend PD reach by up to 100 meters
- Multi-Gigabit (10/100M/1/2.5/5Gbps) network connectivity
- Overload and short circuit protection
- Light weight and compact size
- Plug-and-Play deployment
- Flexible installation with wall and DIN rail mounting options
Specifications
| Package Contents |
|
|---|---|
| Product Type | PoE++ Injector |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | AT-7101GHTM-10 |
| Weight (Approximate) | 1.10 lb |
| Form Factor | DIN Rail/Wall Mountable |
| Manufacturer | Allied Telesis, Inc |
| Product Model | AT-7101GHTm |
| Product Name | AT-7101GHTm Multi-Gigabit PoE++ (IEEE 802.3bt) Injector |
| Protection Type | Over Current, Overload Protection, Short Circuit |
| Brand Name | Allied Telesis |
| Input Ports | 1 |
| Output Ports | 1 |
| Height | 1" |
| Width | 3.3" |
| Depth | 3.1" |
| Environmentally Friendly | Yes |
| Product Color | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
