SKU
TREK-688-02A0E
Category
Barebone Systems
Overview
Introduction

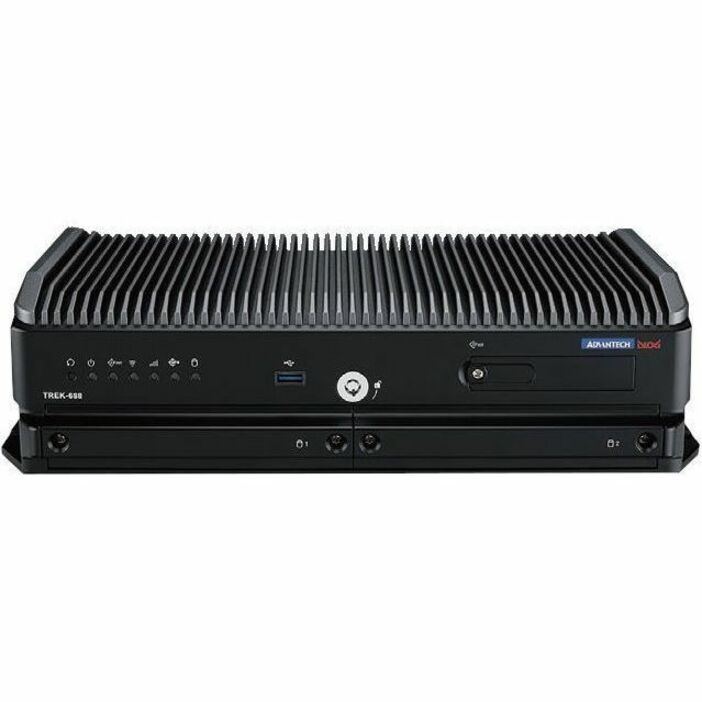

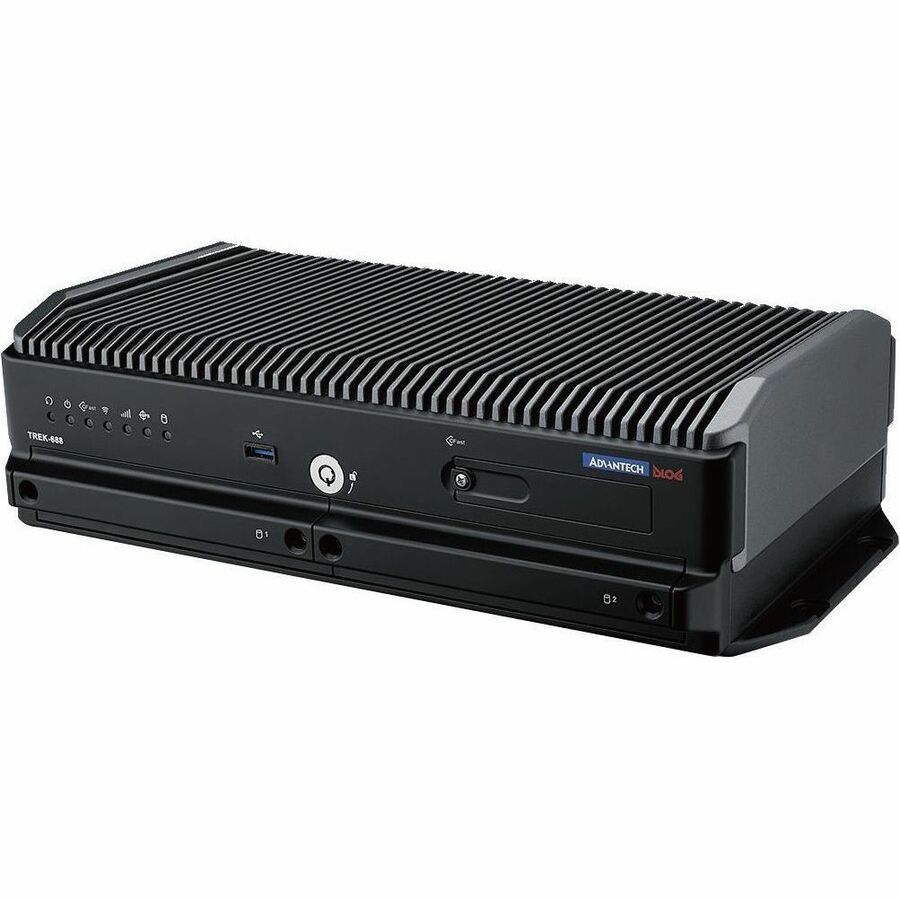

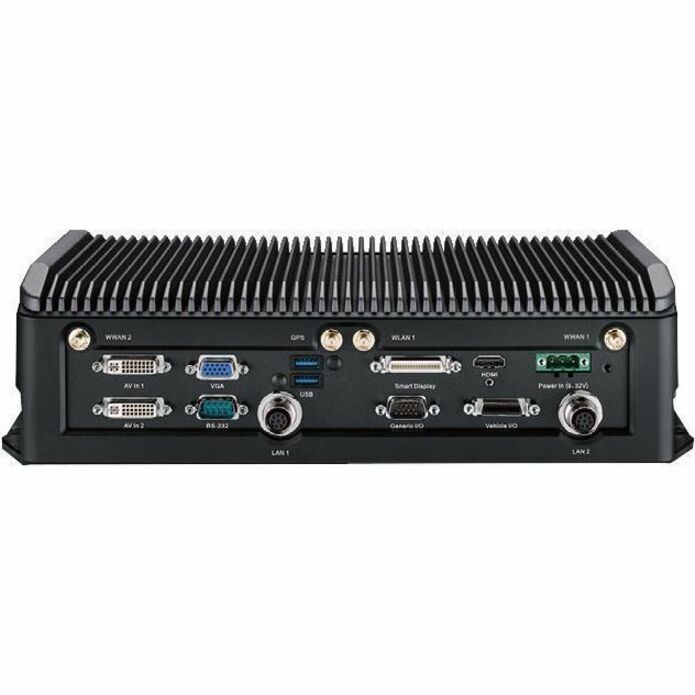

TREK-688 is an industrial-grade in-vehicle computing box designed to provide high-quality fleet management and video surveillance for eBus and BRT systems. The inclusion of GNSS, WLAN, Bluetooth, GPS, and WWAN (with dual SIM cards) modules allows remote monitoring and vehicle tracking even in tunnels. TREK-688 also features several vehicle protocols (J1939, OBD-II/ISO 15765) for vehicle diagnostics and driver behavior management, and supports up to 16 camera inputs and 8 audio inputs for high-quality, MJPEG, H.264 recording to enable motion detection, on-board recording, and real-time data transmissions. The dual Gigabit Ethernet ports with M12 connectors and dual display/dual audio interfaces support different resolutions for convenient application.
Highlights
Core i7 2.90 ghz processor delivers the speed and power to explore new possibilities and experiences
Upgrade an existing PC easily to improve performance and extend its usability for modern applications
Windows 7 Professional OS support offers a dependable, user-friendly interface for easy app usage and maximum productivity
With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
Intel HD Graphics 4400 shared graphic card handles HD video playback, photo editing, and complex office applications efficiently
4th Gen processor generation offers more threads and higher clocks for faster, optimized system performance
Provides 3 USB ports for responsive and expanded device connections without interruptions
Gigabit Ethernet port supports ultra-fast network speeds for smooth data transfer and improved system performance
Dual-core (2 Core) processor core helps barebone system process data dependably and on time for consistent performance
DDR3L SDRAM slot supports high-speed operation with low voltage, improving energy efficiency and heat dissipation
Specifications
Chipset
Chipset Manufacturer
Intel
Controllers
Controller Type
Serial ATA/600
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
HD Graphics 4400
Graphics Memory Technology
DDR3L SDRAM
Graphics Memory Accessibility
Shared
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
TREK-688-02A0E
Brand Name
Advantech
Product Model
TREK-688-02A0E
Product Name
TREK-688-02A0E Barebone System
Product Type
Barebone System
Interfaces/Ports
HDMI
Yes
Total Number of USB Ports
3
Number of USB 3.0 Ports
2
Number of USB Type-A Ports
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Number of VGA Ports
1
Memory
Maximum Memory Supported
8 GB
Memory Technology
DDR3L SDRAM
Total Number of Memory Slots
1
Network & Communication
Ethernet Technology
Gigabit Ethernet
Operating System
Operating System Supported
Windows 7 Professional, Windows Embedded 8 Standard, Windows 10 IoT, Ubuntu 14.04 LTS
