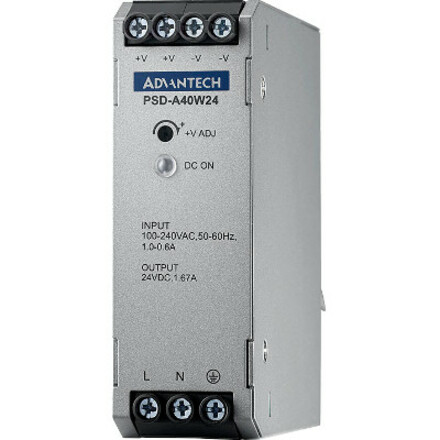

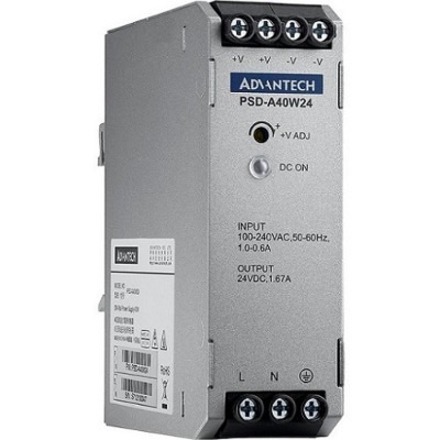

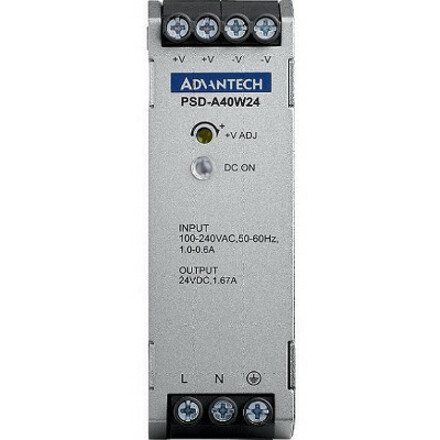

Advantech 40 Watts Compact Size DIN-Rail Power Supply
Advantech

Advantech 40 Watts Compact Size DIN-Rail Power Supply

DIN Rail Mountable - 110 V DC, 120 V AC, 230 V AC, 375 V DC Input - 24 V DC Output - 40 W - 89% Efficiency

SKU
PSD-A40W24
Category
Power Supplies

$78.46

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PSD-A40W24
Category
Power Supplies

Highlights

  • Extra slim design with 40 watts output
  • High power density: 2.27 watts per cubic inch
  • Input range 85 ~ 264 VAC / 110 ~ 375 VDC
  • Power boost with 150% peak load
  • Full protection with auto recovery function
  • Full load output up to 60°C
  • Adjustable output

Specifications

Product TypePower Supply
Efficiency89%
Input Voltage110 V DC, 120 V AC, 230 V AC, 375 V DC
Manufacturer Part NumberPSD-A40W24
Output Power40 W
Packaged Quantity1
Limited Warranty3 Year
Output Voltage24 V DC
Weight (Approximate)10.74 oz
Form FactorDIN Rail Mountable
ManufacturerAdvantech Co., Ltd
Product ModelPSD-A40W24
Product Name40 Watts Compact Size DIN-Rail Power Supply
Product SeriesPSD-A40W
Brand NameAdvantech
Output Current1.67 A
Country of OriginChina
Height3.6"
Width1.3"
Depth3.9"
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
