698MHz to 960MHz, 1710MHz to 2170MHz, 2500MHz to 2700MHz, 2410MHz to 2490MHz, 4920MHz to 5925MHz - 3 dB - 5.6 dBi - Cellular Network, Wireless Data Network, Industrial, GPS, GLONASSScrew Mount - Omni-directional - SMA, R-SMA Connector
SKU
BB-2J7050BGFA-150
Category
Antennas
$296.73
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
BB-2J7050BGFA-150
Category
Antennas
Overview

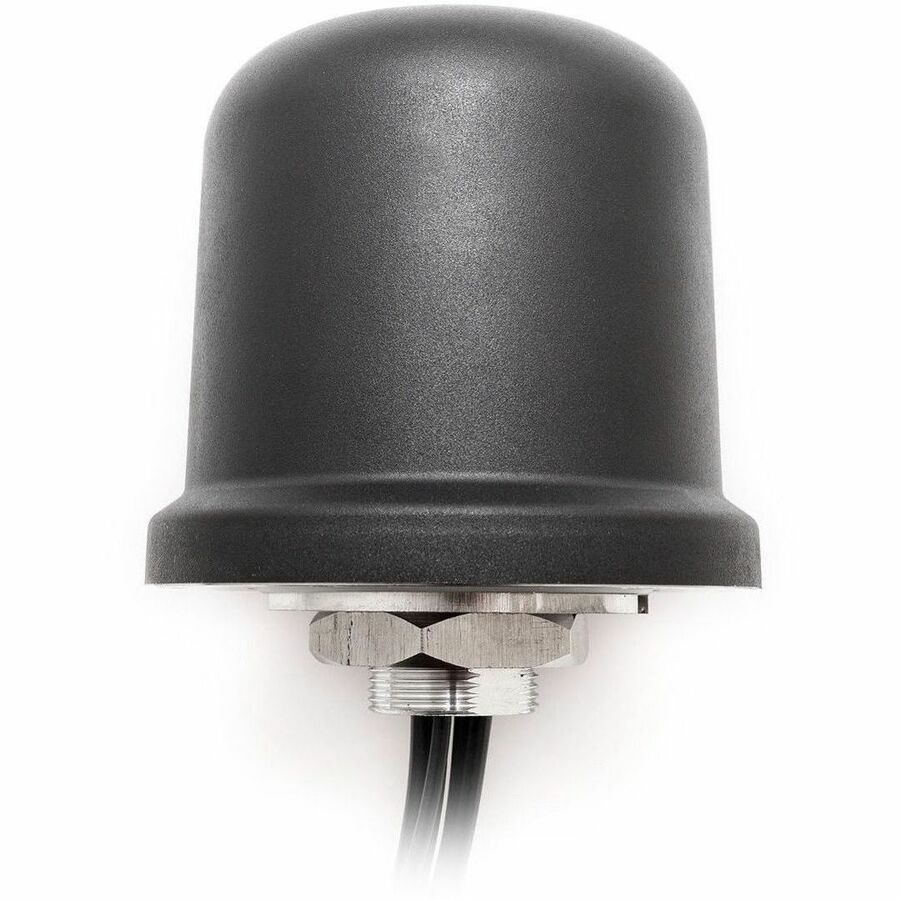

Compact heavy duty antenna designed for 4G LTE, 2.4/5.0 GHz ISM and GNSS suitable for wide range of applications within industry. Antenna is made with specific anti-rotation mounting system. Housing of the antenna is certified for standards of IP67 for water resistance, IK09 for high impact resistance and IP69K standard for high pressure and hot water ingress.
Highlights
Delivers?enhanced performance at 698MHz to 960MHz operating frequency range
With its strong connection and faster transfer speeds, this cellular network provides the best reception
Provides gain of up to 3 dB
Eases up the installation procedure thanks to its 360-degree horizontal pattern
Antenna can be mounted as screw mount
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
BB-2J7050BGFA-150
Brand Name
Advantech
Product Name
Antenna
Product Type
Antenna
Interfaces/Ports
Connector Type
SMA, R-SMA
Physical Characteristics
Form Factor
Screw Mount
Technical Information
Directivity
Omni-directional
Operating Frequency Range
698MHz to 960MHz, 1710MHz to 2170MHz, 2500MHz to 2700MHz, 2410MHz to 2490MHz, 4920MHz to 5925MHz
Antenna Gain
3 dB
Antenna Gain (Isotropic)
5.6 dBi
Voltage Standing Wave Ratio (VSWR)
2.1:1
Miscellaneous
Application/Usage
Cellular Network, Wireless Data Network, Industrial, GPS, GLONASS
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
