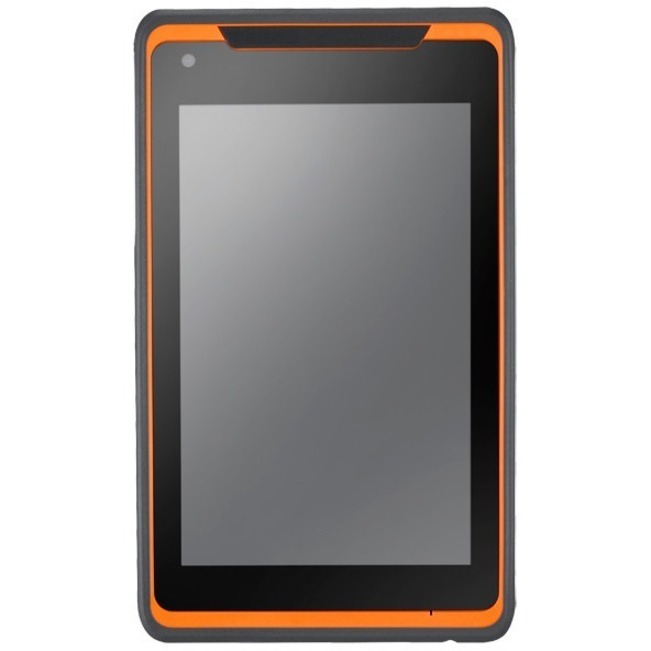

Advantech AIM-35 POS Terminals
Atom x5-Z8350 1.44 GHz - 4 GB - 64 GB - Windows 10 IoT Enterprise
- SKU
- AIM-35AT-02303000
- Category
- POS Terminals
$974.23
Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- AIM-35AT-02303000
- Category
- POS Terminals
Overview

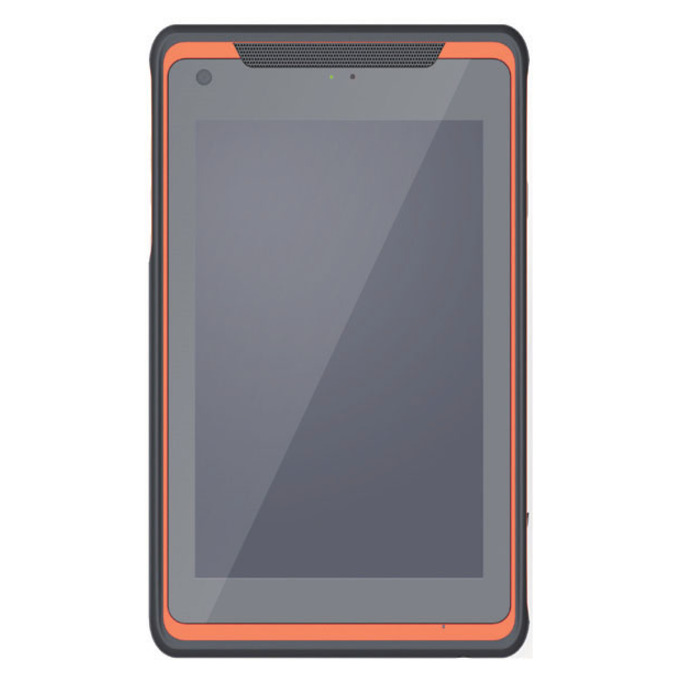

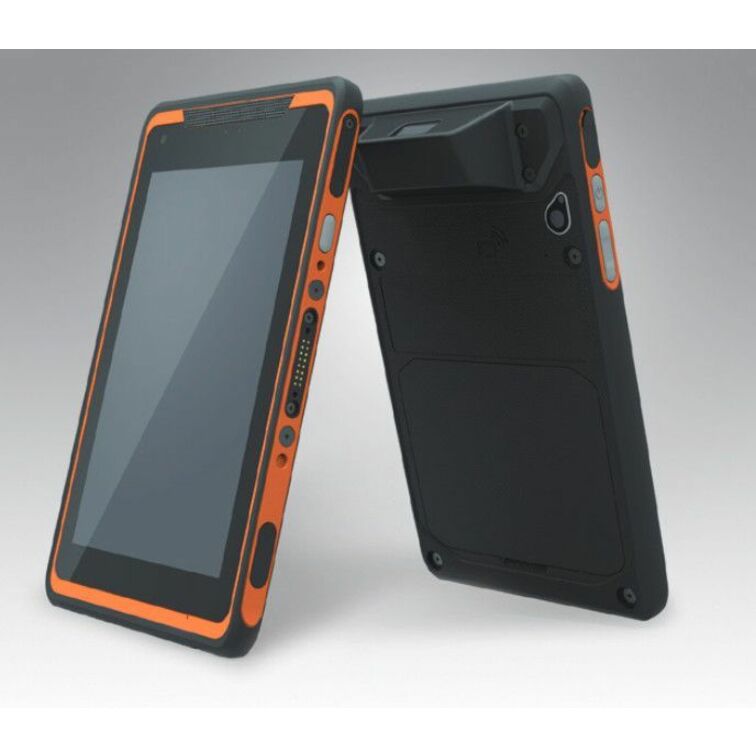

AIM-35 is an industrial-grade handheld tablet POS system for multiple applications with Intel® Atom? processor and multiple OS platform support for various software operation. To meet demands of retail and hospitality industry, AIM-35 provides 6-8 hours operation and support IP65-rated water and dust protection as robust tablet, but also enables various extension modules for the diversified application scenarios, such as 2D barcode scanner, to satisfy various retail and hospitality applications as well as inventory management or self-service operations that makes AIM-35 is ideal tablet POS system for the retail and hospitality market.
Highlights
- Intel® Atom? processor for Windows 10 IoT and Android 6.0 operating systems
- Industrial-Grade 8" 1,920 x 1,200 LCD Panel with 400 nits brightness and MTBF up to 12,000 hours
- Equipped Gorilla® Glass 3, Anti-Glare, Anti-Fingerprint, Direct Bonded Touch Panel against scratch
- Supports glove mode and stylus with palm detection to expand usability
- IP65 water and dust protection/ 4ft drop compliant
- Comprehensive communication technologies including 3G/4G, WLAN, BT, NFC, GPS and HDMI output
- Camera module supports auto focus with LED flash
- AIM Extension 14-pin Pogo connector supports Extension Modules for 1D/2D Barcode scanner, MSR, IC Card readers

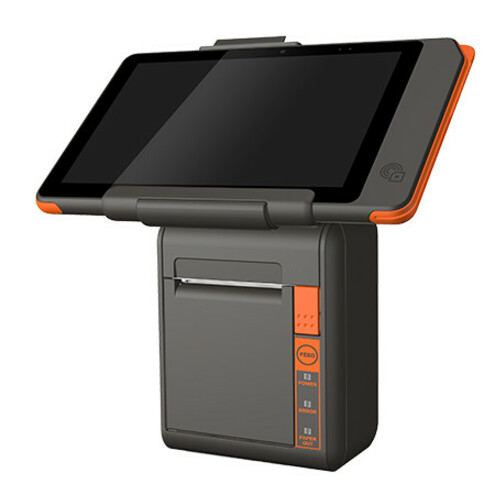

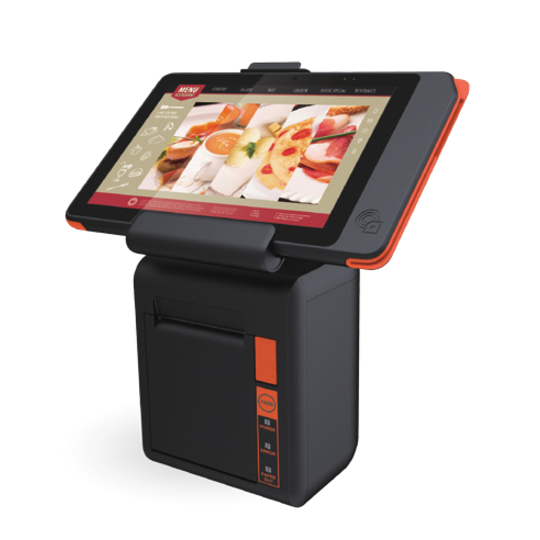

- AIM Dock 16-pin Pogo connector supports Cradle and Docking peripherals: VESA mount dock, charging station and printer cradle
Specifications
| Product Type | POS Terminal |
|---|---|
| Manufacturer Part Number | AIM-35AT-02303000 |
| Packaged Quantity | 1 |
| Standard Memory | 4 GB |
| Weight (Approximate) | 1.32 lb |
| Operating System | Windows 10 IoT Enterprise |
| Durability | Dust Resistant |
| Features | Anti-glare |
| Manufacturer | Advantech Co., Ltd |
| Product Name | AIM-35 POS Terminals |
| Processor Speed | 1.44 GHz |
| Processor Type | Atom |
| Screen Size | 8" |
| Product Series | AIM-35 |
| Brand Name | Advantech |
| Screen Mode | WUXGA |
| Processor Model | x5-Z8350 |
| Height | 0.6" |
| Width | 5.6" |
| Depth | 9.4" |
| Processor Core | Quad-core (4 Core) |
| Flash Memory Capacity | 64 GB |
| Touchscreen | Yes |
| Number of Speakers | 1 |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Display Screen Type | LCD |
| Touchscreen Technology | Capacitive |
| Bluetooth Standard | Bluetooth 4.0 |
| USB | Yes |
| Number of USB 3.0 Ports | 1 |
| Multi-touch Screen | Yes |
| Panel Technology | In-plane Switching Technology (IPS) |
| Number of Micro USB 2.0 Ports | 1 |
| Speaker Power | 1 W |
| Ingress Protection (IP) Rating | IP65 |
| Flash Memory Type | Embedded MultiMediaCard (e.MMC) |
| Number of Simultaneous Touch Points | 10 |
More POS Terminals from Advantech

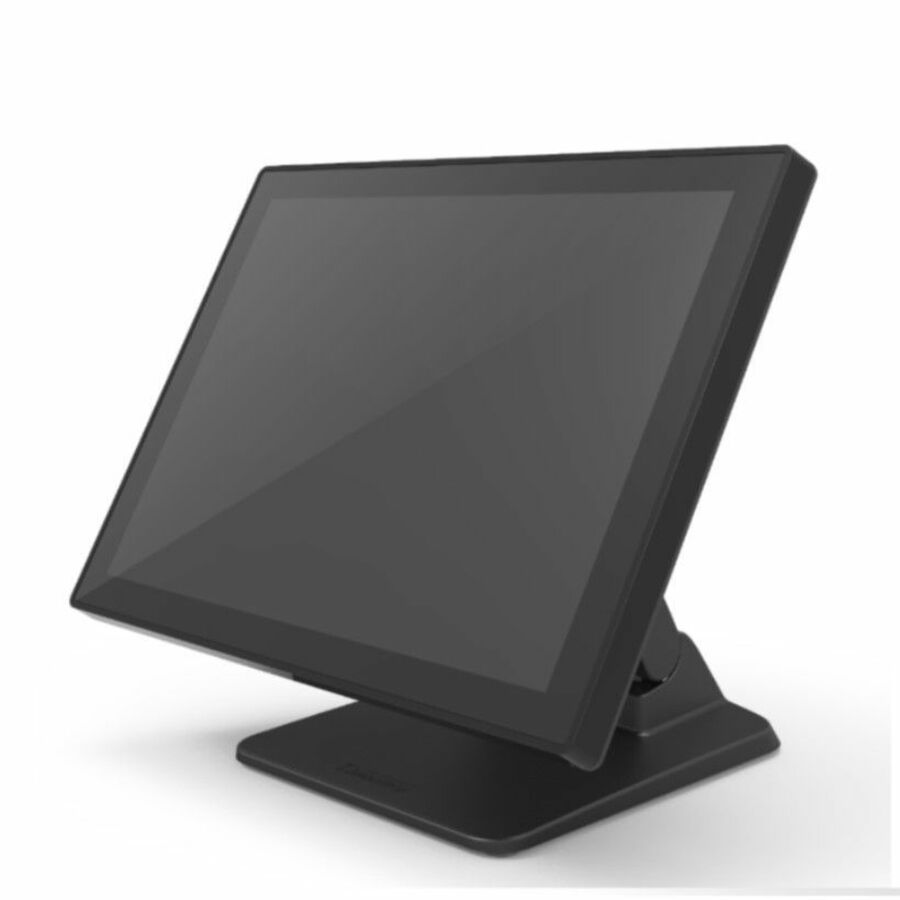

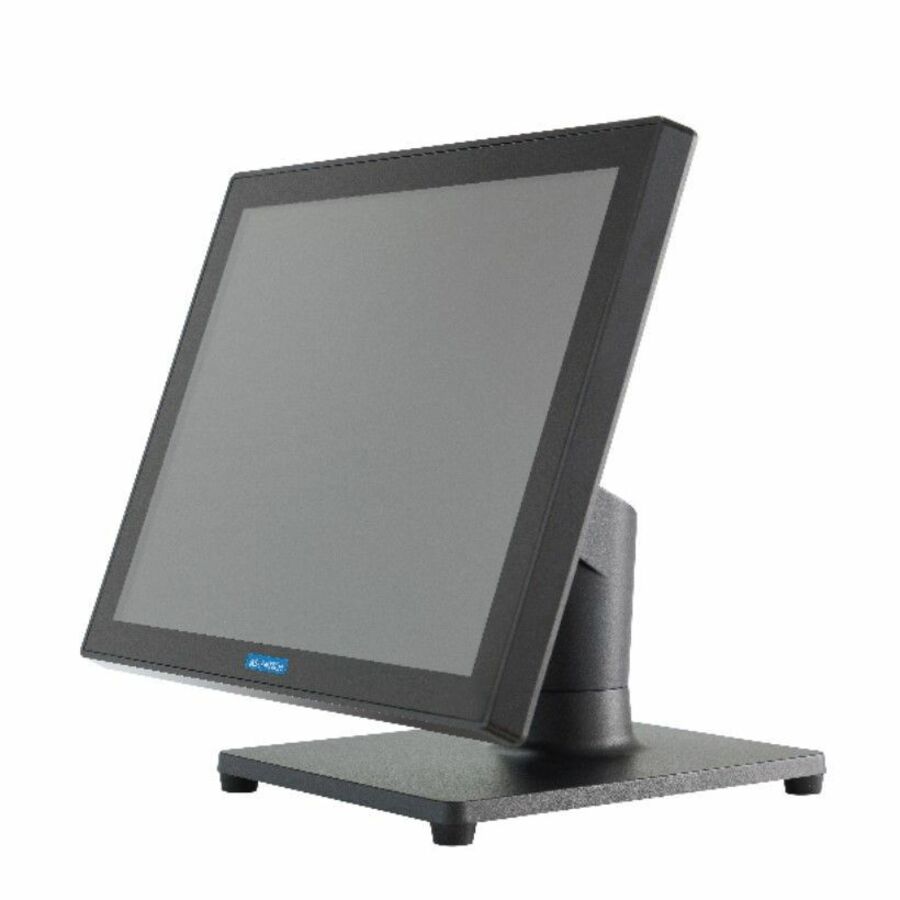

View the Advantech catalog →- AdvantechAdvantech 15" Slim, High-Performance Enterprise-Grade Computer - (Intel Core i3 i3-6100U - 16 GB DDR4 SDRAMM.2 - Windows 10USC-250FP-BI320
$1,087.44
Back ordered - AdvantechAdvantech 15" Slim, High-Performance Enterprise-Grade Computer - Core i3 - 16 GB DDR4 SDRAMUSC-250FP-BI300
$1,049.26
Back ordered - AdvantechAdvantech 15" Slim, High-Performance Enterprise-Grade Computer - Intel Celeron - 16 GB DDR4 SDRAMUSC-250FP-BCL20
$815.98

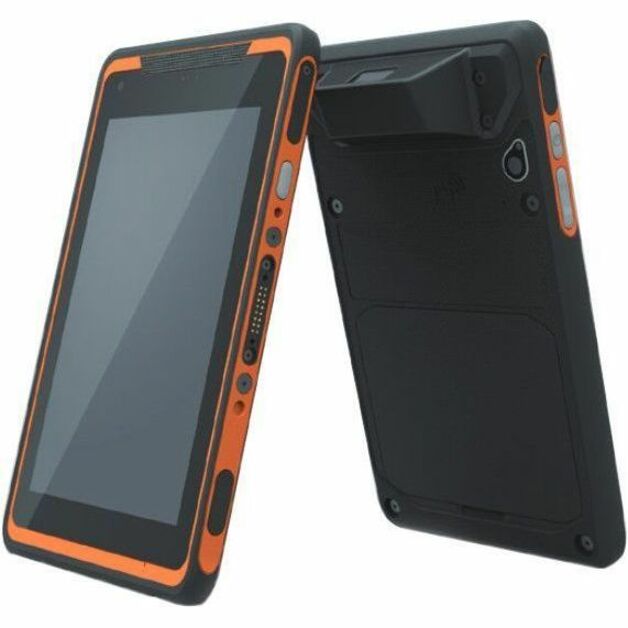

Back ordered - AdvantechAdvantech AIM-35 8" Industrial-Grade Tablet / Mobile POS System - Atom 1.44 GHz - 4 GB - Windows 10 IoT EnterpriseAIM-35AT-02307000
