AddOn 200GBase-CU QSFP56 to QSFP56 Male to Female Direct Attach Extension Cable (Passive Twinax, 36cm, 30AWG)
AddOn

AddOn 200GBase-CU QSFP56 to QSFP56 Male to Female Direct Attach Extension Cable (Passive Twinax, 36cm, 30AWG)

1.18 ft Twinaxial Network Cable for Network Device - First End: 1 x QSFP56 Network - Male - Second End: 1 x QSFP56 Network - Female - 200 Gbit/s - Extension Cable - 30 AWG - 1.0 - TAA Compliant

SKU
QSFP56-200G-EXT36CM-AO
Category
Connector Cables

MSRP$1,000.00

$569.33

Save 43%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
QSFP56-200G-EXT36CM-AO
Category
Connector Cables

Overview

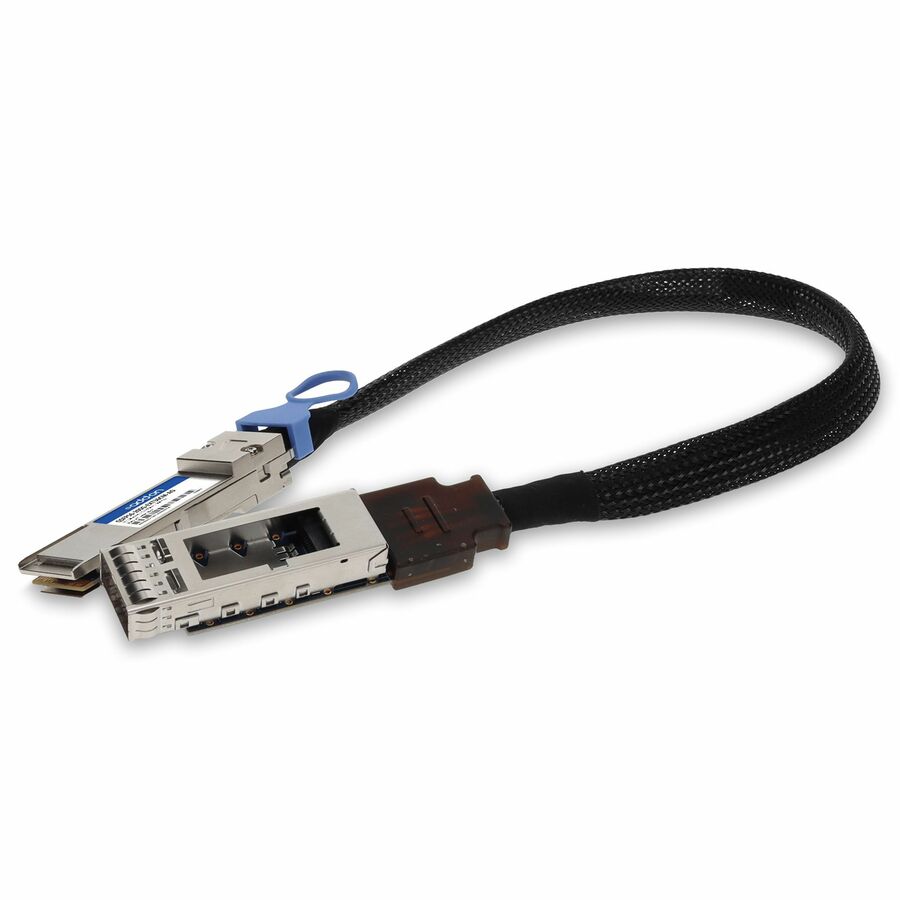

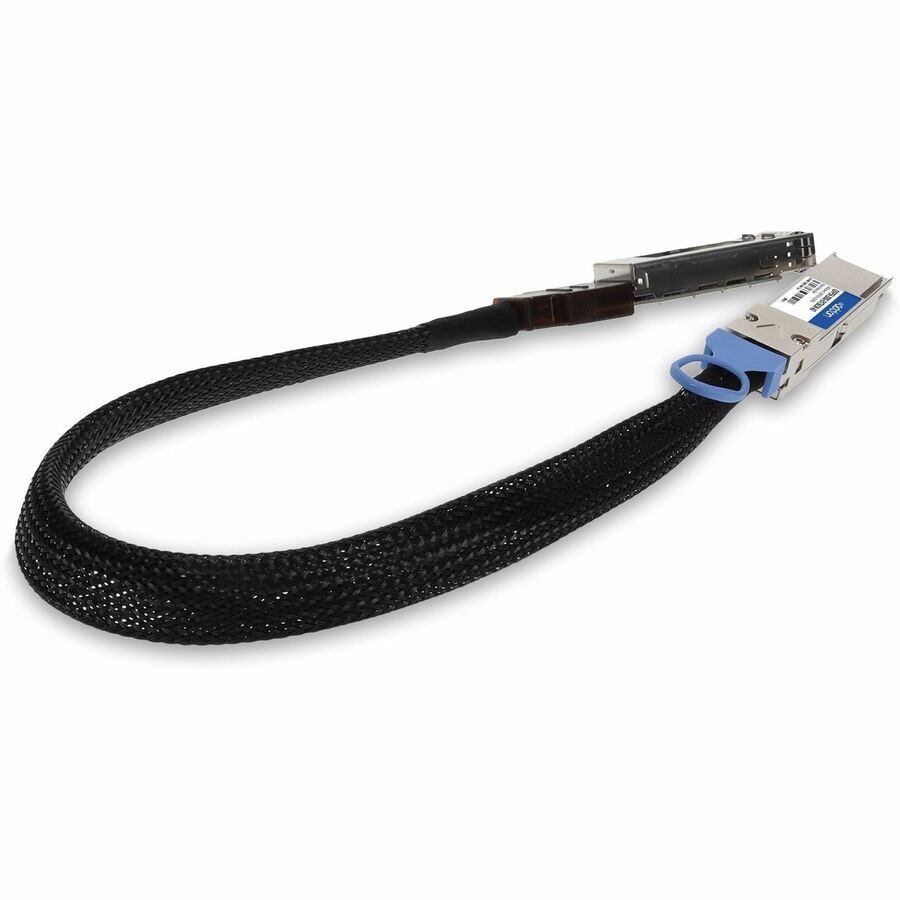

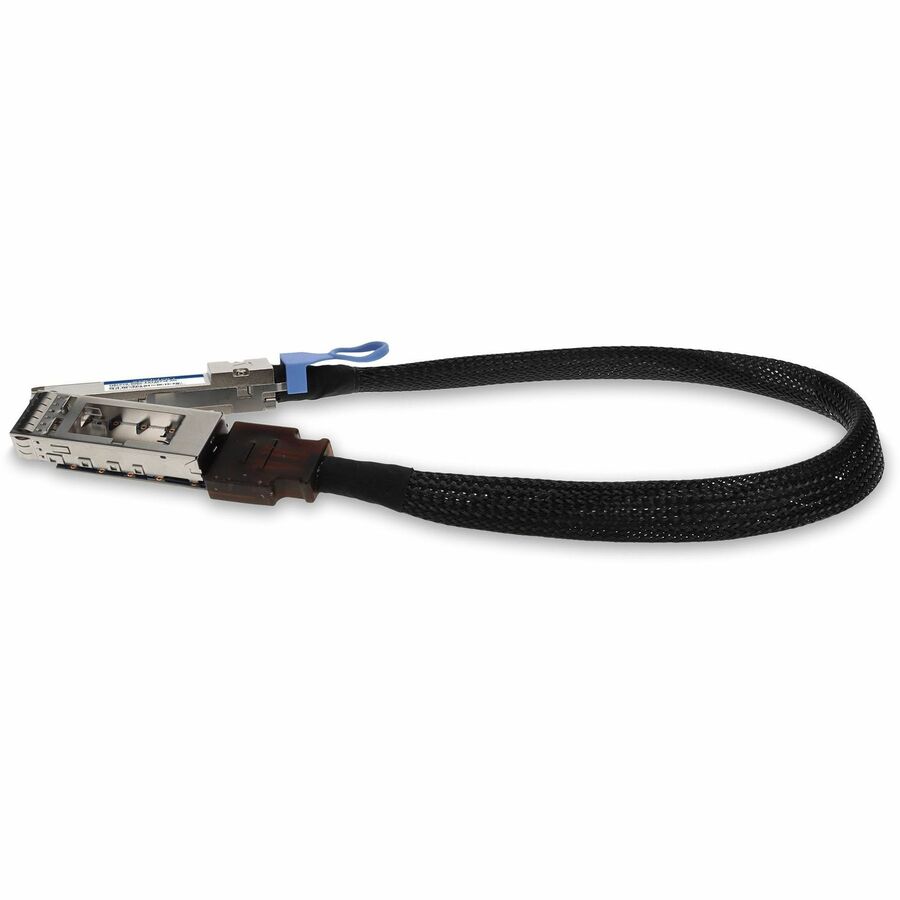

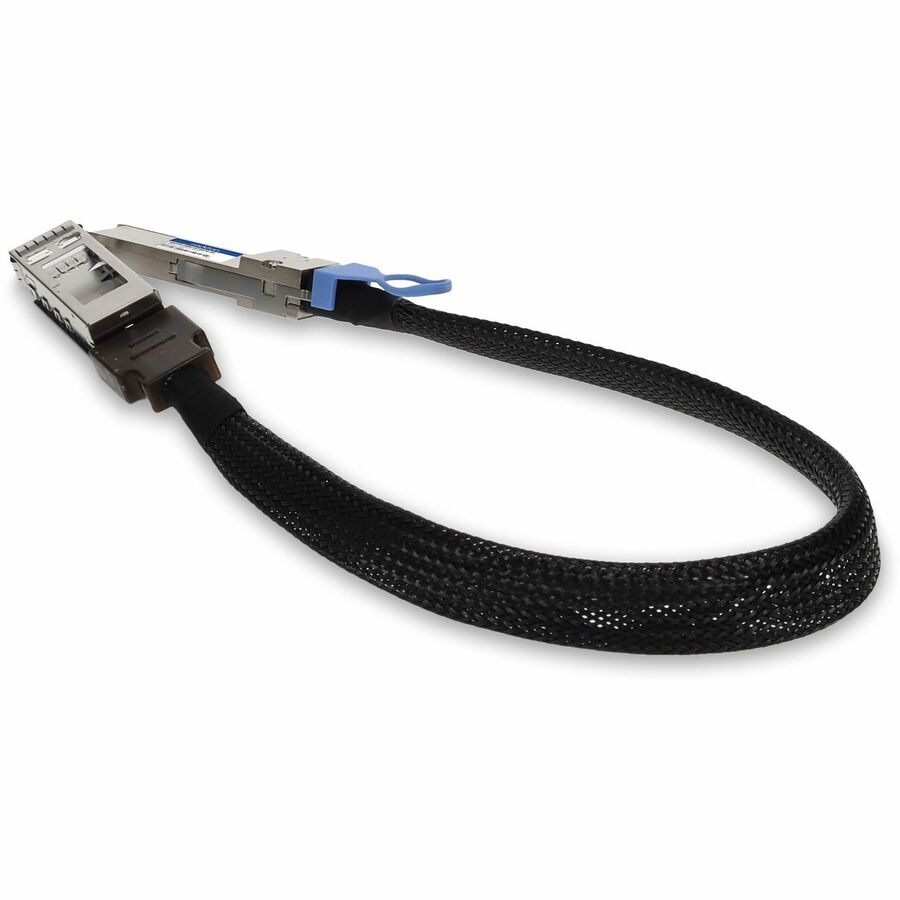

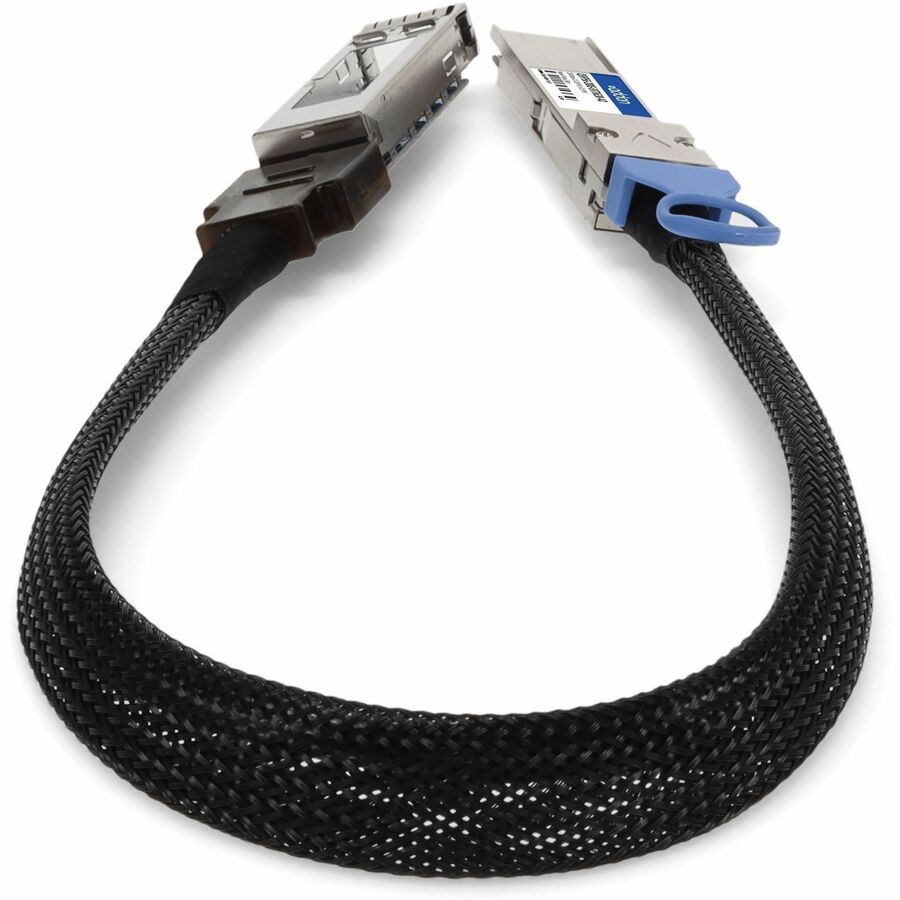

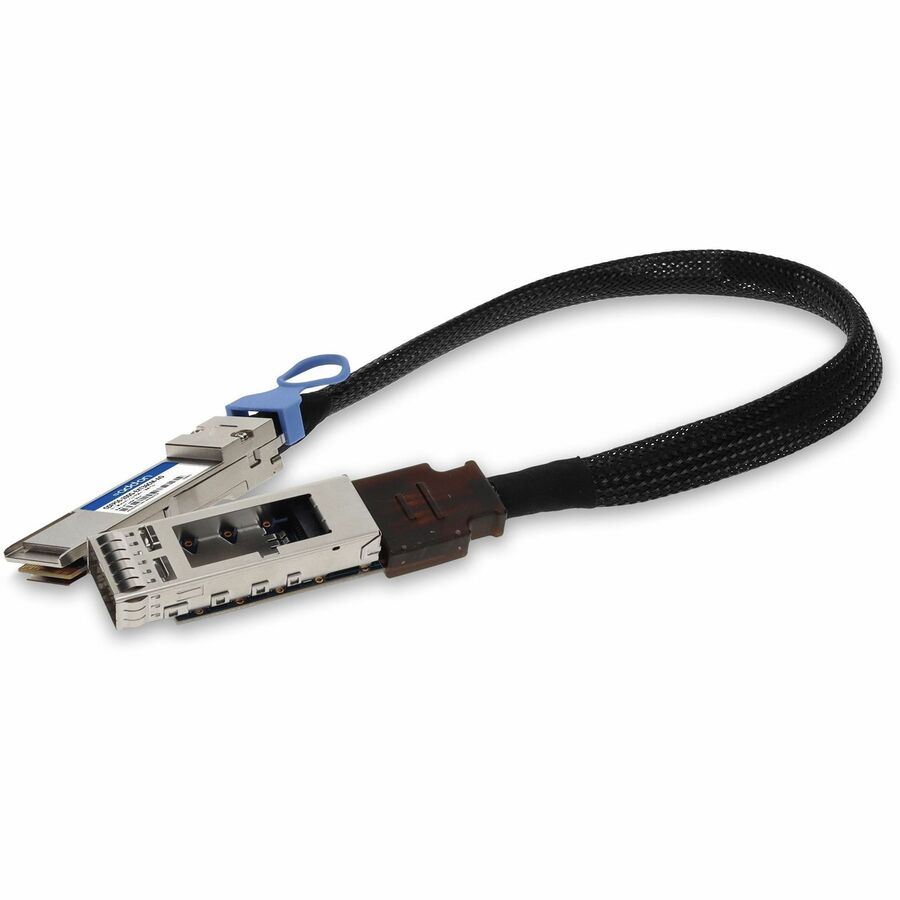

This is an MSA compliant 200GBase-CU QSFP56 to QSFP56 direct attach extension cable that operates over passive copper with a maximum reach of 36cm (1.2ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Highlights

  • Low EMI radiation
  • Insertion Loss < [email protected]/channel within 50cm
  • Oil resistance, dust-proof and anti-corrosion
  • 100 ohm differential impedance system
  • Low Near-End Crosstalk (NEXT)
  • Compliant with QSFP-MSA
  • Compliant with SFF-8436 and SFF-8665
  • IEEE 802.3cd Compliant
  • Compliant with Infiniband HDR
  • Operating Temperature: 0°C to 70°C

Specifications

Cable Length1.18 ft
Product TypeNetwork Cable
Data Transfer Rate200 Gbit/s
Device SupportedNetwork Device
Manufacturer Part NumberQSFP56-200G-EXT36CM-AO
Packaged Quantity1.0
Limited WarrantyLifetime
FeaturesPassive
ManufacturerAddOn
Product NameTwinaxial Network Cable
Brand NameAddOn
Country of OriginUnited States
Cable CharacteristicExtension Cable
Environmentally FriendlyYes
Cable TypeTwinaxial
Connector Type on First EndQSFP56 Network - Male
Connector Type on Second EndQSFP56 Network - Female
American Wire Gauge30 AWG
TAA CompliantYes
Connector on First End Details1 x QSFP56 Network - Male
Connector on Second End Details1 x QSFP56 Network - Female
Product MaterialCopper
Connector Gender on First EndMale
Connector Gender on Second EndFemale
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Restriction of Hazardous Substances (RoHS) 2
