SKU
ADD-PCIE3-2SFP+
Category
Network Interface Cards
Overview

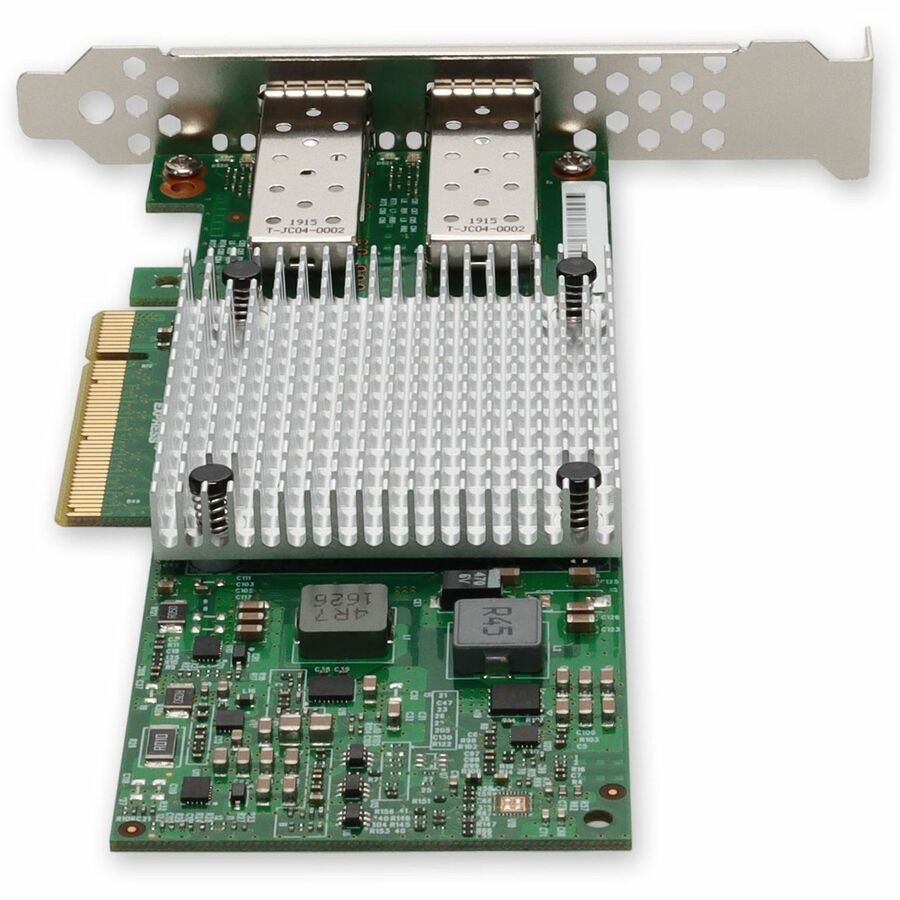

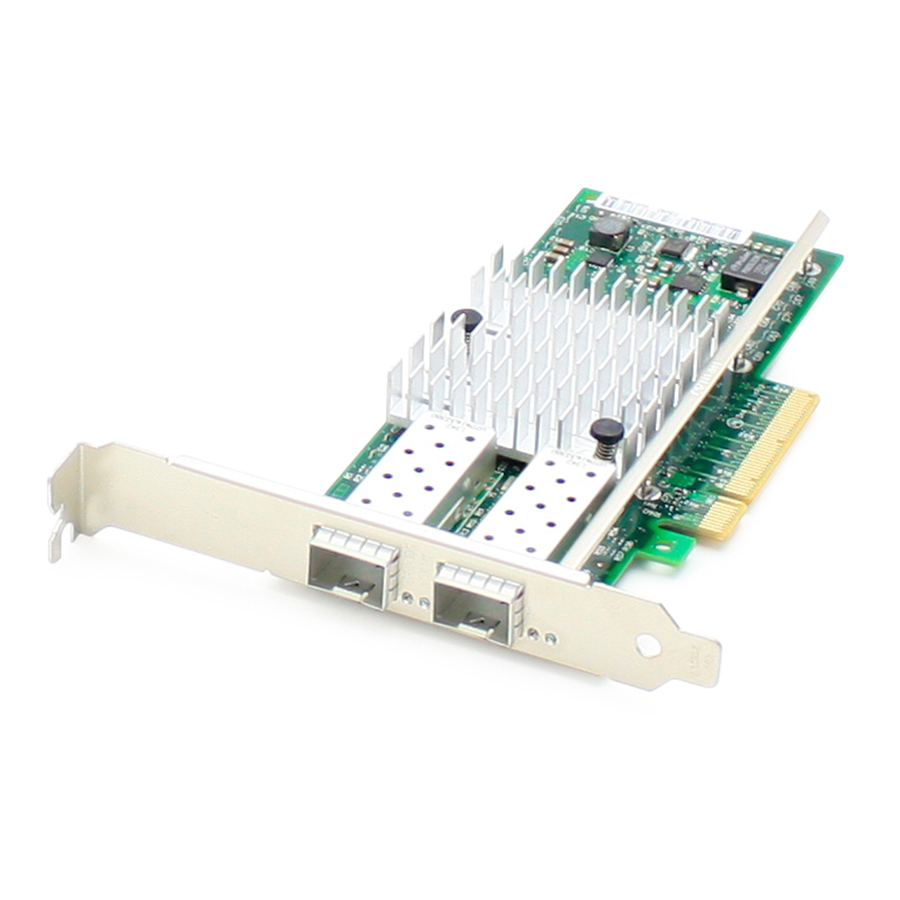

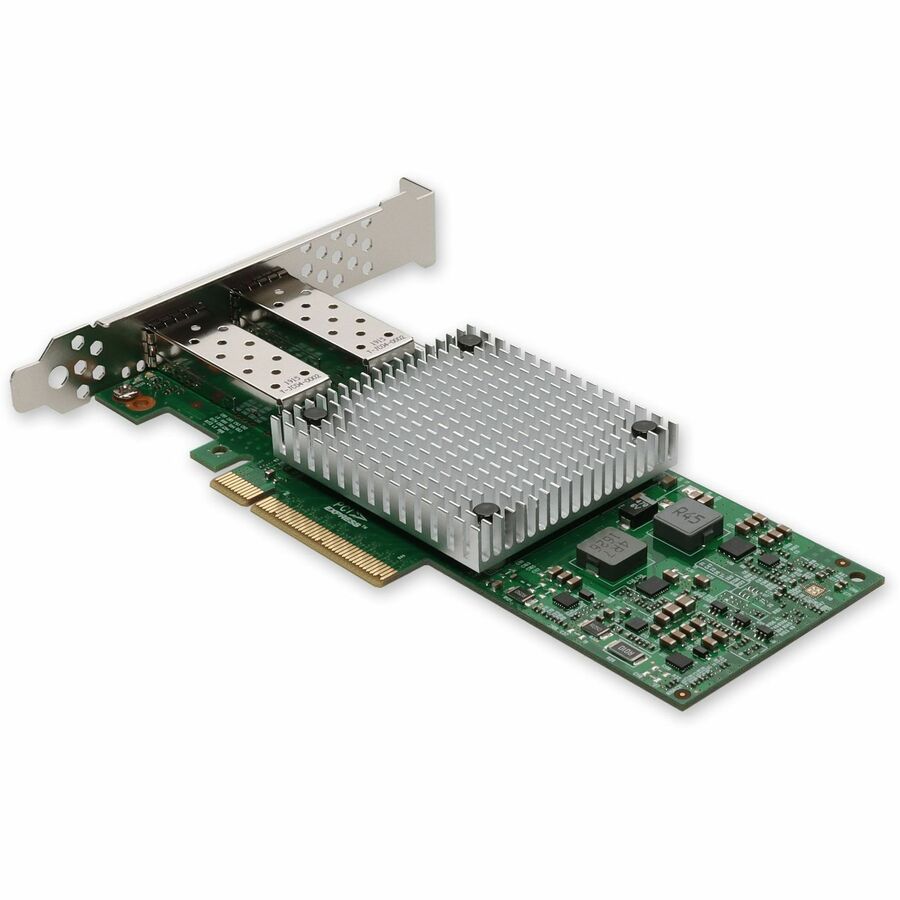

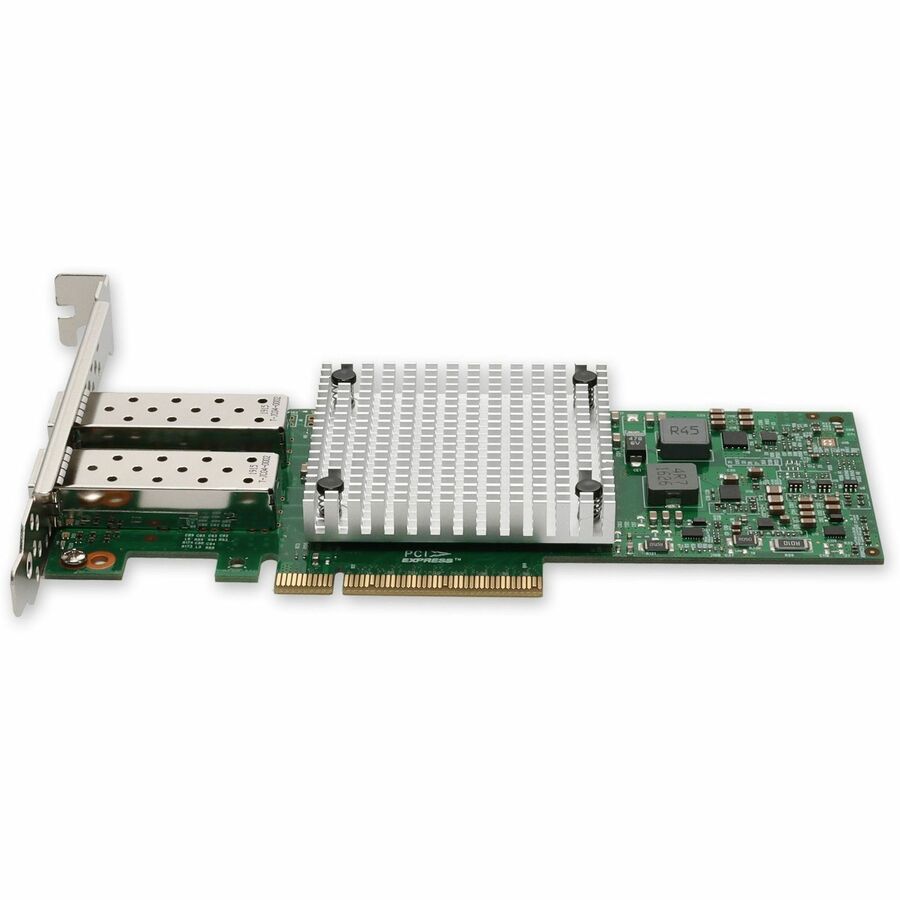

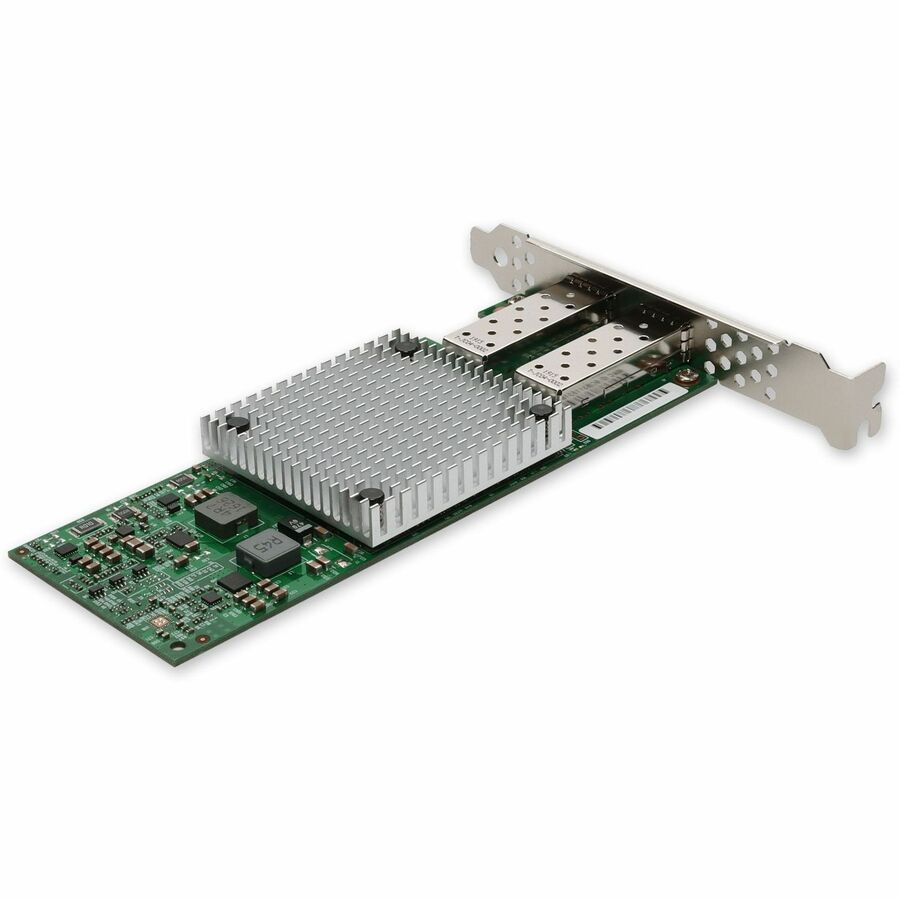

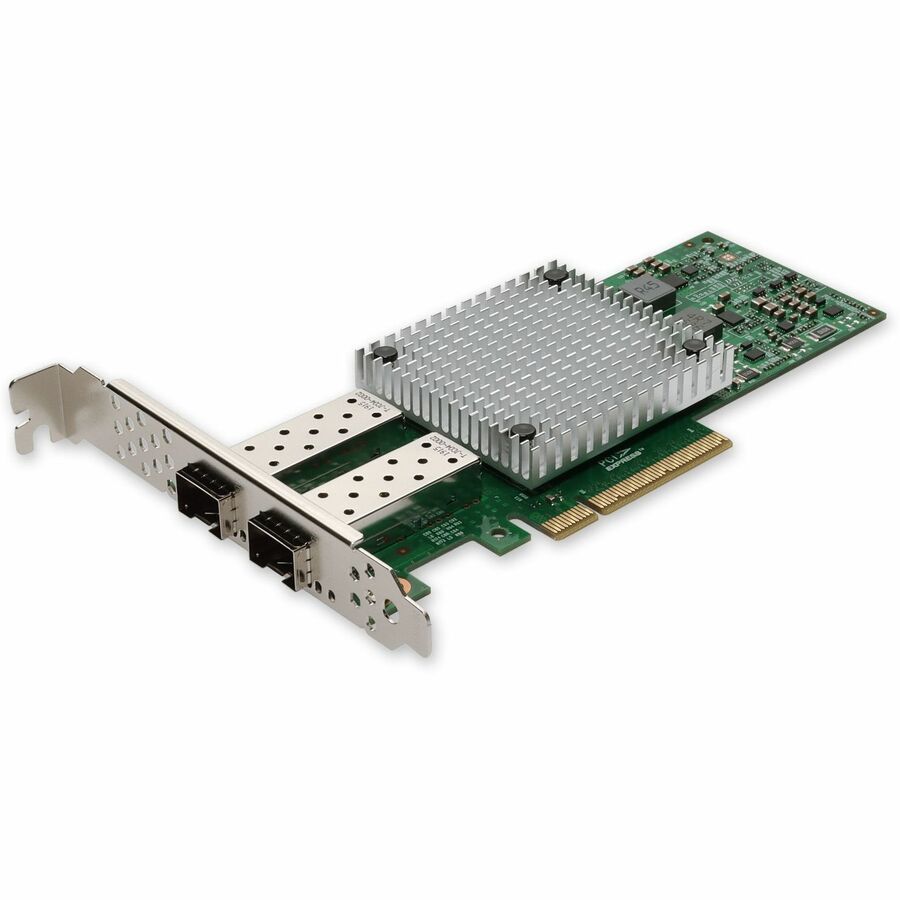

This is a 10-Gigabit Ethernet PCIe 3.0 x8 network interface card with dual open SFP+ ports that comply with IEEE 802.3 standards. It is based on an Intel X710 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 10Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The dual open SFP+ ports allow users to choose from a range of SFP+ transceivers to accommodate multi-mode (MMF) and single-mode (SMF) fiber, granting customizable reach. This product includes both half-height and full-height brackets and supports Preboot Execution Environment booting (PXE Boot). Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
Highlights
10Gigabit Ethernet Card guarantees a replacement networking interface to client, server or workstation
Enjoy superfast data transfer of up to 8000 MB/s with PCI Express 3.0 x8 card, between the network card and motherboards
This dual port 10gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
With the 10GBase-X technology get up to 10Gbps data transfer rate over the supported network cable
Specifications
Package Contents
10Gbs Dual Open SFP+ Port PCIe 3.0 x8 Network Interface Card w/PXE boot Half-height and full-height brackets
Host Interface
PCI Express 3.0 x8
Product Type
10Gigabit Ethernet Card
Manufacturer Part Number
ADD-PCIE3-2SFP+
Packaged Quantity
1
Limited Warranty
Lifetime
Form Factor
Plug-in Card
Manufacturer
AddOn
Product Name
10Gbs Dual Open SFP+ Port PCIe 3.0 x8 Network Interface Card w/PXE boot
Network Technology
10GBase-X
Brand Name
AddOn
Expansion Slot Type
SFP+
Country of Origin
China
Environmentally Friendly
Yes
Chipset Manufacturer
Intel
Chipset Model
X710
Maximum Data Transfer Rate
80 Gbit/s
Media Type Supported
Optical Fiber
Fiber Mode Supported
Multi-mode, Single-mode
Total Number of Ports
2
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
