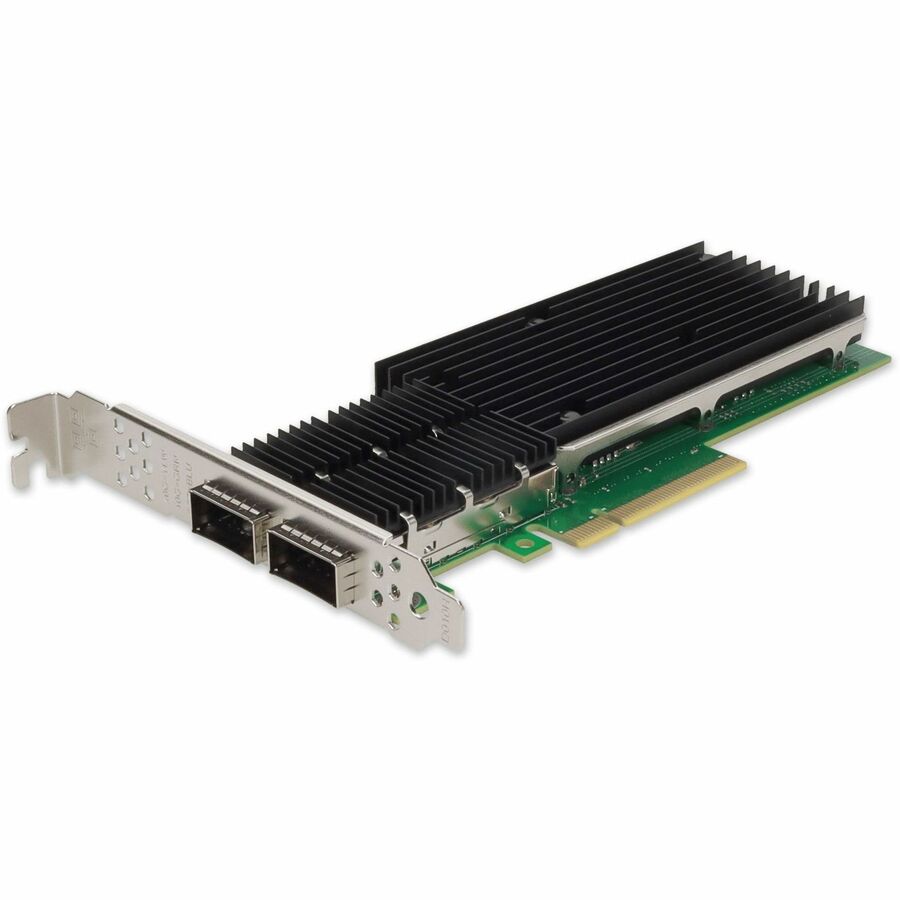

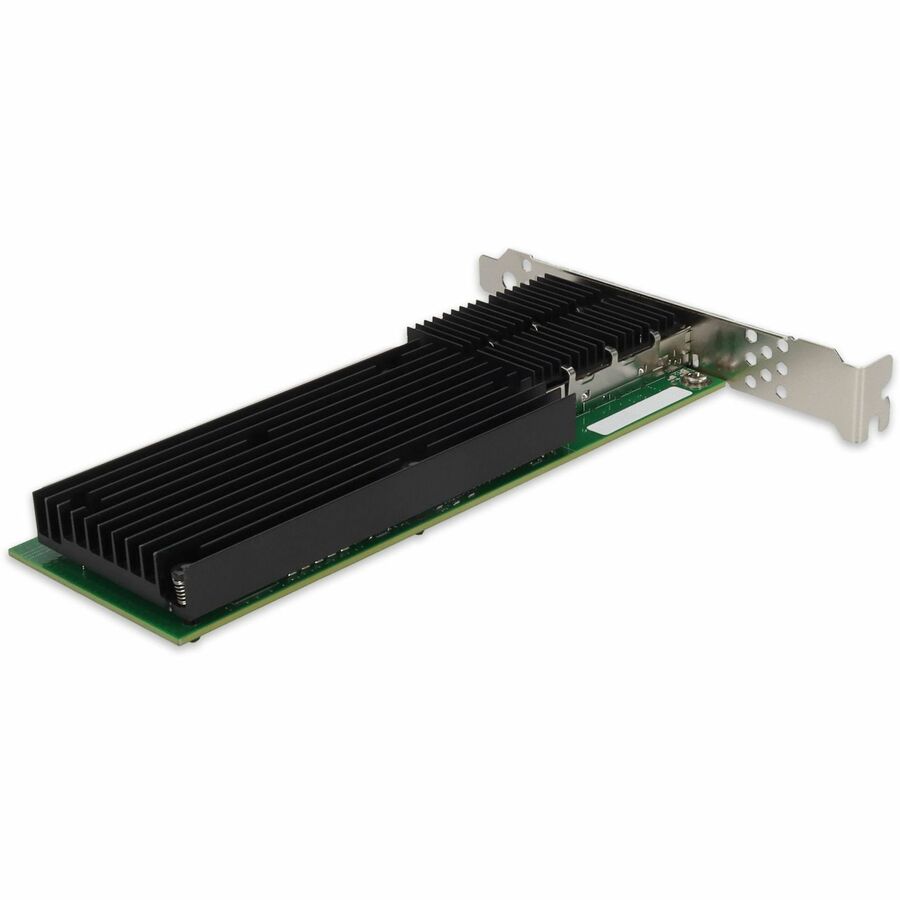

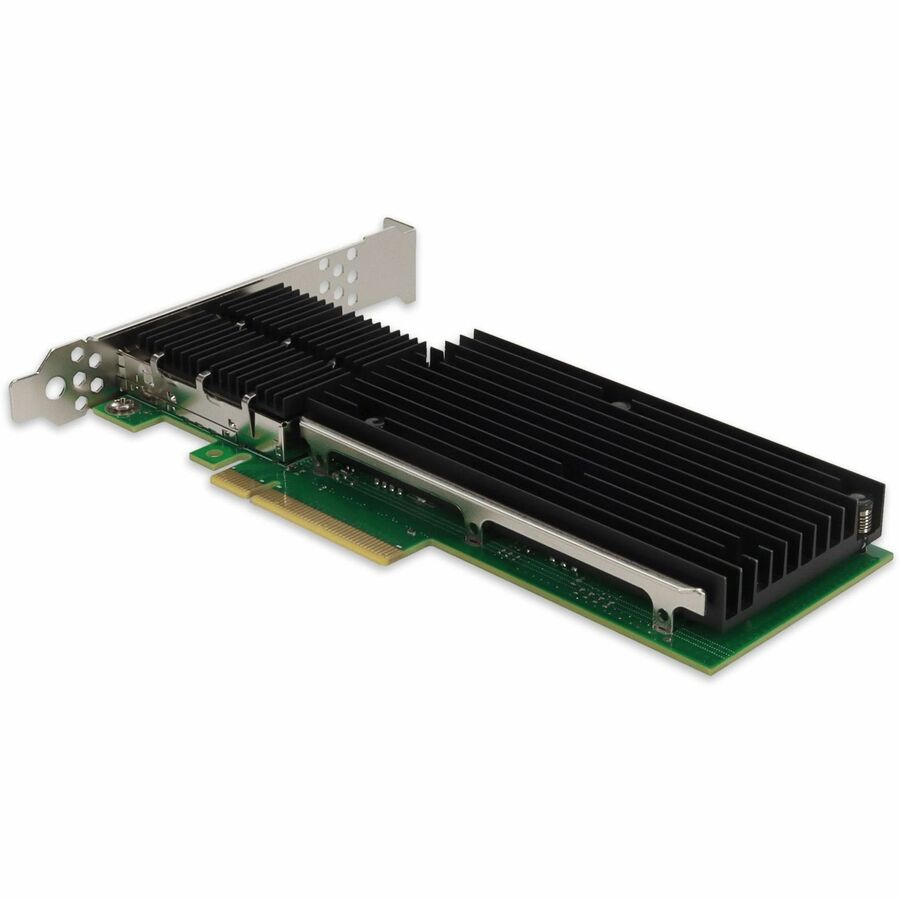

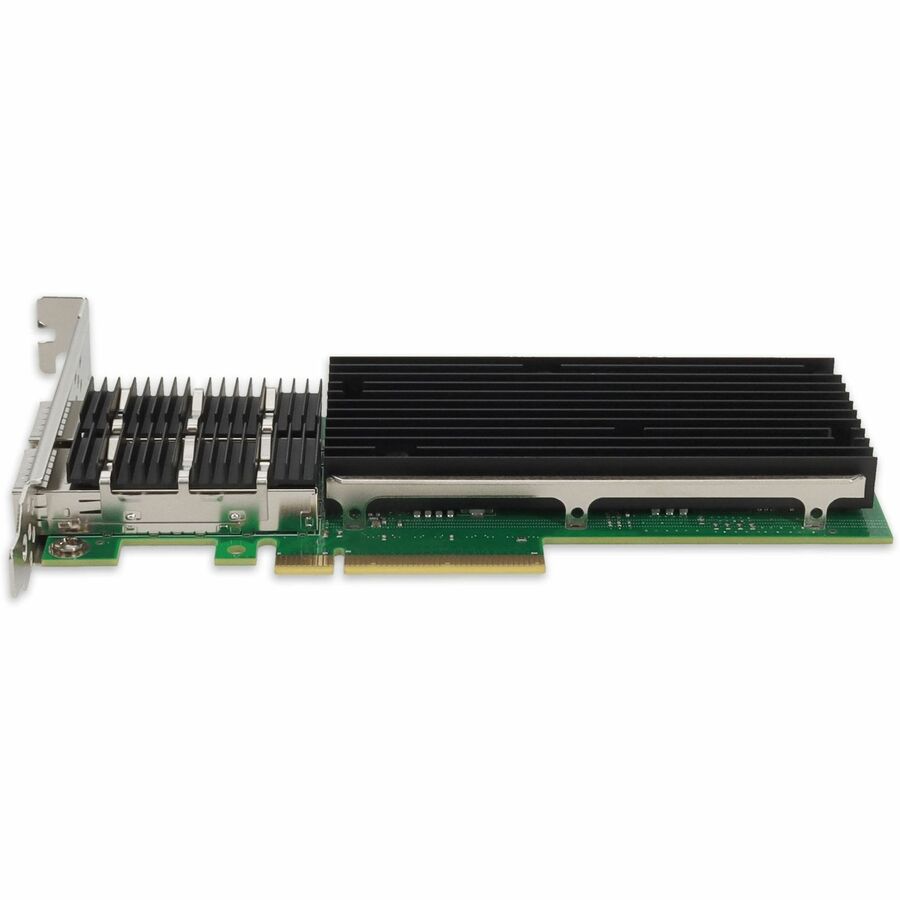

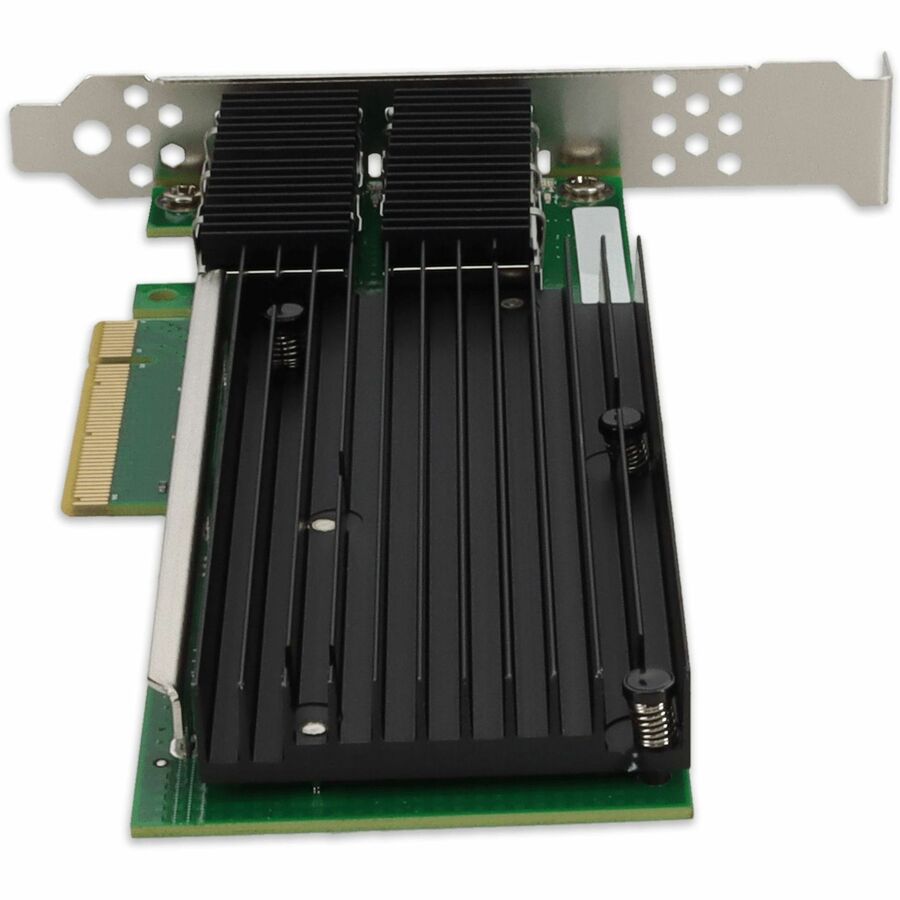

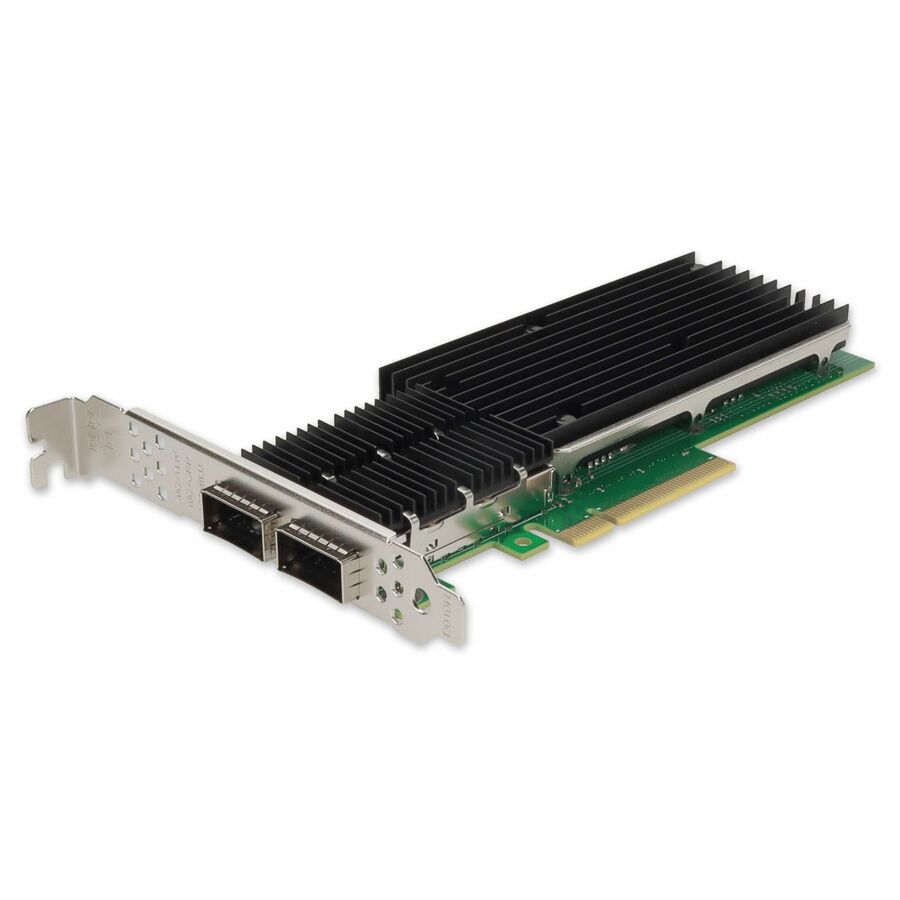

AddOn IBM® 81Y1537 Comparable 40Gbs Dual Open QSFP+ Port PCIe 3.0 x8 Network Interface Card
PCI Express 3.0 x8 - Intel XL710 - 2 Port(s) - Optical Fiber - Multi-mode, Single-mode - 40GBase-X - QSFP+ - Plug-in Card
- SKU
- 81Y1537-AO
- Category
- Network Interface Cards
MSRP$1,934.50
$1,101.37
Save 43%In stock: 24
Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 81Y1537-AO
- Category
- Network Interface Cards
Overview
This is an IBM® 81Y1537 comparable 40-Gigabit Ethernet PCIe 3.0 x8 network interface card with dual open QSFP+ ports that comply with IEEE 802.3 standards. It is based on an Intel XL710 chipset and is compatible with a variety of different applications and operating systems, including Windows, Linux and Unix-like systems. Providing 40Gbs of network speed, it fully supports high-end servers and various other networking applications. In addition, this card supports high level VLAN filtering. The dual open QSFP+ ports allow users to choose from a range of QSFP+ transceivers to accommodate multi-mode (MMF) and single-mode (SMF) fiber, granting customizable reach. This product includes both half-height and full-height brackets. Our network interface cards are 100% compliant, and offer a cost effective solution for all of your network upgrade needs. With our certification test program, we guarantee your product will work right the first time.
Highlights
- 40Gigabit Ethernet card has an impressive performance that enables an affordable solution for trouble-free networking, clustering, or storage
- Enjoy superfast data transfer of up to 8000 MB/s with PCI Express 3.0 x8 card, between the network card and motherboards
- This dual port 40gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
- With the 40GBase-X technology get up to 40Gbps data transfer rate over the supported network cable
Specifications
| Package Contents | IBM 81Y1537 40Gigabit Ethernet Card Half-height and full-height brackets |
|---|---|
| Host Interface | PCI Express 3.0 x8 |
| Product Type | 40Gigabit Ethernet Card |
| Device Supported | Server |
| Manufacturer Part Number | 81Y1537-AO |
| Packaged Quantity | 1 |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 6.40 oz |
| Form Factor | Plug-in Card |
| Manufacturer | AddOn |
| Product Model | 81Y1537 |
| Product Name | IBM 81Y1537 40Gigabit Ethernet Card |
| Network Technology | 40GBase-X |
| Brand Name | AddOn |
| Expansion Slot Type | QSFP+ |
| Country of Origin | China |
| Height | 8" |
| Width | 4" |
| Depth | 2" |
| Chipset Manufacturer | Intel |
| Chipset Model | XL710 |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode, Single-mode |
| Total Number of Ports | 2 |
