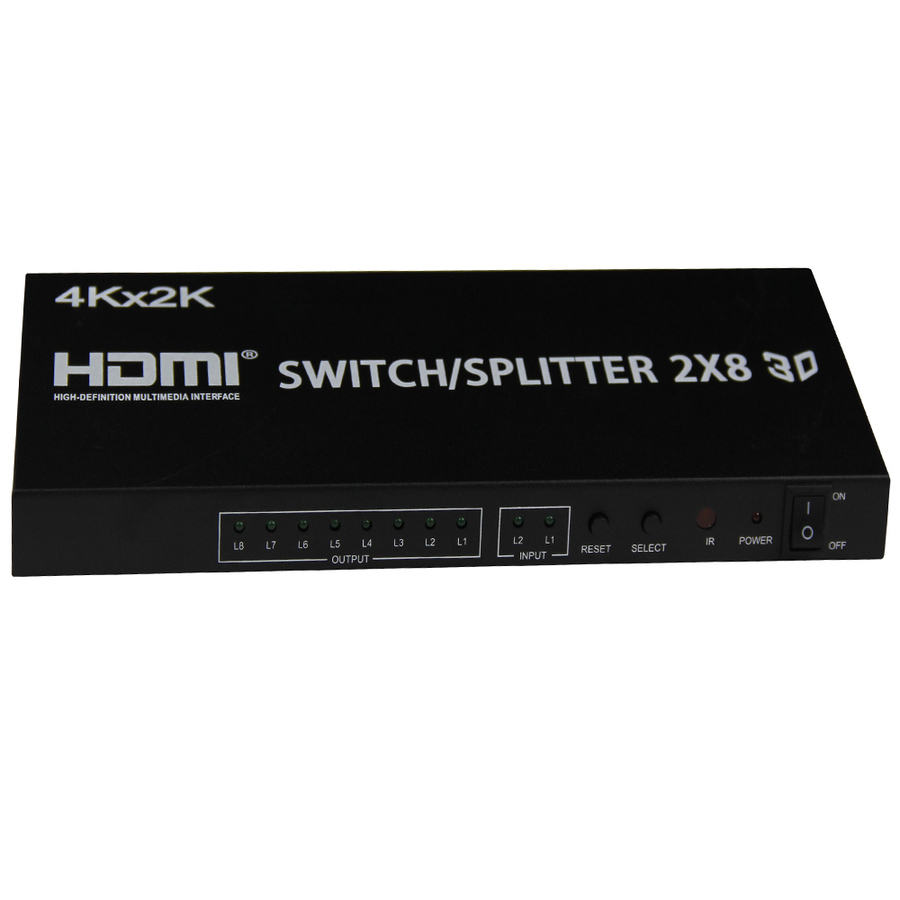

4XEM 2x8 Port high speed HDMI video switcher/splitter fully supporting 1080p, 3D for Blu-Ray, gaming consoles and all other HDMI compatible devices
MSRP$169.99
$112.21
Save 34%In stock: 29
Genuine 4XEM through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
The 4XEM HDMI Switcher/splitter 2x8 can connect 2 HD sources with 8 HD displays. Switch between the 2 HD sources and amplify your HDMI signal simultaneously to eight displays. The 4XEM HDMI switch/splitter 2x8 can support the highest video resolution 3840x2160 at 30Hz.
Problem it solves: The 4XEM 8 port HDMI switcher/splitter and amplifier reduces the exchange of cables, helping reduce the wear and tear on your HDMI ports. The 8 port HDMI switcher/splitter delivers a pure signal while the fully shielded conductors provide complete immunity to EMI/RFI. When connecting any of your HDMI compatible devices, always trust 4XEM Connectivity!
4XEM HDMI splitters and HDMI switches come with our unmatched 2year Warranty!
More from the Manufacturer
4XEM 2x8 Port high speed HDMI video switcher/splitter fully supporting 1080p, 3D for Blu-Ray, gaming consoles and all other HDMI compatible devices.
The 4XEM HDMI Switcher/splitter 2x8 can connect 2 HD sources with 8 HD displays. Switch between the 2 HD sources and amplify your HDMI signal simultaneously to eight displays. The 4XEM HDMI switch/splitter 2x8 can support the highest video resolution 3840x2160 at 30Hz.
Product Usage
Operation and Connection

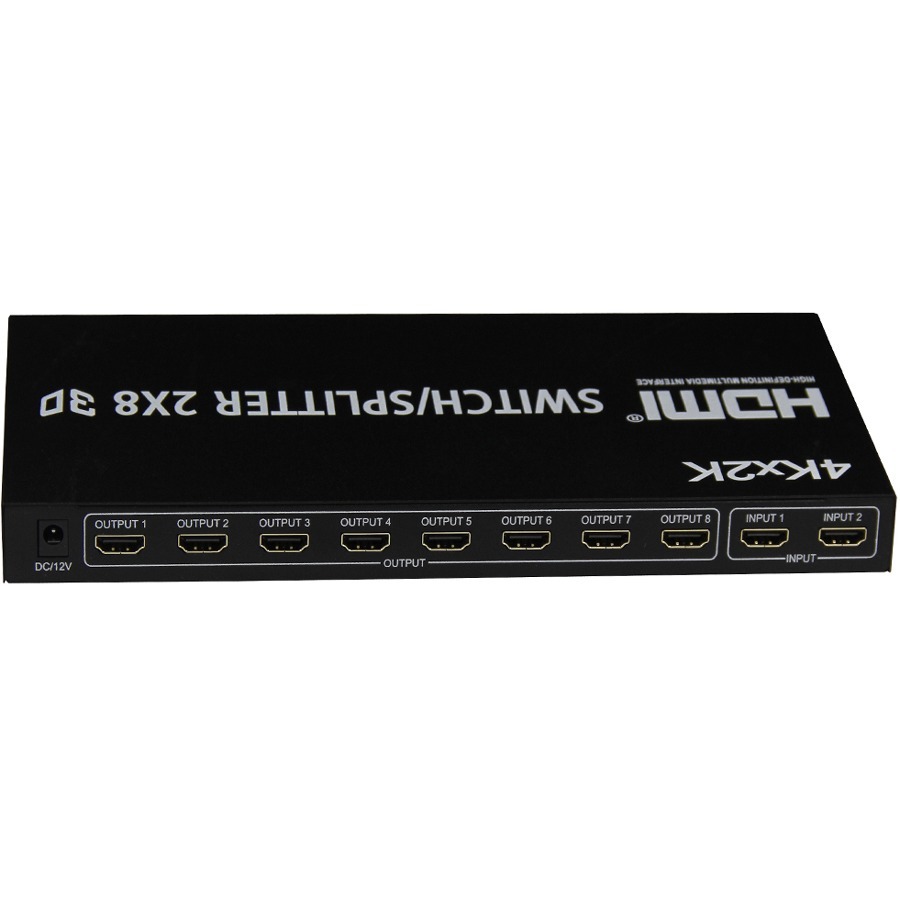

Connect 2HD signal sources to the inputs of HDMI switch/splitter (4XHDMI2X84K)
Connect 8 HD display devices to the outputs of the HDMI switch/splitter (4XHDMI2X84K)
Connect 12V/2A power adapter with HDMI switch/splitter
The 4XEM 8 port HDMI switcher/splitter and amplifier reduces the exchange of cables, helping reduce the wear and tear on your HDMI ports.
The 8 port HDMI switcher/splitter delivers a pure signal while the fully shielded conductors provide complete immunity to EMI/RFI.

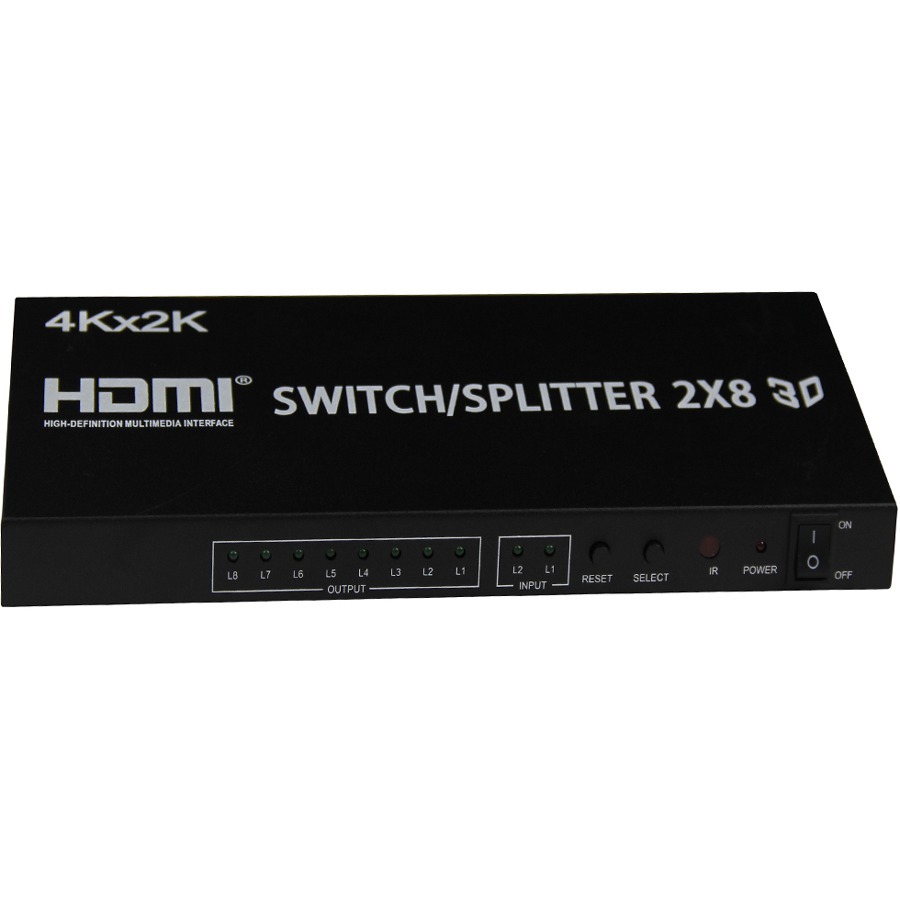

The Remote Control
Press the key 1 to switch to input 1.L1 indicator lights up
Press the key 2 to switch to input 2.L2 indicator lights up
FEATURES:
4XEM unmatched 2year warranty
Supports 8 HDMI outputs
Supports HDMI 1.4b
Supports 3.2Gbps data rate for tmds clock up to 320Mhz
Simple plug and play installation
Full support for the highest video resolution 3840x2160 and 3D
Compatible with all HDMI supported devices
One HDMI 1.3b input signal split to 8 HDMI 1.3b sink devices
Supports deep color8/10/12bit
Supports standard AWG26 cable
1080p and below supports input up to 15m, output up to 25m
4K supports input up to 12m, output up to 15m
Specifications:
HDMI input ports: 2
HDMI output ports: 8
HDMI Version: 1.4b
HDCP Version: 1.2 HDMI Resolution: up to3840x2160/30Hz
Support Video color format: 24vit/deep color 8/10/12bit
Support Audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTZ/Dolby-AC3/DSD Max Bandwidth: 320MHz
Max Baud rate: 3.2Gbps Input/Output TMDS signal: 0.5-1.5V p-p (TTL) Input/Output DDC signal: 5V p-p (TTL)
Input Cable distance: up to 15m AWG26 1.4 standard cable-12m for 4K
Output Cable distance: up to 20m AWG26 1.4 standard cable-15m for 4K
Max working current: 1.35A
Power adapter format-input: AC (50HZ,60HZ) 100V-240V...output: DC12V/2A
Operating Temperature range: (-15 to +55celcius)
Operating Humidity range: 5to 90%RH (no condensation)
Dimension (LxWxH): 11"/5.4"/1" (278mm/136mm/24mm)
Weight: 1.4lbs (640g)
The Package Includes:
HDMI Switch/Splitter 2x8x1pc
IR Remote Controlx1pc
12V DC Power Adapterx1pc
User Manualx1pc
Limited Warranty: 2 Year
Our mission at 4XEM is to provide customized hardware accessories that empower our customers with innovative and reliable solutions, simplifying connectivity, and enhancing productivity. We strive towards recognizing and supplying the latest connectivity and IT products to support the ever-growing digital world. By focusing on the needs of our customers, we now supply over 1,00 unique products with no sign of slowing down. Our Core Values: We Care - We work to make your life easier. Strive for Excellence – Committed to best in class customer service and product quality. Responsive – Providing assistance within 24 hours. Problem Solvers - It's in our name. Our products and work ethic are designed to do just that. How can we help you today?
| General Information | |
|---|---|
| Manufacturer | 4XEM Corporation |
| Manufacturer Part Number | 4XHDMI2X84K |
| Brand Name | 4XEM |
| Product Model | 4XHDMI2X84K |
| Product Name | 4K HDMI Switcher/Splitter 2x8 |
| Product Type | Audio/Video Switchbox |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 8 |
| Media & Performance | |
| Maximum Operating Distance | 65.62 ft |
| Physical Characteristics | |
| Height | 0.9" |
| Width | 5.4" |
| Depth | 10.9" |
| Weight (Approximate) | 1.41 lb |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 2 |
| Device Supported | Display, Projector |
| Number of Displays Supported | 8 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 3840 × 2160 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Country of Origin | China |
