Genuine VisionTek Products through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
901430
Category
Connector Adapters
Overview

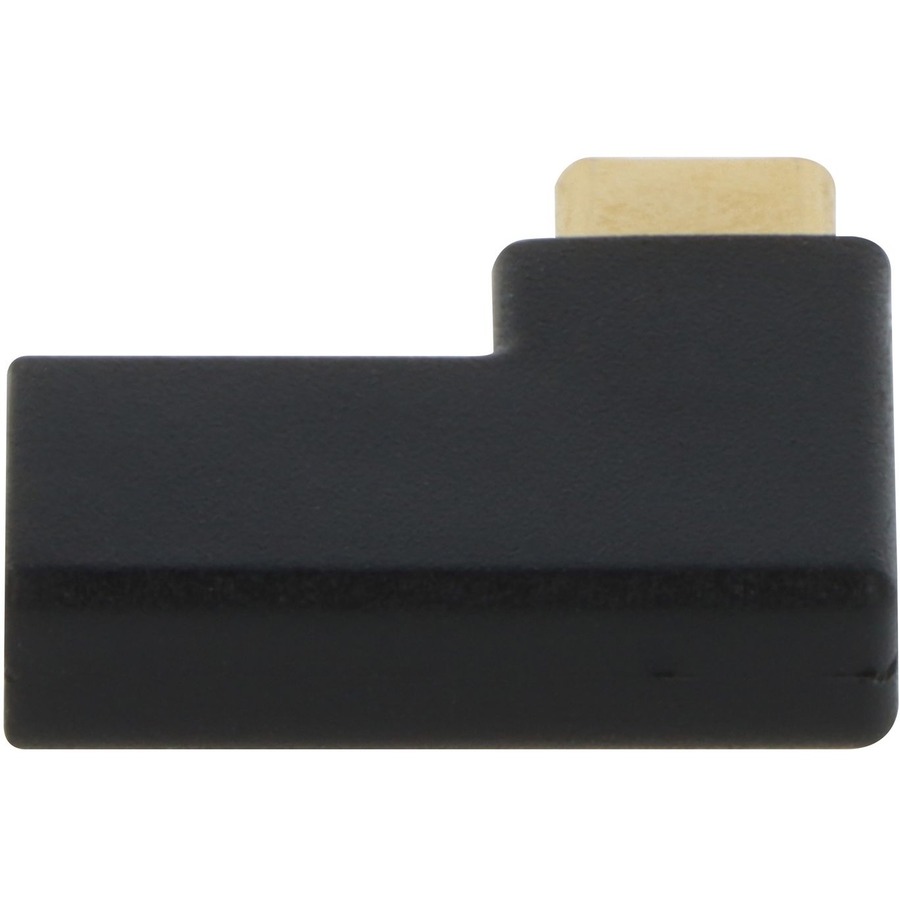

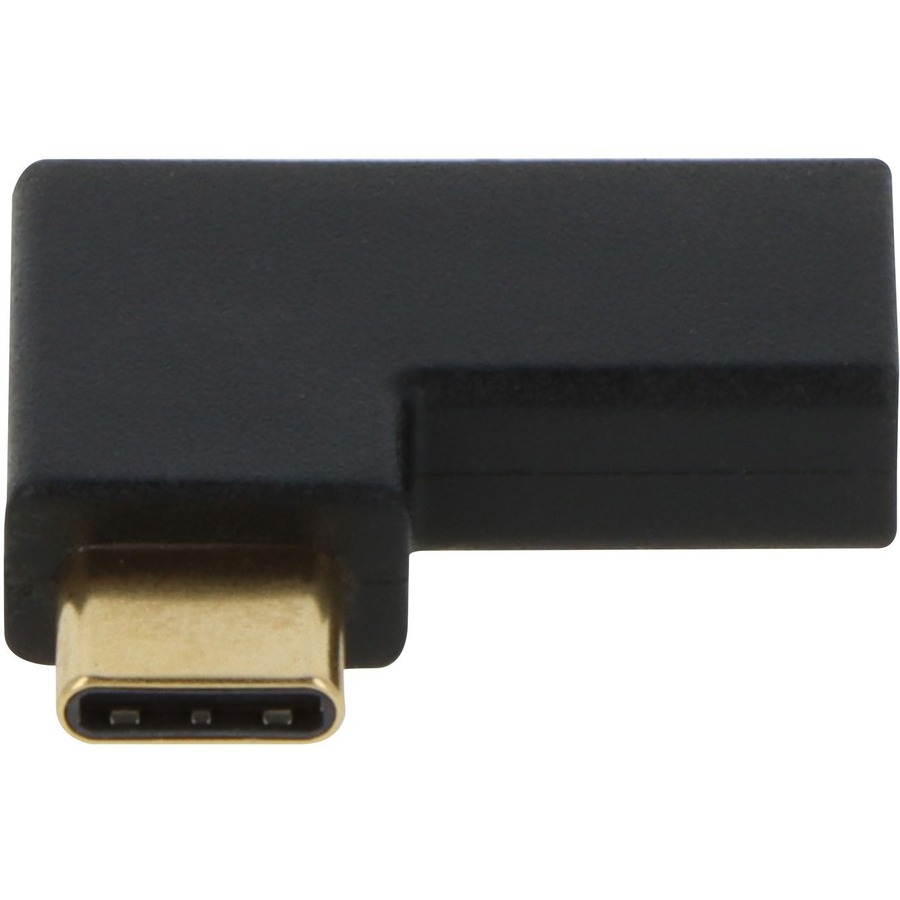

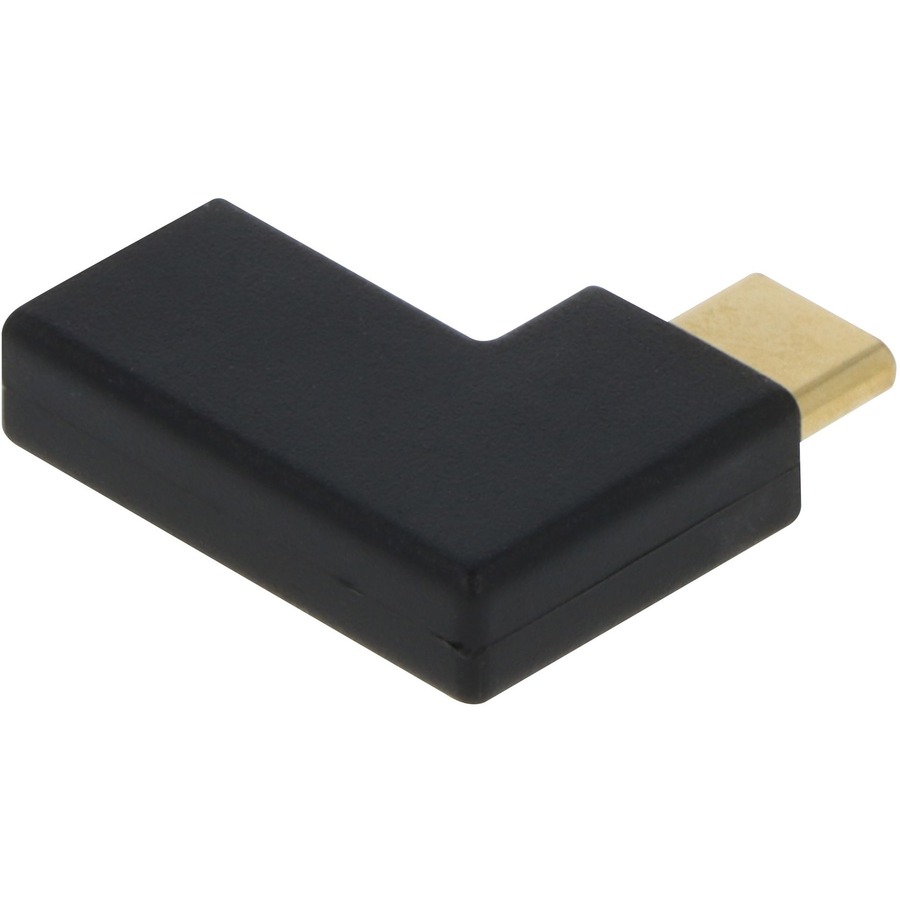

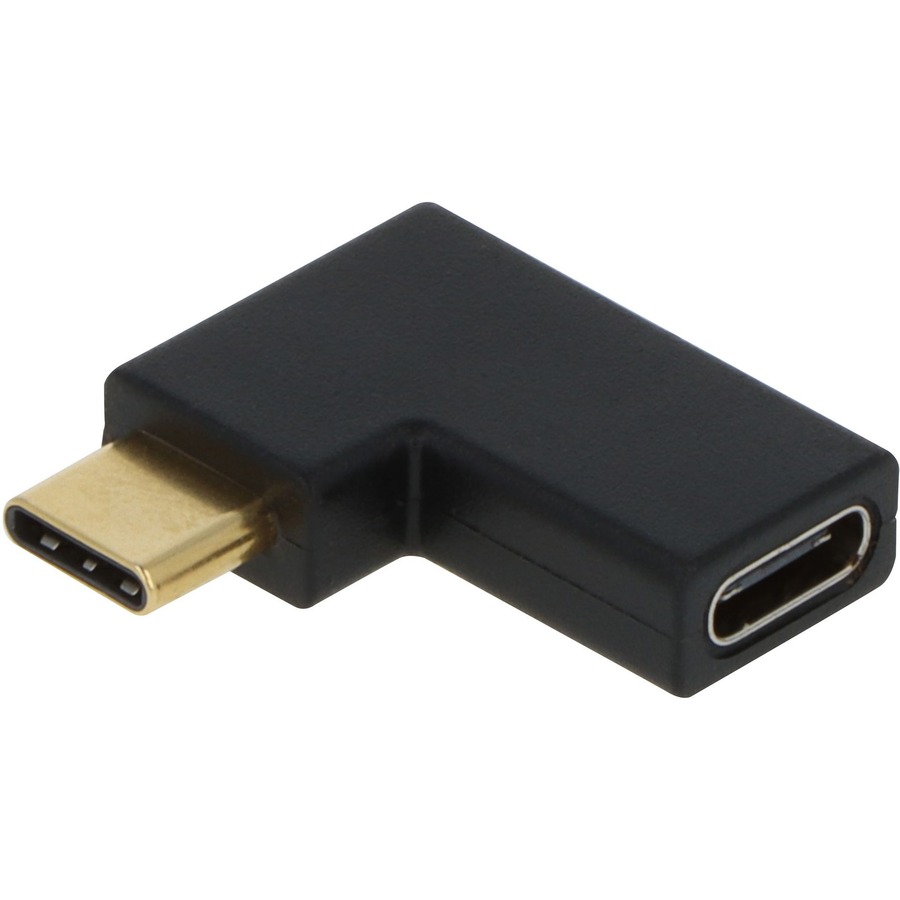

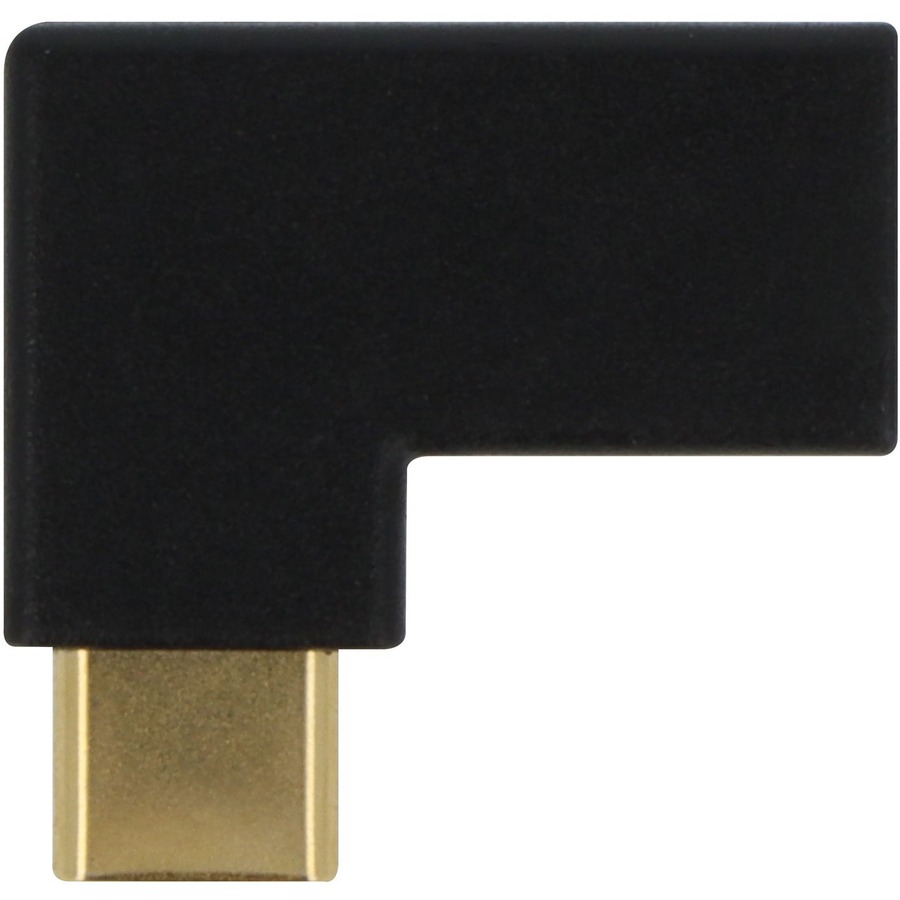

The VisionTek USB-C to USB-C 1 inch adapter supports the most popular features of USB-C.
• Connect it to your power adapter to deliver up to 100W of power to your phone, laptop or tablet.
• Connect your docking station or other device to your system to transfer data at speeds up to 10 Gbps with power delivery (if supported by the device and host).
• Connect it to your monitor for resolutions up to 3840 x 2160 @ 60Hz (4K UHD) on systems that support DisplayPort over USB Type-C.
• Right angle design makes connecting in tight areas quick and convenient.
Thunderbolt 3 systems support all of these features. USB 3.1 Gen 2 supports Data features at 10 Gbps. USB 3.1 Gen 1 supports data at 5 Gbps. Display support will vary based on laptop, desktop and mobile features. Many USB-C laptops feature DisplayPort over USB Type-C. Please consult your manufacturer specifications for feature compatibility.
Key Features
• USB-C to USB-C Right Angle Adapter with Male to Female ends.
• Compatible with USB 3.1 Gen 1 (5 Gbps), USB 3.1 Gen 2 (10 Gbps).
• Charge your device with PD and transmit data simultaneously.
• Up to 100W power delivery support, PD 3.0.
• Up to 10 Gbps SuperSpeed supported.
• Supports resolutions up to 4K UHD 3840 x 2160 @ 60Hz.
• Connect your laptop to power, connect your devies to your system or connect a display to your system, this adapter supports all current USB-C 3.1 features.
Warranty
Limited Warranty: 1 Year
Highlights
AV/data transfer adapter offers superior quality and compatibility for audio, video, and data transfer
Versatile and durable Thunderbolt 3 adapter designed to provide long-lasting performance across supported devices
Achieve high detail and sharp text clarity with 3840 x 2160 resolution for better output
Right-angled Connector feature delivers high productivity with dependable performance
Specifications
General Information
Manufacturer
VisionTek Products, LLC
Manufacturer Part Number
901430
Brand Name
VisionTek
Product Name
USB-C Right Angle Adapter
Product Type
AV/Data Transfer Adapter
Physical Characteristics
Product Color
Black
Technical Information
Adapter Type
Thunderbolt 3
Connector Type on First End
USB 3.1 (Gen 2) Type C - Male
Connector on First End Details
1 x Type C USB 3.1 (Gen 2) Thunderbolt 3 Male
Connector Type on Second End
USB 3.1 (Gen 2) Type C - Female
Connector on Second End Details
1 x Type C USB 3.1 (Gen 2) Thunderbolt 3 Female
Maximum Resolution Supported
3840 x 2160
Features
Right-angled Connector, USB- Power Delivery (USB PD)
