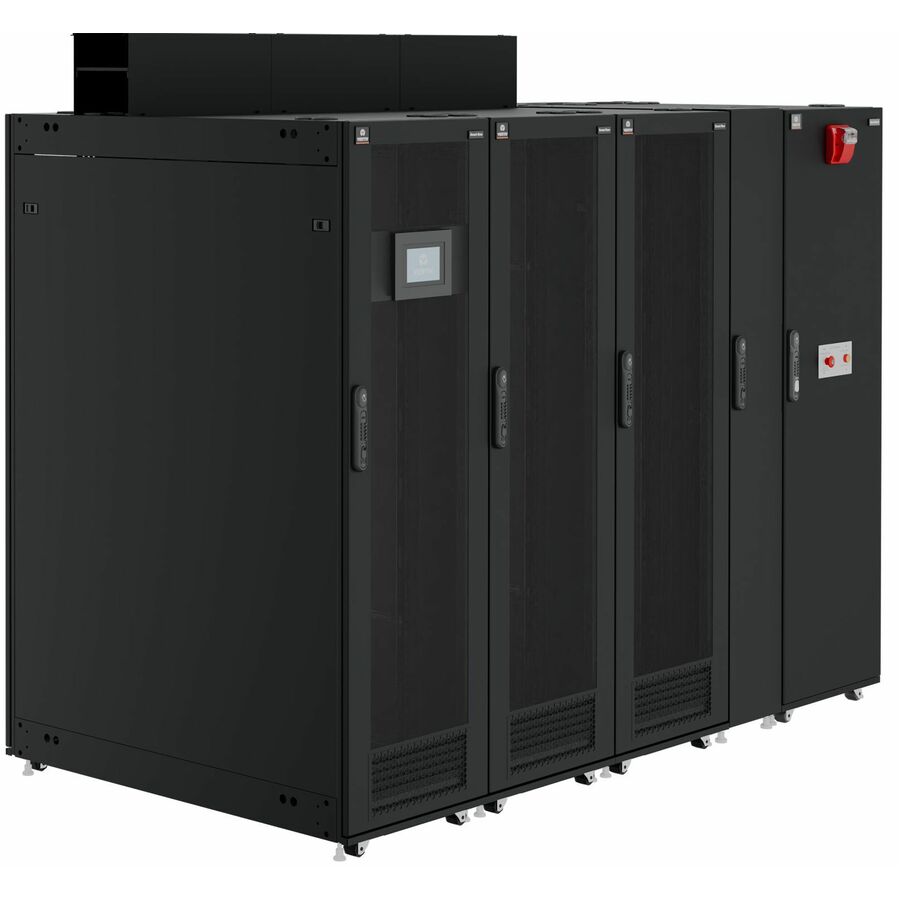

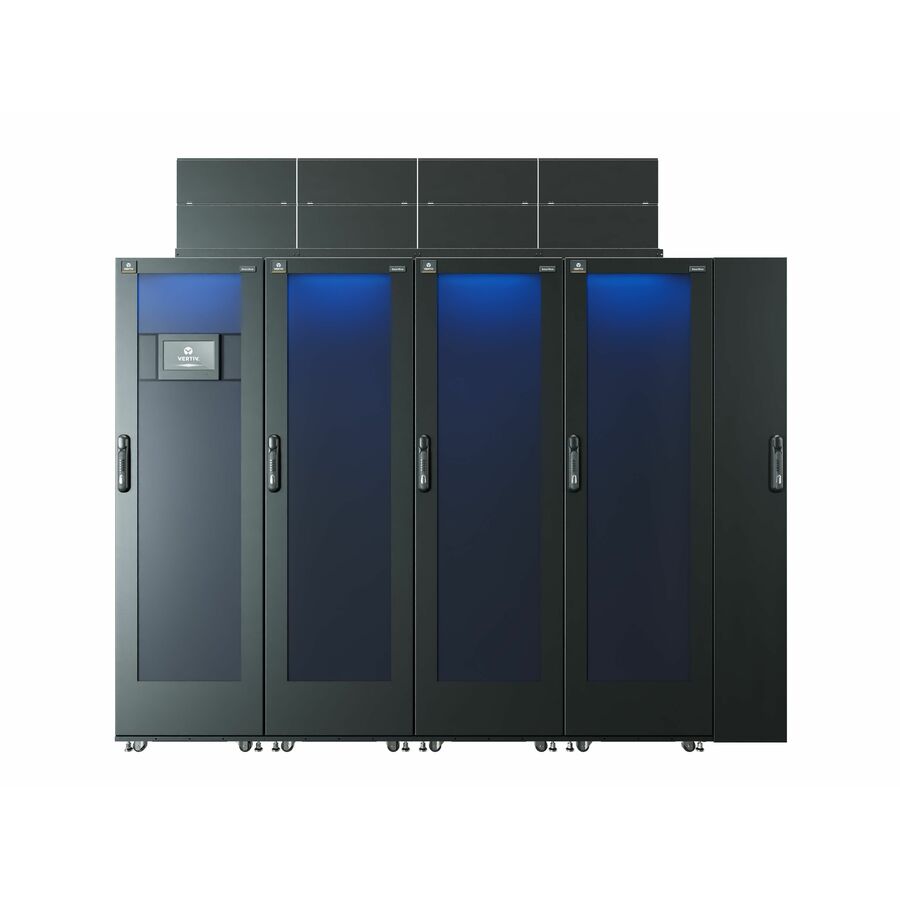

Vertiv? SmartRow? 2 | 3 Racks | 20 kW 208V | Single-Phase (2N) | 1 in-row cooling unit | cold air containment | hot air containment (SR2N03020PAA1)
Pre-engineered | Complete Row-Based Edge Data Center Solution | Power | Cooling | Containment | System-level Remote Management | Redundancy Capability | Centralized IT and Infrastructure Management System | Intelligent Safety and Security | Sustainable Technology
- SKU
- SR2N03020PAA1
- Category
- Integrated Rack Systems
MSRP$269,609.00
$189,099.52
Save 30%Back ordered — ships when restocked.
Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SR2N03020PAA1
- Category
- Integrated Rack Systems
Overview

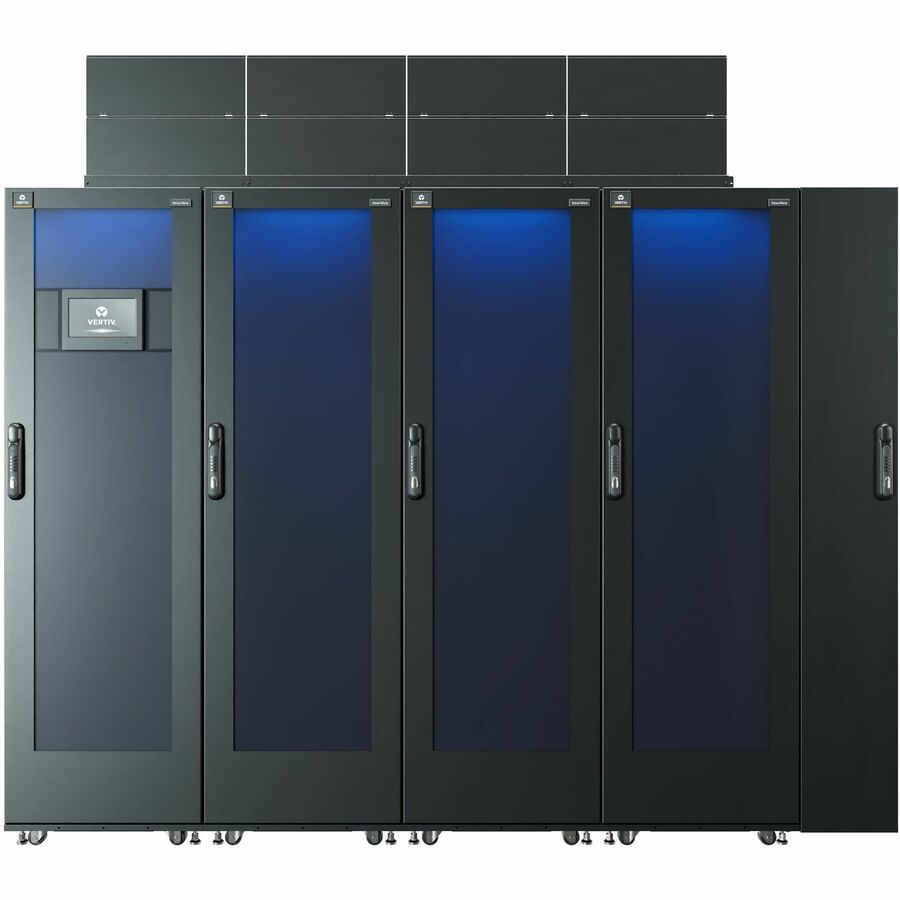

Rather than designing and planning a new edge deployment, the Vertiv SmartRow? 2 is an all-in-one solution designed for Edge computing by global leaders in data center infrastructure. This solution includes 3 IT rack enclosures with true hot and cold aisle containment for high-efficiency cooling. Coupled with multiple temperature sensors in each rack, the 20 kW in-row cooling unit prevents hot spots and modulates capacity, which reduces wear and tear and extends service life. The electrical distribution panel includes input circuit breaker protection, enables fast installation, and has dual power output to provide internal power redundancy (2N) and protect the system from power surges and spikes. Two online double-conversion UPS systems isolate critical IT equipment and the PDUs in each rack from power anomalies and outages. A pre-integrated external maintenance bypass in the UPS allows for service without interrupting power to any connected equipment. More from the Manufacturer
Features
Accelerate Edge Computing Deployments
The Vertiv SmartRow 2 is a deployment-ready solution engineered by global leaders in data center infrastructure. This reduces time spent on planning, design, and site preparation, cutting total deployment time by up to 80%.
Lower Deployment Costs
The solution is engineered by Vertiv to eliminate most of the planning and design that normally comes with a new edge data center deployment. This reduces the labor and planning cost up to 30%.
Integrated Monitoring & Remote Management
Monitor locally with a control panel and remotely via an IP-based webpage, as well as alarm notifications via email or SMS with downloadable activity logs and alarm history.
Flexible Systems Configuration
The SmartRow 2 uses a scalable design architecture that tailors the solution to your needs while remaining room neutral. This allows the system to be placed virtually anywhere.
Pre-assembled and pre-integrated switchboard with surge protection.
Online double conversion UPS with unity power factor ensures clean power feeding to critical IT equipment.
EIA310 19-inch rack system coupled with tempered glass door enables fully enclosed system design. Allows focused cooling in IT environment.
Row-based solution designed to provide maximum cooling in a compact footprint. Cooling modulation enables cooling on demand and quickly adapts to load fluctuation.
Activates automatically in the event of overheating or cooling unit failure.
User-friendly display enables easy access to system running status & condition.
Report critical environmental information and alarm notification. Ensure IT equipment is kept in desired condition.
Enables rack level security and access log is recorded intelligently. Supports local & remote door authorization.
Applications
Product Comparison
SR2N02010NAA1
Max Power Capacity (kW): 10
IT Racks: 2
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 5
Cooling Units : 1
PDU Type: 30 A
PDU Count: 2
Distribution Type: 10kW PMC
Length (mm): 2100 mm
SR2N02010PAA1
Max Power Capacity (kW): 10
IT Racks: 2
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 5
Cooling Units : 1
PDU Type: 30 A
PDU Count: 4
Distribution Type: 10kW PMC
Length (mm): 2100 mm
SR2N02010FAA1
Max Power Capacity (kW): 10
IT Racks: 2
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 5
Cooling Units : 2
PDU Type: 30 A
PDU Count: 4
Distribution Type: 10kW PMC
Length (mm): 2400 mm
SR2N03010NAA1
Max Power Capacity (kW): 10
IT Racks: 3
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 3,3
Cooling Units : 1
PDU Type: 30 A
PDU Count: 3
Distribution Type: 10kW PMC
Length (mm): 2700 mm
SR2N03010PAA1
Max Power Capacity (kW): 10
IT Racks: 3
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 3,3
Cooling Units : 1
PDU Type: 30 A
PDU Count: 6
Distribution Type: 10kW PMC
Length (mm): 2700 mm
SR2N03010FAA1
Max Power Capacity (kW): 10
IT Racks: 3
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 3,3
Cooling Units : 2
PDU Type: 30 A
PDU Count: 6
Distribution Type: 10kW PMC
Length (mm): 3000 mm
SR2N03020NAA1
Max Power Capacity (kW): 20
IT Racks: 3
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 6,6
Cooling Units : 1
PDU Type: 30 A
PDU Count: 3
Distribution Type: 20kW PMC
Length (mm): 2700 mm
SR2N03020PAA1
Max Power Capacity (kW): 20
IT Racks: 3
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 6,6
Cooling Units : 1
PDU Type: 30 A
PDU Count: 6
Distribution Type: 20kW PMC
Length (mm): 2700 mm
SR2N03020FAA1
Max Power Capacity (kW): 20
IT Racks: 3
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 6,6
Cooling Units : 2
PDU Type: 30 A
PDU Count: 6
Distribution Type: 20kW PMC
Length (mm): 3000 mm
SR2N04020NAA1
Max Power Capacity (kW): 20
IT Racks: 4
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 5
Cooling Units : 1
PDU Type: 30 A
PDU Count: 4
Distribution Type: 20kW PMC
Length (mm): 3300 mm
SR2N04020PAA1
Max Power Capacity (kW): 20
IT Racks: 4
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 5
Cooling Units : 1
PDU Type: 30 A
PDU Count: 4
Distribution Type: 20kW PMC
Length (mm): 3300 mm
SR2N04020FAA1
Max Power Capacity (kW): 20
IT Racks: 4
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 5
Cooling Units : 2
PDU Type: 30 A
PDU Count: 8
Distribution Type: 20kW PMC
Length (mm): 3600 mm
SR2N05020NAA1
Max Power Capacity (kW): 20
IT Racks: 5
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 4
Cooling Units : 1
PDU Type: 30 A
PDU Count: 5
Distribution Type: 20kW PMC
Length (mm): 3900 mm
SR2N05020PAA1
Max Power Capacity (kW): 20
IT Racks: 5
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 4
Cooling Units : 1
PDU Type: 30 A
PDU Count: 10
Distribution Type: 20kW PMC
Length (mm): 3900 mm
SR2N05020FAA1
Max Power Capacity (kW): 20
IT Racks: 5
Rack Type
(U x mm x mm): 42Ux600x1400
Capacity per Rack (kW) : 4
Cooling Units : 2
PDU Type: 30 A
PDU Count: 10
Distribution Type: 20kW PMC
Length (mm): 4200 mm
About Vertiv
Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!
Highlights
- One to Two in-row cooling unit with capacity modulation.
- Complete pre-integrated hot and cold aisle containment.
- One to Two online double-conversion UPS, N+1 power redundancy for certain models.
- One to Two Intelligent Rack PDUs in each rack.
- System level control panel and remote management.
Specifications
| Package Contents |
|
|---|---|
| Product Type | Integrated Rack System |
| Manufacturer Part Number | SR2N03020PAA1 |
| Manufacturer | Vertiv |
| Product Name | SmartRow? 2 |
| Brand Name | VERTIV |
