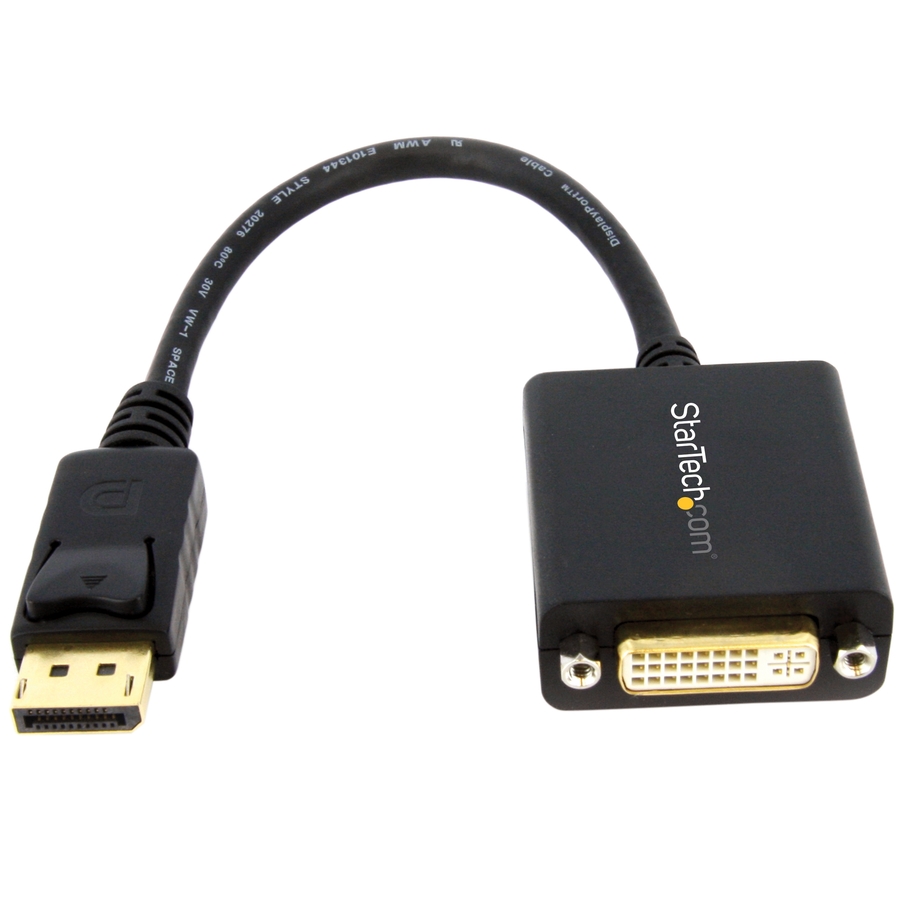

StarTech DisplayPort to DVI Adapter, DisplayPort to DVI-D Adapter/Video Converter 1080p, DP 1.2 to DVI Monitor, Latching DP Connector
Passive DisplayPort 1.2 to DVI-D (DVI-I connector digital only) single-link adapter; 1920x1200/1080p 60Hz; HDCP 1.4; EDID/DDC - DisplayPort to DVI adapter for DP++ source - DP to DVI monitor video converter - Latching DP connector - DisplayPort Cert.
- SKU
- DP2DVI2
- Category
- Connector Adapters
MSRP$15.36
$10.20
Save 34%In stock: 6,501
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- DP2DVI2
- Category
- Connector Adapters
Overview
The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers. Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port. StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter. Backed by a StarTech.com 3-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector | 1920x1200/1080p 60Hz; HDCP 1.4 | 6" (15cm) attached cable | DisplayPort Certified
- COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI adapter | Tested w/ DVI cables up to 25ft | EDID & DDC pass-through ensure compatibility between source & display
- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection | Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection | Compact design
- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS | DisplayPort male to DVI female adapter dongle | Connector is DVI-I, however only a digital signal (DVI-D) passes through
Specifications
| Product Type | Video Adapter |
|---|---|
| Manufacturer Part Number | DP2DVI2 |
| Packaged Quantity | 1 Each |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 1.50 oz |
| Features | Passive, HDCP 1.4, Extended Display Identification Data (EDID), Screw Lock, Latching Connector |
| Manufacturer | StarTech.com |
| Product Name | DisplayPort to DVI Video Adapter Converter |
| Brand Name | StarTech.com |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DVI Digital Video - Female |
| Product Color | Black |
| Color Family | Black |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 29-pin DVI Digital Video - Female |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
