Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
DB92422
Category
Connector Adapters
Overview

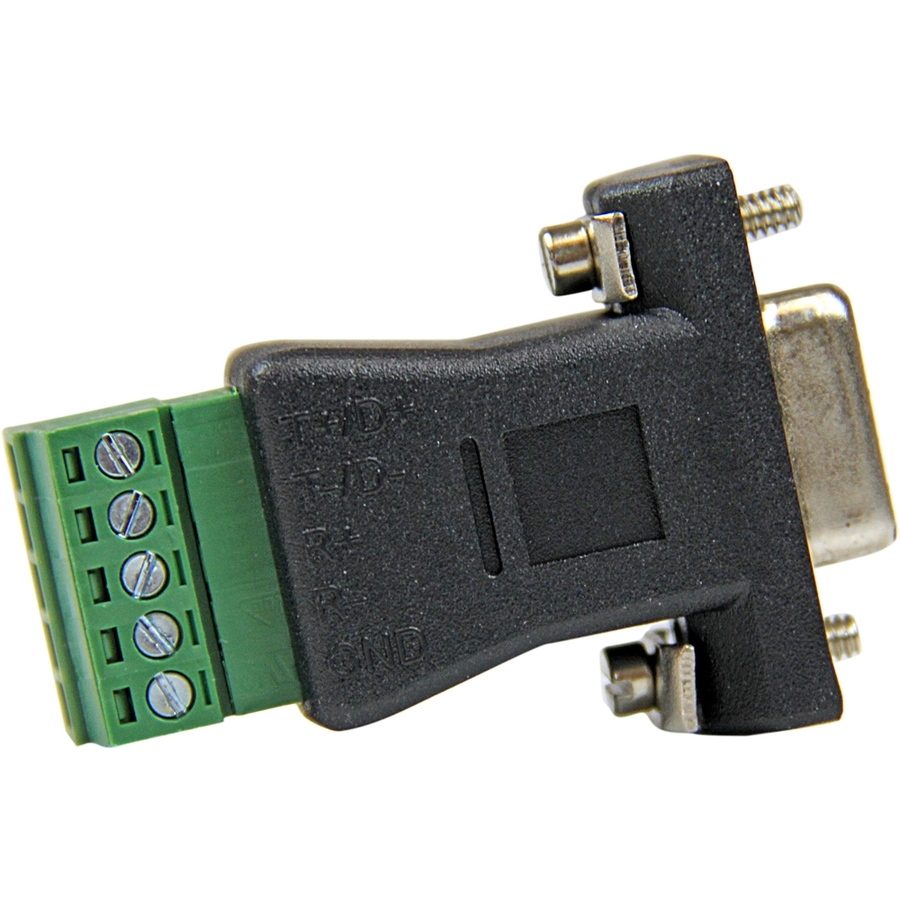

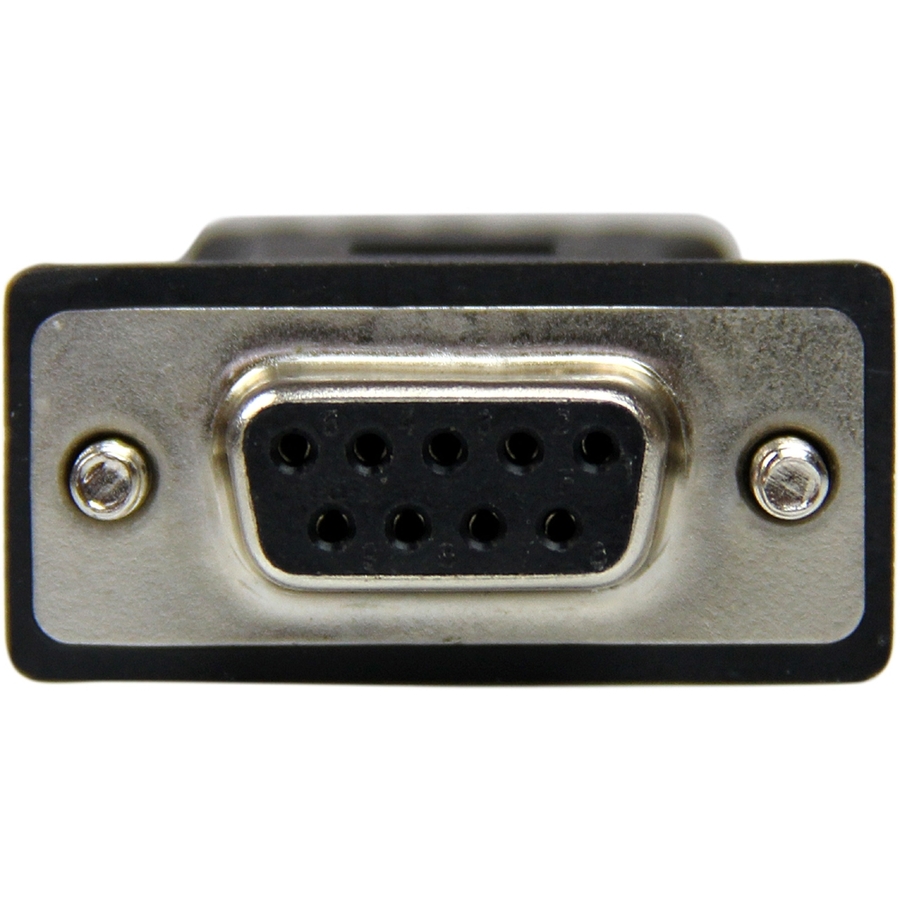

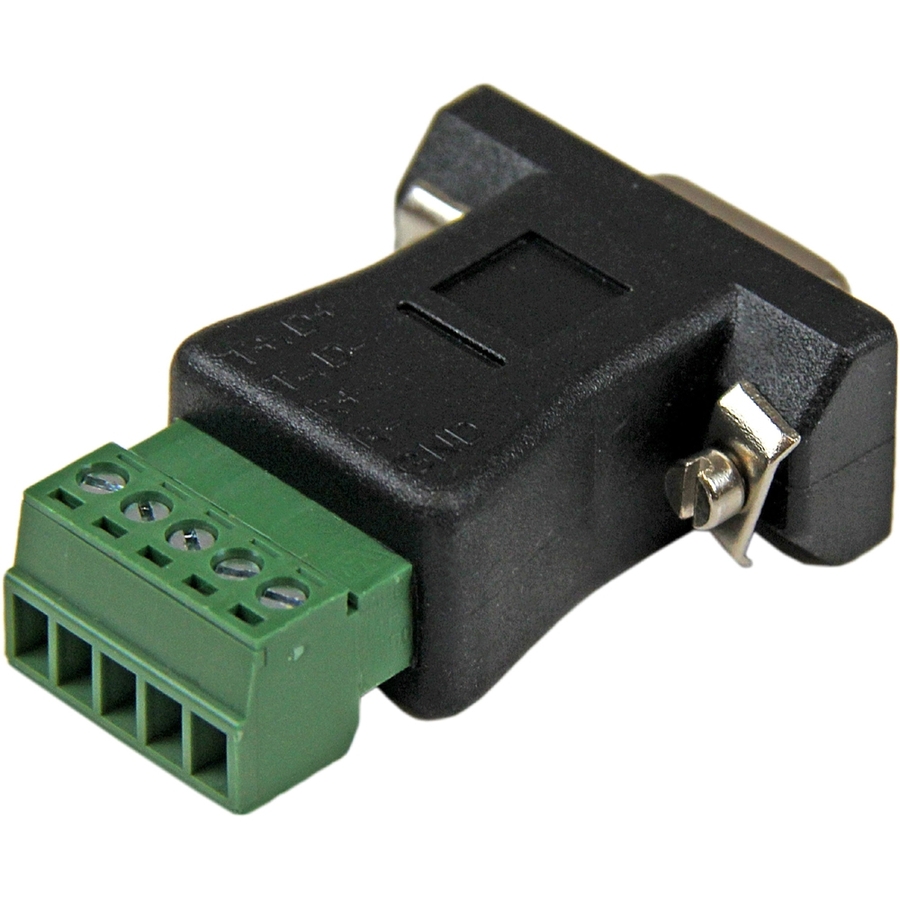

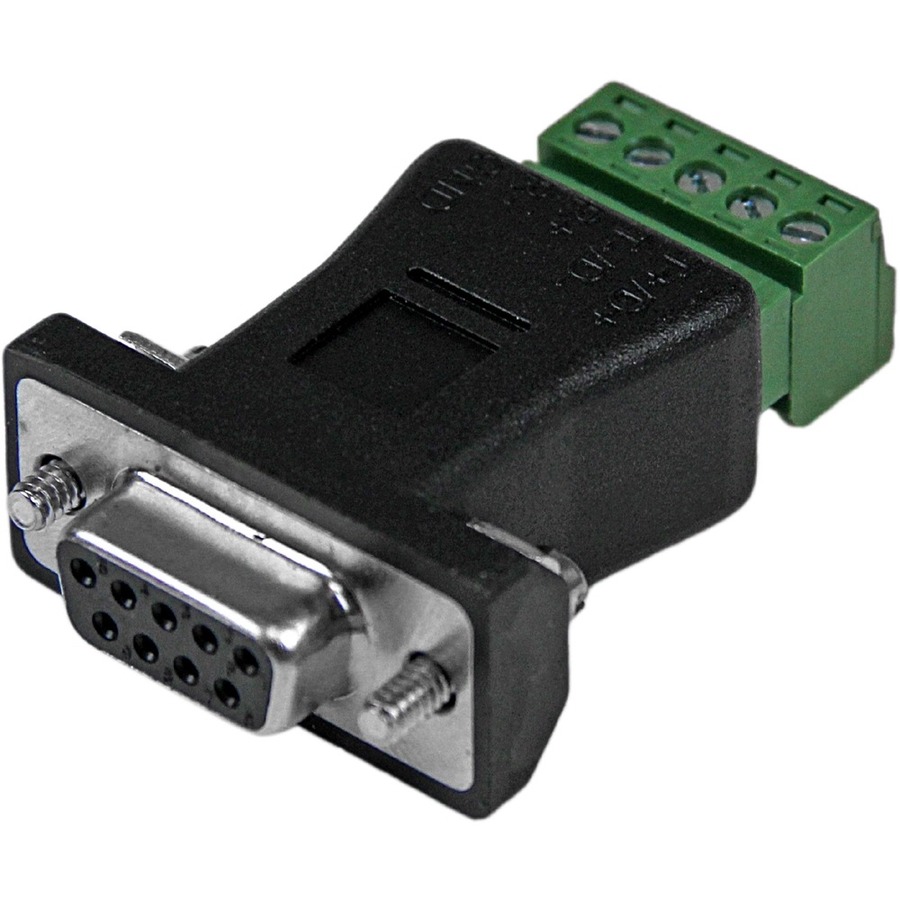

The DB92422 DB-9 to Terminal Block adapter converts an RS-422 or RS-485 DB 9 male serial connector to a terminal block connector. The 5-pin 3.5mm Terminal Block connector supports screw-type wiring to meet the standard for industrial wiring applications. Backed by Lifetime warranty. More from the Manufacturer More from the Manufacturer
The DB92422 DB 9 to Terminal Block adapter converts an RS-422 or RS-485 DB 9 male serial connector to a terminal block connector.
The 5-pin 3.5mm Terminal Block connector supports screw-type wiring to meet the standard for industrial wiring applications. Backed by Lifetime warranty.
Warranty
Limited Warranty: 2 Year
About StarTech.com
The StarTech.com Advantage
We simplify the lives of IT Professionals by making it easy to find the connectivity accessories and information they need and getting products
to their project sites quickly.
StarTech.com products are designed by IT pros, for IT pros, to meet their rigorous technical performance requirements.
Who We Are
While we may manufacture IT connectivity accessories, StarTech.com is truly in the business of making the lives of IT professionals easy.
Founded in 1985 in London, Ontario, Canada by Paul Seed and Ken Kalopsis, StarTech.com has always been dedicated to solving technology problems faced by IT professionals. Originally known as StarTech Computer Accessories, the company had very humble beginnings as a “Visa Card” funded operation, manufacturing products like computer dust covers in the basement of a house. By focusing on the needs of our customers and continual innovation, StarTech.com has evolved into a global organization offering accessories that support over 200 different technologies, from legacy to the latest.
StarTech.com Founder and CEO, Paul Seed’s dedication to making IT solutions easy to implement has not wavered, nor has his passion for the community. From individual contributions to organization wide campaigns, StarTech.com is committed to staying connected to the community and supporting non-profit organizations across the globe.
Highlights
Converts a DB9 male RS422/485 port to a 5 pin terminal block
Supports four wire RS422, RS485, and two wire RS485 modes

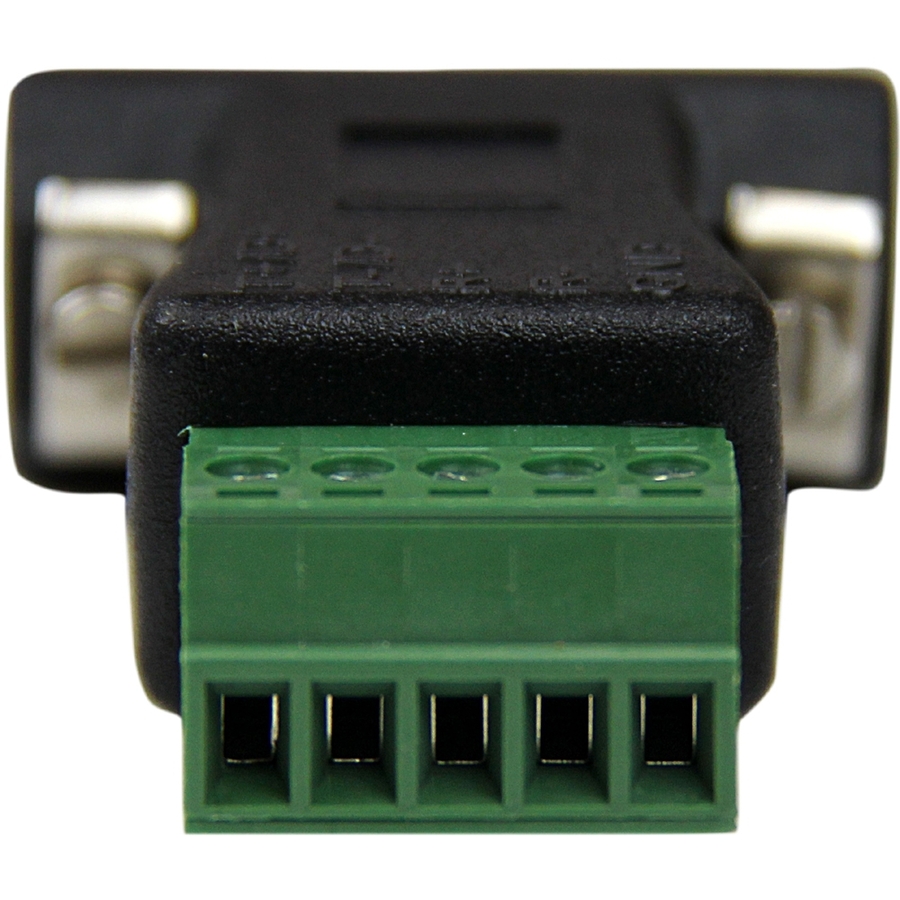

Supports 3.5mm 5 pin terminal blocks
Signal Ground over Terminal blocks supported
Meets Screw-type industrial wireing standards
Specifications
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
DB92422
Brand Name
StarTech.com
Product Model
DB92422
Product Name
RS422 RS485 Serial DB-9 to Terminal Block Adapter
Packaged Quantity
1 Each
Product Type
Data Transfer Adapter
Physical Characteristics
Color Family
Black
Product Color
Black
Weight (Approximate)
0.71 oz
Technical Information
Adapter Type
Serial
Connector Type on First End
DB-9 Serial - Male
Connector on First End Details
1 x 9-pin DB-9 Serial Male
Connector Type on Second End
Terminal Block
Connector on Second End Details
Terminal Block
Warranty
Limited Warranty
2 Year
Miscellaneous
Country of Origin
Taiwan
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
