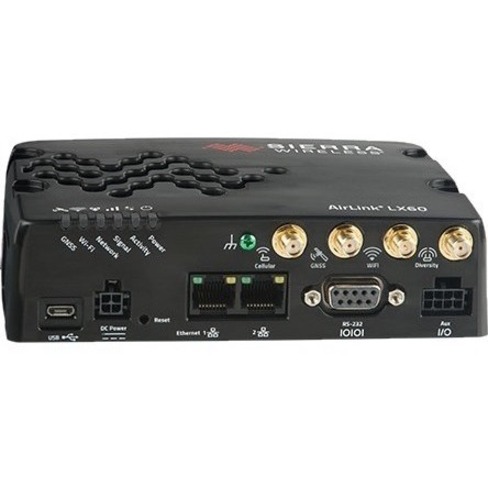

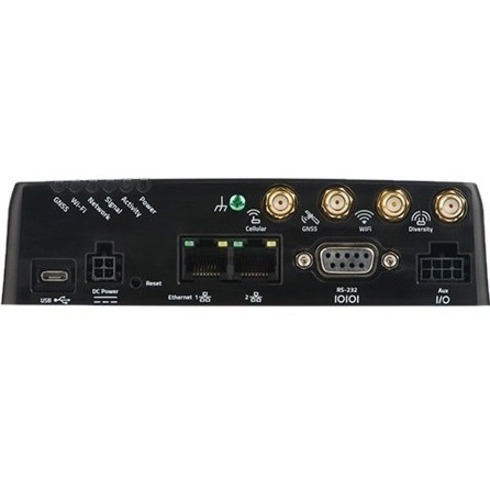

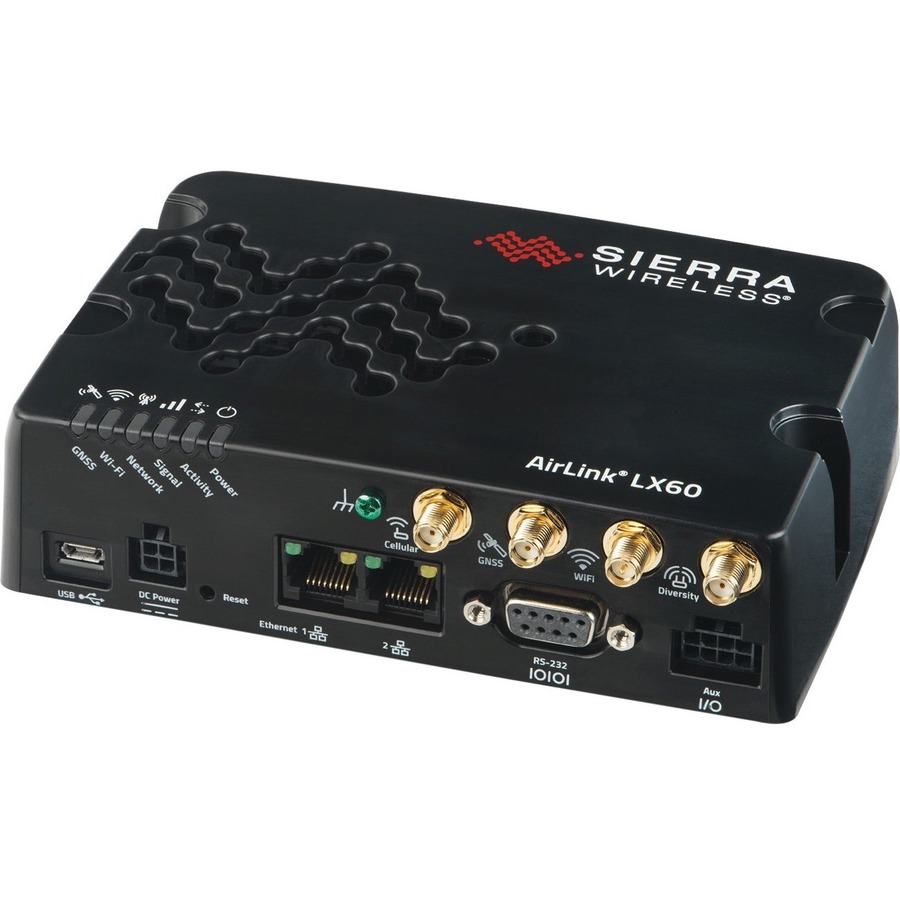

Sierra Wireless AirLink LX60 Wi-Fi 5 IEEE 802.11ac Cellular, Ethernet Modem/Wireless Router
4G - LTE 2100, LTE 1800, LTE 2600, LTE 900, LTE 700, LTE 800, WCDMA 2100, WCDMA 900, GSM 900, GSM 1800 - LTE, HSPA+, GPRS - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 2 x Network Port - USB - Gigabit Ethernet - VPN Supported - DIN Rail Mountable
- SKU
- 1104572
- Category
- Wireless Routers
MSRP$499.00
$441.93
Save 11%Back ordered — ships when restocked.
Genuine Sierra Wireless through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 1104572
- Category
- Wireless Routers
Overview
Dual Ethernet LTE Router, for Primary or Backup Connectivity
The AirLink® LX60 is designed for Commercial and Enterprise LTE network connectivity. Dual Gigabit Ethernet and serial ports make it ideal to connect machines and provide primary or backup network connectivity.
LX60 provides purpose-built, secure, reliable, managed Cellular LTE networking in Building Automation, Digital Signage, Taxis, ATMs, Kiosks and Point-of-Sale terminals.
As part of the AirLink Essential series, the LX60 is designed to meet the environmental and performance requirements of these applications, while delivering superior reliability and uninterrupted operation in fixed, indoor and protected outdoor environments.
LX60 is available with optional Wi-Fi + GNSS and rated for shock, vibration and vehicle power supplies. It offers Dual Band 802.11ac Wi-Fi and dedicated 48 Channel GNSS, meeting the demands of Commercial fleets and Taxis requiring connectivity.
The LX60 comes in LTE Cat 4 regional variants, and a Global LPWA (Low-Power Wide Area) variant offering LTE-M/NB-IoT for applications where low data rates, enhanced cellular coverage and global deployment is required.
Highlights
- Out-of-Box LTE Connectivity: Add LTE connectivity to your existing equipment
- Enables edge processing with optional secure linux-based embedded application framework (ALEOS Application Framework)
- Dual Ethernet, RS232 & RS485 and multiple I/O to connect to a wide variety of field equipment
- LTE and LTE-M/NB-IoT variants for global deployments, and extended coverage and depth (in-building and below ground) to reach challenging locations
- Integrated 7-36VDC industrial grade power supply and -20C to +65C temperature range to provide superior reliability without need for additional power conditioning or adapters
- ALMS Cloud or AMM On-Premises Management single-pane device management across all devices
- GNSS for fleets
Specifications
| Additional Warranty Information | Includes 1st Year AirLink Complete: AirLink Management Service (ALMS) Direct 24/7 Technical Support 3-year standard warranty; optional 2-year warranty extension 1-day Accelerated Hardware Replacement available through participating resellers |
|---|---|
| Package Contents |
|
| Product Type | Modem/Wireless Router |
| Manufacturer Part Number | 1104572 |
| Limited Warranty | 3 Year |
| VPN Supported | Yes |
| Weight (Approximate) | 8.82 oz |
| Network Band | Dual Band |
| Form Factor | DIN Rail Mountable |
| Manufacturer | Sierra Wireless |
| Product Model | LX60 |
| Product Name | AirLink LX60 Dual Ethernet LTE Router |
| Product Line | AirLink |
| Brand Name | Sierra Wireless |
| Height | 1.7" |
| Width | 5.7" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Broadband Transmission Technology | Cellular, Ethernet |
| Wireless LAN Standard | IEEE 802.11ac |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Maximum Frequency | 5 GHz |
| Ethernet Technology | Gigabit Ethernet |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Cellular Data Connectivity Technology | LTE, HSPA+, GPRS |
| Cellular Generation | 4G |
| Cellular Network Supported | LTE 2100, LTE 1800, LTE 2600, LTE 900, LTE 700, LTE 800, WCDMA 2100, WCDMA 900, GSM 900, GSM 1800 |
| Wi-Fi Generation | Wi-Fi 5 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
