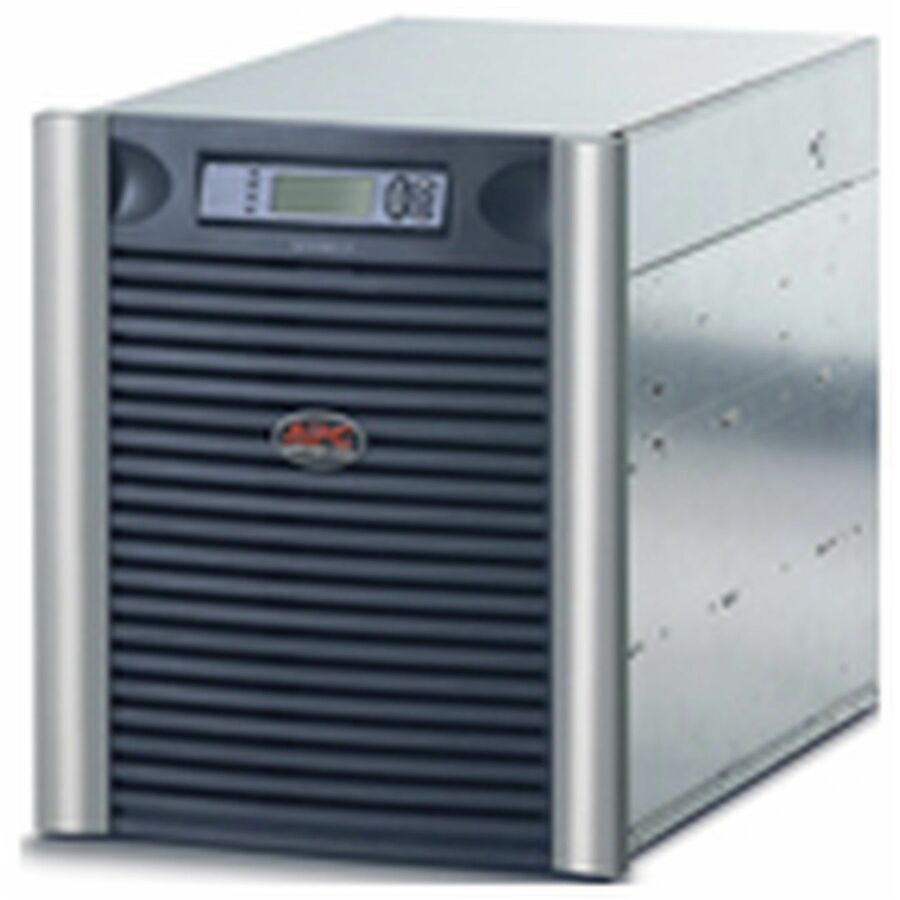

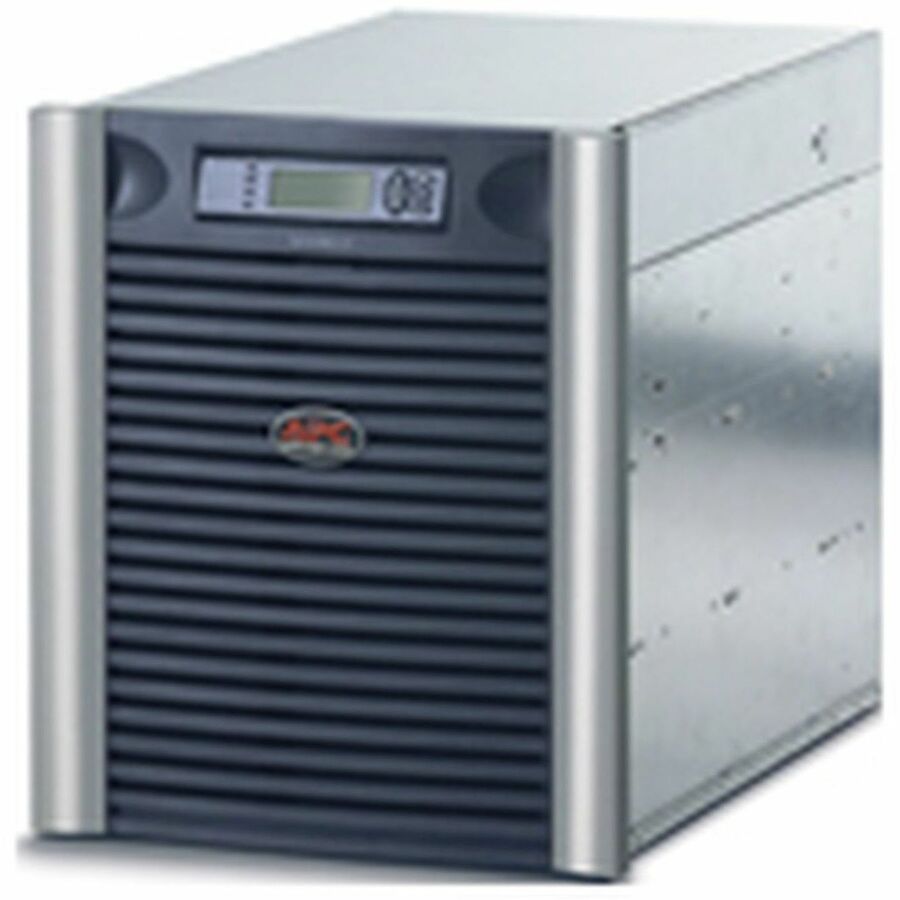

APC Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mount, 220/230/240V or 380/400/415V

13U Rack-mountable - 3 Hour Recharge - 7.50 Minute Stand-by - 220 V AC, 400 V AC, 230 V AC, 240 V AC, 380 V AC, 415 V AC Input - 220 V AC, 230 V AC, 240 V AC Output - 1 x Hard Wire 3-wire (H N + E), 8 x IEC 60320 C13, 6 x IEC 60320 C19 - Sine Wave

SKU: SYA8K8RMI
Category: Industrial UPS

MSRP$26,095.00

$17,599.59

Save 33%

Back ordered

Back ordered — ships when restocked.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SYA8K8RMI
Category: Industrial UPS

Overview

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Warranty

Limited Warranty: 2 Year

Specifications

Battery Chemistry	Lead Acid
Package Contents	Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS CD with software Documentation CD Installation guide User manual Web/SNMP management card
Product Type	Online UPS
Input Voltage	220 V AC, 400 V AC, 230 V AC, 240 V AC, 380 V AC, 415 V AC
Manufacturer Part Number	SYA8K8RMI
Limited Warranty	2 Year
Output Voltage	220 V AC, 230 V AC, 240 V AC
Weight (Approximate)	392.82 lb
Form Factor	Rack-mountable
Manufacturer	Schneider Electric SA
Product Name	Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS
Network Management	SNMP Manageable
Overload Protection	Yes
Product Line	Symmetra
Thermal Dissipation	809.46 W
Waveform Type	Sine Wave
Product Series	LX
Rack Height	13U
Brand Name	APC
Plug/Connector Type	Hard Wire 3-wire
Output Frequency	60 Hz
Height	22.5"
Width	18.6"
Depth	27.1"
Input Frequency	65 Hz
Phase	Single Phase/Three Phase
Receptacle Type	Hard Wire 3-wire (H N + E), IEC 60320 C13, IEC 60320 C19
Environmentally Friendly	Yes
Maximum Operating Temperature	104°F (40°C)
Backup/Run Time (Half Load)	20.20 Minute
Backup/Run Time (Full Load)	7.50 Minute
Battery Characteristics	Spill-proof/Maintenance-free
Load Capacity (VA)	8000 VA
Number of Battery & Surge Outlets	15
Typical Battery Recharge Time	3 Hour
Product Color	Black, Silver
Receptacle Detail	1 x Hard Wire 3-wire (H N + E), 8 x IEC 60320 C13, 6 x IEC 60320 C19
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
