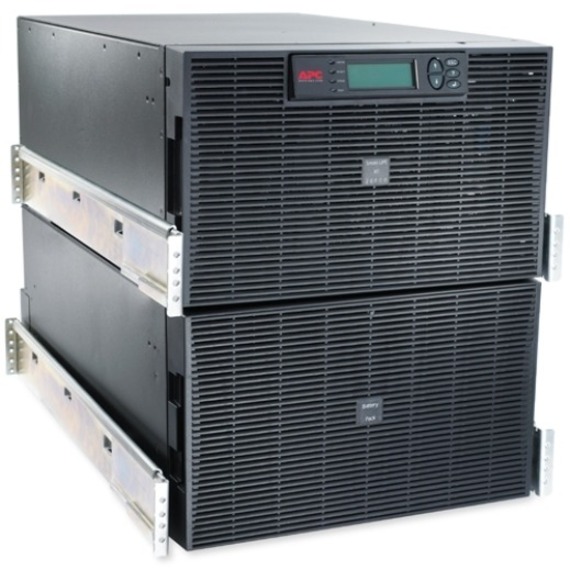

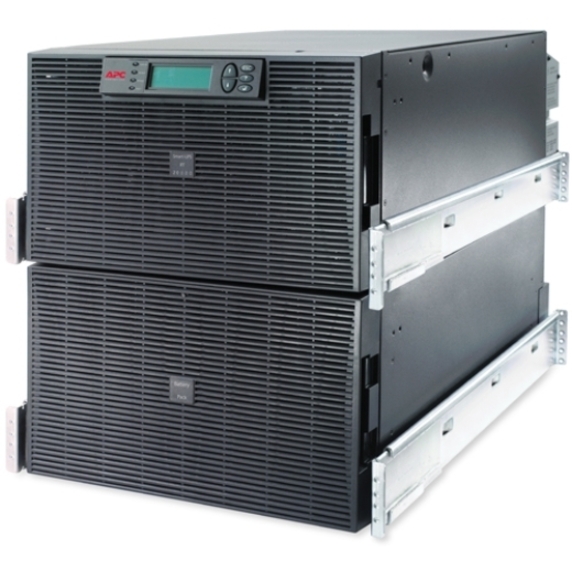

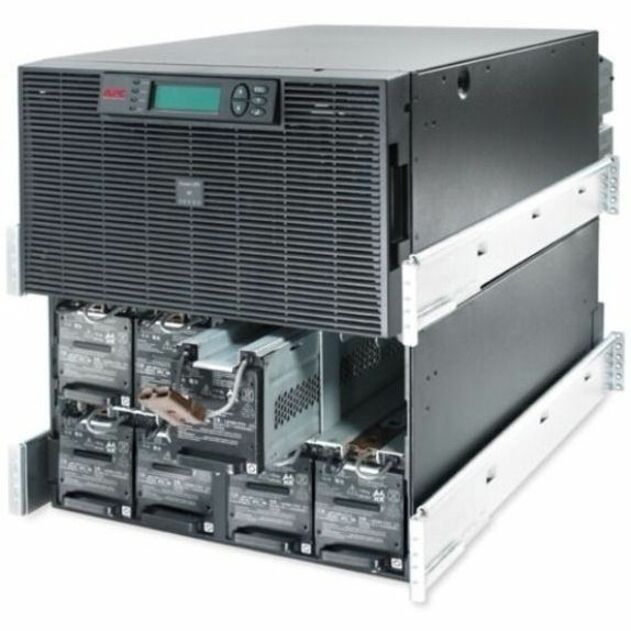

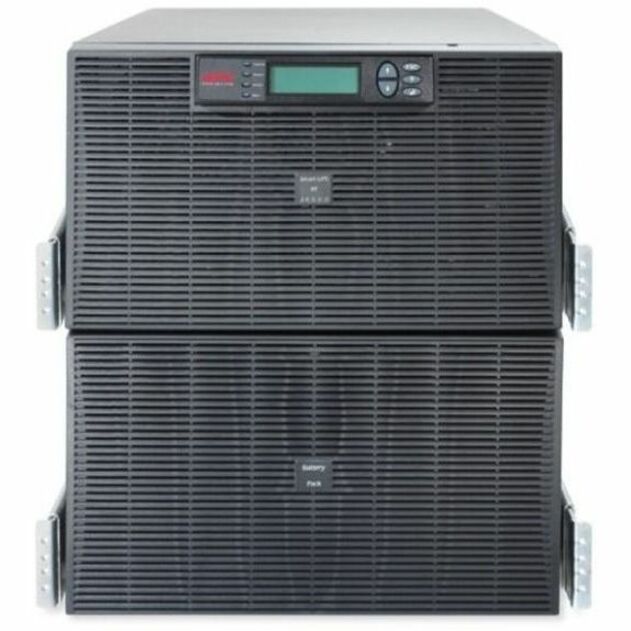

APC Smart-UPS RT 20kVA Tower/Rack-mountable UPS

4.9 Minute - 20kVA - SNMP Manageable

SKU: SURT20KRMXLI
Category: Industrial UPS

MSRP$29,355.00

$18,836.94

Save 36%

Back ordered

Back ordered — ships when restocked.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SURT20KRMXLI
Category: Industrial UPS

Overview

The APC Smart-UPS RT is an online UPS with a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as IEC 60230 C19 and IEC Jumpers. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.

Warranty

Limited Warranty: 2 Year

Specifications

Battery Chemistry	Lead Acid
Package Contents	Smart-UPS RT 20kVA Tower/Rack-mountable UPS CD with software Rack mounting support rails Smart UPS signalling RS-232 cable User manual Web/SNMP management card
Product Type	Online UPS
Input Voltage	220 V AC
Manufacturer Part Number	SURT20KRMXLI
Packaged Quantity	1 Each
Limited Warranty	2 Year
Output Voltage	230 V AC
Weight (Approximate)	546.15 lb
Form Factor	Rack-mountable
Manufacturer	Schneider Electric SA
Product Model	SURT20KRMXLI
Product Name	Smart-UPS RT 20kVA Tower/Rack-mountable UPS
Network Management	SNMP Manageable
Overload Protection	Yes
Product Line	Smart-UPS
Waveform Type	Sine Wave
Product Series	RT
Rack Height	12U
Brand Name	APC
Plug/Connector Type	Hard Wire 3-wire, Hard Wire 5-wire
Country of Origin	Philippines
Height	21"
Width	17"
Depth	30.4"

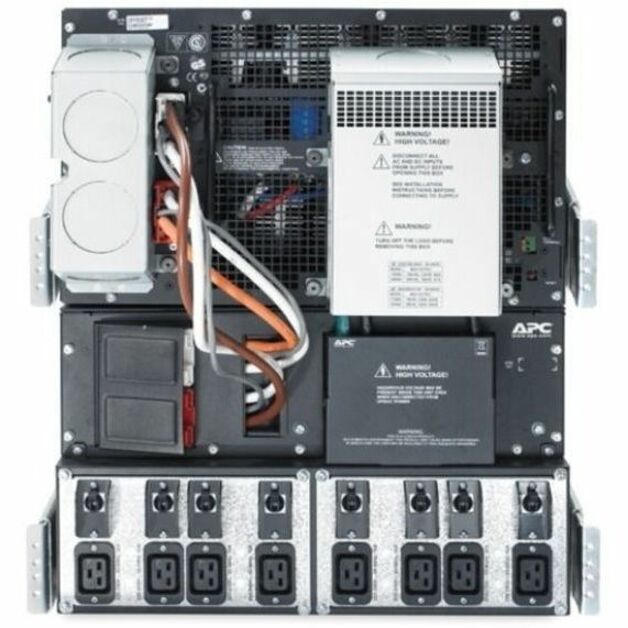

Receptacle Type	Hard Wire 3-wire, Hard Wire 5-wire, IEC 60320 C19, IEC Jumper
Environmentally Friendly	Yes
Network (RJ-45)	Yes
Serial Port	Yes
Battery Characteristics	Maintenance-free/Sealed/Spill Proof
Load Capacity (VA)	20 kVA
Number of Battery & Surge Outlets	21
Typical Battery Recharge Time	2.50 Hour
Product Color	Black
Receptacle Detail	1 x Hard Wire 3-wire, 1 x Hard Wire 5-wire, 8 x IEC 60320 C19, 2 x IEC Jumper
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
