4U Rack/Tower - 1.50 Hour Recharge - 208 V AC, 240 V AC Input - 208 V AC, 240 V AC Output - 1 x Hard Wire 3-wire (2PH + G), 2 x NEMA L6-30R, 2 x NEMA L6-20R - Sine Wave - USB - LCD Display
MSRP$26,370.00
$23,469.30
Save 11%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 8 and Nov 12, then process your delivery right after.
Genuine Schneider Electric through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
With Smart-UPS Ultra you can put up to 10000W of power protection in places never before possible. Make installation effortless with a 10kW UPS that is 30% smaller and lighter than any comparable UPS. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. EcoStruxure Ready Smart-UPS provides visibility anywhere, anytime. Standard warranty, 5 years repair or replace.
More from the Manufacturer
Key features
Runtime
Hot Spots
(1) High-resolution LCD
Auto-rotating display with virtual touch keys for horizontal or vertical installation
(2) LED status indicator
green, amber or red in case of an event
(3) SmartSlot™
Add an accessory card or a network management card
(4) Embedded network management card
Enables network-based monitoring and management of UPS
(5) EcoStruxure™ ready
Connect to EcoStruxure™ IT via the embedded network port
(6) Extended runtime options
Connect up to 10 external battery packs for extended runtime needs

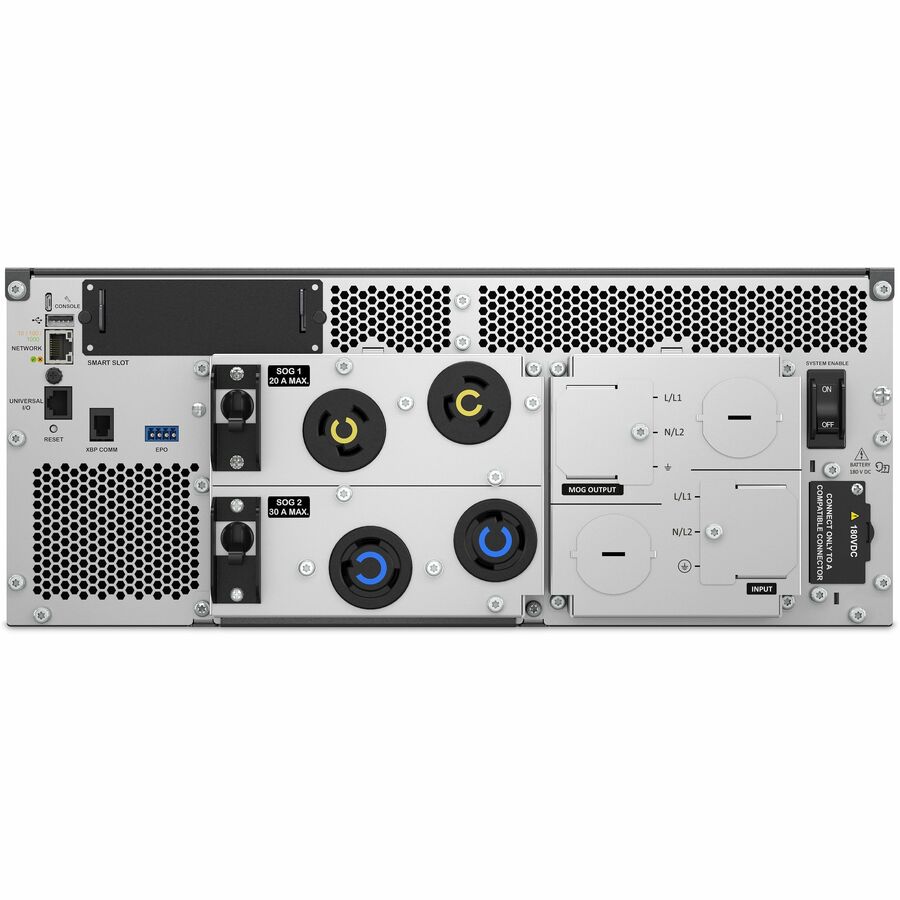

(7) 4 outlets in 4U
(2) L6-20R with 20A CB, (2) L6-30R with 30A CB outlets Including 2 switched outlet groups
FAQ
How is Smart-UPS Ultra 10kVA just 4U in height?
We leveraged the combination of innovative UPS Design, next-generation semiconductor technology and lithium-ion batteries allowed us to create the smallest, lightest 10kVA UPS to date.
Will I need to replace the UPS Lithium-ion batteries?
Smart-UPS Ultra features Lithium-ion batteries designed to last as long as the UPS. No replacement will be necessary under normal operating conditions.
Does Smart-UPS Ultra offer extended runtime options?
Yes, Smart-UPS Ultra supports up to 10 APC external battery pack SRTL180RM2UBP.
How long is the Smart-UPS Ultra warranty?
There is a 5-year warranty for both the electronics and the internal batteries.
Comparison Table
About APC
APC, a flagship brand of Schneider Electric, provides clean battery backup power, surge protection, and IT physical infrastructure inside and outside the traditional IT environment. Through our APC brand products and solutions, we offer certainty in a connected world. Certainty that our reliable, integrated physical infrastructure solutions are based on the fundamental premise that your data and information should — and always will be — accessible.
Limited Warranty: 5 Year
APC by Schneider Electric Smart-UPS Ultra On-Line 10000VA Rack/tower UPS
| Battery Information | |
|---|---|
| DC System Voltage | 180 V DC |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 1.50 Hour |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission | 55 dB |
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL10KRM4UT |
| Brand Name | APC |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra On-Line 10000VA Rack/tower UPS |
| Packaged Quantity | 1 / Pack |
| Product Type | Online UPS |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| EPO Port | Yes |
| Management | |
| Network Management | Network Card |
| Physical Characteristics | |
| Product Color | Silver Gray |
| Form Factor | Rack/Tower |
| Rack Height | 4U |
| Height | 6.9" |
| Width | 17" |
| Depth | 32.8" |
| Weight (Approximate) | 121.25 lb |
| Power Description | |
| Load Capacity (VA) | 10000 VA |
| Load Capacity (Watt) | 10 kW |
| Input Voltage | 208 V AC, 240 V AC |
| Output Voltage | 208 V AC, 240 V AC |
| Input Frequency | 50 Hz, 60 Hz |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 1410 J |
| Technical Information | |
| Plug/Connector Type | Hard Wire 3-wire |
| Receptacle Type | Hard Wire 3-wire (2PH + G), NEMA L6-30R, NEMA L6-20R |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G), 2 x NEMA L6-30R, 2 x NEMA L6-20R |
| Phase | Single Phase |
| Efficiency | 96.4% |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), China Restriction of Hazardous Substances (China RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
