Overview

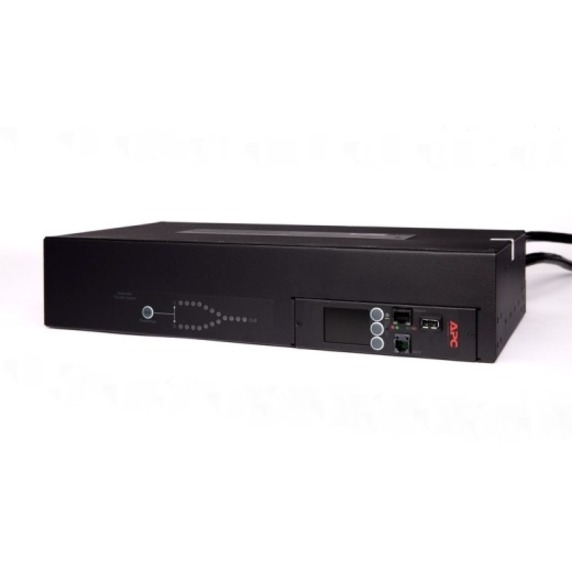

APC Rack Automatic Transfer Switches (rack ATS) provide reliable, redundant rack mount power to single-corded equipment. The rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. The Rack ATS has built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.
Warranty
Limited Warranty: 2 Year
Highlights
10 kAIC Overcurrent Protection - Provides protection in the event of a significant overcurrent event.
Command line interface - Offers simultaneous remote management access through Telnet and SSH
Current Monitoring - Monitors the aggregate current draw per power distribution unit.
Cyber security - A cyber-secure connection provides improved security for your infrastructure devices, and machine data forms the basis of operational insights and analytics, aimed at reducing equipment maintenance costs.
Local Current Monitoring Display - The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Quick Transfer Rate - Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Remote Management Capabilities - Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
RoHS - Certifies that electronic devices don't contain hazardous metals and flame retardants
StruxureWare Data Center Expert compatible - Enables centralized management via StruxureWare Data Center Expert.
Specifications
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP4431
Brand Name
APC by Schneider Electric
Product Name
Rack ATS, 208V, 30A, (2) L6-30P in, (1) L6-30R Out
Product Type
Automatic Transfer Switch
Physical Characteristics
Color Family
Black
Product Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.5"
Width
17"
Depth
9.3"
Weight (Approximate)
14.30 lb
Power Description
Input Voltage
208 V AC
Output Voltage
208 V AC
Current
30 A
Technical Information
Plug/Connector Type
NEMA L6-30P
Receptacles
1 x NEMA L6-30R
Protection Type
Over Current
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
Rack ATS, 208V, 30A, (2) L6-30P in, (1) L6-30R Out
